currently they are exported like normal MFDs. I need to create independent exports for them, because I need to change they size so that I can have them it into my TM mfds.



What is their specific names so I can create an export entry for them ?



Thanks a lot

Edited by FZG_Immel
solved and explained

[sIGPIC]https://forums.eagle.ru/signaturepics/sigpic70550_3.gif[/sIGPIC]

Asus Z390-H - SSD M.2 EVO 970 - Intel I9 @5.0ghz - 32gb DDR4 4000 - EVGA 3090 - Cougar FSSB + Virpil WRBRD + Hornet Stick - Thrustmaster TPR Pedal + WinWing MIP + Orion + TO and CO pannels - Track IR5

Posted
currently they are exported like normal MFDs. I need to create independent exports for them, because I need to change they size so that I can have them it into my TM mfds.



What is their specific names so I can create an export entry for them ?



Thanks a lot





default viewport names defined:



Mods\aircraft\JF-17\Cockpit\Scripts\MFCD

'LEFT_MFCD' in MFCD_init_LEFT.lua

'CENTER_MFCD' in MFCD_init_CENTER.lua

'RIGHT_MFCD' in MFCD_init_RIGHT.lua





you can change them as you wish.

Posted (edited)

Ok, I managed to export the MFDS from my monitorsetup file, so that they have a different placement and sizing than the hornet or harriers MFDs.. to do so I modified these three files in Mods\aircraft\JF-17\Cockpit\Scripts\MFCD



'LEFT_MFCD' in MFCD_init_LEFT.lua

'CENTER_MFCD' in MFCD_init_CENTER.lua

'RIGHT_MFCD' in MFCD_init_RIGHT.lua



example from the first file :



dofile(LockOn_Options.script_path.."MFCD/MFCD_pageID_defs.lua")

mfcd_id = MFCD.LMFCD



dofile(LockOn_Options.script_path.."MFCD/MFCD_init_COMMON.lua")



-- debugGUI = true



init_pageID = PAGE_ID.PAGE_ID_EFIS





dofile(LockOn_Options.common_script_path.."ViewportHandling.lua")



-- MFCD position in HUD only view

-- MFCD_set_screenspace_displacement(3/4, -1, 0.8)

local w = LockOn_Options.screen.width;

local h = LockOn_Options.screen.height;



local hud_only_view_position = best_fit_rect(0, h * (1 - 50/120), w/3 , h * 50/120, Viewport_Align.left, Viewport_Align.vcenter, MFCD_aspect)

dedicated_viewport = hud_only_view_position

dedicated_viewport_arcade = hud_only_view_position



-- render_purpose.GENERAL

-- try_find_assigned_viewport('LEFTJ_MFCD')



local default_viewport = find_viewport('LEFTJ_MFCD')

if default_viewport then

dedicated_viewport = {default_viewport.x, default_viewport.y, default_viewport.width, default_viewport.height}

dedicated_viewport_arcade = {default_viewport.x, default_viewport.y, default_viewport.width, default_viewport.height}

purposes = {render_purpose.GENERAL, render_purpose.SCREENSPACE_INSIDE_COCKPIT, render_purpose.HUD_ONLY_VIEW}

render_target_always = true

end



in red, the lines I modified and in bold the letter I added (J, for JF17)



I did the same for the RIGHT and CENTER file, adding a J in those two lines.



then, in my monitorsetup file, I added 3 new entries for those



LEFTJ_MFCD =

{

x = 3958.0;

y = 290.0;

width = 396;

height = 560;

}



RIGHTJ_MFCD =

{

x = 5227.0;

y = 290.0;

width = 396;

height = 560;

}



CENTERJ_MFCD =

{

x = 4590.0;

y = 480.0;

width = 396;

height = 560;

}



for reference, here are the original exports of my hornet and harrier mfds, so you can see the difference.



I had to change the size (proportions) and placement a bit



LEFT_MFCD =

{

x = 3953.0;

y = 248.0;

width = 406;

height = 406;

}

RIGHT_MFCD =

{

x = 5222.0;

y = 248.0;

width = 406;

height = 406;

}

CENTER_MFCD =

{

x = 4585.0;

y = 438.0;

width = 406;

height = 406;

}



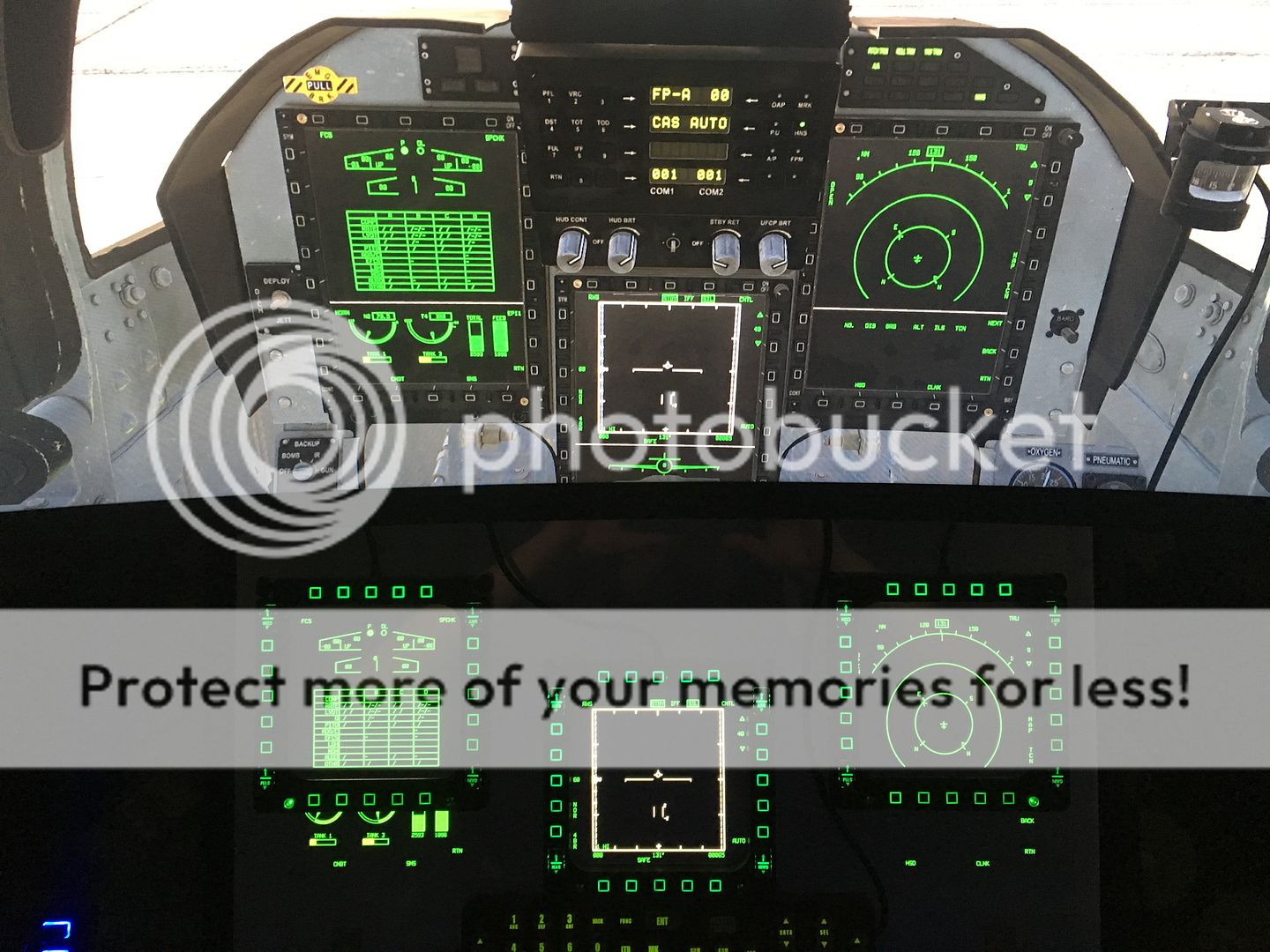

as you can see, this is a compromise, given that they are below my thrustmaster MFDs, and also for the center one, there is my A-10C UFC. but it kinda works.
