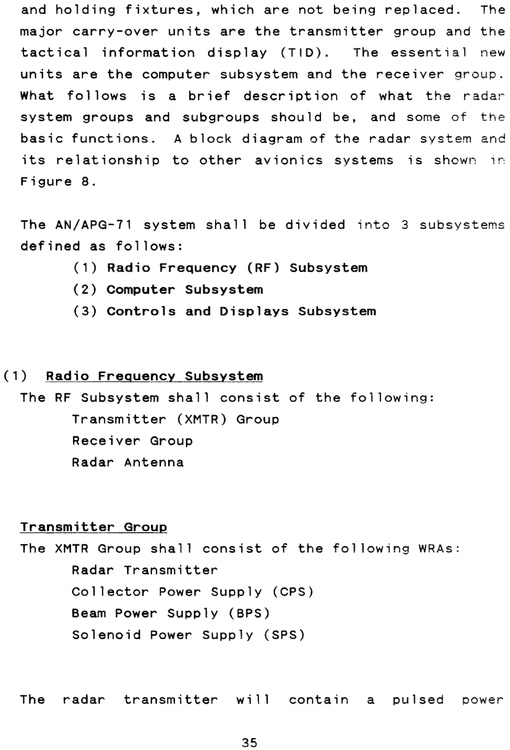

Some information about APG-71 in the Doc

[FWind]

The relationship between transmitter and missile data link, maybe same thing in AWG-9

https://vtechworks.lib.vt.edu/bitstream/handle/10919/46366/LD5655.V851_1993.R496.pdf?sequence=1&isAllowed=y

[illegal1984]

Way too much still classified about APG-71 because of digital processing components. Shared commonality in APG-70 and particularly hand-me-down modules in APG-82 and APG-79, make it a non-starter.

[AH_Solid_Snake]

While its possible that some of this might also be relevant to the AWG-9 you'd need direct source material to prove it. As best as I recall the only things retained for the 71 from the 9 was stuff like the transmitter and power supply, all the clever black boxes are new.

[Blaze1]

5 hours ago, illegal1984 said:

Way too much still classified about APG-71 because of digital processing components. Shared commonality in APG-70 and particularly hand-me-down modules in APG-82 and APG-79, make it a non-starter.

I disagree with the caveat that it would depend on the level of fidelity the developers are seeking to model.  ED are developing the APG-73 and APG-68 for the Hornet and Viper respectively.  Both radars are still in service and feature some classified modes of operation.

Edited April 20, 2021 by Blaze1

[Spurts]

10 hours ago, Blaze1 said:

I disagree with the caveat that it would depend on the level of fidelity the developers are seeking to model.



Which means it is a non-starter for HB.  They model their radars beyond what ED does, which is why the Viggen had a functioning AG radar for years before the Hornet.

[Blaze1]

8 hours ago, Spurts said:

Which means it is a non-starter for HB.  They model their radars beyond what ED does, which is why the Viggen had a functioning AG radar for years before the Hornet.

Not sure if it's as quick and dirty as that Spurts.  I think HB need a minimum level of technical information before they're prepared to model a system.  I could be wrong, but I'm of the belief that HB's minimum level can be reached before venturing into the classified domain.

[Spurts]

@Blaze1It may or may not be the case that they have what they would need for the APG-71, but there are many D model systems they have explicitly said they do not have the data for.

[Blaze1]

2 hours ago, Spurts said:

@Blaze1It may or may not be the case that they have what they would need for the APG-71, but there are many D model systems they have explicitly said they do not have the data for.

I agree.
