Gauges export

[Maverick96]

Hey guys, do you know if is there some other softwere to export mfd and other f16 gauges to a second monitor ? I have used Helios with capt zeen profile, but i dont understand why it does not work

[MAXsenna]

Hey guys, do you know if is there some other softwere to export mfd and other f16 gauges to a second monitor ? I have used Helios with capt zeen profile, but i dont understand why it does not work

Ikarus is another one. But both Helios and Ikarus does not export the MFDs. What do you actually want to know?

Cheers!

Sent from my SM-A536B using Tapatalk

[Maverick96]

i'm building my own pit and i have vo export gauges like mfd, adi, hsi ecc.

Thanks

[MAXsenna]

i'm building my own pit and i have vo export gauges like mfd, adi, hsi ecc.
Thanks

How did you set it up then?

Sent from my SM-A536B using Tapatalk

[Maverick96]

i will use  two lcd screen for mfd and one lcd screen for central console

[MAXsenna]

i will use  two lcd screen for mfd and one lcd screen for central console

Not what I meant. How in Helios? I'll get some screenshots when I get home.

Cheers!

Sent from my SM-A536B using Tapatalk

[Maverick96]

Ahh ok Now i have understand.

so, when i will can i will up some pictures.
for now i have an other problem: i have set from setting resolution to ‘Helios’ and now i can’t see nothing like this:

https://ibb.co/MG8zWL9



also if i go to setting i cant see nothing only blue

Edited October 16, 2023 by Maverick96

[MAXsenna]

Ahh ok Now i have understand.
so, when i will can i will up some pictures.
for now i have an other problem: i have set from setting resolution to ‘Helios’ and now i can’t see nothing like this:
https://ibb.co/MG8zWL9

also if i go to setting i cant see nothing only blue

Show me the screen arrangement in Windows, and I will be able to tell you what to do.

Sent from my SM-A536B using Tapatalk

[Maverick96]

13 hours ago, MAXsenna said:

Show me the screen arrangement in Windows, and I will be able to tell you what to do.

Sent from my SM-A536B using Tapatalk


Yes, Thank you.

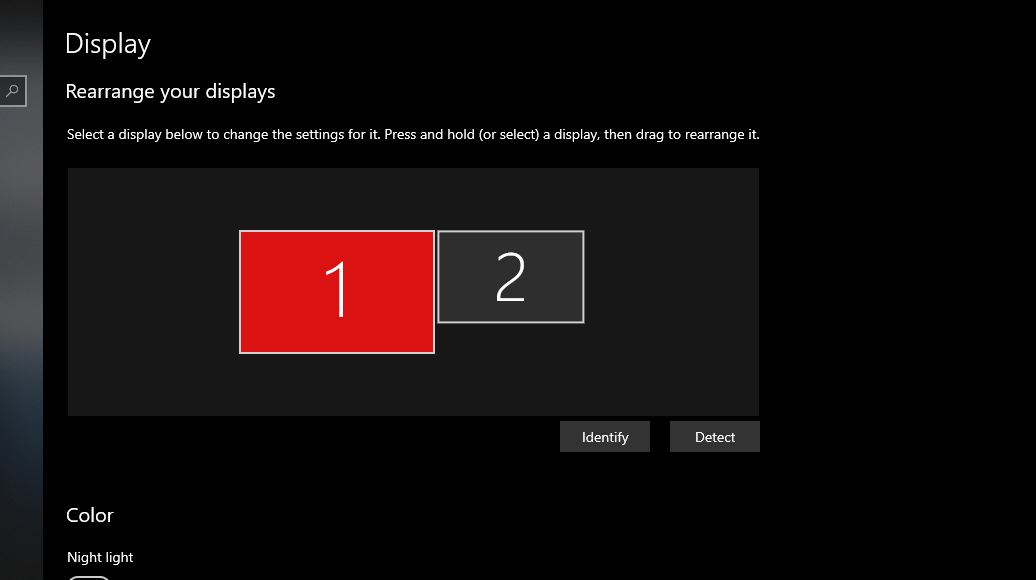

This is my screen arrangement.
the problem is that i was trying to set Helios and i have put ‘Helios’ in dcs screen resolition, afrer that i didn’t see anymore only blue background.
https://ibb.co/MMwsMwz

[Maverick96]

I solved now deleting config folder in my dcs game folder ahahH.

now the question is the same how can i export gauges like mfd, adi altimeter ecc ?

thanks for the help

[MAXsenna]

On 10/17/2023 at 11:06 AM, Maverick96 said:

I solved now deleting config folder in my dcs game folder ahahH.

now the question is the same how can i export gauges like mfd, adi altimeter ecc ?

thanks for the help

Two things. MFDs are different from gauges. MFDs are "screens" and gauges use the export.lua.

This is why I need to see your screen setup, and to be honest you just ask "how", without giving any info of what you've tried, so I just have to guess your issues.
Lets start with MFDs only.

So, take a screenshot in Windows of your screen arrangement. Press "LWin + LSfht + S" to get this:

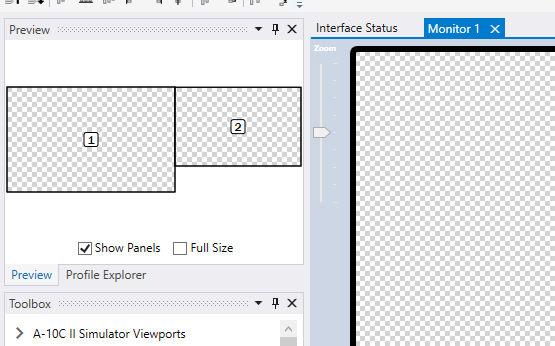

Start Helios, and you will see the same.

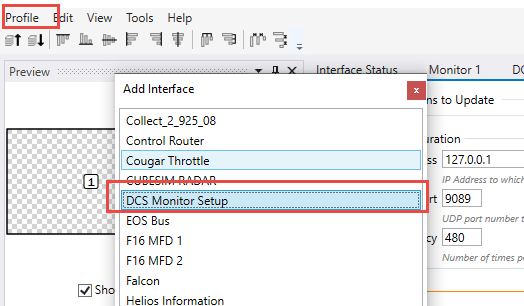

Click "Profile - Add Interface - DCS Monitor Setup - Add"

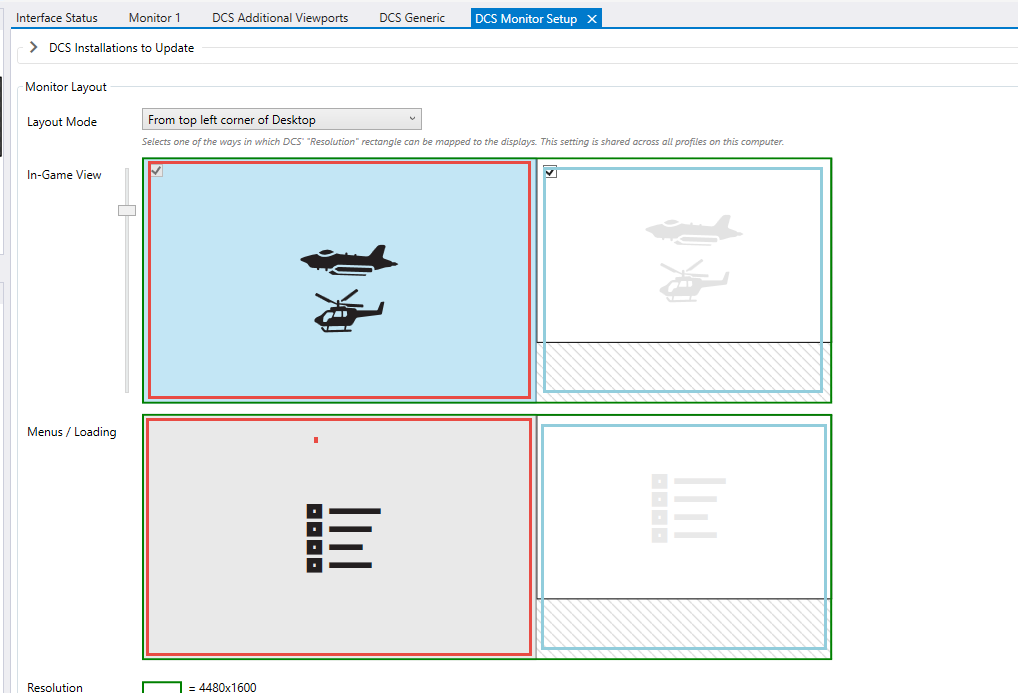

Now, depending on your screen setup, you want all the screens to be used, (green rectangle), but you only want to display the GUI and game on your main screen, (red rectangle), so all your mini screens should be grayed out, (blue rectangle). I admit it took a me a few tries to grasp the concet myself, but once you get it, it's easy.

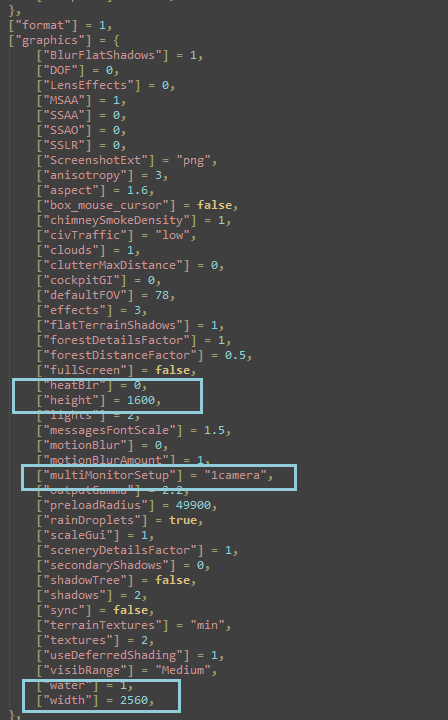

Can you try this first? Remember to save the profile as whatever, and Helios will write/update the correct monitor file, and you need to select Helios in DCS again. If you run into your last issue, download Notepad++ and open and edit the options.lua file, back to your original resolution.

Cheers!





Edited October 18, 2023 by MAXsenna
Added screens and text

[Maverick96]

thank you very much dear, when I will go home I will post the pictures of my setting. thanks for the help
