Quest 2 scene "vibrating" around the edges and airborne objects ghosting/smearing

[Granny]

Hello

I am continuing to have two issues in DCS 2.9, in VR on my Quest 2.

First, In straight and level flight everything is fine.  When executing a rolling maneuver the scene has "vibration". I don't think its stutter, because the actual roll maneuver is smooth and the scene at the aircraft's 12 O'clock is smooth.  The vibration is noticeable as you move outward from the nose of the airplane and is worst around the periphery.  It is not associated with head movement,  its fixed around the aircraft.  I do not notice any tearing.

Second, other aircraft in the scene ghost and smear, IOW the corners and  edges of the model leave a visual trail behind them when they move fore or aft in the scene.  When maneuvering laterally a ghost image will often appear (i/e an F-16 with its single vertical stab, will appear to have 2 vertical stabs). I have noticed that this problem reduces some if I get rid of upscaling and sharpening, but then I get significant aliasing in the middle distance.

These issues do not occur in 2D on my monitor (LG HD WQHD 3440x1440) even with fairly high graphic settings.  The issues do not occur in my Quest 2 in any other application or game. I have also reached out to Oculus and did significant troubleshooting with them, nothing is having an effect.

It is not my GPU, I have used two different GPUs,  (GTX 1080TI and RX 6700 RT) and get the same results.   I have reload the drivers for Oculus and for my GPUs.  I have overclocked and removed the overclocking. (overclocking the RX6700RT did help with performance some).

It is not my USB cable, its transmitting at 2.6Gbps.

I have removed all the unofficial mods, and emptied the Metashader folder and fxo folder and run DCS repair utility several times.

I have adjusted setting for days, increasing Pixel Density does seem to help somewhat (seems to move the vibration farther outward, decreases the amplitude of the shaking) but anything above 1.5-1.6PD causes performance issues.  The settings I have now seem to work best but it is still far from ideal.

Also, I have Turbo mode ON in OpenZR tool kit. It does seem to help performance.

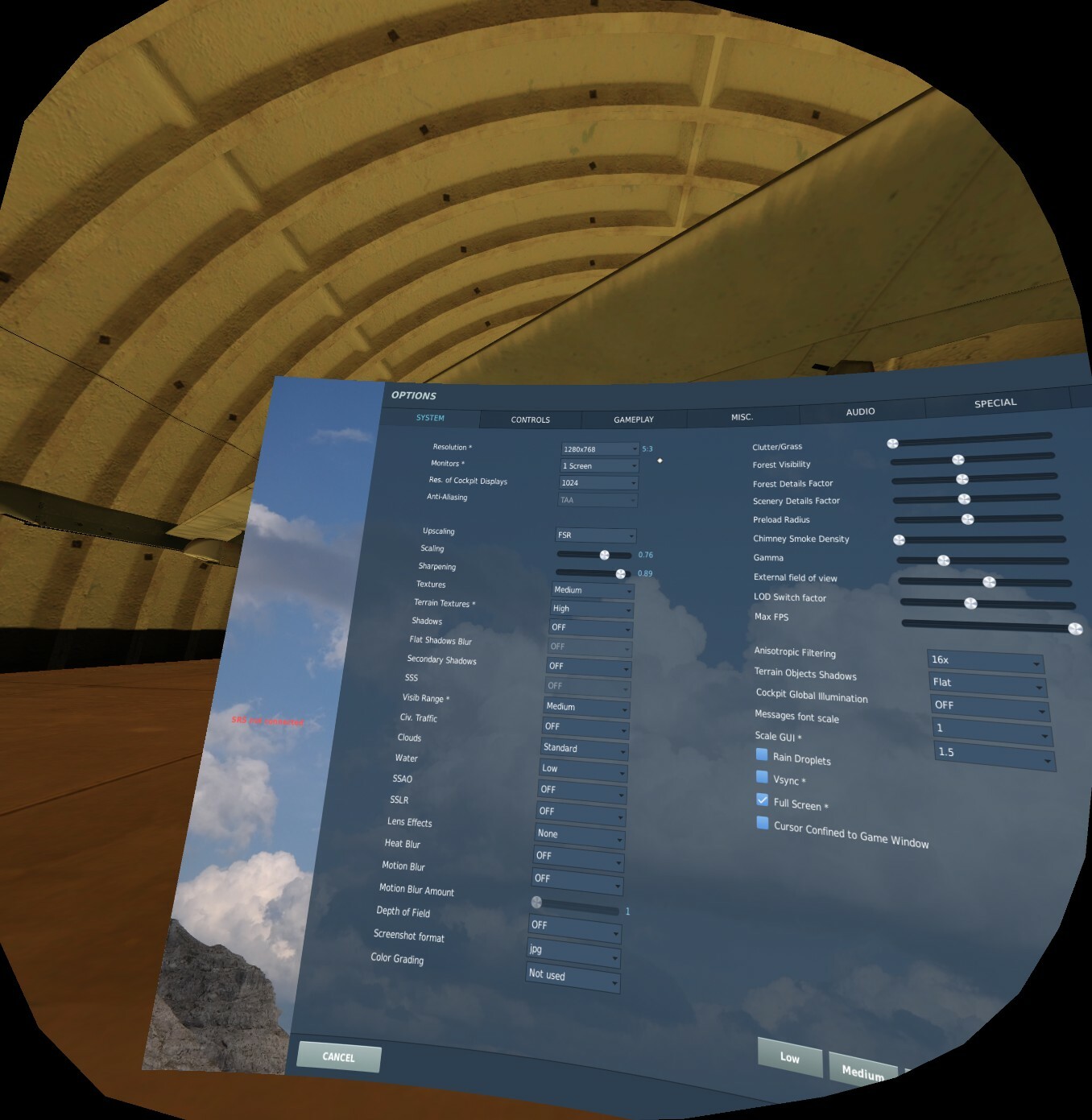

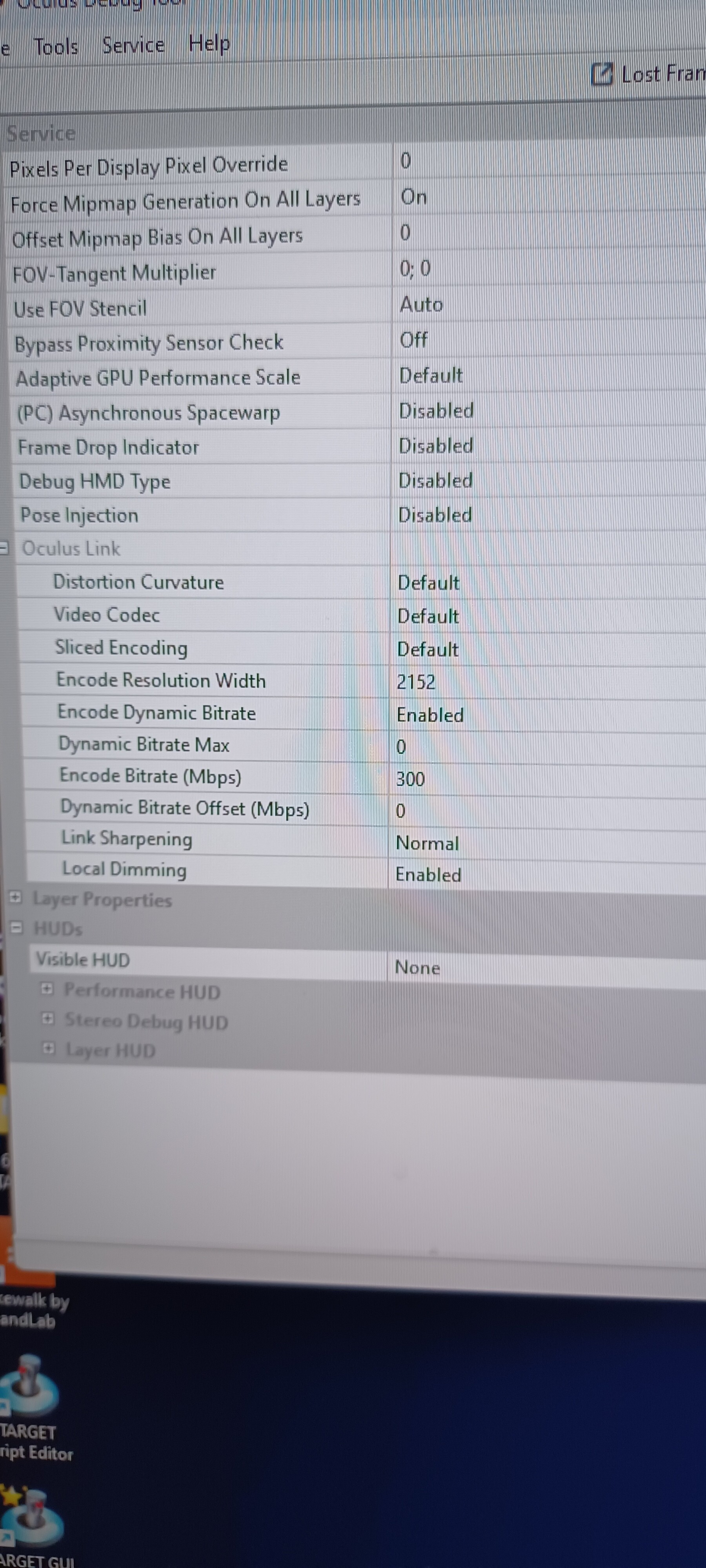

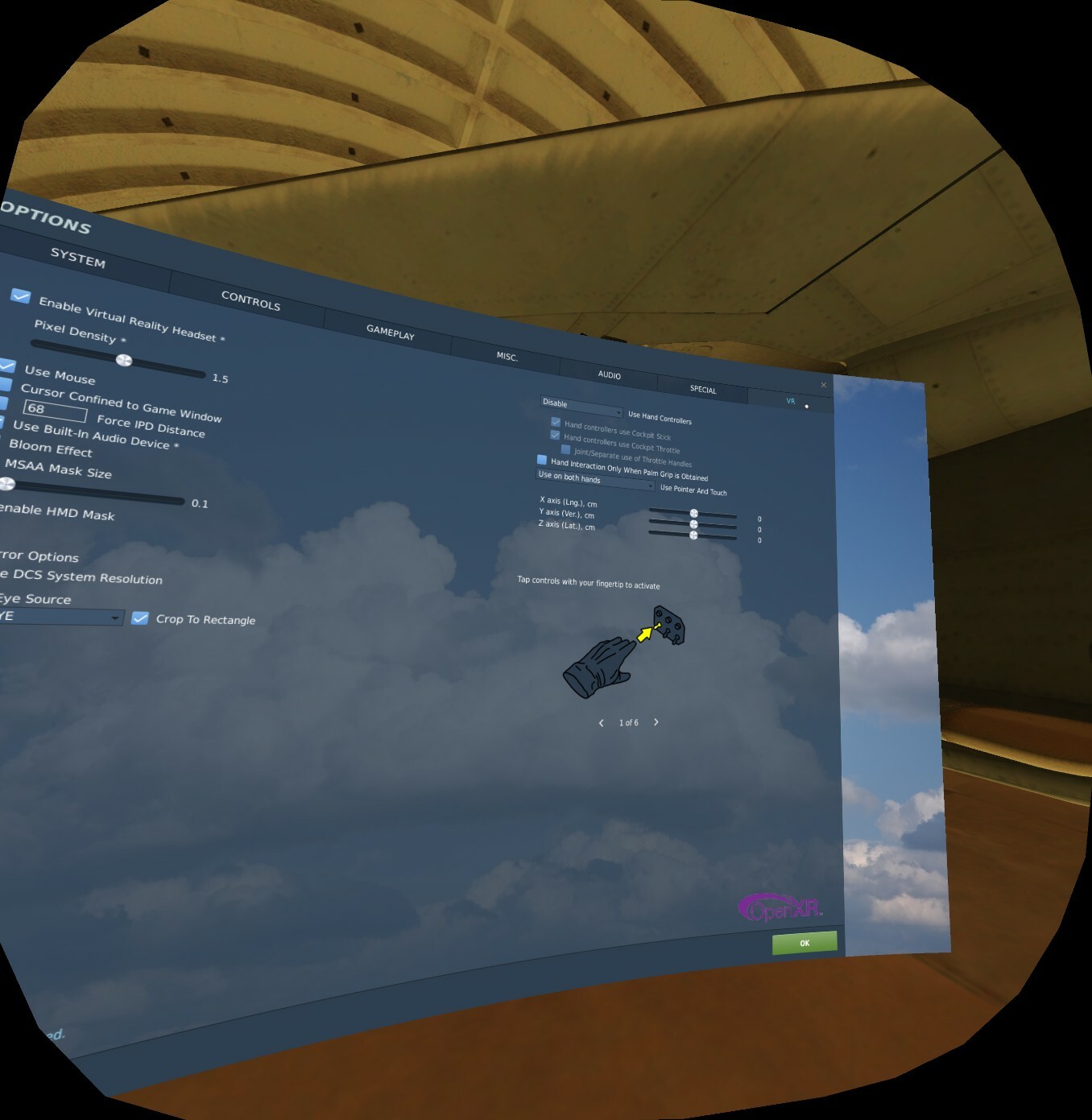

Any help is appreciated. I have attached logs and images of my settings for your review.  System Specs are below (OS is Windows 11)
