Rotary Encoder Help for A10 ILS Panel

[Kenpilot]

I'm trying to use rotary encoders for changing the ILS frequencies in my A10 simpit but apparently they aren't "sensitive" enough? One turn/click changes the frequency too many numbers so to speak. For example, it will go from 108.00 to 110.00 and skip over 109.00, unless I carefully turn the knob and leave it half way in between clicks/detents. I'm using "20 pulse" encoders. Do I need a different encoder or is there something in the arduino sketch that can be changed to make the encoder more sensitive with each turn of the knobs to speak? Thanks!

[crash test pilot]

You may need to use the "two steps per detent" argument. See here:



https://github.com/DCS-Skunkworks/dcs-bios-arduino-library/wiki/RotaryEncoder

[No1sonuk]

To clarify:
Put this at the top of your code:

typedef DcsBios::RotaryEncoderT<POLL_EVERY_TIME, DcsBios::TWO_STEPS_PER_DETENT> TwoStepRotaryEncoder; // A custom rotary encoder with two quadrature steps per physical detent.

Then use "TwoStepRotaryEncoder" in place of the "DcsBios::RotaryEncoder" part of the code lines.  e,g,

TwoStepRotaryEncoder ilsKhz("ILS_KHZ", "DEC", "INC", PIN_A, PIN_B);



[Kenpilot]

Awesome, thanks so much guys. I'll try this out tonight.

[Kenpilot]

It worked! Thanks so much guys!! It's still a little finicky, sometimes the numbers don't change when I turn the knob and I have to turn it once or twice, but its working, I'll just be patient with it. Thanks again!!

[No1sonuk]

Do you have capacitors on the signal lines?  It might help.

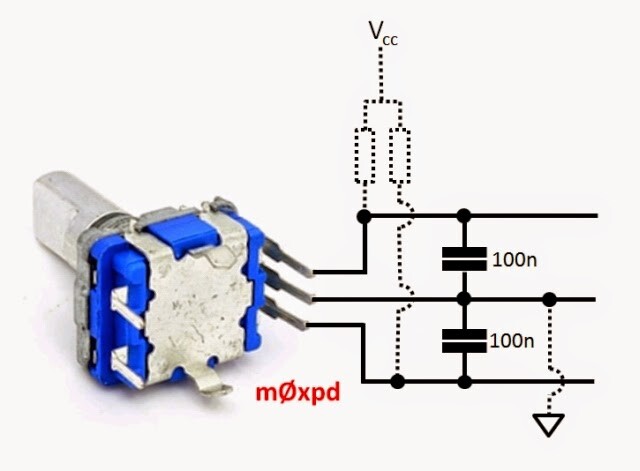

See attached (the dotted resistors are not required).

Edited June 4, 2024 by No1sonuk

[Kenpilot]

On 6/4/2024 at 1:24 PM, No1sonuk said:

Do you have capacitors on the signal lines?  It might help.
See attached (the dotted resistors are not required).



I don't have capacitors attached, no, but I'll certainly try it since its still acting weird sometimes. Thanks for the suggestion!

[Vinc_Vega]

You also may use the KY-040 modules, ready made encoders including resistors and capacitors and additional switch.

example: https://www.az-delivery.de/en/products/drehimpulsgeber-modul



Regards, Vinc

[No1sonuk]

11 hours ago, Vinc_Vega said:

You also may use the KY-040 modules, ready made encoders including resistors and capacitors and additional switch.

example: https://www.az-delivery.de/en/products/drehimpulsgeber-modul



Regards, Vinc

They don't have the capacitors.

[Kenpilot]

Those are actually the Rotary Encoders that I'm currently using, the KY-040 style. I do have the ones like the ones in No1sonuk's post. Should I use those instead with the capacitors? I guess it can't hurt to try them with the capacitors.

[No1sonuk]

You can add capacitors to what you have.

[Kenpilot]

On 6/8/2024 at 12:28 PM, No1sonuk said:

You can add capacitors to what you have.

The capacitors worked and it's working perfectly. now. Thanks No1sonuk!!
