Wow I really like this, great work.

Were the tutorials you learned from on Open Hornets? I have made a few panels with code to CNC but never designed a PCB and then to size it with standoffs my head breaks as to how to this.

Basically this means my abilities for panel design can only cater for inputs that screw into a plate, I am going to need to use PCB mounted switches to make some panels I need mounted to a screen.

pesbra

pesbra

Posted
  • Author
Posted (edited)
10 hours ago, JohnnyChicago said:

Hi, this looks awesome ! I wish i could 3dprint that 🙂

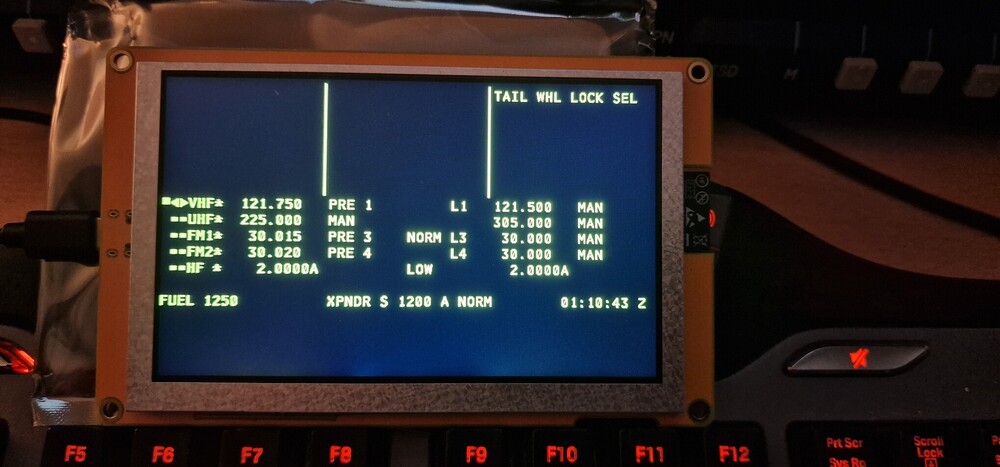

btw, i have a 5inch ESP32-8048S050N Display (exists also in 7inch)  for the EUFD, so you dont need a hdmi port.

Selfmade Sketch and Font.

Cheers , looking forward for this project.












Very interested in your solution mate. Do you have a Link where I can find info on that screen? Coding for screens like these is something I yet need to learn. Any info you could share would be much appreciated.

Edited by pesbra
pesbra

pesbra

Posted
  • Author
Posted (edited)
4 hours ago, Mr_Burns said:

Wow I really like this, great work.

Were the tutorials you learned from on Open Hornets? I have made a few panels with code to CNC but never designed a PCB and then to size it with standoffs my head breaks as to how to this.

Basically this means my abilities for panel design can only cater for inputs that screw into a plate, I am going to need to use PCB mounted switches to make some panels I need mounted to a screen.

It’s actually quite easy. It feels overwhelming at first but if you are willing to put in a bit of time you can have the tricks you need in a week. The circuits we are designing are stupid simple. We are not building quantum computers here.

Most of what I have done so far has been following A Hornets Nest tutorials. There are some aspects that he does not elaborate and you have to figure out on your own, but its just stuff that if you put your melon to work you will figure it out in a couple of hours.

I’m still learning though and it is particularly important to pay attention to your mistakes, then redo the work, every new panel gets a bit easier and uncovers more challenges where you realize your should have thought farther ahead.

I actually want to learn coding for CNC. I have Sherline Lathe and Mill that I’m in the process to converting into CNC.

Edited by pesbra
pesbra

pesbra

Posted
  • Author
Posted (edited)

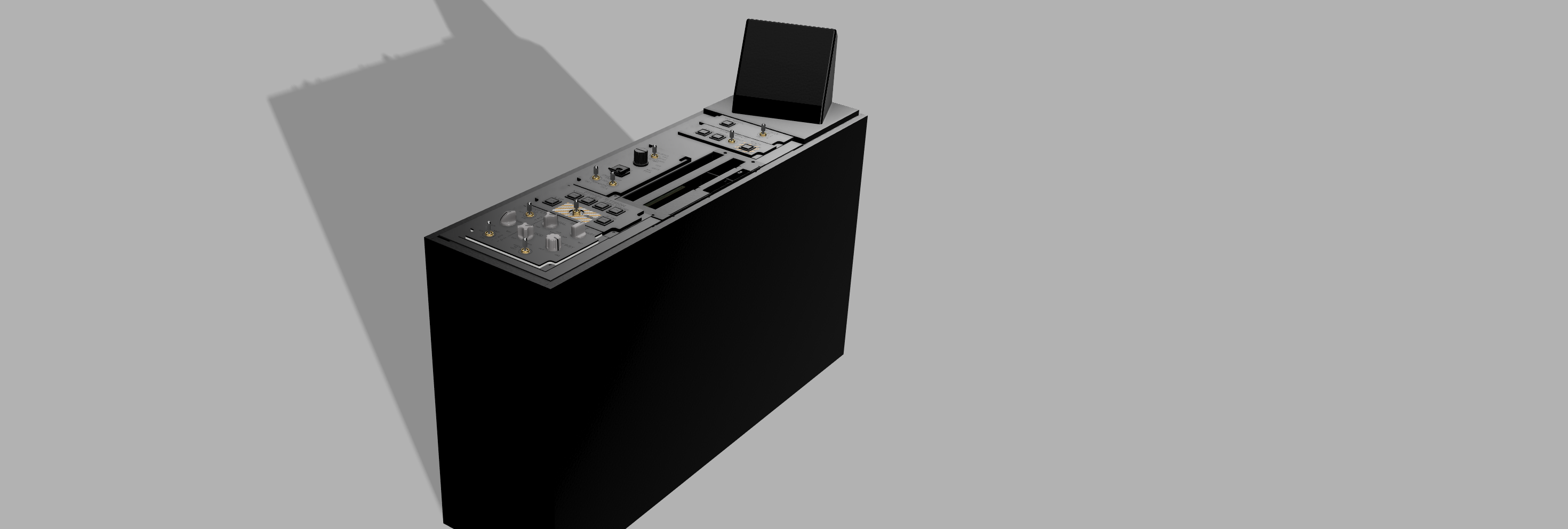

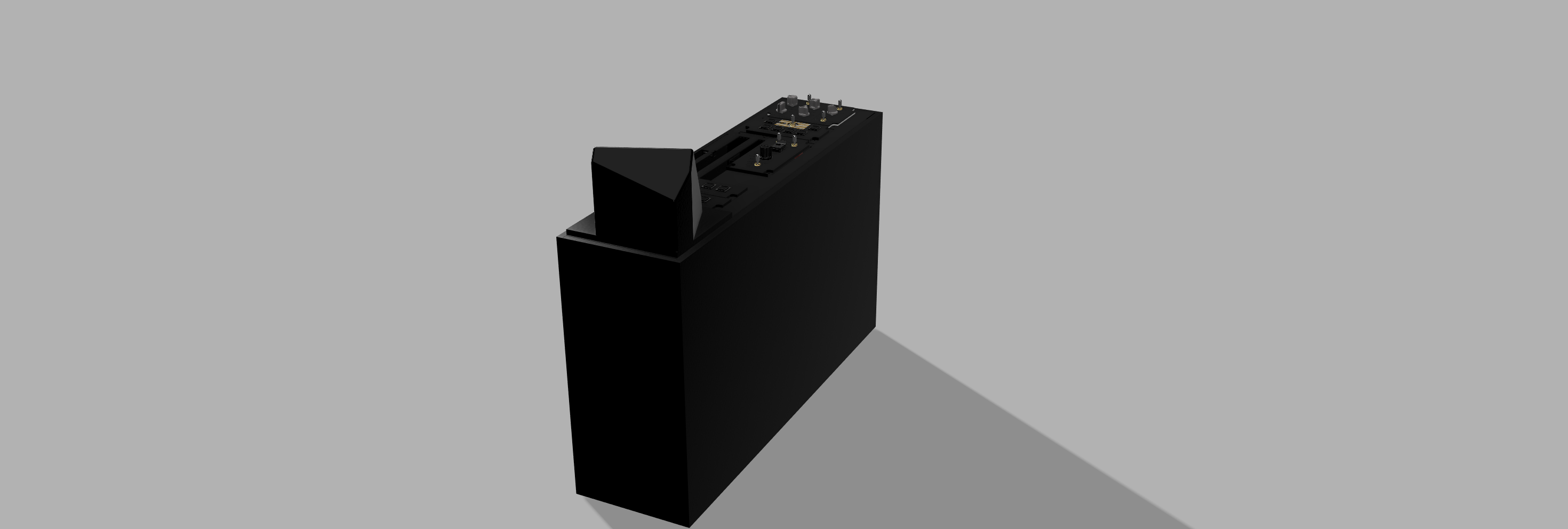

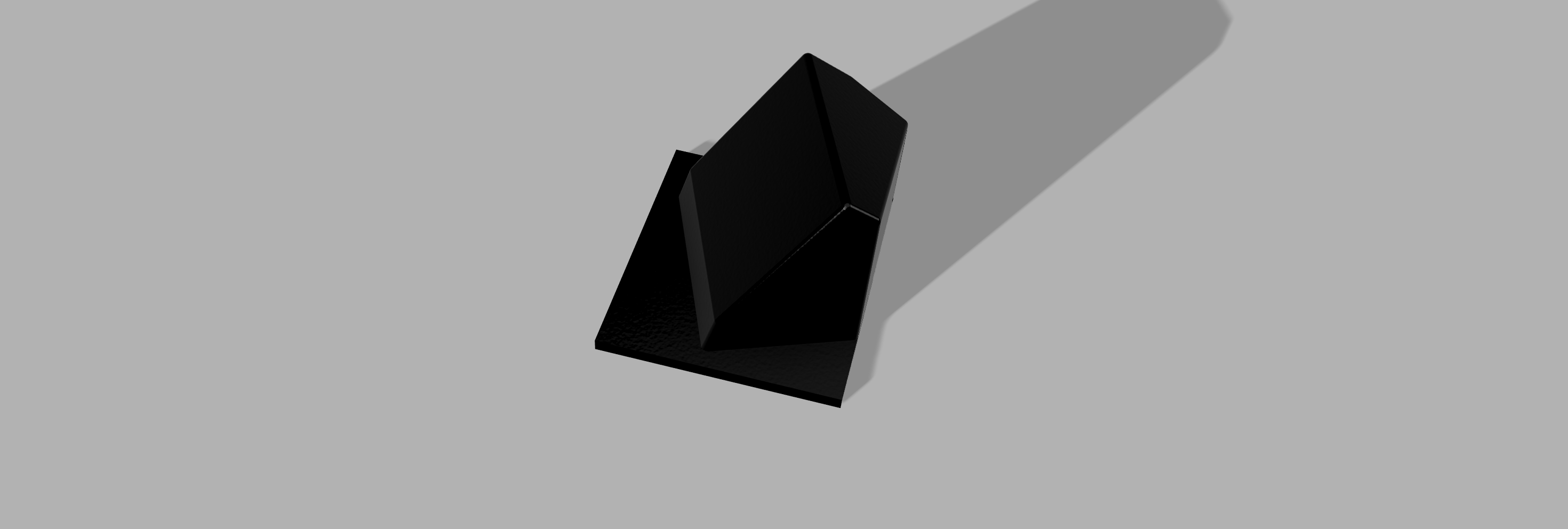

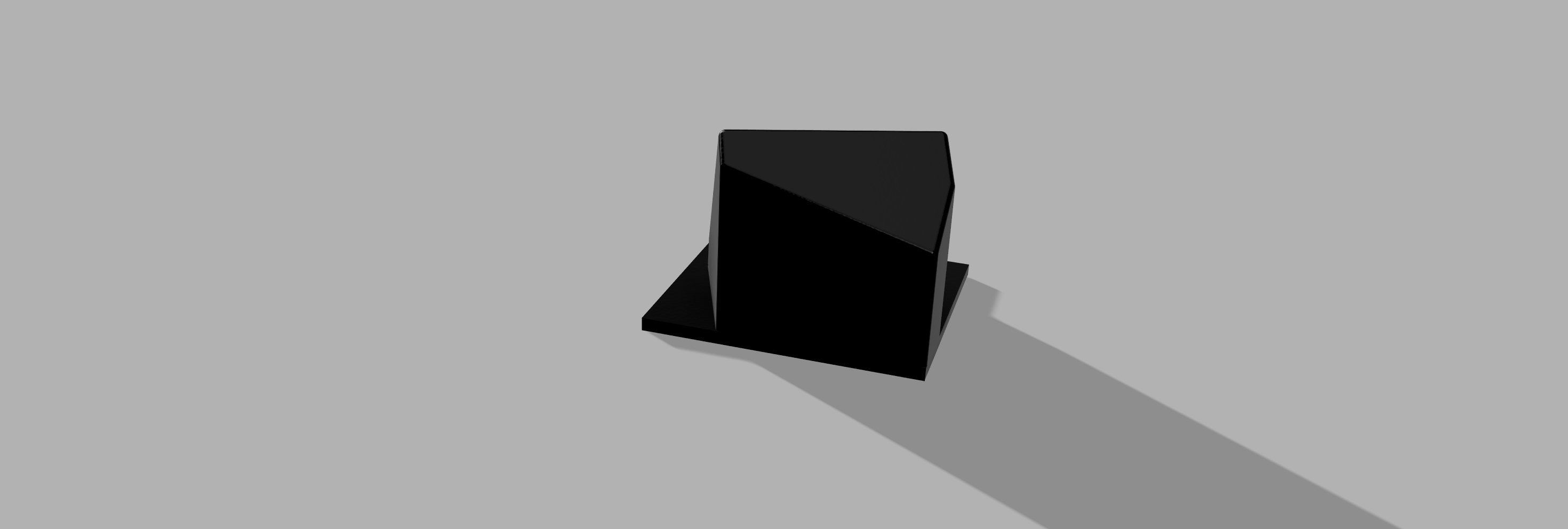

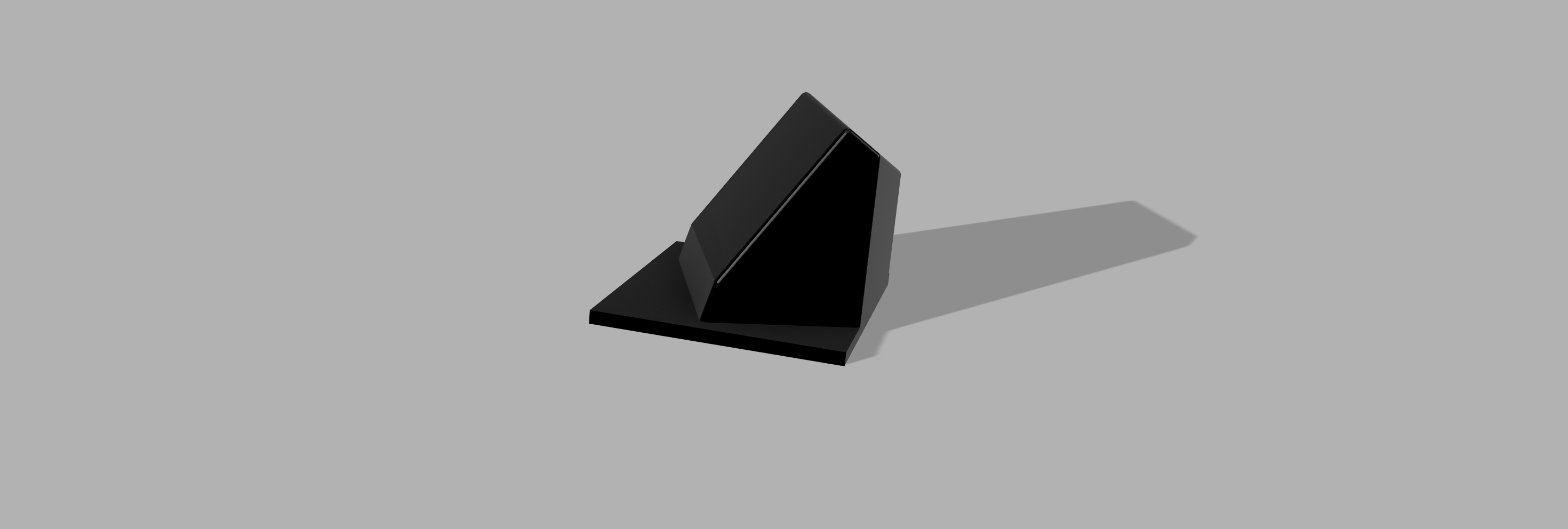

Desk design for CPG station finished and plans uploaded to the Google drive

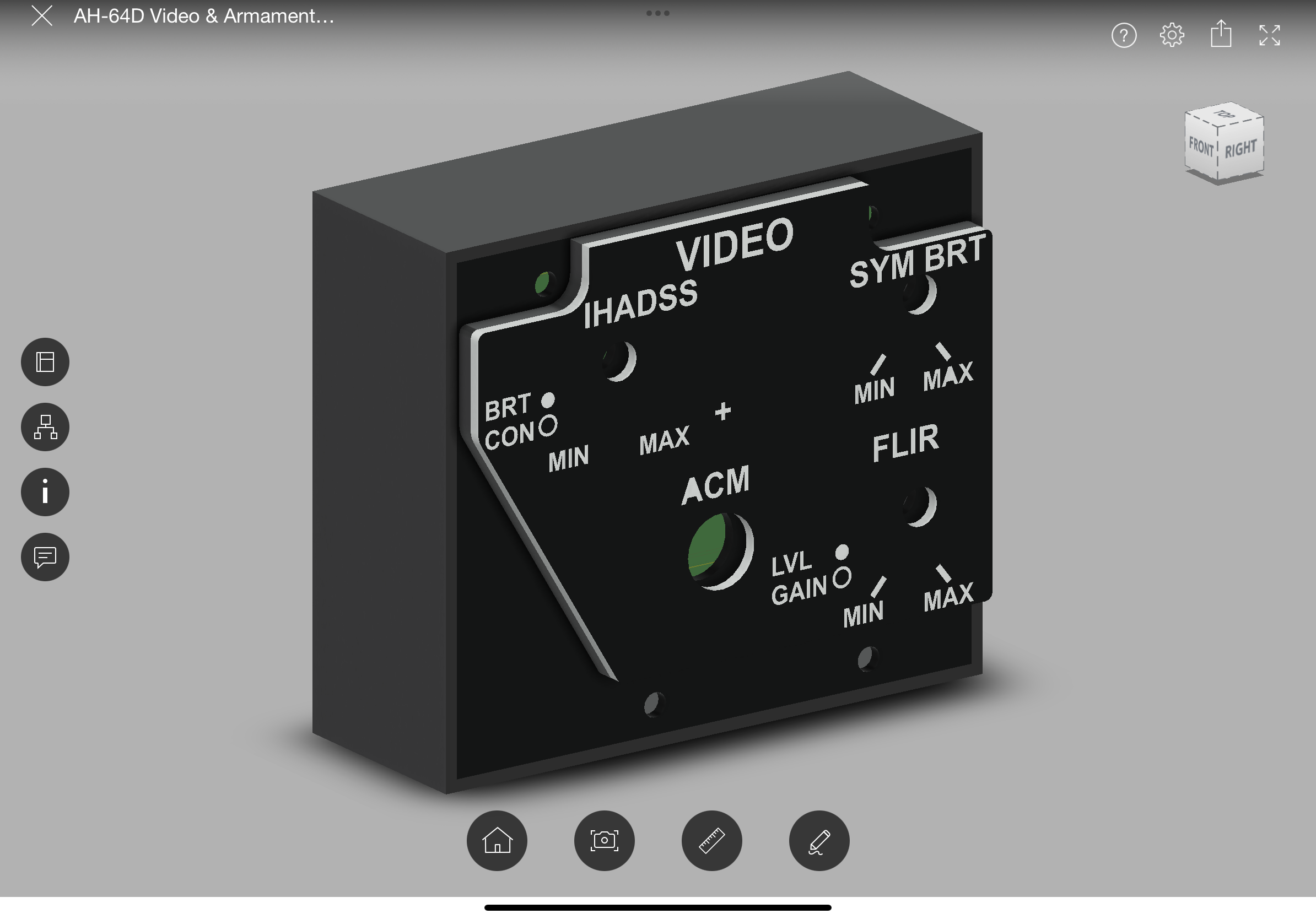

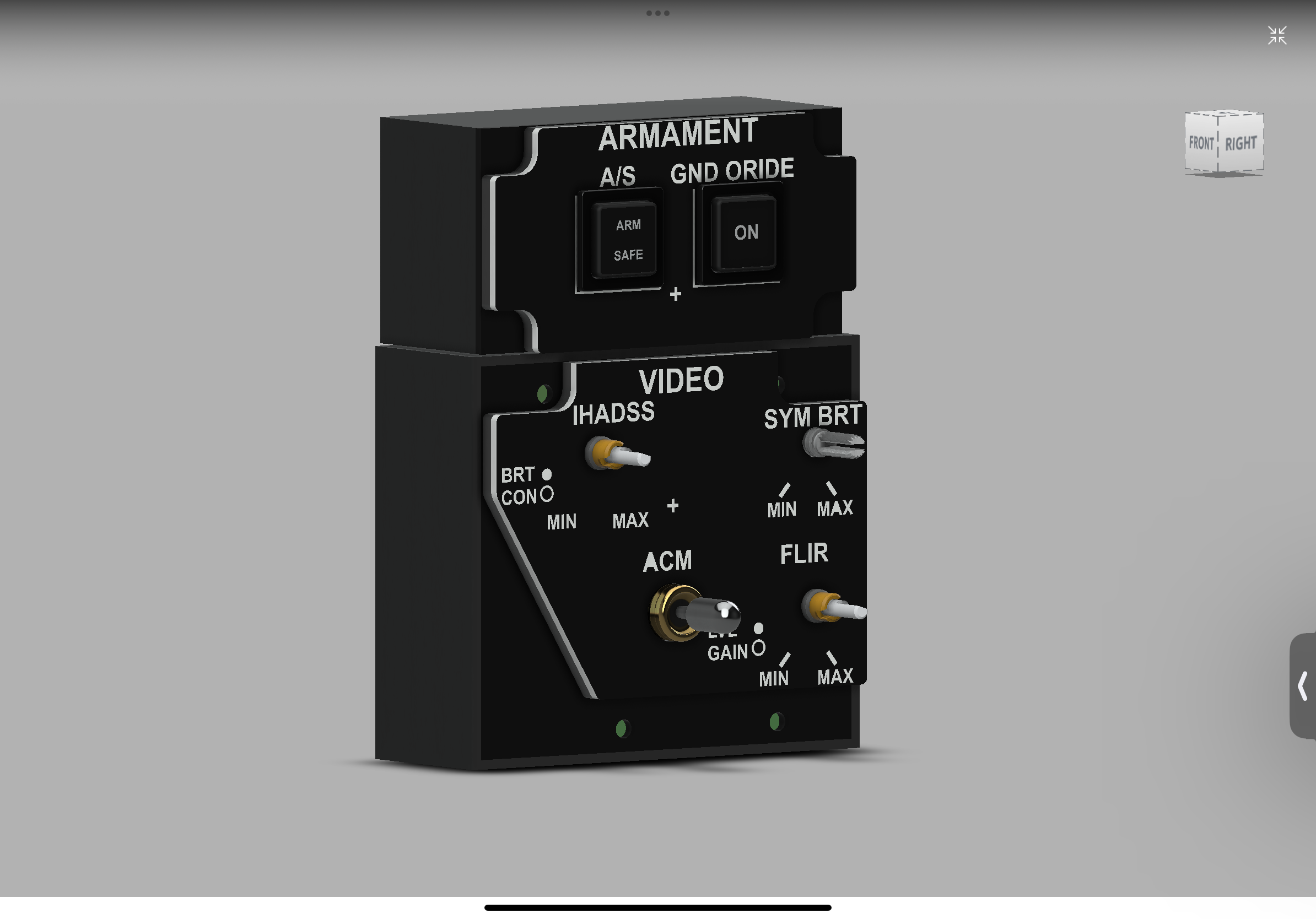

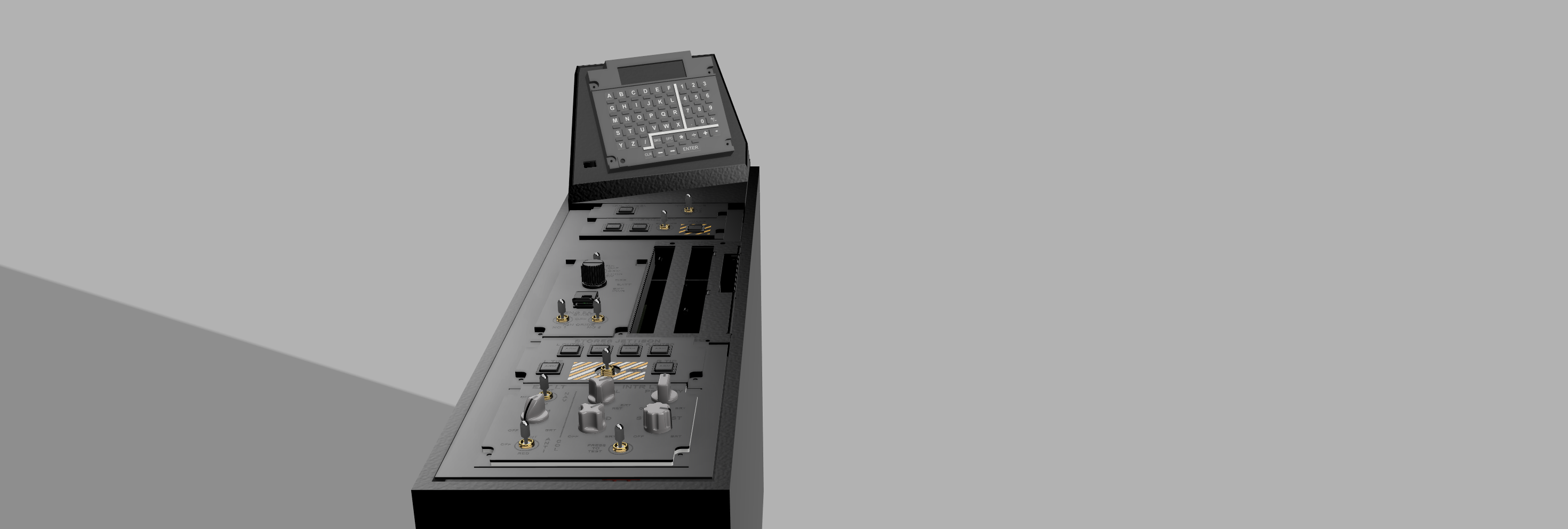

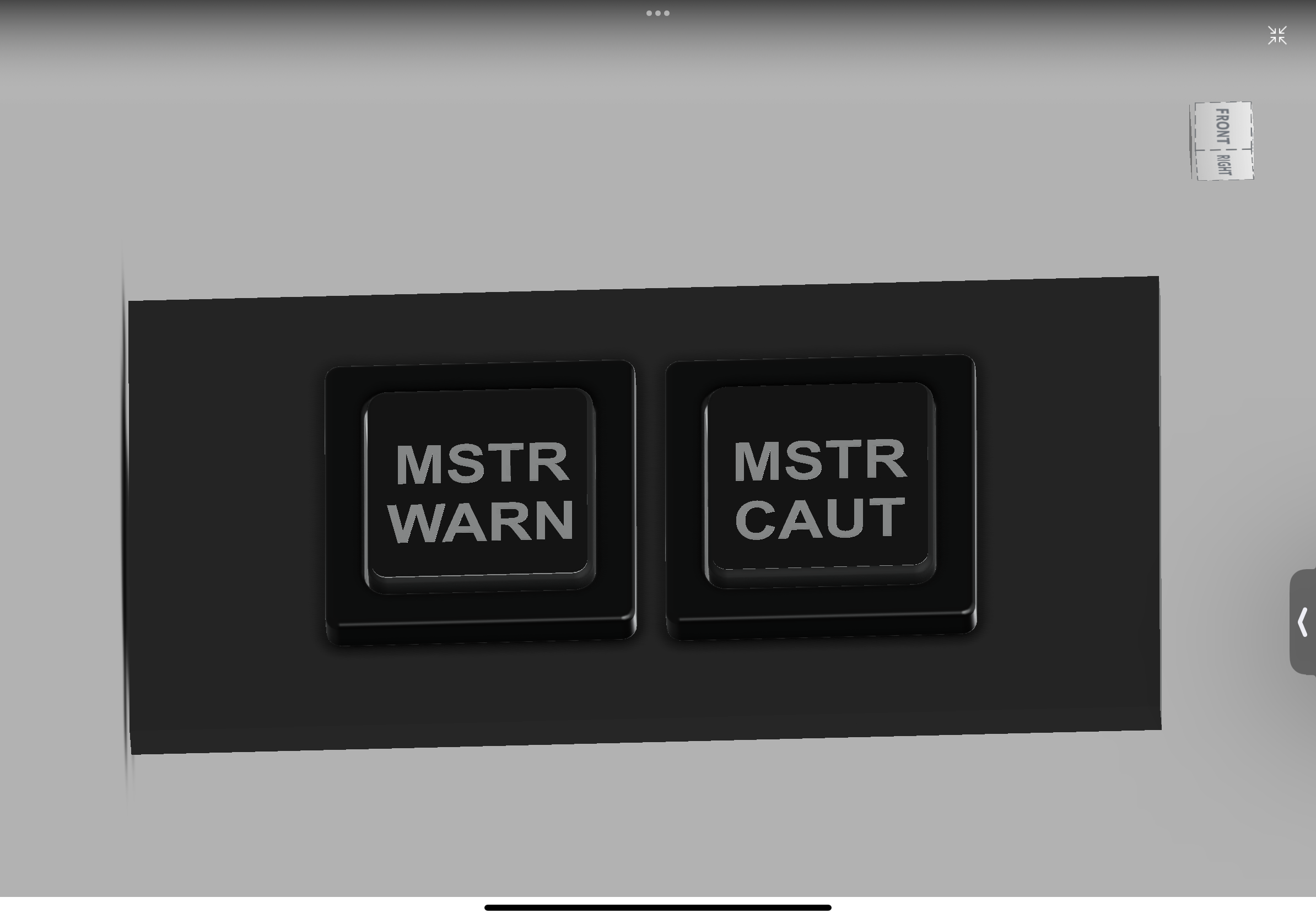

Armament panel done.




Edited by pesbra
alaindufour

alaindufour

Posted
Posted
On 9/5/2024 at 3:47 PM, pesbra said:

for those wanting a TEDAC someone already beat me to the punch

https://srsosio.wixsite.com/ah-64d-tedac

good job

Im building and selling tedac for a year now. here my discord channel

https://discord.gg/nBYp8eyj



On 9/5/2024 at 3:47 PM, pesbra said:

for those wanting a TEDAC someone already beat me to the punch

https://srsosio.wixsite.com/ah-64d-tedac

good job

Im building and selling tedac for a year now. here my discord channel

https://discord.gg/nBYp8eyj



pesbra

pesbra

Posted
  • Author
Posted (edited)

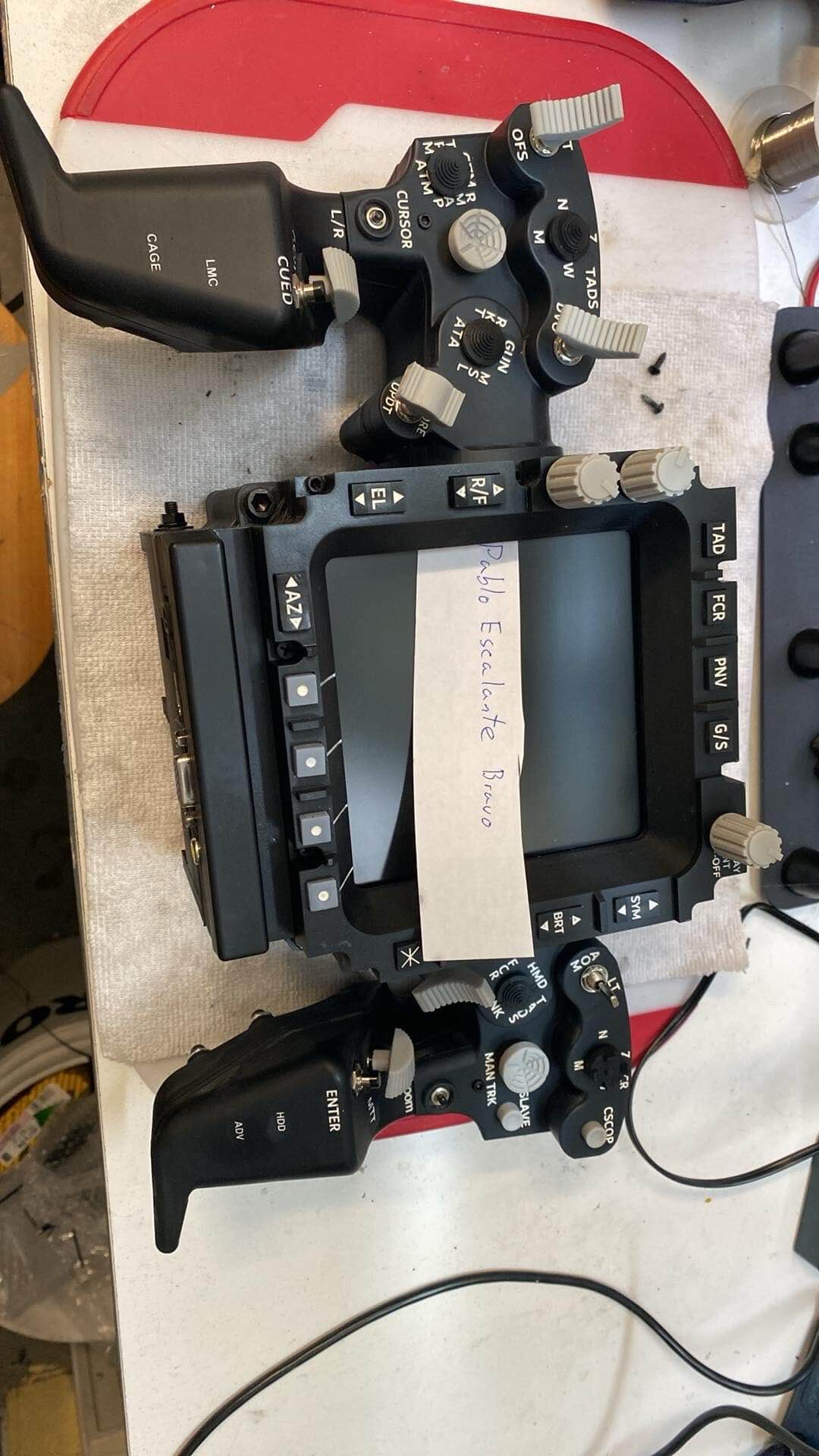

I can attest to that. I just got Alain's TEDAC a few weeks ago and its fantastic. he inspired me to do this whole thing. After I got his unit I decided to learn how to do all this stuff.

Unfortunately for me Alan announced he just started making v.2 of his TEDAC. I probably got one of the last batches of v.1 lol. Very curious to see what improvements you have made.


I just need to get that Deskpit done to mount he thing now.

Edited by pesbra
pesbra

pesbra

Posted
  • Author
Posted (edited)

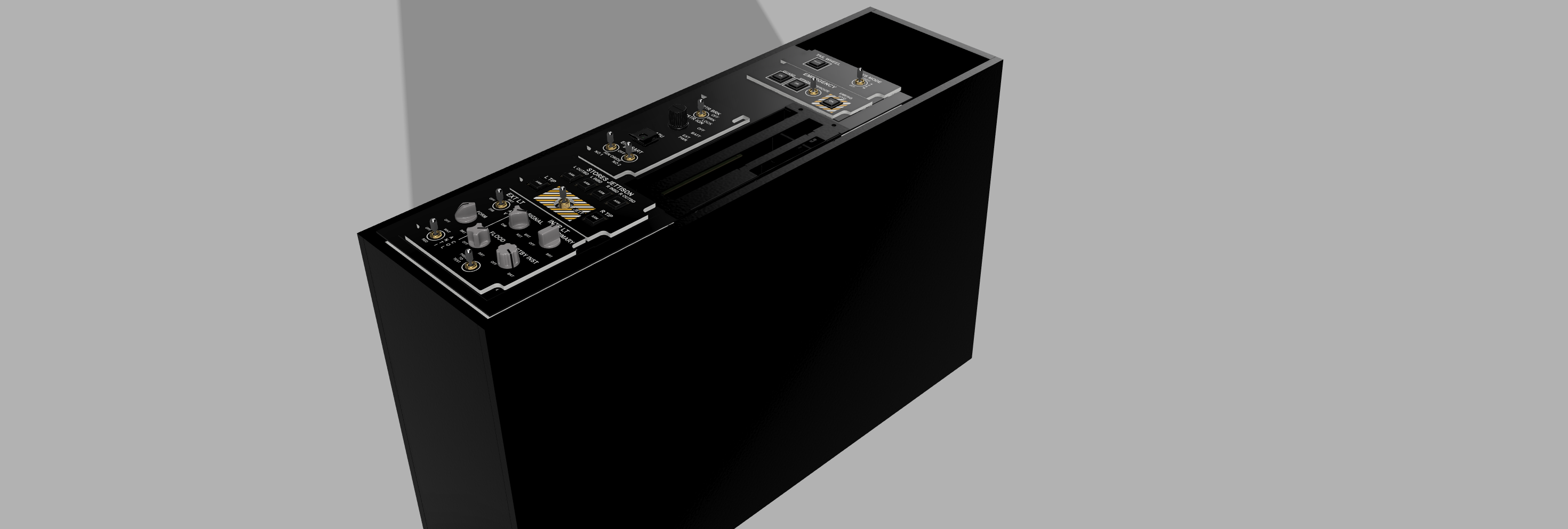

Deskpit modified to accomodate a top lid for access to the inside cavity for cable management. Added cable routing holes to the desk and Screen mounts and added aluminum profile to be able to switch between TEDAC and Winwing Topgun MIP mounted on MonsterTech mounts.

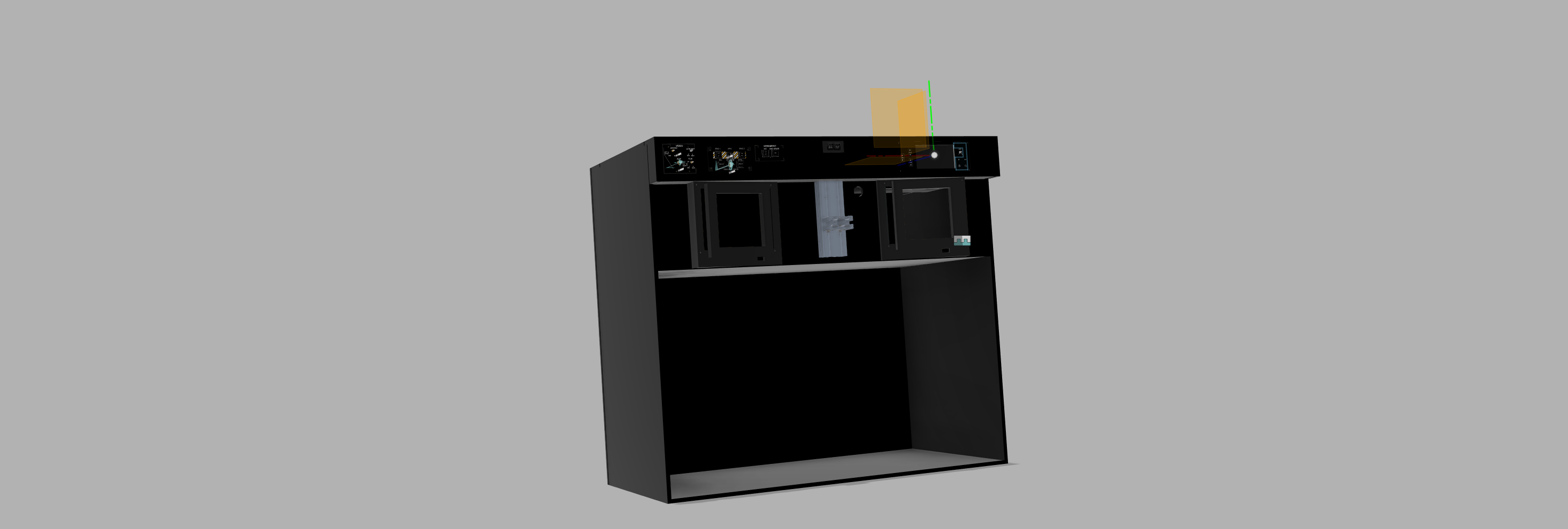

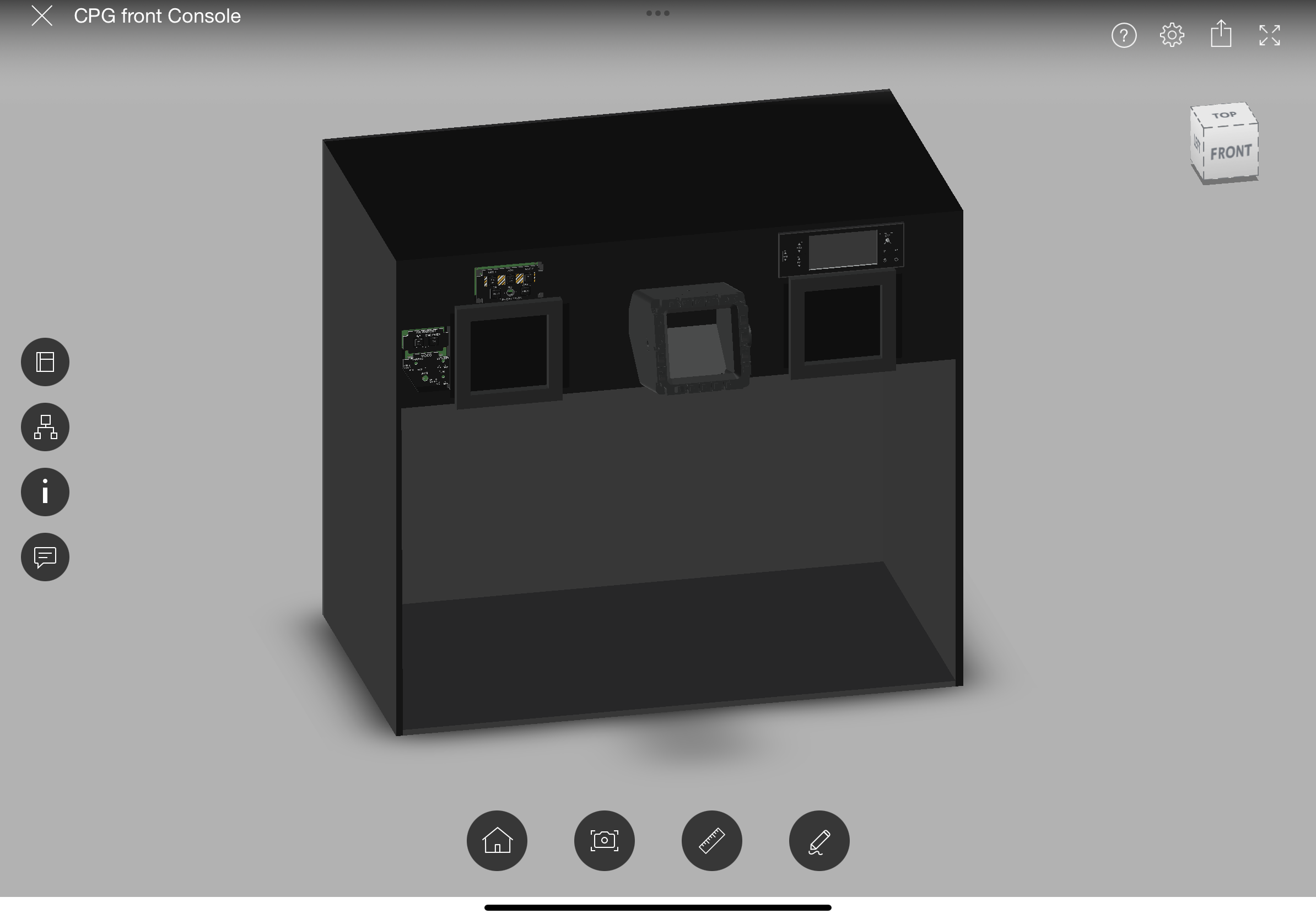

CPG front Console v59.png

CPG front Console v60.png

Edited by pesbra
corbu1

corbu1

Posted
Posted
Am 11.9.2024 um 21:52 schrieb pesbra:

I can attest to that. I just got Alain's TEDAC a few weeks ago and its fantastic. he inspired me to do this whole thing. After I got his unit I decided to learn how to do all this stuff.

Unfortunately for me Alan announced he just started making v.2 of his TEDAC. I probably got one of the last batches of v.1 lol. Very curious to see what improvements you have made.


I just need to get that Deskpit done to mount he thing now.



I‘m actually waiting for a tedac done for me by Alain. Oh, this device looks so great!

DCS Version: 2.9.15.9408
Modules: UH-1H - SA342 - KA-50 BS3 - MI-24P - MI-8MTV2 - AH-64D - CH-47F - OH-58D - UH-60L(Mod, n.i.) - OH-6A(Mod, n.i.) - A-10CII - F-16C - F/A-18C - AJS37 - F-14 - MiG-21bis - JF-17 - Mirage F1 - MiG-29A - (prepurchase) - FC2024 -Combined Arms - Supercarrier - NTTR - Normandy2.0 - Channel - Persian Gulf - Syria - SA - Sinai - Afghanistan - Kola - Iraq - Cold War Germany — Waiting for: BO-105 - AH-1G/F(Mod)

DCS-Client: 9800X3D, 64GB 6200, RTX3090, 1TB M2 NVMe(win10), 4TB M2 NVMe(DCS), VR VivePro2, PointCTRL, VaicomPro, Wacom Intuos S with VRK v2Beta

DCS-DServer: 11600KF, 64GB 3600, GTX1080, 1TB M2 NVMe(win10), 2TB M2 NVMe(DCSDServer), DCS Olympus

Simpit: NLR Flightsim Pro Cyclic: TM Warthog Grip with 30cm Extension + VPforce Rhino FFB FW Stick: TM Warthog Grip and Base, Throttle: TM Warthog Pedals: Komodo Sim. with Dampers Collective: VPC Rotorplus+AH-64D Grip Other: NLR HF8, Buttkicker (3*MiniConcert), TotalControls AH64D MPD‘s and EUFD, Alain Dufour’s AH-64 TEDAC, TM MFD, Streamdecks (1*32,3*15,1*6), VPC CP#1

pesbra

pesbra

Posted
  • Author
Posted

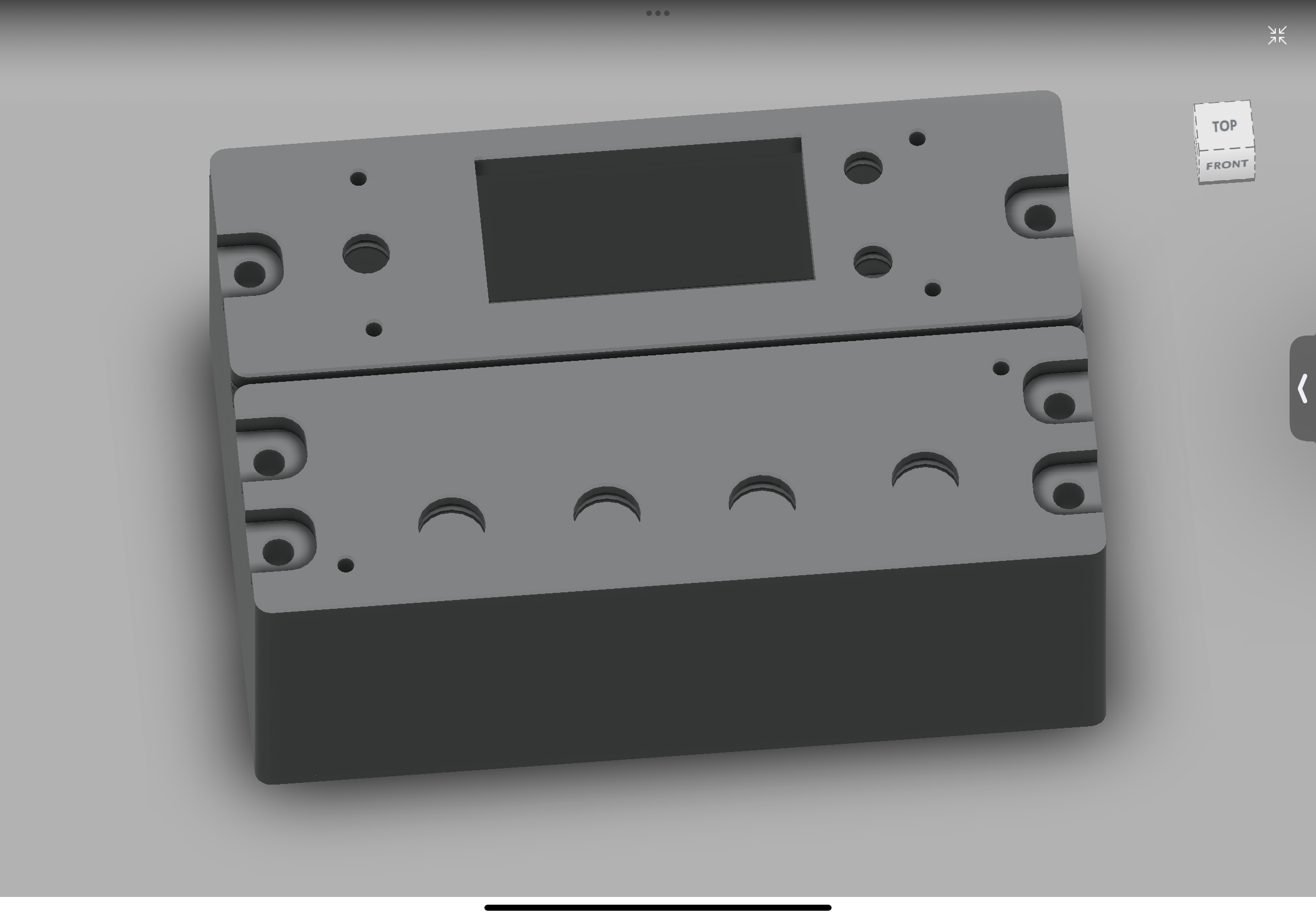

My good friend PVT.Hetch.B from 7Cav has decided to jump on this bandwagon and made the CMWS. We worked together on. The PCB. Still need to do a couple of modifications to the latter.




pesbra

pesbra

Posted
  • Author
Posted (edited)

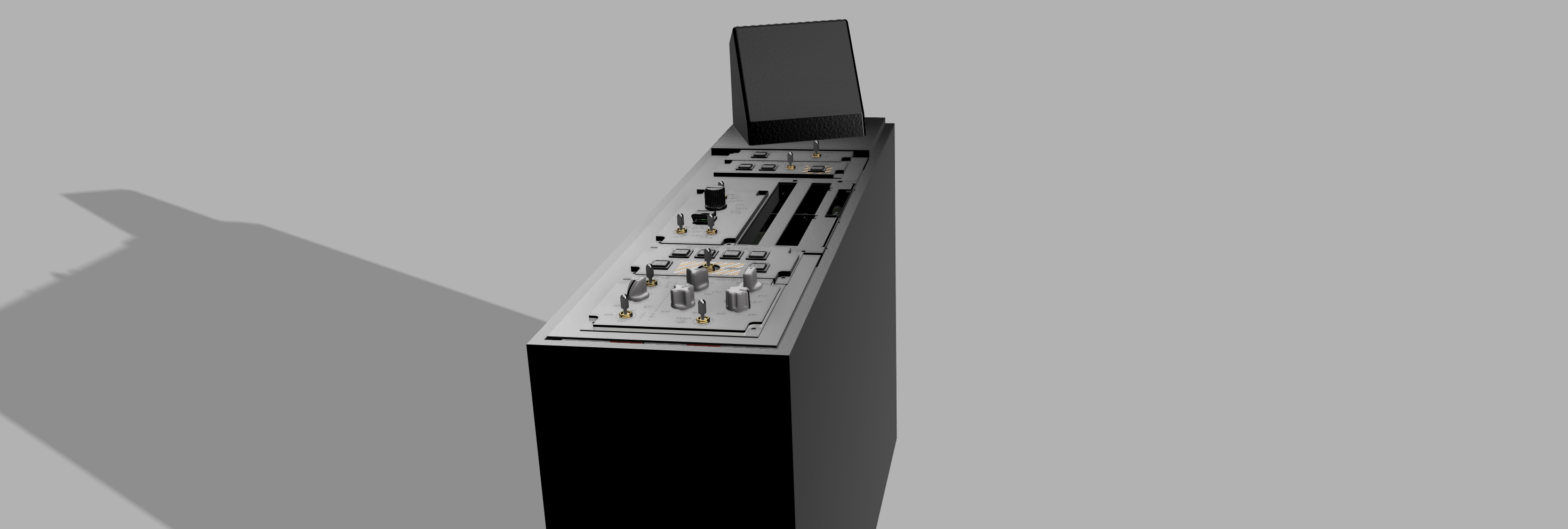

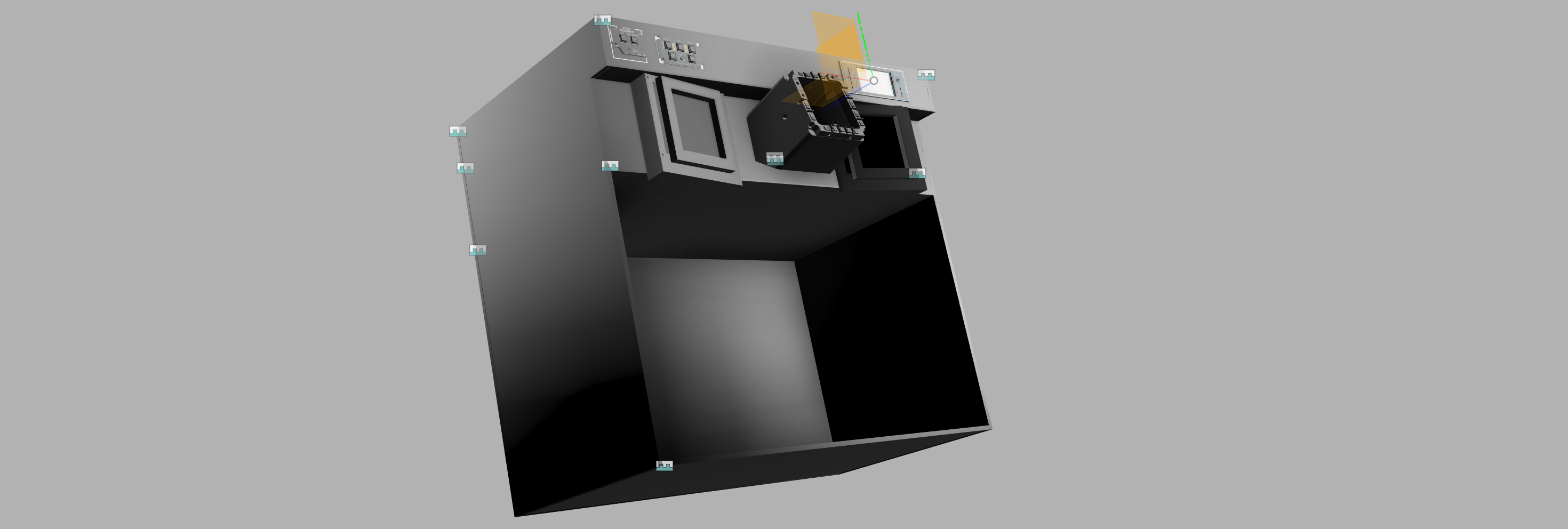

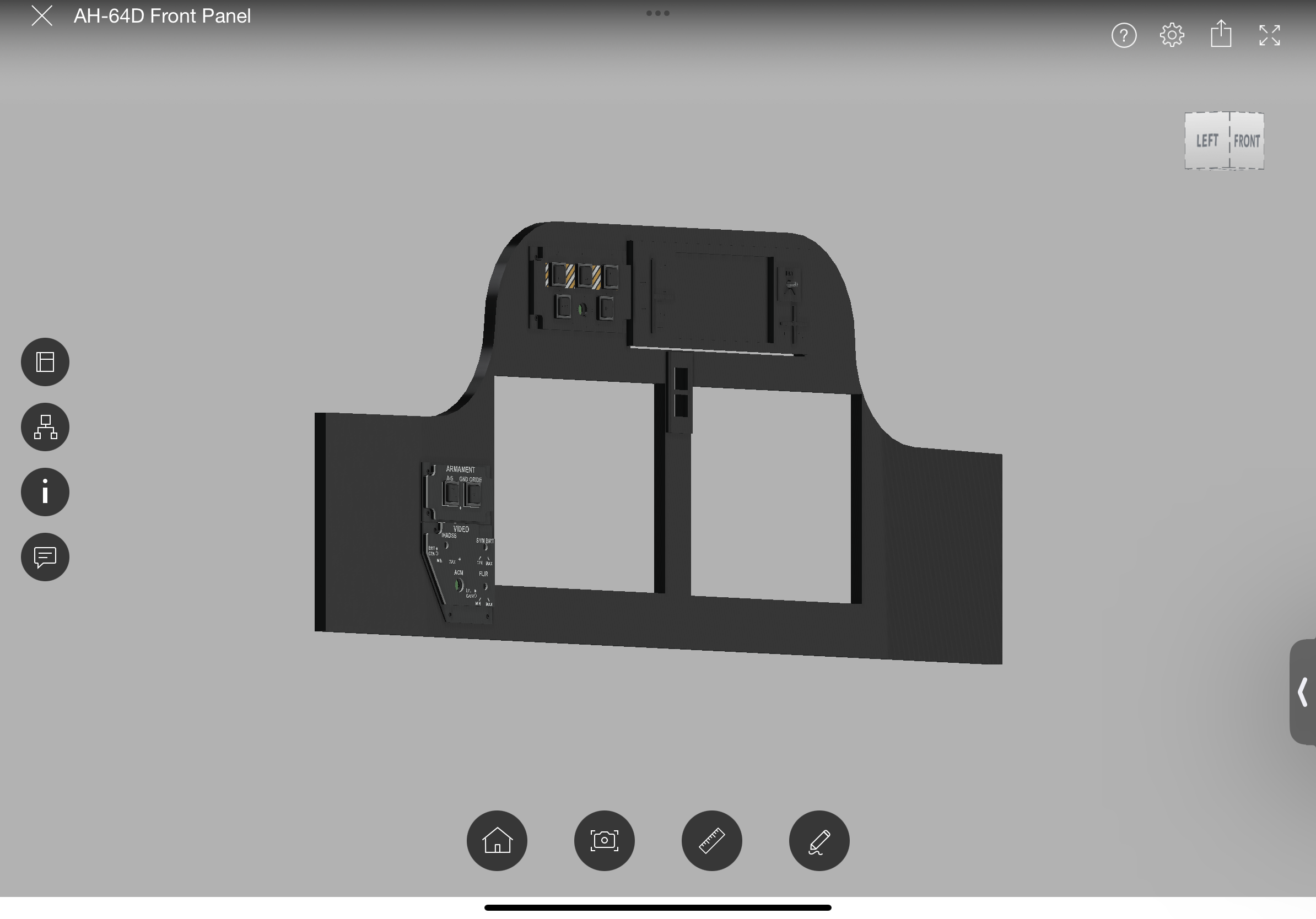

Almost at the finish line. Things are starting to come together. Few modifications yet to be done to PCBs to include mounted LEDs for backlighting. PCB for the KDU needs to be worked on, and Arduino code for screens of EUFD, CMWS and KDU. I need to learn how to do that so if any of you wizkids out there want to contribute to the project your help would be most welcome.

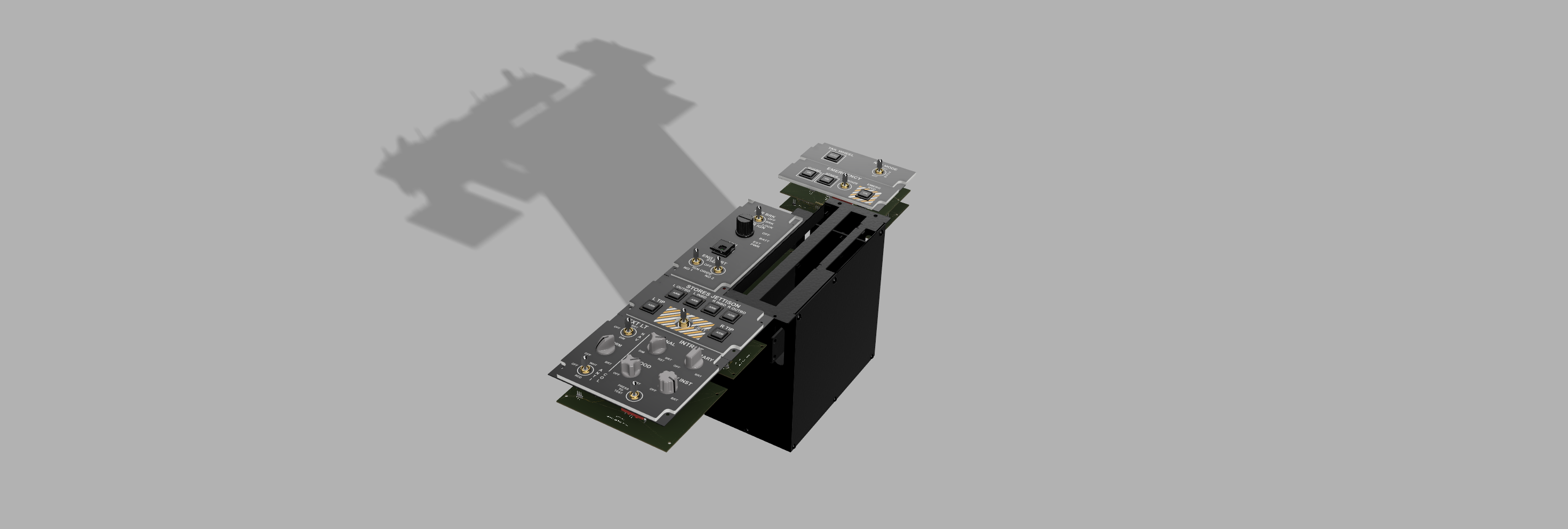

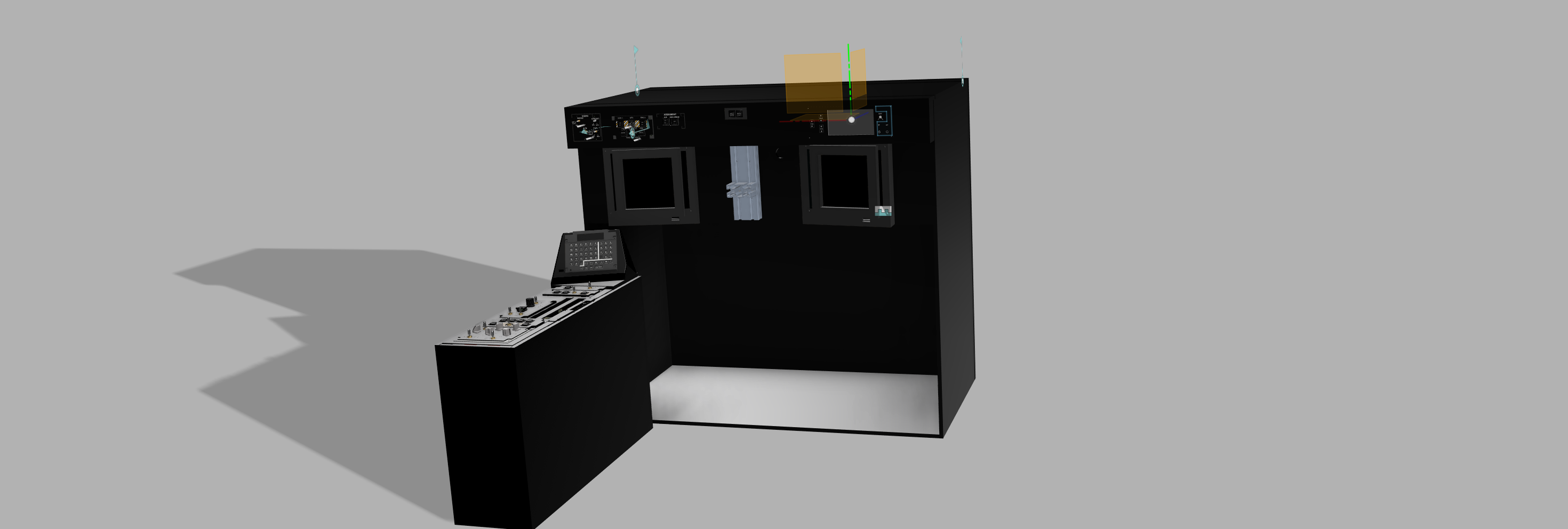

AH-64D Simpit v2.png


Edited by pesbra
pesbra

pesbra

Posted
  • Author
Posted (edited)

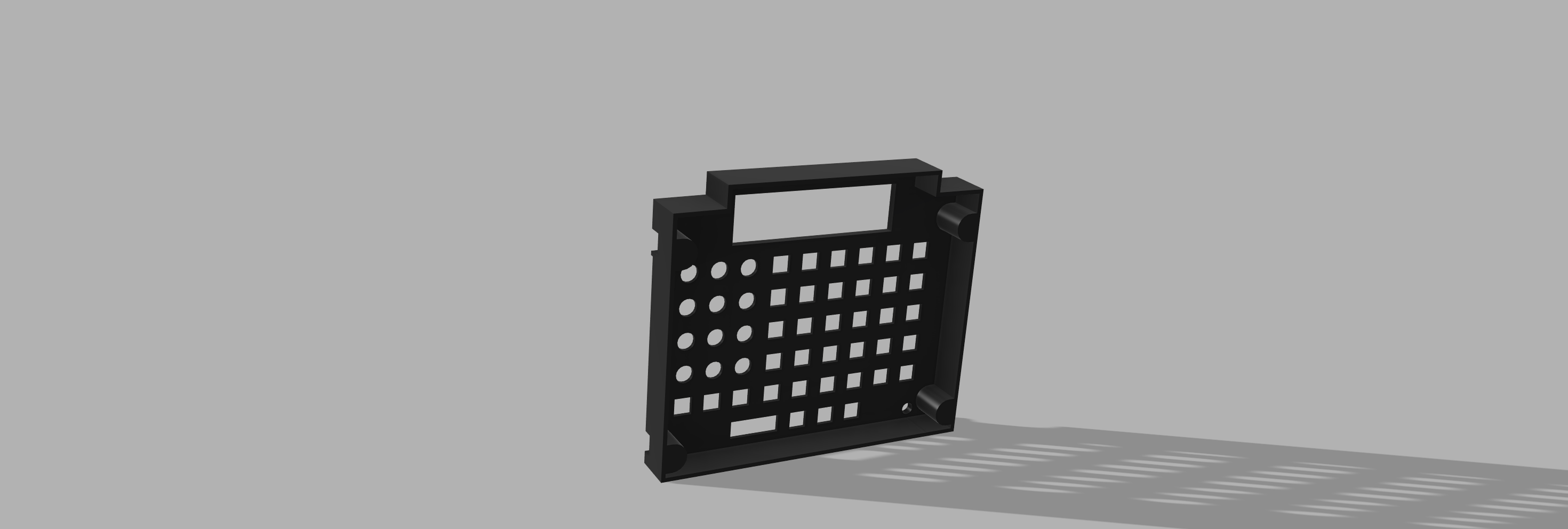

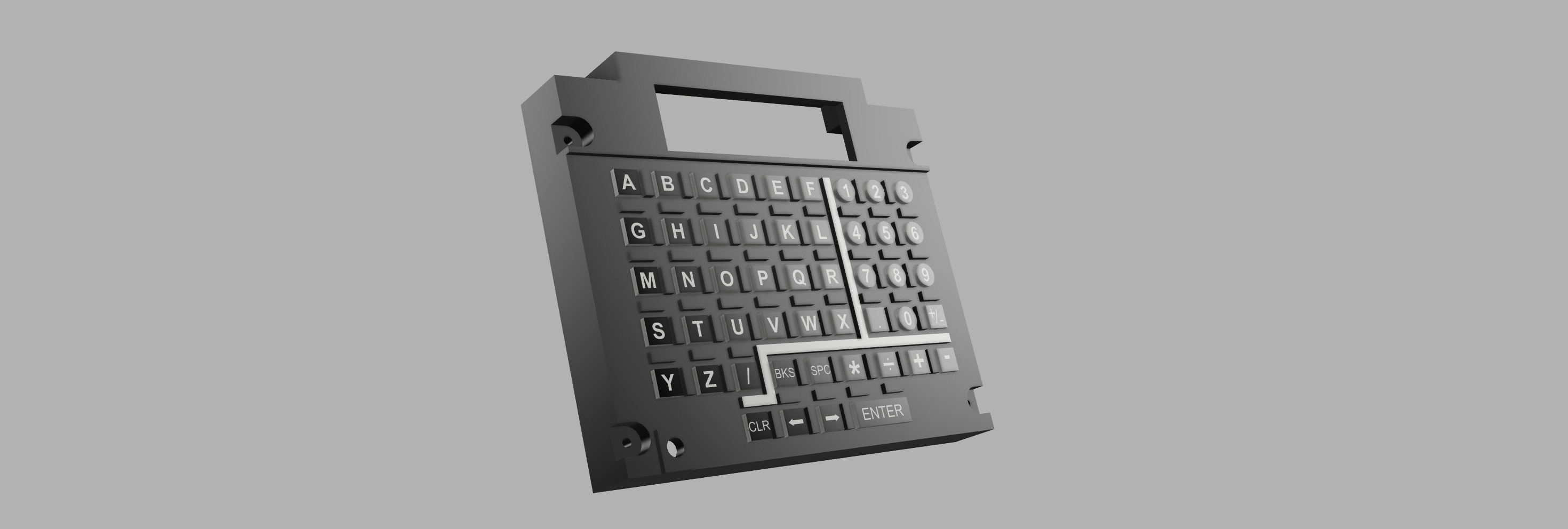

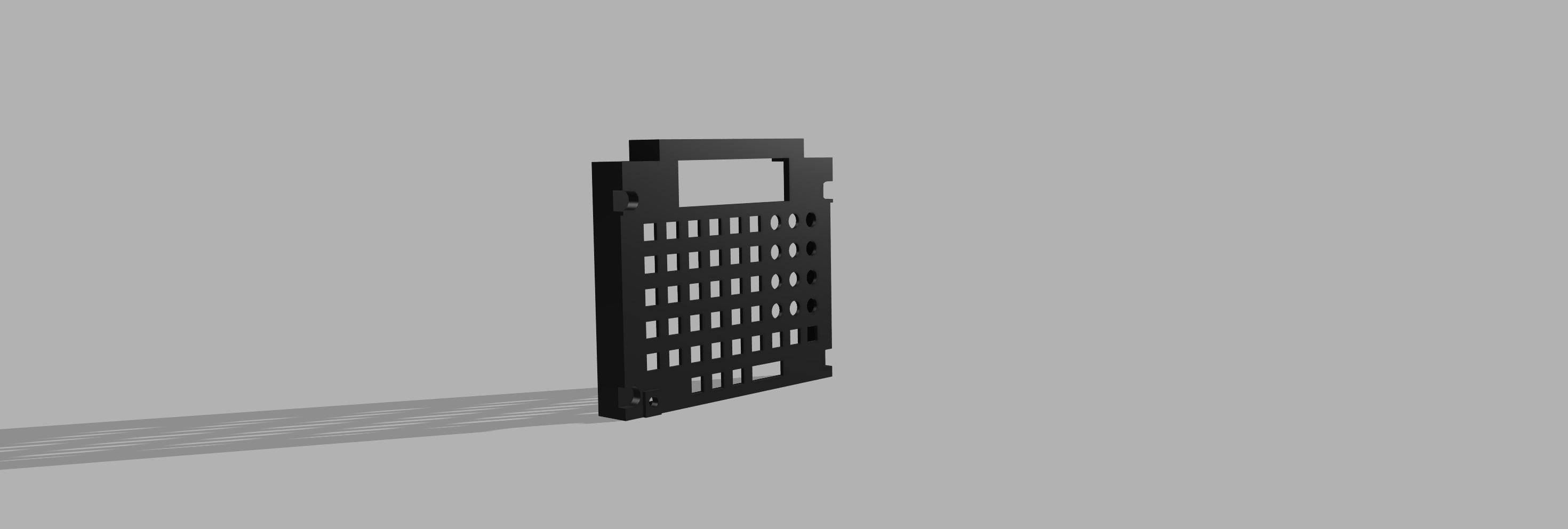

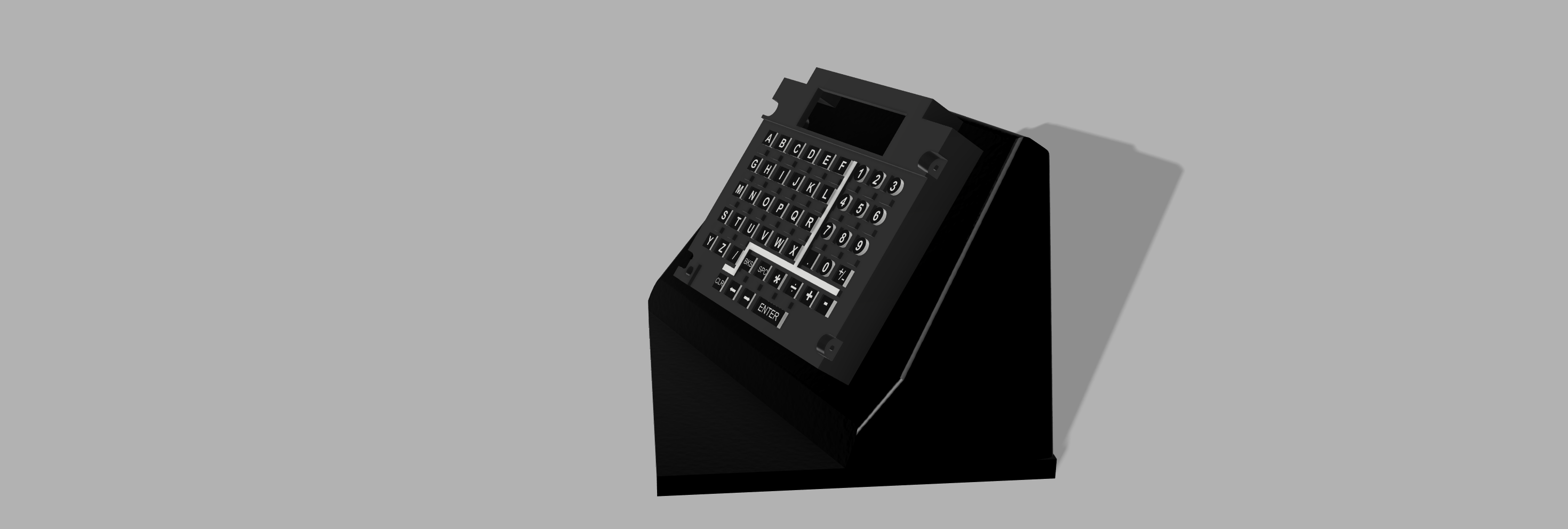

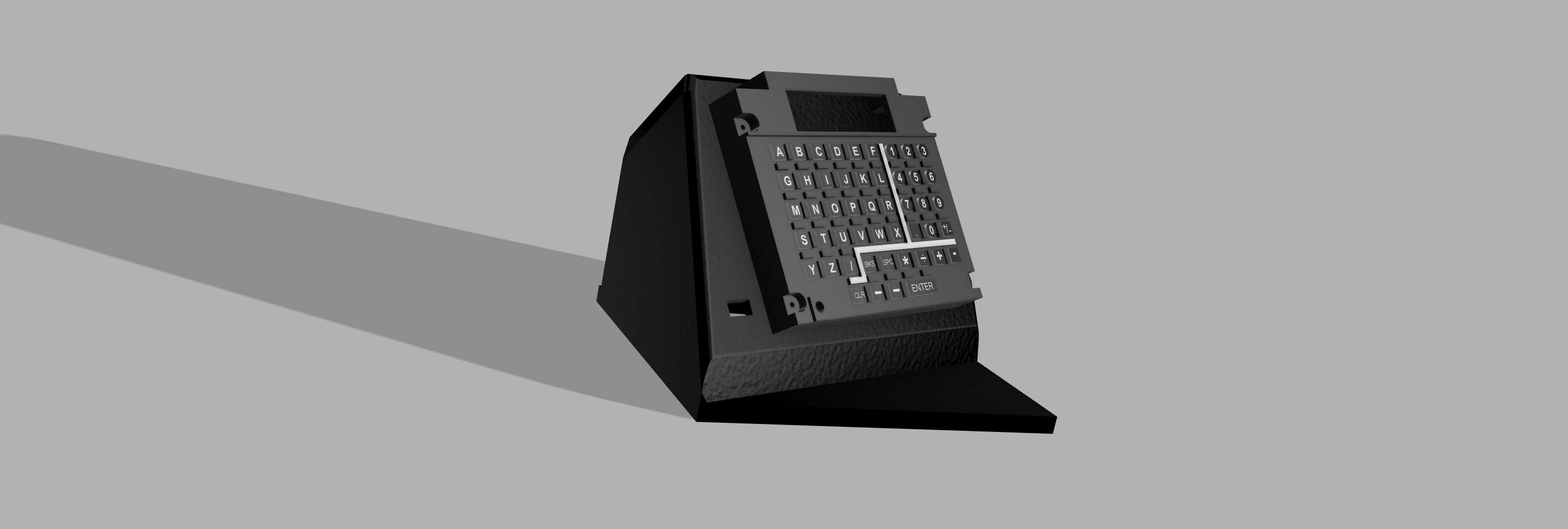

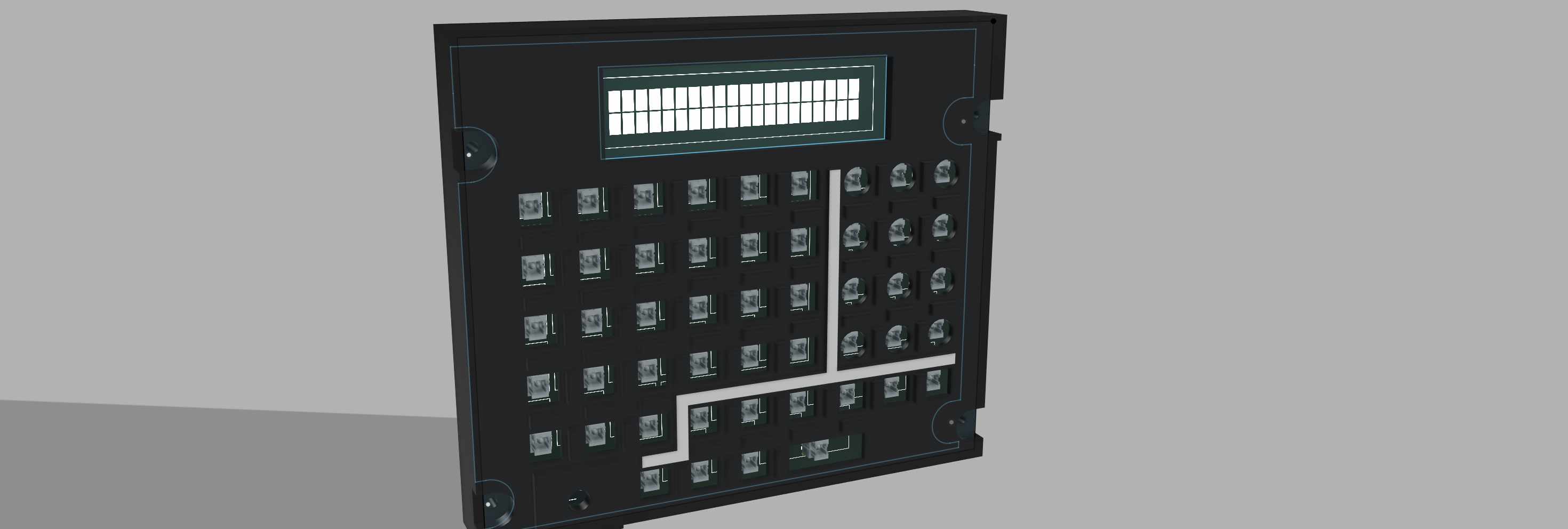

KDU Case v2 v8.pngKDU Case has been modified. I have a TechCreations KDU so I modeled it going of what I had in front of me loosing sight that the that one is not 1:1 to the real one. Modified it to bring it closer to the actual unit.

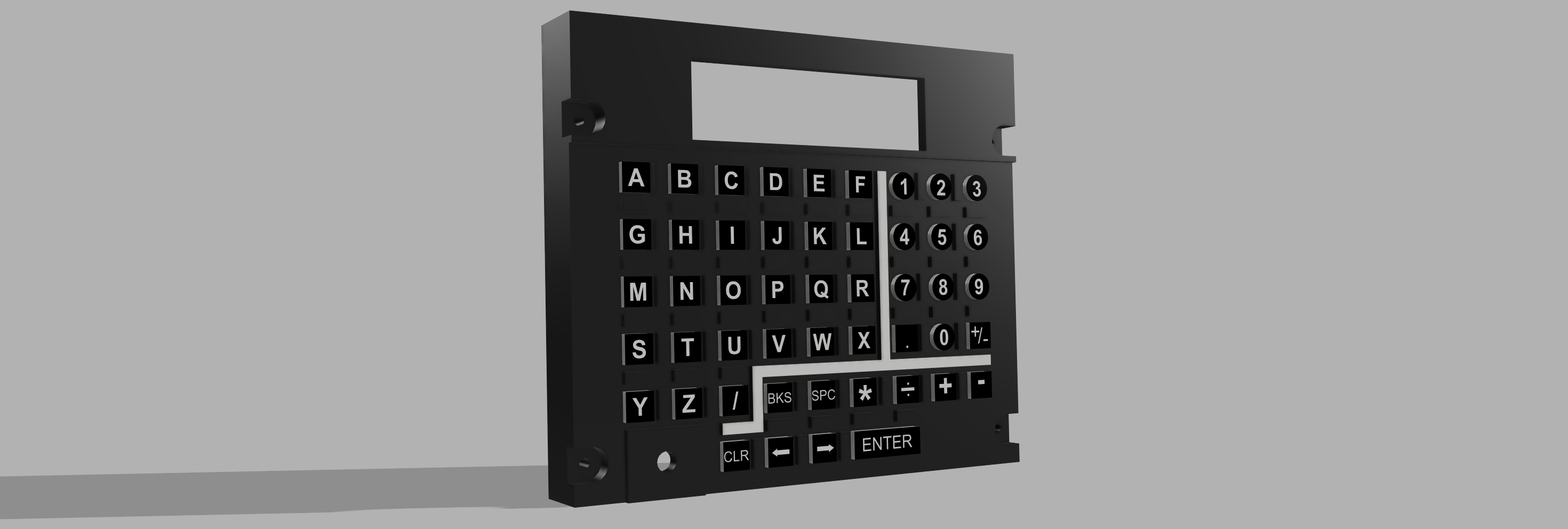

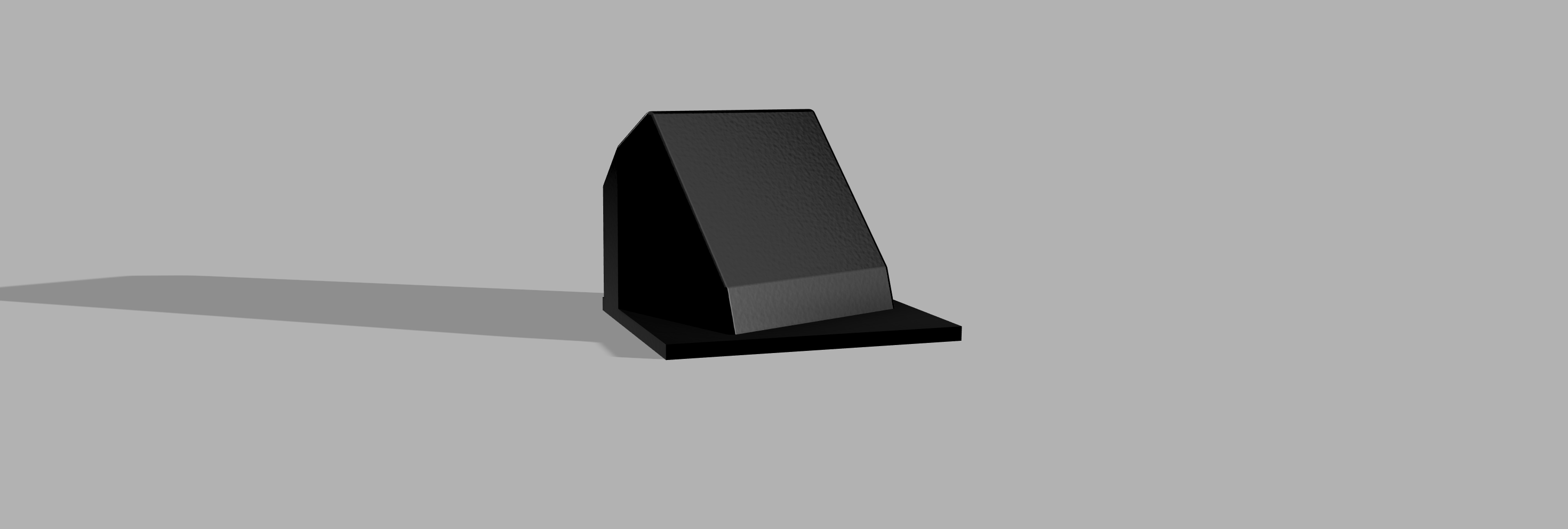

KDU Case v2 v7.png

Edited by pesbra
