rfrogman

I didn't have room for the full cockpit so I just purchased the chair. Very comfortable. I ordered a longer cable for the joystick. Next, I need to center the main monitor and add two 22" monitors on the left and right.

I am also working on a 3D-printed ICP for my F-16 cockpit. I have found several versions, and I selected one that will use a Teensy 4.0 board, but no one has a wiring diagram. The best I found was the code file for programming the Teensy. Can you show us how you wired yours up?

Very nice!

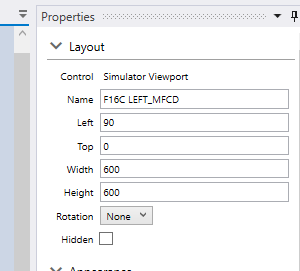

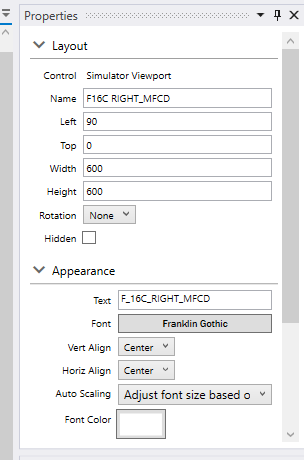

My CUBESIM file did not work with my setup either. As suggested above I used Helios 1.6 to configure them. Here is my setting to help. Note: I am using the patched F-16 viewports from Helios. If you use the generic one change the "left" field to 80 instead of the 90 in the photos. I love these Cubesim MFDs. My only gripe is the time frame to get them. I ordered them in July 2022 and received them in Nov. They did ask me clarifying questions on my setup and notified me along the way during production. Great product and I highly recommend them.

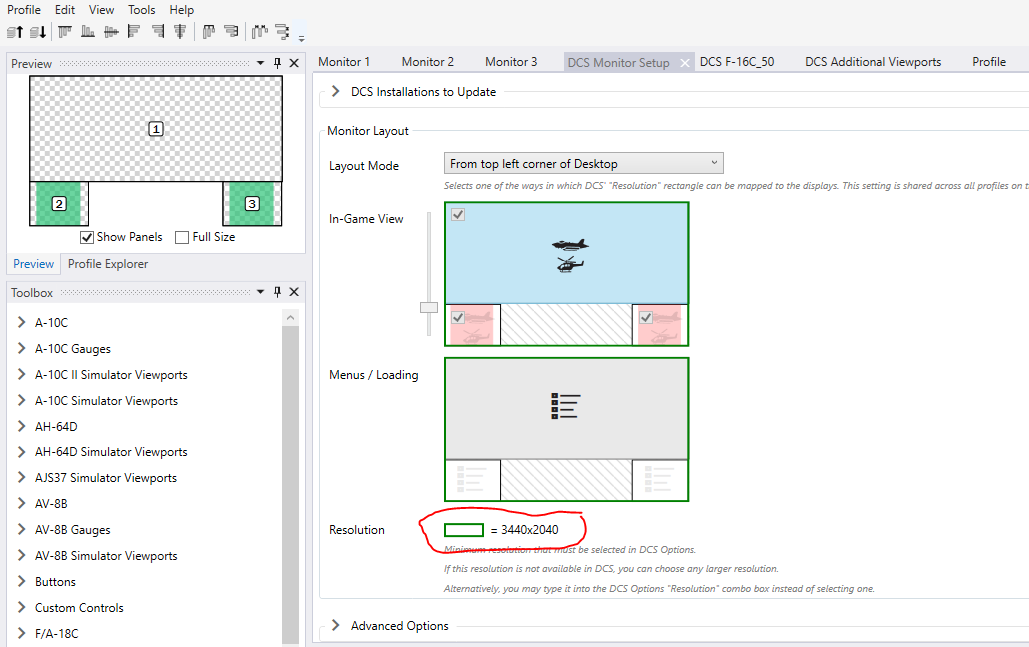

I did a lot of research on this one and found several people with a similar issue, but no correct answers, so I figured I would post my solution. Issue: I received my new Cubesim MFD and hooked them up. When I added the Cubesim lua it did not work. This lead me to download and configure my viewports with Helios 1.6. This work great to get the viewports using the generic MFD left and MFD right onto the Cubesims, but when I jumped into my trusty F-16C the backgrounds on the MFD were transparent and showing the clouds and ground as I flew (see photo of Cubesims). After hours of troubleshoot and endless Google search's I realized what has happening on my setup. I had my monitor setup to the top right of the main screen (see attached red frame drawing). What the view port was doing was displaying an extension of the main screen view similar to using multiple monitor setups where you want to see more of the world to the left and right of the main monitor. Solution: Simply relocated the Cubesim monitor to the bottom of my main screen and redoing my monitorsetup with Helios. Now everything functions fine. I also switched to the Helios F-16 patched viewports. This affected the location of the viewport from the original location with the generic MFD viewport. I seen in other post that people were have an issue with the alignment of the view port in Cubesim MFDs so I will share my setup using Helios 1.6 to help. Main monitor 3440x1440 Left MFD 800x600 Right MFD 800x 600 Helios setting for both MFD 600x600 left 90 top 0
