HI, thank you. I just ask that, because i think, maybe there is already a solution for my problem. And maybe my instrument, need some gears too,

I finished my first prototype F16 altimeter. I used an code i found here. Does anyone have a settings for the X27 stepper motor and the Easydriver controller. Resetting the meter works ok, but the readings do not match the program's meter.

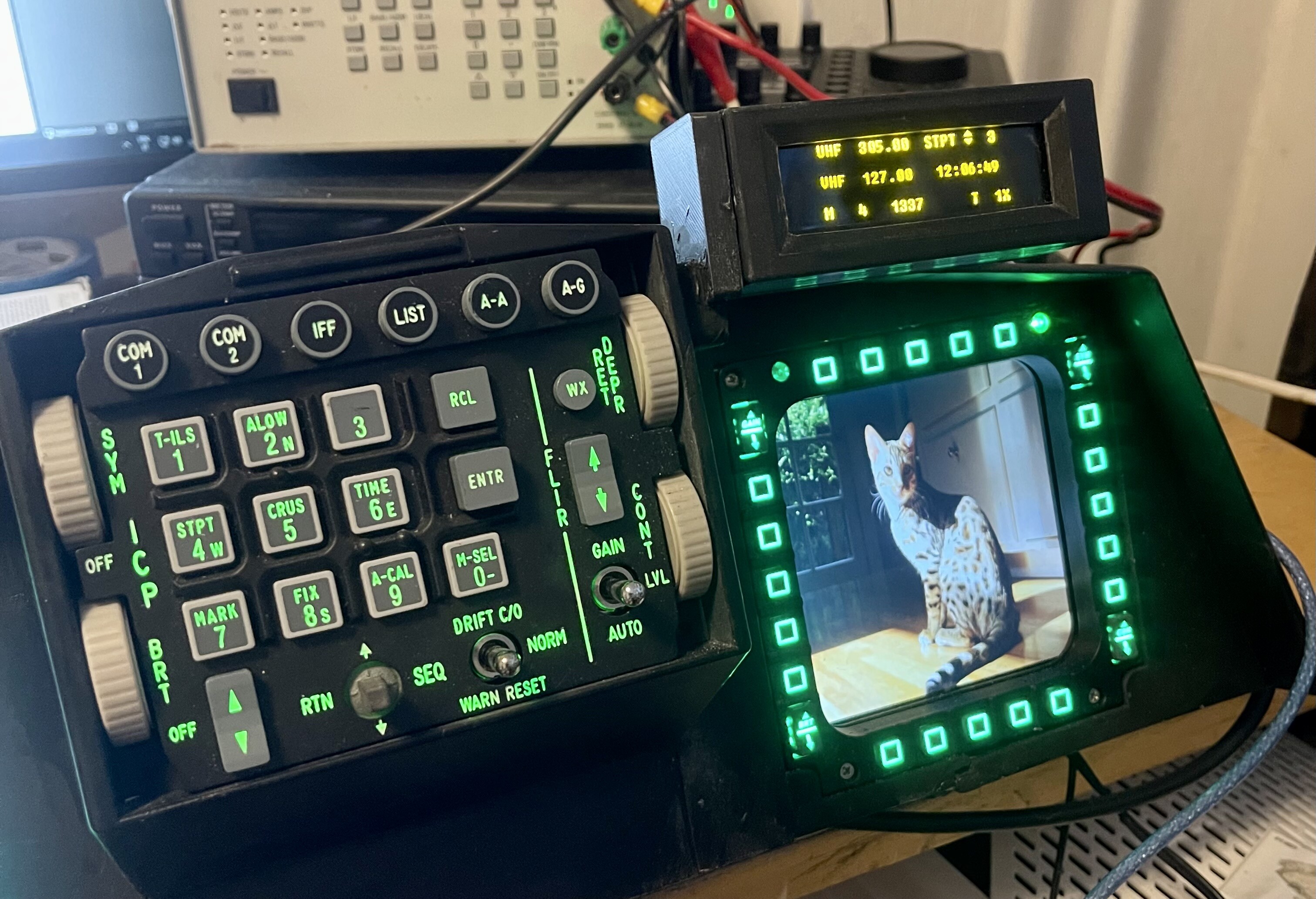

Here is a stl file for f16 iCP case. the photos is from first prototype version of the case. But attached file is the latest one. Please note that the picture shows the entire instrument panel for my multirole simulator The file is just an ICP case You must add some supports for panel. This is my own design and only a "look a like version But the SIMGEARS ICP works with it very well.. icpcase.STL The dimensions are metric. As you can see from second picture, i have a case for DED too... Just ask if you want a stl file for it too.. Here they are, both files for a ded case. You need 4 pieces brass support pillars for oled display too.dedcover.STLdedcasemain.STL

Now it is working… the case is 3Dprinted too.. looking very promising, indeed

Thank you, this is my own design, 3D printed and it is still under the construction. I will add some needle instruments and buttons and switches from my favorite planes. This is a real multirole fighter panel, when i get it ready. Here is a link for ICP panel https://www.simgears.com/simgears-products/f16-icp-replica/ https://www.simgears.com/simgears-products/f16-icp-replica/

Thank you, i will try that when i am at home

It works, but some texts are missing from left side of the display ".UHF" & "VHF" and some others when there is a different paga on display.

Hi, after i bought and get my new Virpil stick and throttle installed, everything works like a dream. But at second day, my Virpil Ace pedals do not work any more. i check the usbcable, i change it to new one and then i plug it to other usb port. no function. then i check my Windows 10 device list, there are the stick and the throttle and and notice VPC device, driver error (10), Something about the device can´t started or something like that..remove the device . So what to do next

i am happy if somebody can help me with my problem. I can´t get any movement for my vid29 stepper + easydriver board. just want know how to connect those steppermotor wires (order) for the driver. I have some experiment with Helios and phidget´s but iam not familiar with Easydriver (clone) i did my test with code meant used with Arduino Max and multible steppers. DCSbios working, the led flashing during gaming in Arduino but nothing else than EasyDriver board is little hot. ;)

I tried a flapdemo again with the updated dcsbios and it's works! But did not testing it fully, Only the movement of the servo.

Here is a picture from my VHFAM radio pcb´s gerber file. It is still a prototype and testing state. My sketch did working, and when i get my laser engraver working i can make engraved panel for it and then i can do final tests with all swiches and rotaries are installed. i can order some pcb,s ;)

Here is updated 1:1 drawing from A10 cdu TOP panel Inside) based to my original cdu. Some dimensions added. cdudimensions inside.PDF

I bought some years ago original A10 CDU from EBay. Quite expensive piece of junk :) Here is some part from it. I have them all somewhere :) the top panel´s one corner is broken, and some buttons are missing. Original swiches are "foil" stype swiches like in cheap joysticks. And electronics(display etc.etc.) are useless too. In a photo, there is my first attempt to build the top panel. but i am not satisfied for result, now i have a new tft display for it and some Arduino Mega & Due boards. Maybe i get it at last to working condition. I must make a mold from those original switches and i have "clear" resin boughted. My new laser engraver do not work, maybe the tube is broken or the power supply. I order some spares. and during a waiting, i think i can start my CDU project again.
