mega_mozg_13

Конфигуратор переключите в режим "PRO", заходите в настройки "AXIS" выбирайте строку оси которую будем настраивать: 1 (желтым) фильтр сглаживания, чем больше значение тем меньше рывков и плавнее ход (замыливание отклика); 2 (оранжевым) мертвые зоны, напрочь отсекает любые движения в указанных диапазонах; 3 (зеленым) кривые, режим Symmetrical(режим работы на две полуоси от центра) и уменьшайте чувствительность.

ice_pdb im understand your question, my english not native too. i will think about it at next release. you have a very lot of points, i think you have wheel or gears on mechanics?

by hardware: 1) internal AVR's ADC have 10bits resolution 2) with MCP3208 you can reach 12bit resolution MMJOY Joystick's resolution (14bits) it is software calculates smooth/filters and etc.

MMjoy have dynamical USB HID, so if profile without axes - windows will see only buttons.

SOLD

throttle and stick in reserve. desk mount/rudders - available.

DIY Electronics support up to 8 axes, 128 buttons (including buttons, encoders, toggle switches), RGB indication. firmware and configuration via a native USB cable; no external devices and drivers are required. all parameters are configured through the configurator program. additional software for checking the joystick, communication of several devices, communication of indication with games. USB controller($ 20) - connection up to 6 digital contactless axes or analog hall / potentiometer sensors (A1-A6); - connection up to 4 expansion cards, SPI interface compatible with virpil / thrustmaster grips (B1-B4); - direct connection of 8 buttons with common ground or up to 16 buttons button matrix (BTN1 / BTN2); - connection indication RGB WS2812; - sizes 60mm / 32mm, landing M3 46mm / 22mm; - kit controller board, USB cable. Digital contactless sensor ($ 10) -contactless technology works in tandem with a magnet; -the ability to digitize up to 360 degrees of the course mechanics; - digital four-wire communication interface, up to 150 cm without loss of speed and signal quality; - dimensions 42mm / 14mm, landing 35mm M3 between the holes; - kit sensor board, magnet tablet with a diameter of 5mm and a thickness of 2mm, cable connecting to the controller 20cm; Expansion Board ($ 10) - connection via high-speed five-wire SPI interface, up to 150 cm without loss of speed and signal quality; -the ability to connect up to 20 points of contact buttons / toggle switches / encoders; -the ability to connect up to 2 analog axes; - display output in RGB; - dimensions 50mm / 27mm, landing 42 mm / 19mm M3; - in a kit expansion board / RGB a payment and a cable of connection to the controller of 40 cm.

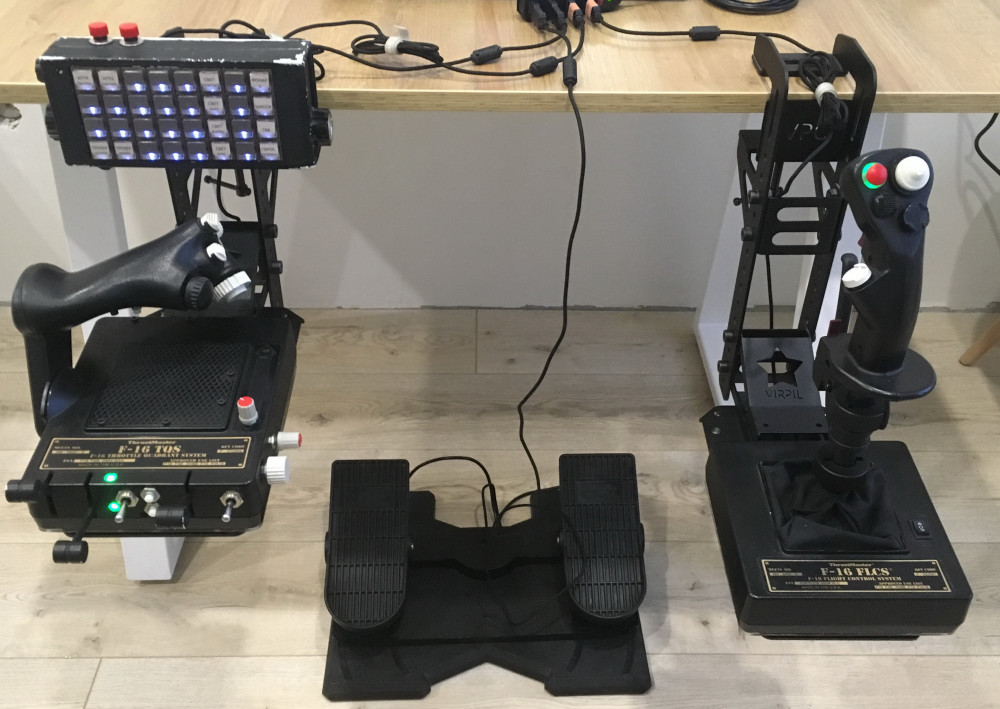

F16 HOTAS MOD (Stick, Throttle, Rudders, Button-box) more pictures VIRPIL electronics, fully compatible with new updates. four independent USB devices. the whole set was remade for itself and was constantly updated for many years. unfortunately, the last two years, gathering dust without doing. Stick base: Case F-16 FLCS plastic; BAUR mechanics, interchangeable cam set with and without center; Stick grip: Case F-22 PRO, good plastic in the handle, no crickets; All buttons, large and small in the hut's, replaced by new ones; The analog brake axis based on contactless sensor KMZ60; Added RGB indication; Throttle base: Case F-16 TQS plastic; Main throttle axis modded to metal mechanics and contactless digital sensor; Added three digital contactless axes on metal mini DVIK's levers; Added two toggle switches (on)-off-(on), two buttons, three encoders with push; Added RGB indication; Throttle grip: Case F-16 TQS plastic; All buttons, large and small in the hut's, replaced by new ones; Added two buttons at the bottom of the handle; Replaced ministick to encoder with pressing; Rudders: The basis of Thrustmaster Elite Rudder plastic; All axes modded by bearings and contactless digital sensor's; Button-box: Block of 32 buttons with backlight and removable glass (under them you can put a piece of paper label assignment buttons); Encoder; Two big red buttons; Two analog axes; 200$ Stick - 3 axes; 20 buttons; Desk mount; 200$ Throttle - 6 axes; 29 buttons; Desk mount; 65$ Rudder - 3 axes; 20$ Button-box - 2 axes; 36 buttons;

if you change Button Matrix(add or remove Rows/Columns) you are need to reset all buttons again(buttons change the physical addresses) . 1) timer for encoders "on+off" mode 2) here new "beta" http://rgho.st/private/7QgPQNsnZ/5481377b7934369f346bc74d0a7f0e95

CyStryker http://forum.il2sturmovik.ru/topic/3027-mmjoy2-i-thrustmaster/page-2#entry398998

new versions of the program will check the correctness of encoder settings.

MMJOY2[20160812] http://muonium.rgho.st/private/6rCbKTJYr/54484af91428498bf4c1ed80664529d6 fixed 4th Shift work. cosmetic changes setup Delay Timers "ON" or "ON+OFF" mode.

TLE5010/5011---------->Controller ProMicro(AtMega32u4) 1) 4Mhz clock----------->Pin B6 - Generator 4Mhz 2) SPI-SCK-------------->Pin B1 - SPI-SCK 3) SPI-CS--------------->Any free pin 4) SPI-Data------------->Pin B3 - SPI-MISO 5) TST1----------------->To Ground 6) VDD------------------>To Power (VCC) 7) GND------------------>To Ground 8) TST2----------------->To Ground all pins exept "SPI-CS" shared.

а что русские инструкции скопипастить слабо было?

"promicro" shield + shift reg's + tle5010 from CAPITANBLOOD http://forum.warthunder.ru/index.php?showuser=1330428 https://forum.warthunder.ru/index.php?/topic/64234-mjoy-mjoy8-mjoy16-mmjoy/?p=5518167 https://forum.warthunder.ru/index.php?/topic/64234-mjoy-mjoy8-mjoy16-mmjoy/?p=5507534
