  1. A320 no plans for mass production at present.
  2. The current joystick has a custom spring force in addition to the FF.You can decide for yourself whether it works.
  3. We are a startup company, very small, named Gauss. There is currently no suitable channel, especially in foreign markets. But we promised that it was not artificially damaged. Permanent warranty. Free for one year and then paid.
  4. Force Feedback Joystick Test on KA-50 https://youtu.be/34cKeTIJ4FM
  5. Force Feedback Joystick Test with TM Warthog https://youtu.be/T2DOU2Bsx7g
  6. We are going to give it a try
  7. It should start in September and release videos one after another.
  8. Add changing the base device VID/PID absolutely okay. More detailed test videos will be released later, we will show as much of its functionality as possible,Need to wait patiently for a while.
  9. Through the software, we can adapt any kind of joystick as long as his protocol is compatible and do not need to worry about the number of buttons
  10. As long as it is compatible with TM Warthog's joystick, it can be supported.
  11. Very interesting transformation, but our structure is different from FFB2, not a universal joint. T-50 has the same signal as Warthog, so you can use it directly in the program.
  12. We have 8-way with push down.
  13. From the news available at present, our torque is not as good as Brunner. We don't want to deny this, but the actual feeling on the hand depends on the extended distance, the weight of the joystick and other factors. At least someone thinks it's too heavy (he has my double muscle) We will make a review as soon as possible so that everyone can have a clear understanding.
  14. We are actively producing more
  15. 4.2Nm is the motor torque? Consider the attenuation caused by the arm length. For example, if you put the test point in the center of the joystick, only 1.8kg is left.

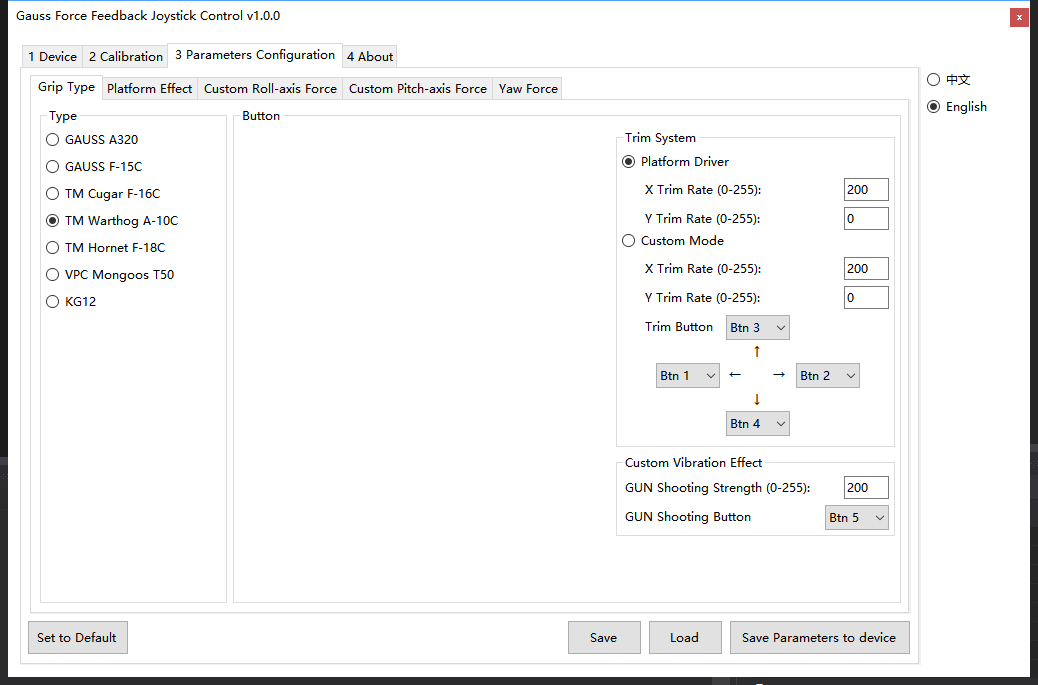

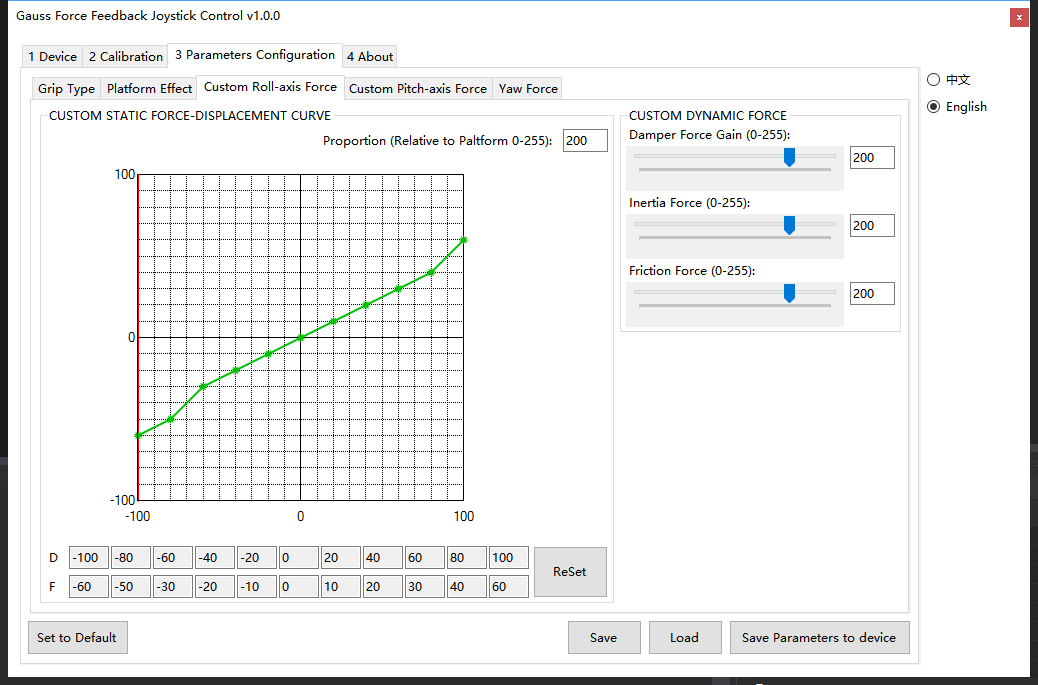

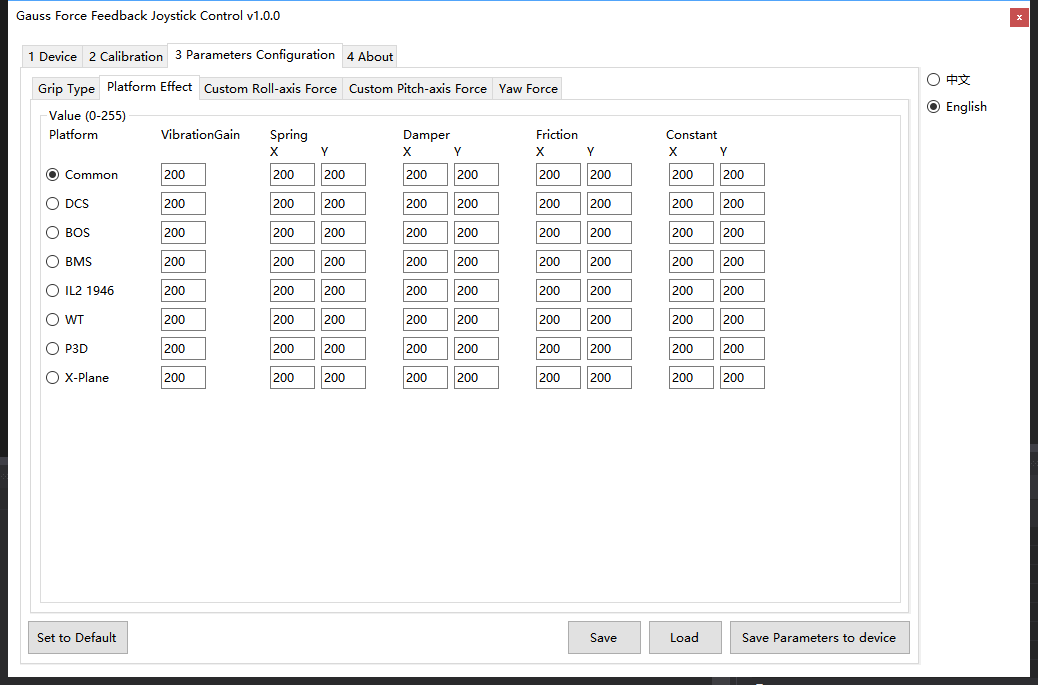

  16. I have uploaded the original software version image. You can get some useful information from it. There is no rebound in the back because the damping force is simulated, so it will not oscillate. The motor eliminates the pinning of the pole switching through a special magnetic pole.
  17. I believe that the vast majority of people will see the price will be in conflict, it is indeed very expensive. But we can't make a Ferrari for $100,000. Please look forward to our quality, we will show it to you later.
  18. ==================================================== Specifications Nominal Torque : 2.4kg (Off-axis 10cm) Max Torque : 3kg (Off-axis 10cm) Stroke : ±20° Dimensions : 158mm*110mm*130mm Weight : 2kg Direct drive without any gear structure Universal force feedback device, like FFB2:joystick: =================================================== Video =================================================== Power test https://youtu.be/AqEQqC1UGXs Test video 1 https://youtu.be/N4zRekKB4eg Test video 2 https://youtu.be/vbo9mHjw4Sk Test video 3 https://youtu.be/mjz5KQghIks Test video 4 https://youtu.be/DXZM4KTrH7Q Force Feedback Joystick Test with TM Warthog https://youtu.be/T2DOU2Bsx7g Force Feedback Joystick Test on KA-50 https://youtu.be/34cKeTIJ4FM =================================================== Price : 1099 Dollar (Base) + 179 Dollar (F15c Joystick) shipping fee not included Compatible : TM Cougar TM Warthog TM F18 VPC T50 Stay tuned for other details~ ====================================================
  19. STM32F103C8T6 is OK,But you need to manually plug in and restart the USB.Does not automatically
  20. This is the most common type of OLED screen, 0.96 inches, I think it can be easily bought anywhere.
  21. https://youtu.be/g7bafChj16I
  22. I think it should be ok, but I don't know what he uses to display text.
×
×
