The good photo of internal bay of the F-35, where we can see the installing process of GBU-32 with adapter.

Adapter for GBU-39 on BRU-61 for F-35A

For fun - F-22 and something :)

Some interesting fact - F-22 has different construction of Flare Dispenser bay doors for left and rigt side. And usual to find the photos with RR196/A and MJU-39/40 blocks are very difficult, so my be it will be interestig for somebody...

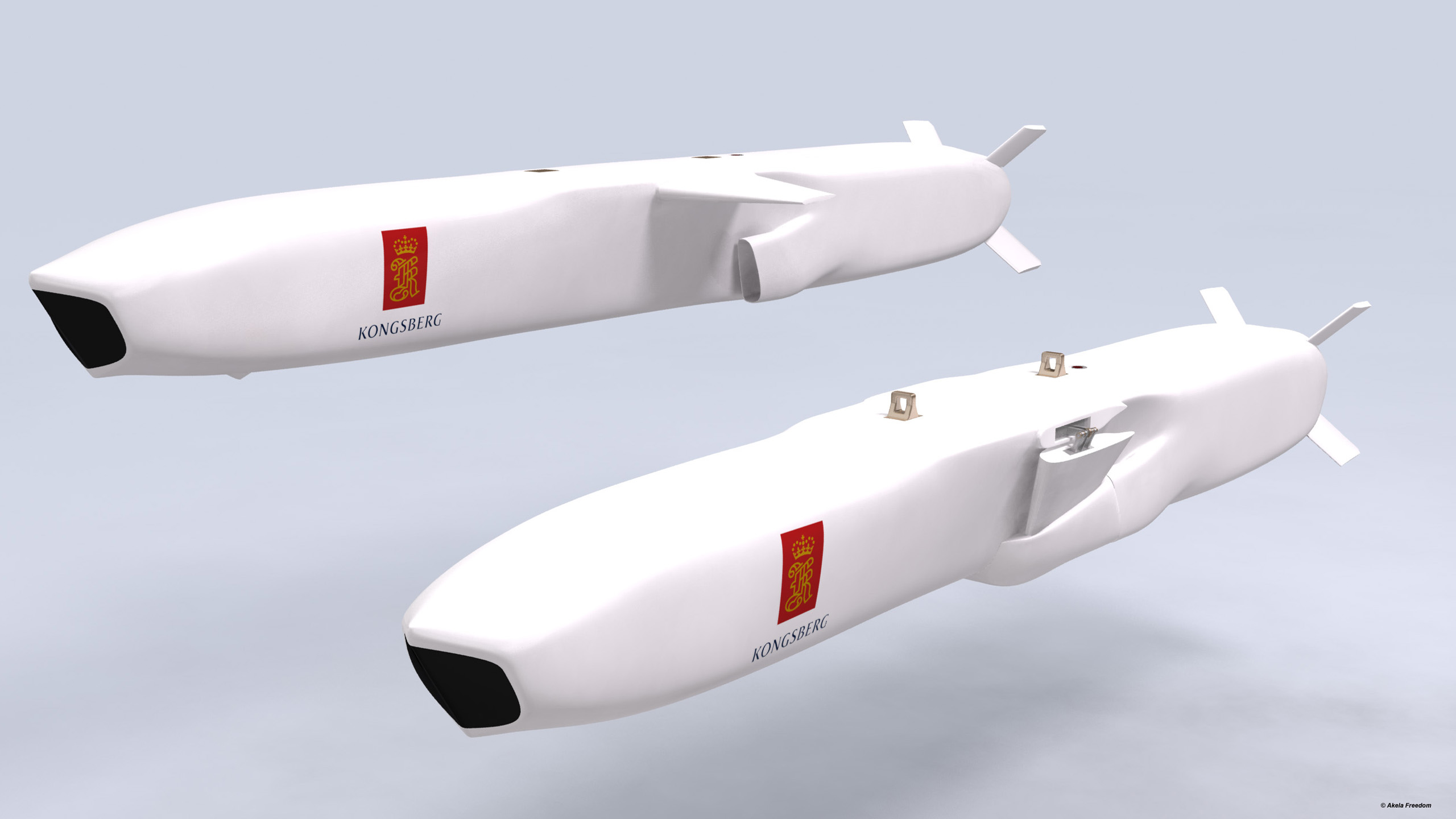

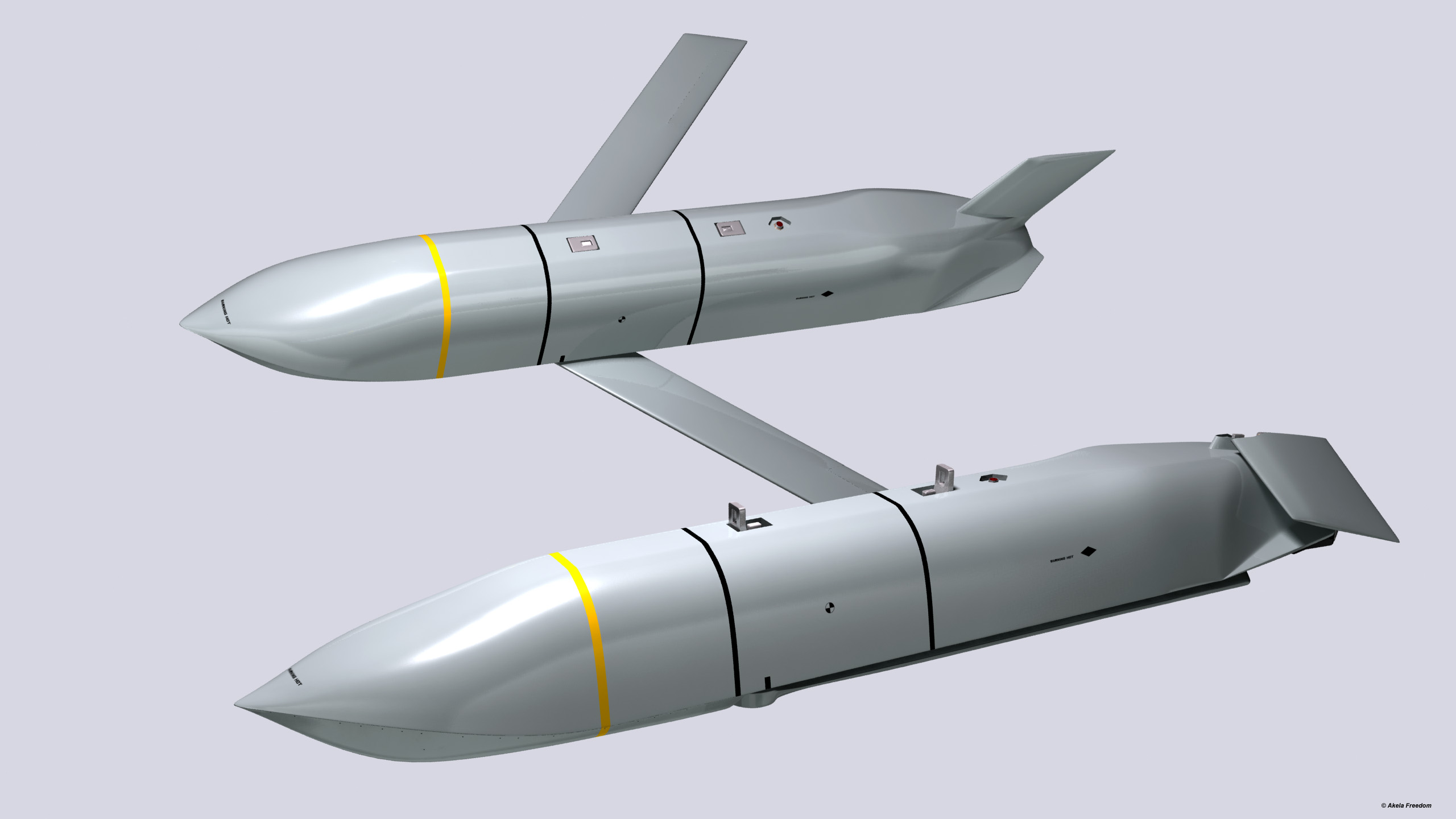

I have sow photos with JSM on pilons and inside internal bays. It's intersting for me because I created all thee missiles in 3D - AGM-158, SOM-J and JSM.

Thanks for Information! And another question about F-35 - Did you see photos where the F-35 with AGM-158?

I didn't find close-up view of F-117A, but on F-22A you can see gaps and rivets.

Interesting moment - all seams on F-117A are glued with special bands. But on F-22/F-35 we see in some place not covered rivets.

Yes, you are right, I skip anti-collision lights and small antennas. May be it's funny, but if the wiper blades create an 'Angle of incidence' they increase RCS :)

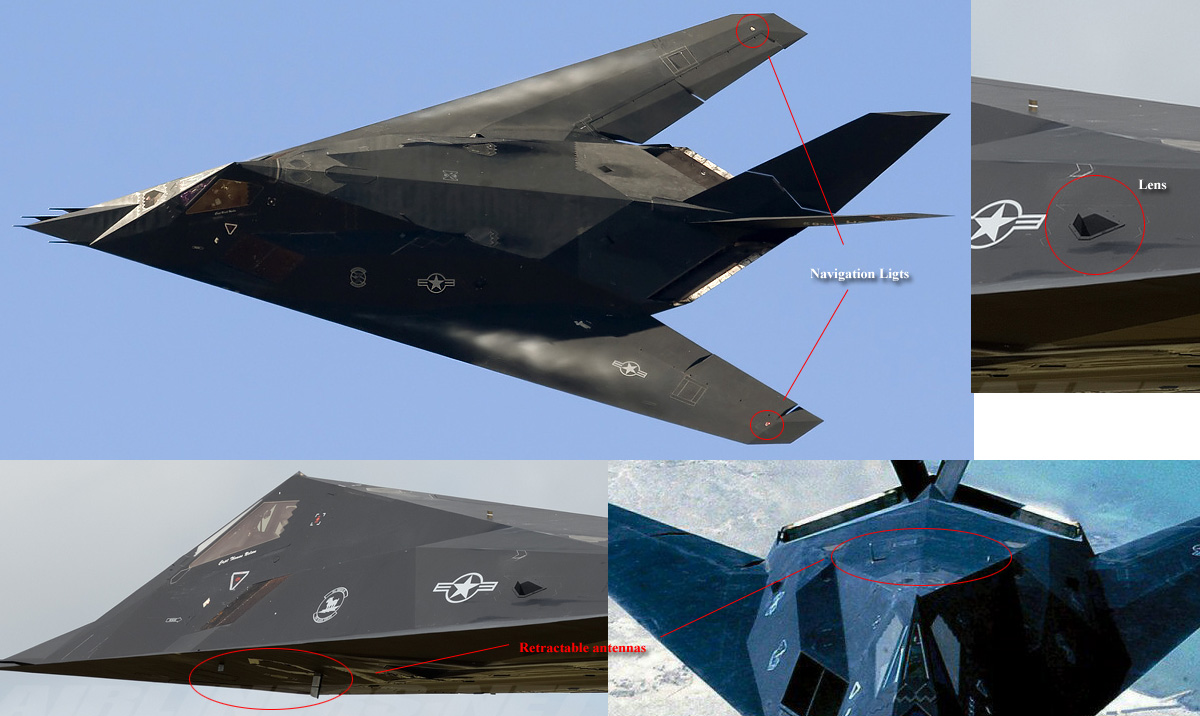

When F-117 was design nobody think abou RCS enhancement. So, retractable are antenas for communications and navigation lights are not retractable (the same on F-22). The lens appear more later...

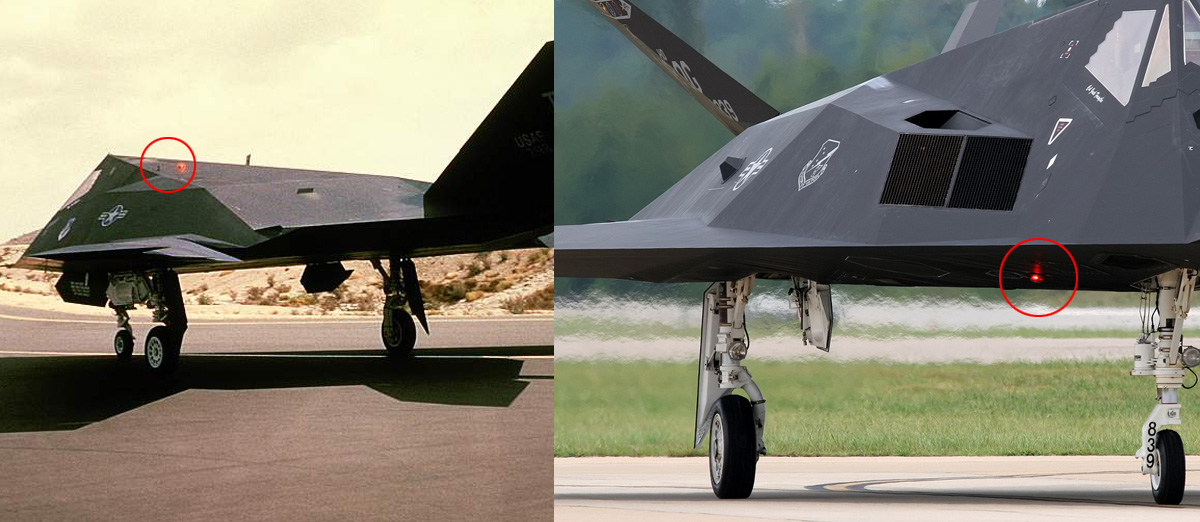

Northrop made a wise solution to combine lens and navigation lights together. And when it necessity they take away inside wings.

Actual for this used transponder - 'enemy/friendly'. And lens used only for hide real RCS.

We all know for what it neded (lens I mean). Interesting what for there four of them used. I suppose that only two are enough for upper and bottom hemisphere. But we see four - that is interesting...

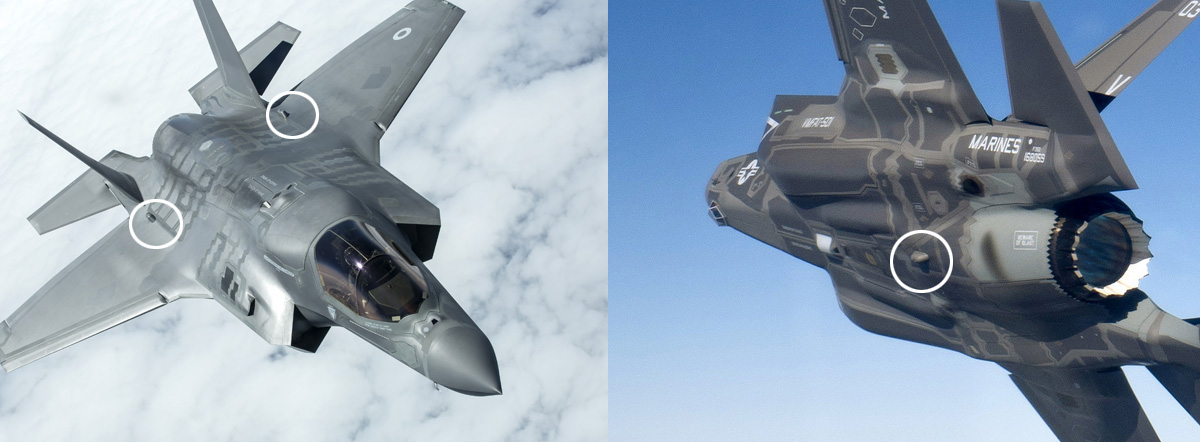

Somebody know what for on F-35A/C install four Luneburg lens. But on F-35B install only three. If you are remember on F-22 it's only one. Why so many on F-35?
