Yes. Have a look at the EngineCluster sketches at my github https://github.com/Middlefart/DCS-A10/tree/master/Sketches It uses the SwitecX12 library, also on my github Skickat från min iPhone med Tapatalk

I use double sided tape. Works like a charm

Actually I use Jlcpcb when ordering Pcb’s:-) However, I’ve also started milling pcb’s myself. Good for testing and small batches.

Here is a working sketch. There where some copy/paste errors in the previous version and some other stuff that also was wrong. Apparently I had lost the old working version but I managed to get it working again. //Uncomment for testmode (No DCS needed) //#define TEST #ifndef TEST #define DCSBIOS_IRQ_SERIAL //#define DCSBIOS_RS485_SLAVE 2 #include "DcsBios.h" #endif #define TXENABLE_PIN 2 #include <SPI.h> #include <Wire.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h> #include "characters.h" #define SCREEN_WIDTH 128 // OLED display width, in pixels #define SCREEN_HEIGHT 32 // OLED display height, in pixels #define TCAAddress 0x70 #define AltAddress 0 #define HGAddress 1 // Declaration for an SSD1306 display connected to I2C (SDA, SCL pins) #define OLED_RESET 4 // Reset pin # (or -1 if sharing Arduino reset pin) int updateInterval = 100; //the number of milliseconds between updates struct scrollDigit { int digit; int y; }; struct disp { Adafruit_SSD1306 display; int address; int width; int numberOfDigits; scrollDigit digits[5]; }; disp displays[2] = { {Adafruit_SSD1306(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET), AltAddress, 24, 5, {{0,0},{0,0},{0,0},{0,0},{0,0}}}, {Adafruit_SSD1306(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET), HGAddress, 16, 4, {{0,0},{0,0},{0,0},{0,0},{0,0}}} }; void TCASelect(uint8_t addr) { if (addr > 7) return; Wire.beginTransmission(TCAAddress); Wire.write(1 << addr); Wire.endTransmission(); } void setup() { for (int i = 0; i<2; i++) { TCASelect(displays[i].address); if(!displays[i].display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { // Address 0x3C for 128x32 for(;;); // Don't proceed, loop forever } } #ifdef TEST Serial.begin(9600); #else DcsBios::setup(); #endif UpdateDisplays(); } void UpdateDisplays() { for (int j = 0; j<2; j++) { TCASelect(displays[j].address); displays[j].display.clearDisplay(); for (int i = 0; i < displays[j].numberOfDigits; i++) { printScrollingDigit(displays[j].digits[i].digit, displays[j].width, displays[j].digits[i].y, i + 1, &displays[j]); } if (displays[j].width == 16) { displays[j].display.fillRect(0, 25, 128, 7, BLACK); } displays[j].display.display(); } } void printScrollingDigit(int digit, int width, int y, int pos, disp *display) { // int width = 24; int x = (width * pos) - width + pos; if (width == 24) { switch (digit) { case -1: display->display.drawBitmap(x, y, c24_Empty, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_1, 24, 32, 1); break; case 1: display->display.drawBitmap(x, y, c24_1, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_2, 24, 32, 1); break; case 2: display->display.drawBitmap(x, y, c24_2, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_3, 24, 32, 1); break; case 3: display->display.drawBitmap(x, y, c24_3, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_4, 24, 32, 1); break; case 4: display->display.drawBitmap(x, y, c24_4, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_5, 24, 32, 1); break; case 5: display->display.drawBitmap(x, y, c24_5, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_6, 24, 32, 1); break; case 6: display->display.drawBitmap(x, y, c24_6, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_7, 24, 32, 1); break; case 7: display->display.drawBitmap(x, y, c24_7, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_8, 24, 32, 1); break; case 8: display->display.drawBitmap(x, y, c24_8, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_9, 24, 32, 1); break; case 9: display->display.drawBitmap(x, y, c24_9, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_0, 24, 32, 1); break; default: display->display.drawBitmap(x, y, c24_0, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_1, 24, 32, 1); break; } } else { switch (digit) { case -1: display->display.drawBitmap(x, y, c16_Empty, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_1, 16, 24, 1); break; case 1: display->display.drawBitmap(x, y, c16_1, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_2, 16, 24, 1); break; case 2: display->display.drawBitmap(x, y, c16_2, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_3, 16, 24, 1); break; case 3: display->display.drawBitmap(x, y, c16_3, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_4, 16, 24, 1); break; case 4: display->display.drawBitmap(x, y, c16_4, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_5, 16, 24, 1); break; case 5: display->display.drawBitmap(x, y, c16_5, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_6, 16, 24, 1); break; case 6: display->display.drawBitmap(x, y, c16_6, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_7, 16, 24, 1); break; case 7: display->display.drawBitmap(x, y, c16_7, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_8, 16, 24, 1); break; case 8: display->display.drawBitmap(x, y, c16_8, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_9, 16, 24, 1); break; case 9: display->display.drawBitmap(x, y, c16_9, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_0, 16, 24, 1); break; default: display->display.drawBitmap(x, y, c16_0, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_1, 16, 24, 1); break; } } } void onAlt10000FtChange(unsigned int newValue) { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, -33); if (mappedValue == 0) { mappedValue = -1; } displays[AltAddress].digits[0].digit = mappedValue; displays[AltAddress].digits[0].y = y; } void onAlt1000FtChange(unsigned int newValue) { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, -33); displays[AltAddress].digits[1].digit = mappedValue; displays[AltAddress].digits[1].y = y; } void onAlt100FtChange(unsigned int newValue) { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, -33); displays[AltAddress].digits[2].digit = mappedValue; displays[AltAddress].digits[2].y = y; } void onBaro0Change(unsigned int newValue) { unsigned int mappedValue = newValue / 6554; unsigned int y = map(newValue, mappedValue * 6554, mappedValue * 6554 + 6554, 0, -25); displays[HGAddress].digits[3].digit = mappedValue; displays[HGAddress].digits[3].y = y; } void onBaro1Change(unsigned int newValue) { unsigned int mappedValue = newValue / 6554; unsigned int y = map(newValue, mappedValue * 6554, mappedValue * 6554 + 6554, 0, -25); displays[HGAddress].digits[2].digit = mappedValue; displays[HGAddress].digits[2].y = y; } void onBaro2Change(unsigned int newValue) { unsigned int mappedValue = newValue / 6554; unsigned int y = map(newValue, mappedValue * 6554, mappedValue * 6554 + 6554, 0, -25); displays[HGAddress].digits[1].digit = mappedValue; displays[HGAddress].digits[1].y = y; } void onBaro3Change(unsigned int newValue) { unsigned int mappedValue = newValue / 6554; unsigned int y = map(newValue, mappedValue * 6554, mappedValue * 6554 + 6554, 0, -25); displays[HGAddress].digits[0].digit = mappedValue; displays[HGAddress].digits[0].y = y; } #ifndef TEST DcsBios::IntegerBuffer Alt10000FtBuffer(0x1080, 0xffff, 0, onAlt10000FtChange); DcsBios::IntegerBuffer Alt1000FtBuffer(0x1082, 0xffff, 0, onAlt1000FtChange); DcsBios::IntegerBuffer Alt100FtBuffer(0x1084, 0xffff, 0, onAlt100FtChange); DcsBios::IntegerBuffer Baro0Buffer(0x1086, 0xffff, 0, onBaro0Change); DcsBios::IntegerBuffer Baro1Buffer(0x1088, 0xffff, 0, onBaro1Change); DcsBios::IntegerBuffer Baro2Buffer(0x108a, 0xffff, 0, onBaro2Change); DcsBios::IntegerBuffer Baro3Buffer(0x108c, 0xffff, 0, onBaro3Change); #endif unsigned long time = 0; unsigned int i = 0; void loop() { #ifndef TEST DcsBios::loop(); #endif time = millis(); if (time % updateInterval == 0) { #ifdef TEST onAlt10000FtChange(i); onAlt1000FtChange(i); onAlt100FtChange(i); onBaro0Change(i); onBaro1Change(i); onBaro2Change(i); onBaro3Change(i); i += 400; #endif UpdateDisplays(); } } I tested it in DCS and everything works as it should.

Sorry about that. I was pretty sure that this was the sketch I used, but I realise that it can't be. I'll dig around and try to find the working version

Disclaimer: I'm not sure that the sketch in the previous post is 100% working but I think so :-)

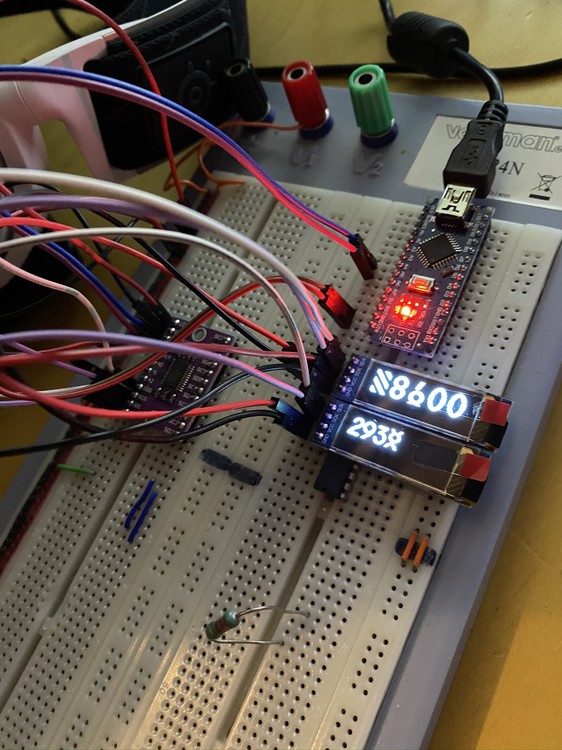

You might wanna have a look at this sketch. This is my original one which i used in conjunction with a I2C Multiplexer to drive two displays (with the same address) from the same Arduino Nano. You need to do some changes since you are not using the Multiplexer but the base functionality should be the same. #define DCSBIOS_RS485_SLAVE 2 #define TXENABLE_PIN 2 #include "DcsBios.h" #include <SPI.h> #include <Wire.h> #include <Adafruit_GFX.h> #include <Adafruit_SSD1306.h> #include "characters.h" #define SCREEN_WIDTH 128 // OLED display width, in pixels #define SCREEN_HEIGHT 32 // OLED display height, in pixels #define TCAAddress 0x70 #define AltAddress 0 #define HGAddress 1 // Declaration for an SSD1306 display connected to I2C (SDA, SCL pins) #define OLED_RESET 4 // Reset pin # (or -1 if sharing Arduino reset pin) struct scrollDigit { int digit; int y; }; struct disp { Adafruit_SSD1306 display; int address; int width; int numberOfDigits; scrollDigit digits[5]; }; disp displays[2] = { {Adafruit_SSD1306(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET), 0, 24, 5, {{0,0},{0,0},{0,0},{0,0},{0,0}}}, {Adafruit_SSD1306(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET), 1, 16, 4, {{0,0},{0,0},{0,0},{0,0},{0,0}}} }; void TCASelect(uint8_t addr) { if (addr > 7) return; Wire.beginTransmission(TCAAddress); Wire.write(1 << addr); Wire.endTransmission(); } void setup() { for (int i = 0; i<2; i++) { TCASelect(displays[i].address); if(!displays[i].display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) { // Address 0x3C for 128x32 for(;;); // Don't proceed, loop forever } } DcsBios::setup(); } void UpdateDisplays() { for (int j = 0; j<2; j++) { TCASelect(displays[j].address); displays[j].display.clearDisplay(); for (int i = 0; i < displays[j].numberOfDigits; i++) { printScrollingDigit(displays[j].digits[i].digit, displays[j].width, displays[j].digits[i].y, i + 1, &displays[j]); } if (displays[j].width == 16) { displays[j].display.fillRect(0, 25, 128, 7, BLACK); } displays[j].display.display(); } } void printScrollingDigit(int digit, int width, int y, int pos, disp *display) { // int width = 24; int x = (width * pos) - width + pos; if (width == 24) { switch (digit) { case -1: display->display.drawBitmap(x, y, c24_Empty, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_1, 24, 32, 1); break; case 1: display->display.drawBitmap(x, y, c24_1, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_2, 24, 32, 1); break; case 2: display->display.drawBitmap(x, y, c24_2, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_3, 24, 32, 1); break; case 3: display->display.drawBitmap(x, y, c24_3, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_4, 24, 32, 1); break; case 4: display->display.drawBitmap(x, y, c24_4, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_5, 24, 32, 1); break; case 5: display->display.drawBitmap(x, y, c24_5, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_6, 24, 32, 1); break; case 6: display->display.drawBitmap(x, y, c24_6, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_7, 24, 32, 1); break; case 7: display->display.drawBitmap(x, y, c24_7, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_8, 24, 32, 1); break; case 8: display->display.drawBitmap(x, y, c24_8, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_9, 24, 32, 1); break; case 9: display->display.drawBitmap(x, y, c24_9, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_0, 24, 32, 1); break; default: display->display.drawBitmap(x, y, c24_0, 24, 32, 1); display->display.drawBitmap(x, y+33, c24_1, 24, 32, 1); break; } } else { switch (digit) { case -1: display->display.drawBitmap(x, y, c16_Empty, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_1, 16, 24, 1); break; case 1: display->display.drawBitmap(x, y, c16_1, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_2, 16, 24, 1); break; case 2: display->display.drawBitmap(x, y, c16_2, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_3, 16, 24, 1); break; case 3: display->display.drawBitmap(x, y, c16_3, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_4, 16, 24, 1); break; case 4: display->display.drawBitmap(x, y, c16_4, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_5, 16, 24, 1); break; case 5: display->display.drawBitmap(x, y, c16_5, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_6, 16, 24, 1); break; case 6: display->display.drawBitmap(x, y, c16_6, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_7, 16, 24, 1); break; case 7: display->display.drawBitmap(x, y, c16_7, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_8, 16, 24, 1); break; case 8: display->display.drawBitmap(x, y, c16_8, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_9, 16, 24, 1); break; case 9: display->display.drawBitmap(x, y, c16_9, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_0, 16, 24, 1); break; default: display->display.drawBitmap(x, y, c16_0, 16, 24, 1); display->display.drawBitmap(x, y+25, c16_1, 16, 24, 1); break; } } } void onAlt10000FtChange(unsigned int newValue) { void onAlt10000FtChange(unsigned int newValue) { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, YPos()); if (mappedValue == 0) { mappedValue = -1; } oled.digits[0].digit = mappedValue; oled.digits[0].y = y; } } void onAlt1000FtChange(unsigned int newValue) { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, -33); displays[AltAddress].digits[1].digit = mappedValue; displays[AltAddress].digits[1].y = y; // UpdateDisplays(); } void onAlt100FtChange(unsigned int newValue) { unsigned int mappedValue = newValue / 6553; unsigned int y = map(newValue, mappedValue * 6553, mappedValue * 6553 + 6553, 0, -33); displays[AltAddress].digits[2].digit = mappedValue; displays[AltAddress].digits[2].y = y; //UpdateDisplays(); } void onBaro0Change(unsigned int newValue) { unsigned int mappedValue = newValue / 6554; unsigned int y = map(newValue, mappedValue * 6554, mappedValue * 6554 + 6554, 0, -25); displays[HGAddress].digits[3].digit = mappedValue; displays[HGAddress].digits[3].y = y; //UpdateDisplays(); } void onBaro1Change(unsigned int newValue) { unsigned int mappedValue = newValue / 6554; unsigned int y = map(newValue, mappedValue * 6554, mappedValue * 6554 + 6554, 0, -25); displays[HGAddress].digits[2].digit = mappedValue; displays[HGAddress].digits[2].y = y; // UpdateDisplays(); } void onBaro2Change(unsigned int newValue) { unsigned int mappedValue = newValue / 6554; unsigned int y = map(newValue, mappedValue * 6554, mappedValue * 6554 + 6554, 0, -25); displays[HGAddress].digits[1].digit = mappedValue; displays[HGAddress].digits[1].y = y; // UpdateDisplays(); } void onBaro3Change(unsigned int newValue) { unsigned int mappedValue = newValue / 6554; unsigned int y = map(newValue, mappedValue * 6554, mappedValue * 6554 + 6554, 0, -25); displays[HGAddress].digits[0].digit = mappedValue; displays[HGAddress].digits[0].y = y; // UpdateDisplays(); } DcsBios::IntegerBuffer Alt10000FtBuffer(0x1080, 0xffff, 0, onAlt10000FtChange); DcsBios::IntegerBuffer Alt1000FtBuffer(0x1082, 0xffff, 0, onAlt1000FtChange); DcsBios::IntegerBuffer Alt100FtBuffer(0x1084, 0xffff, 0, onAlt100FtChange); DcsBios::IntegerBuffer Baro0Buffer(0x1086, 0xffff, 0, onBaro0Change); DcsBios::IntegerBuffer Baro1Buffer(0x1088, 0xffff, 0, onBaro1Change); DcsBios::IntegerBuffer Baro2Buffer(0x108a, 0xffff, 0, onBaro2Change); DcsBios::IntegerBuffer Baro3Buffer(0x108c, 0xffff, 0, onBaro3Change); int count = 0; void loop() { DcsBios::loop(); count++; if (count % 100 == 0) { UpdateDisplays(); } }

:thumbup: Yes I agree. I would like a more beefed up version of the nano with a little more oumph! Would be nice to have a little more CPU to play with

I make my panels from acrylic which I laser cut on a K40 laser. Engaved panels are made from white acrylic which i paint black and then laser engave the paint away where the text etc is. Some parts are 3D-printed on a Creality Ender 3. PCB's I either etch myself or order från JLCPCB.

The latest version of the sketch can now be found on https://github.com/Middlefart/DCS-A10

Good to hear! :thumbup: The latest version of the sketch can now be found on https://github.com/Middlefart/DCS-A10

Glad to hear it works!

Jittery output for Altimeter data I have tested the dropbox version for 20 minutes now without any problems

I'm pretty confident that the bug has been resolved. A new sketch is available on https://www.dropbox.com/sh/uaozt4p6z...YdFYZRcKa?dl=0

No glitches/jitters since I changed this. DCS has been running for 15 minutes. I really think this solved it. If that's the case I was right. Bad data, not bad code :D Well. Not very bad code at least :music_whistling: I've uploaded my latest sketch to https://www.dropbox.com/sh/uaozt4p6z1yx0wd/AAAMB3i172vHYOTcYdFYZRcKa?dl=0 Feel free to use it I'm gonna try to set up a GitHub repository for this and other sketches I've created.
