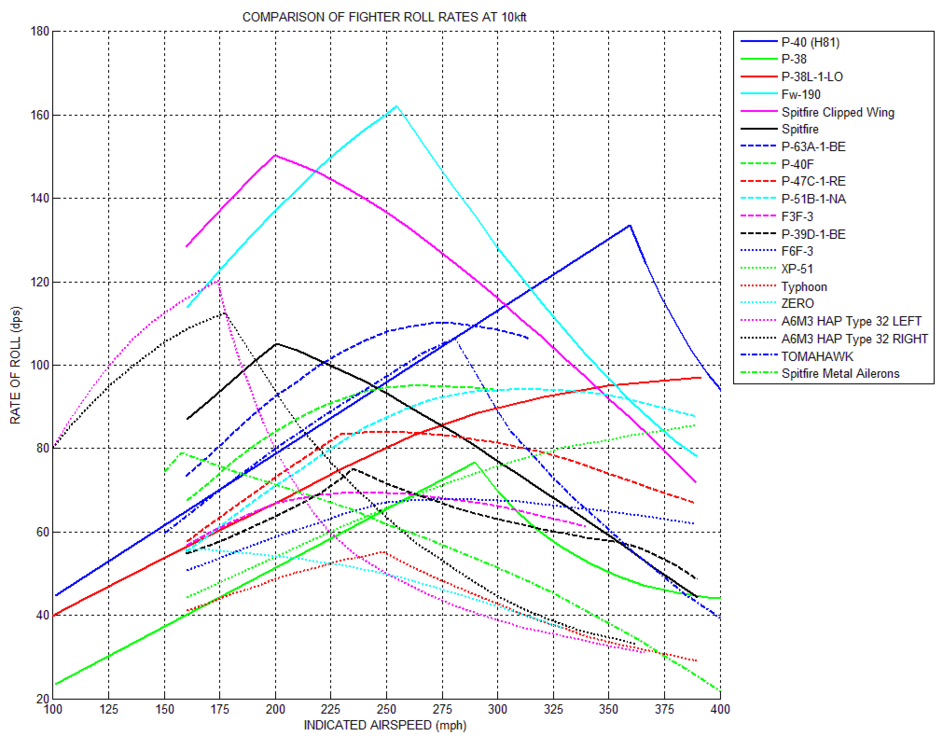

COMPARISON OF FIGHTER ROLL RATES


TAGERT
 Share

Recommended Posts

P-40 (H81) ............... [Americas Hundred Thousand graph 81 and graph 29, note TYPICAL]

P-38 ..................... [Americas Hundred Thousand graph 81, note NO BOOST]

P-38L-1-LO ............... [Technical Archive Department P-38L-1-LO 10 JUNE 1944]

Fw-190 ................... [NACA 868]

Spitfire Clipped Wing .... [NACA 868]

Spitfire ................. [NACA 868]

P-63A-1-BE ............... [NACA 868]

P-40F .................... [NACA 868]

P-47C-1-RE ............... [NACA 868]

P-51B-1-NA ............... [NACA 868]

F4F-3 .................... [NACA 868]

P-39D-1-BE ............... [NACA 868]

F6F-3 .................... [NACA 868]

XP-51 .................... [NACA 868]

TYPHOON .................. [NACA 868]

ZERO ..................... [NACA 868]

A6M3 HAP Tyype 32 LFT .... [R.A.F. HEADQUARTERS Detail No. 119/A/30. 16TH OCTOBER 1943]

A6M3 HAP Tyype 32 RGT .... [R.A.F. HEADQUARTERS Detail No. 119/A/30. 16TH OCTOBER 1943]

TOMAHAWK ................. [R.A.F. HEADQUARTERS Detail No. 119/A/30. 16TH OCTOBER 1943]

Spitfire Metal Ailerons .. [R.A.F. HEADQUARTERS Detail No. 119/A/30. 16TH OCTOBER 1943]

1894867341_COMPARISONOFFIGHTERROLLRATES.thumb.png.b7fd1be64f31e88c6f2e1c84a98cb5f6.png

Link to comment
Share on other sites

Very cool. Can you elaborate a bit on the sources? I own a copy of America's Hundred Thousand, but what's NACA 868, and where can one find the other two sources?

Here is a link to the NACA 868 (there are others online, google if this link takes too long)

http://naca.central.cranfield.ac.uk/reports/1947/naca-report-868.pdf



Here is the link for the RAF testing

http://www.wwiiaircraftperformance.org/japan/RAAF_Hap_Trials.pdf

Link to comment
Share on other sites

That P-47 excels over 310. But dog gone, look at that 190! I wonder where the 109 plays into that.

Dogs of War Squadron

Call sign "HeadHunter" P-51D /Spitfire Jockey

Gigabyte EP45T-UD3LR /Q9650 3.6Ghz | 16GB DDR3 1600 RipJaws | EVGA GTX-1060 ACX3 FTW | ThrustMaster 16000m & G13 GamePad w/analog rudder stick | TurtleBeach EarForce PX22 | Track IR5 | Vizio 40" 4K TV monitor (stuck temporarily with an Acer 22" :( )

Link to comment
Share on other sites

Tagert, did you check if the tests referenced in those sources all shared a standardized procedure? E.g. one hand, pulling X lb. of force, etc.

I don't know of any 'one hand' requirement..



But, most of the tests do list the force required.. and most list the altitude the roll rate was done at. For example, all the NACA stuff was 10kft @ 50lbs. Except for the ZERO which they noted they don't know what the force was.



I think some of the RAF stuff was done at a slightly different altitude.. Ill have to check my notes.. I am planing on listing all that in the legend, I just have not got around to it yet! ;)


Edited by TAGERT
