Visual Depiction of the Overhead Patter for the C-101

[ruddy122]

Hi Everyone,



Does anyone have any info on how the C-101 flies the Visual Overhead Pattern?



Any info would be great



Thanks,

[Vibora]

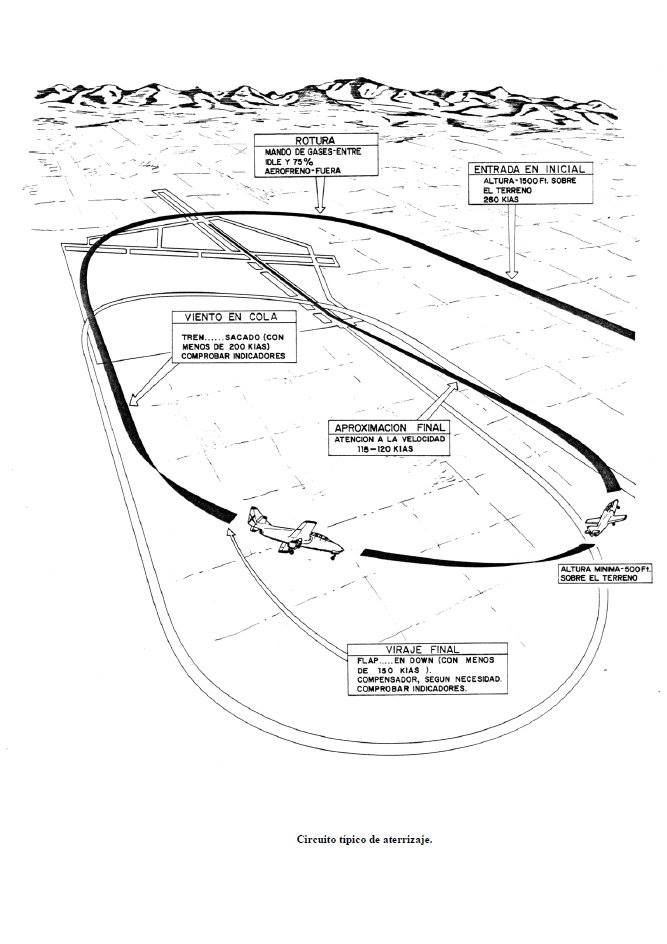

TYPICAL VISUAL TRAFFIC PATTERN:



IP:

1500 ft AGL

260 KIAS



BREAK:

THROTTLE BETWEEN IDLE AND 75%

SPEEDBRAKE OUT



TAIL WIND:

GEAR DOWN (< 200KIAS)

CHECK INDICATION



INITIAL TURN TO FINAL:

FLAPS DOWN (<150 KIAS)

TRIM AS REQUIRED

CHECK INDICATION



TURNING FINAL:

MINIMUM HIGHT 500 ft AGL



FINAL APPROACH:

WATCH SPEED: 115-120 KIAS

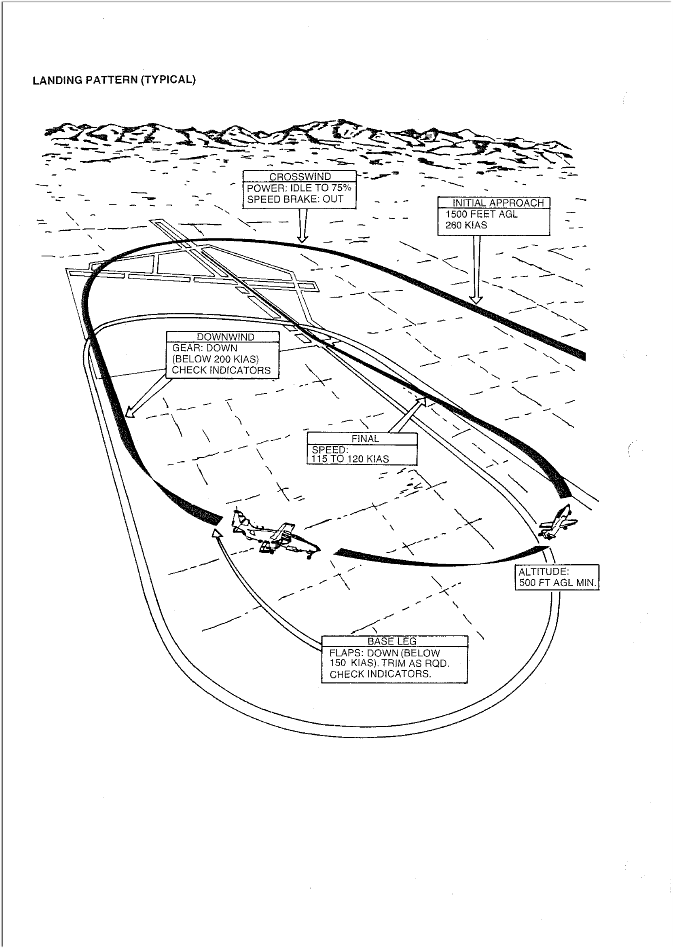

Landing pattern-C-101CC.bmp

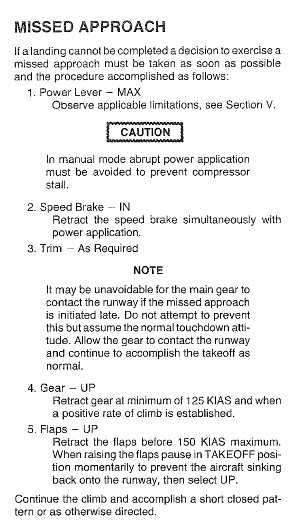

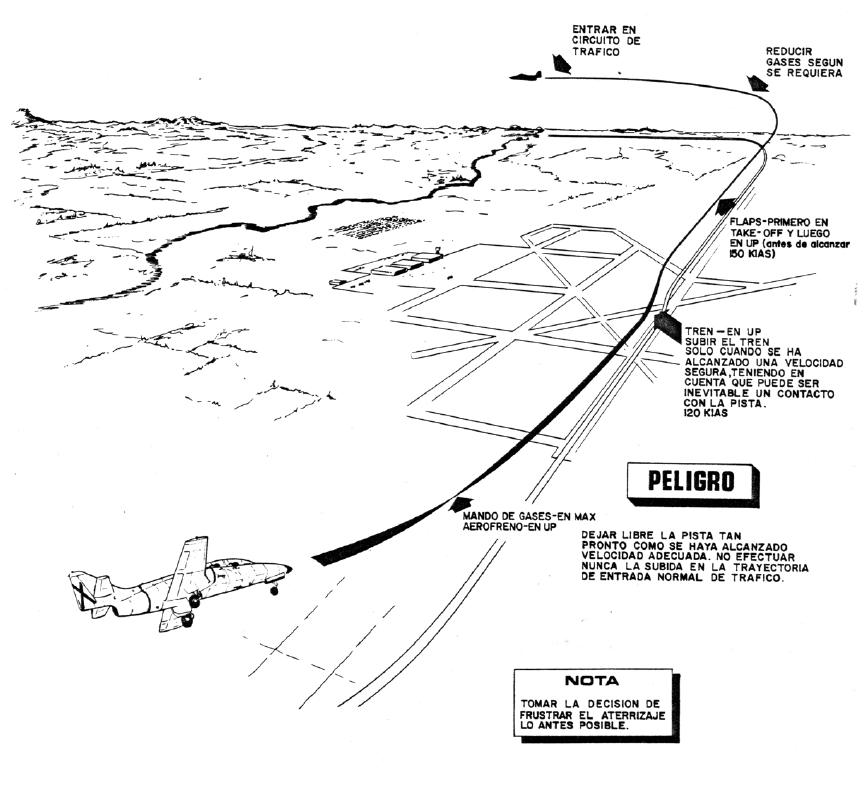

C-101EB go around.bmp

Edited March 7, 2015 by Vibora

[VBS_Nero]

Thanks Vibora... ;)

[Vibora]

Welcome.

[ruddy122]

Vibora,



Thank you so much.



This is what I was looking for



Cheers,

[Vibora]

You're welcome.

I'm glad it's useful.
