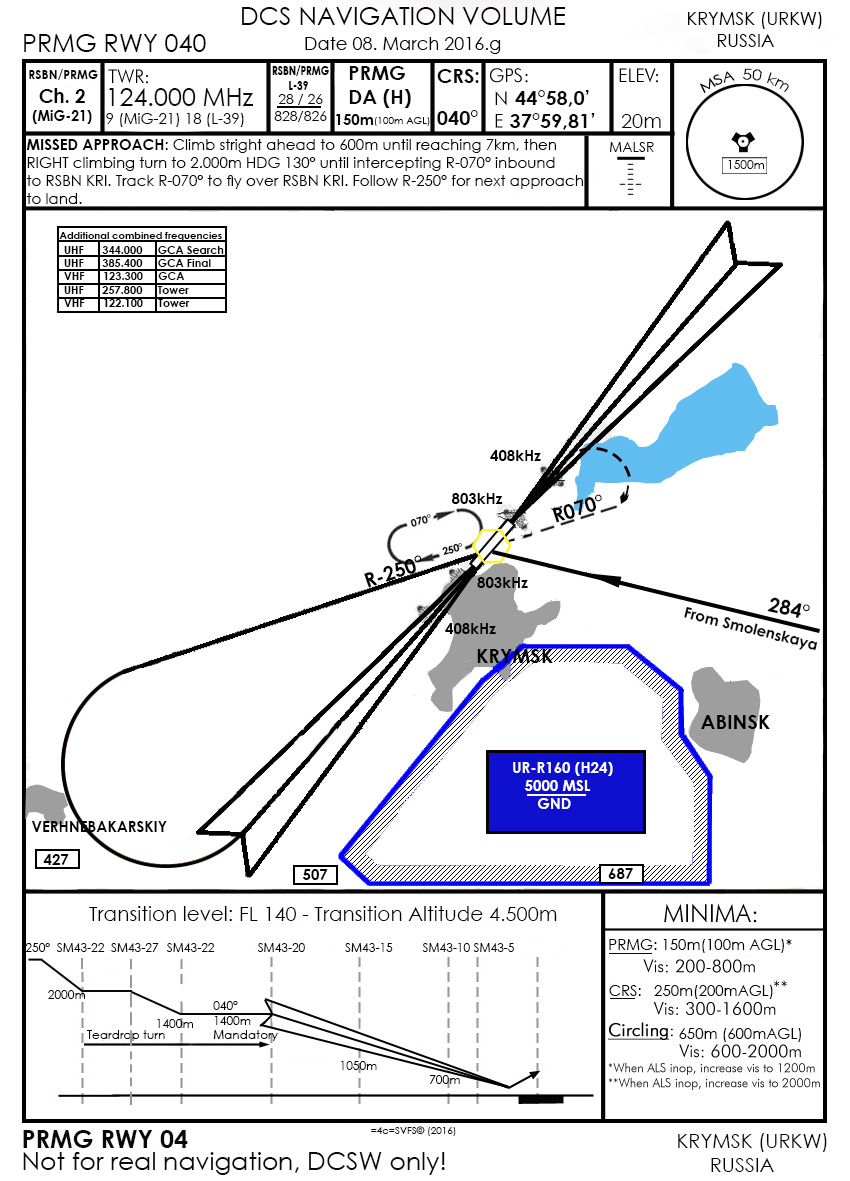

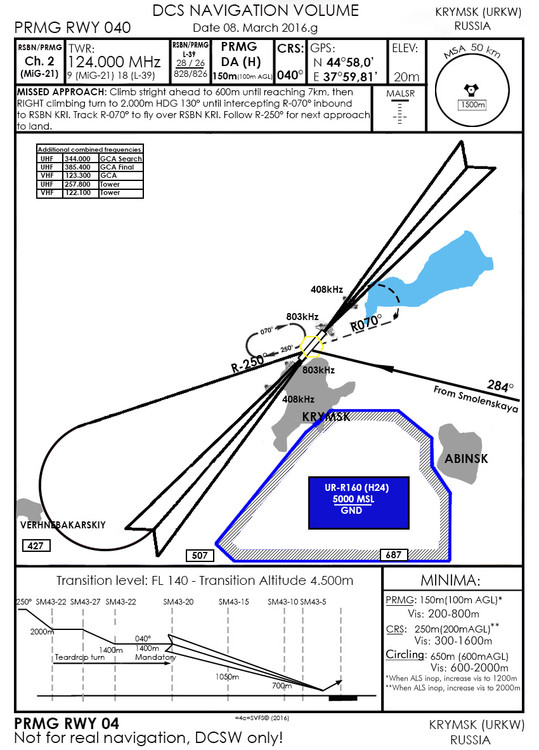

kobac Posted March 17, 2016 Posted March 17, 2016 (edited) This is an attempt to draw instrument approach chart for 040° Krymsk at the method of teardrop turn. This approach was made for the MiG-21 and L-39. Turn speed = 500 km\h and ß=15° As I don't have that modules it's possible - some information needs to be corrected. P.S. Please moderators to move the topic if I didn't hit category. Edited March 17, 2016 by kobac [sIGPIC][/sIGPIC]Everything is possible ...
Apache600 Posted March 17, 2016 Posted March 17, 2016 Fantastic work!!!! And the disclaimer at the bottom is simply brilliant! haha. [sIGPIC][/sIGPIC] The Museum Relic Campaign: --> http://forums.eagle.ru/showthread.php?t=164322 Community Missions (SP & MP) --> https://forums.eagle.ru/showthread.php?t=205546
Goldsmack Posted March 18, 2016 Posted March 18, 2016 Excellent work! Windows 10 Pro 64, I5 4690k @4.6GHz with CAPTIAN 240EX AOI, Samsung 850 EVO ,G Skill Ripjaws 16G RAM, Nvidia GTX 970 STRIX, MSI Z97 GAMING 5, WD Blue 1TB HDD, Seasonic M12 II EVO psu, Track IR 5, Pro Flight X-55 Rhino H.O.T.A.S
kobac Posted March 18, 2016 Author Posted March 18, 2016 (edited) Thx, :) My friend makes arc approach for 220° to Krymsk. So I expect he will also be provided when it's finished. And perhaps this encouraging others to make ILS approaches for other airports and planes. Edited March 18, 2016 by kobac [sIGPIC][/sIGPIC]Everything is possible ...
