so you lock a target dead ahead, where is it on this sight?


AWAITING ED NEW DAMAGE MODEL IMPLEMENTATION FOR WW2 BIRDS



Fat T is above, thin T is below. Long T is faster, Short T is slower. Open triangle is AWACS, closed triangle is your own sensors. Double dash is friendly, Single dash is enemy. Circle is friendly. Strobe is jammer. Strobe to dash is under 35 km. HDD is 7 times range key. Radar to 160 km, IRST to 10 km. Stay low, but never slow.

Posted

There is not info on the ASP for a locked A2A target. You should look at your radar display for interception of the target. Although if you lock a ground target using the Kh-66 the piper will stay on that as long your are in gimbals (don't know if realistic or not).

"These are not the bugs you are looking for..":pilotfly:



[sIGPIC][/sIGPIC]



My YouTube channel



SPECS

-AMD FX8370 8 Core Processor 4.2 ghz

-GIGABYTE 970A-UD3P

-GTX 1050 TI Windforce 4g

-16 GB RAM

-Saitek X 52

-FaceNOIRtrack - 3 point clip Red Led

Posted
the Kh-66 the piper will stay on that as long your are in gimbals (don't know if realistic or not).



The Kh-66 is totally unrealistic for this type.

Hardware: VPForce Rhino, FSSB R3 Ultra, Virpil WarBRD, Hotas Warthog, Winwing F15EX, Slaw Rudder, GVL224 Trio Throttle, Thrustmaster MFDs, Saitek Trim wheel, Trackir 5, Quest Pro

Posted

Yeah I know, it was a plus since other variants could carry it under the fuselage. Would love to had it under the fuselage too. A gift from LN. Hoped that the M2k would get the Exocet using the same logic :p

"These are not the bugs you are looking for..":pilotfly:



[sIGPIC][/sIGPIC]



My YouTube channel



SPECS

-AMD FX8370 8 Core Processor 4.2 ghz

-GIGABYTE 970A-UD3P

-GTX 1050 TI Windforce 4g

-16 GB RAM

-Saitek X 52

-FaceNOIRtrack - 3 point clip Red Led

Posted
There is not info on the ASP for a locked A2A target. You should look at your radar display for interception of the target. Although if you lock a ground target using the Kh-66 the piper will stay on that as long your are in gimbals (don't know if realistic or not).



I did not want info or pipper, I think you misunderstood my question. I want to know where a locked target is located relative to the ASP fixed net.

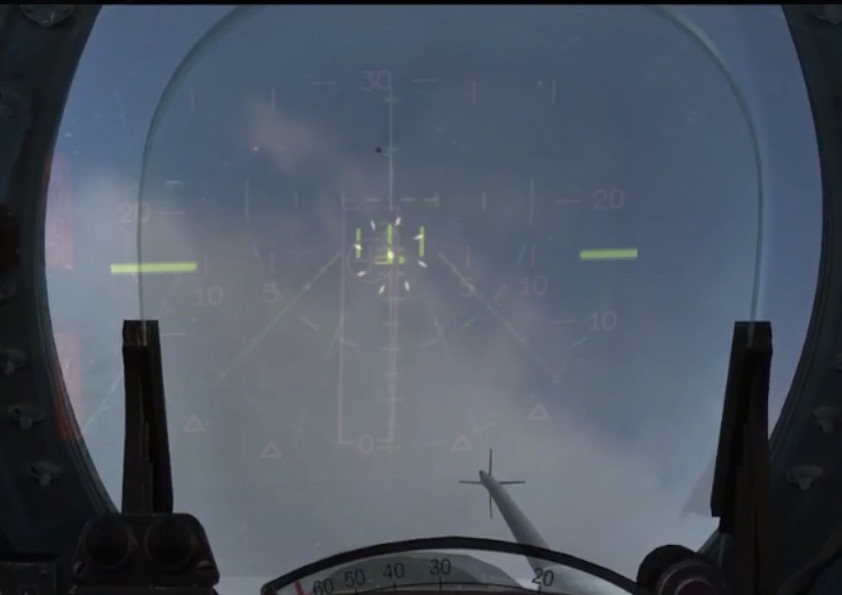

this screen I try to explain. So if the locked target is in the centre of the radar screen where can I find it on the fixed net markings?


AWAITING ED NEW DAMAGE MODEL IMPLEMENTATION FOR WW2 BIRDS



Fat T is above, thin T is below. Long T is faster, Short T is slower. Open triangle is AWACS, closed triangle is your own sensors. Double dash is friendly, Single dash is enemy. Circle is friendly. Strobe is jammer. Strobe to dash is under 35 km. HDD is 7 times range key. Radar to 160 km, IRST to 10 km. Stay low, but never slow.

Posted

Pre-lock the radar boresight is at -1.5° which is the lower of the two X marks on the standby reticle.



Post-lock it appears that contact birdie on the circle-cross on the scope amounts to +10 mil on the sight (first tic above center)... which is pretty weird actually.

Posted
Pre-lock the radar boresight is at -1.5° which is the lower of the two X marks on the standby reticle.



Post-lock it appears that contact birdie on the circle-cross on the scope amounts to +10 mil on the sight (first tic above center)... which is pretty weird actually.

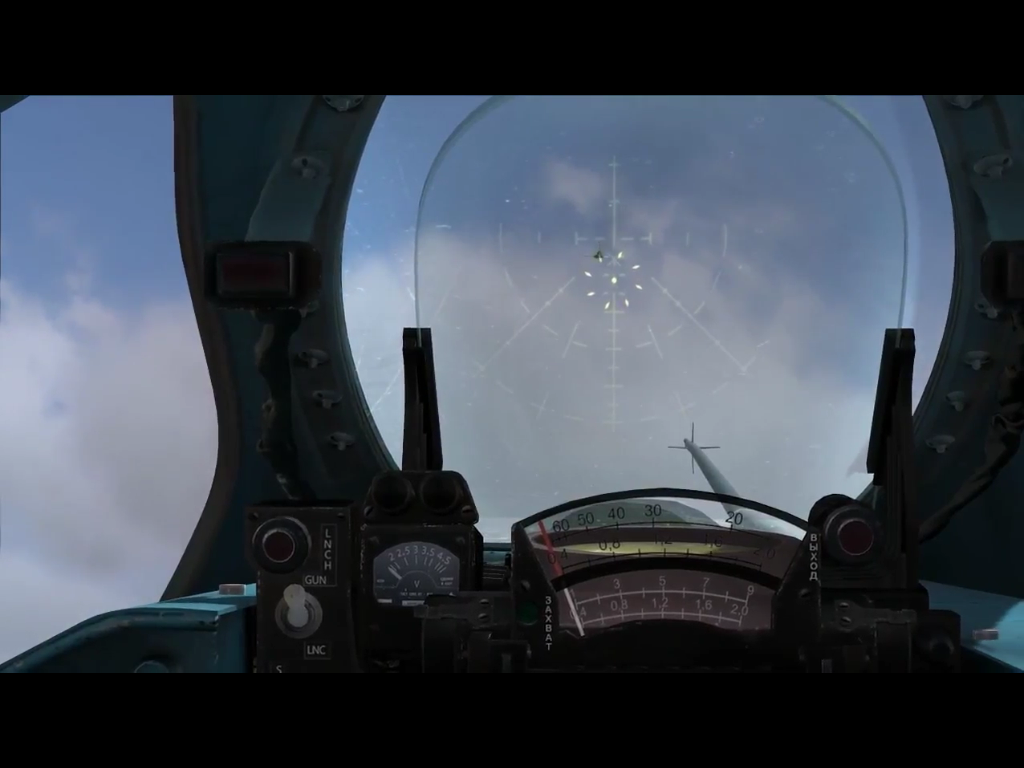

you mean 2 in this photo pre-lock?



attachment.php?attachmentid=106530&d=1414674776



post lock which tick

AWAITING ED NEW DAMAGE MODEL IMPLEMENTATION FOR WW2 BIRDS



Fat T is above, thin T is below. Long T is faster, Short T is slower. Open triangle is AWACS, closed triangle is your own sensors. Double dash is friendly, Single dash is enemy. Circle is friendly. Strobe is jammer. Strobe to dash is under 35 km. HDD is 7 times range key. Radar to 160 km, IRST to 10 km. Stay low, but never slow.

Posted

The lower X should be ~-1.5° which looks like -25 mil which you can count major tics down from zero; each tick being 10mil. The upper, larger X is at -11 mil and represents the cannon in some way.



What I'm saying is that the radar target position when centered in the scope puts the target at +10 mil, the tick above zero. Zero for the sight is at the intersection of the horizontal and vertical lines and also the center of the 60 and 100 mil radius circles.

Posted
The lower X should be ~-1.5° which looks like -25 mil which you can count major tics down from zero; each tick being 10mil. The upper, larger X is at -11 mil and represents the cannon in some way.



What I'm saying is that the radar target position when centered in the scope puts the target at +10 mil, the tick above zero. Zero for the sight is at the intersection of the horizontal and vertical lines and also the center of the 60 and 100 mil radius circles.





ah thanks Frederf. Its much clear now.
