The control panel is custom made.



Used the controller MJoy16.

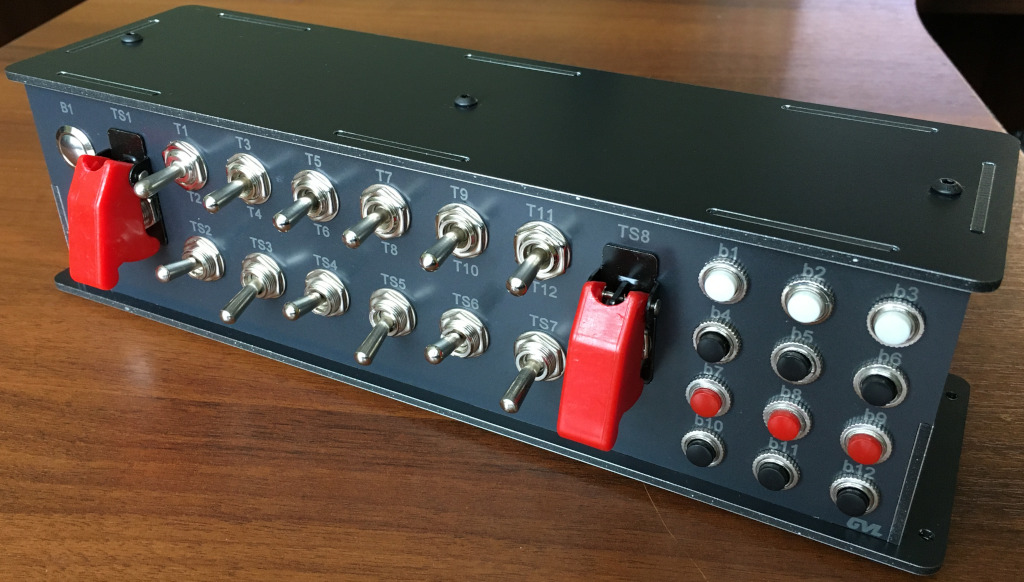

Installed 10 buttons, 4 encoders, 11 toggle switches without fixing in the extreme positions, two toggle switches and one toggle switch with protective cover.



For the basis of the case is taken plastic factory box Z90.



The upper part of the composite.



Width 225 mm, height 175 mm, thickness 65 mm without toggle switches.



I can assemble in another layout according to your desire.



For questions and suggestions, write here or on my email GVL224@ukr.net




Intel i5-10600K 4.1GHz, ASUS Z490, 2*8Gb DDR4, RTX2060, ASUS Xonar DX/XD, GIGABYTE 32" 2560x1440, Kenwood KPM-510, BRD, GVL224, TrackIr 4 Pro, gametrix KW-905, Win10x64

  • 2 months later...
Mr_sukebe

Mr_sukebe

Posted
Posted

Hi, question on the above. The encoders, are they analogue axis? I'd like to use them for trim



How much for the unit, including shipping to the UK?

7800x3d, 5080, 64GB, PCIE5 SSD - Oculus Pro - Moza (AB9), Virpil (Alpha, CM3, CM1 and CM2), WW (TOP and CP), TM (MFDs, Pendular Rudder), Tek Creations (F18 panel), Total Controls (Apache MFD), Jetseat

SDPG_GVL224

SDPG_GVL224

Posted
  • Author
Posted
Hi, question on the above. The encoders, are they analogue axis? I'd like to use them for trim



How much for the unit, including shipping to the UK?



Hi.

In this variant 4 encoders, up to 8 analog axes can be connected to the controller.

The price depends on the staffing, it is such a bundle of 180 dollars.

The price of shipment outside Ukraine is 30 USD.

Total 210 US dollars.

Intel i5-10600K 4.1GHz, ASUS Z490, 2*8Gb DDR4, RTX2060, ASUS Xonar DX/XD, GIGABYTE 32" 2560x1440, Kenwood KPM-510, BRD, GVL224, TrackIr 4 Pro, gametrix KW-905, Win10x64

  • 7 months later...
SDPG_GVL224

SDPG_GVL224

Posted
  • Author
Posted

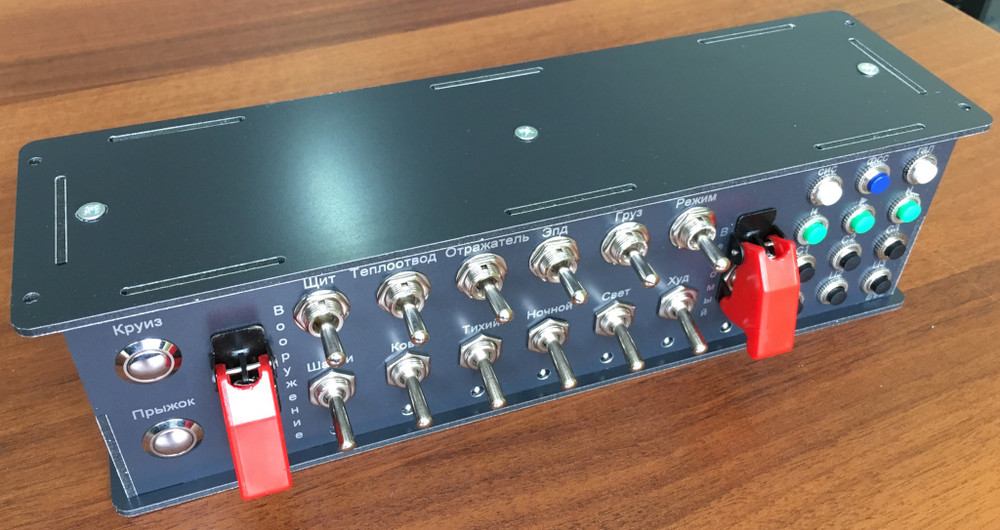

The control panel of the modular kit in the style of IL-2


Intel i5-10600K 4.1GHz, ASUS Z490, 2*8Gb DDR4, RTX2060, ASUS Xonar DX/XD, GIGABYTE 32" 2560x1440, Kenwood KPM-510, BRD, GVL224, TrackIr 4 Pro, gametrix KW-905, Win10x64

SDPG_GVL224

SDPG_GVL224

Posted
  • Author
Posted

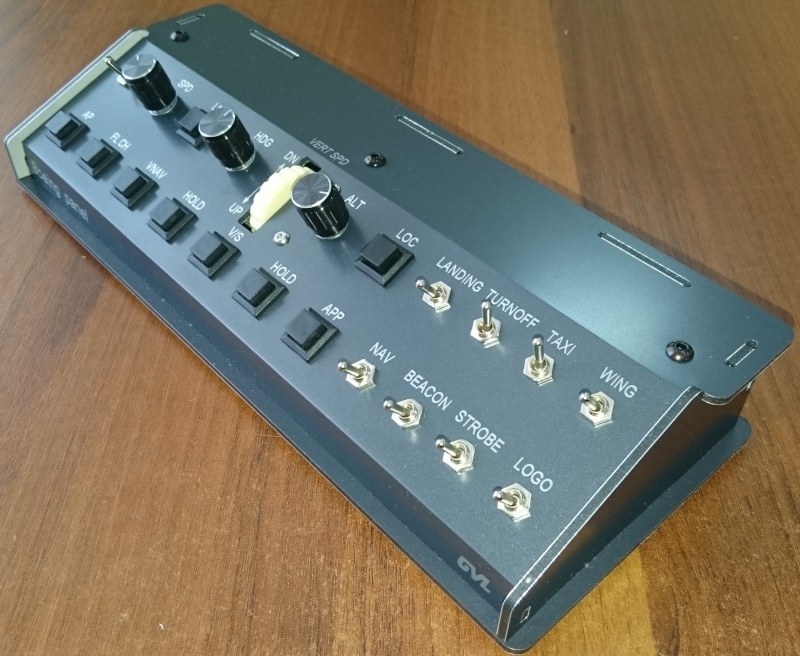

"Boeing" Control Panel


Intel i5-10600K 4.1GHz, ASUS Z490, 2*8Gb DDR4, RTX2060, ASUS Xonar DX/XD, GIGABYTE 32" 2560x1440, Kenwood KPM-510, BRD, GVL224, TrackIr 4 Pro, gametrix KW-905, Win10x64

  • 2 weeks later...
SDPG_GVL224

SDPG_GVL224

Posted
  • Author
Posted

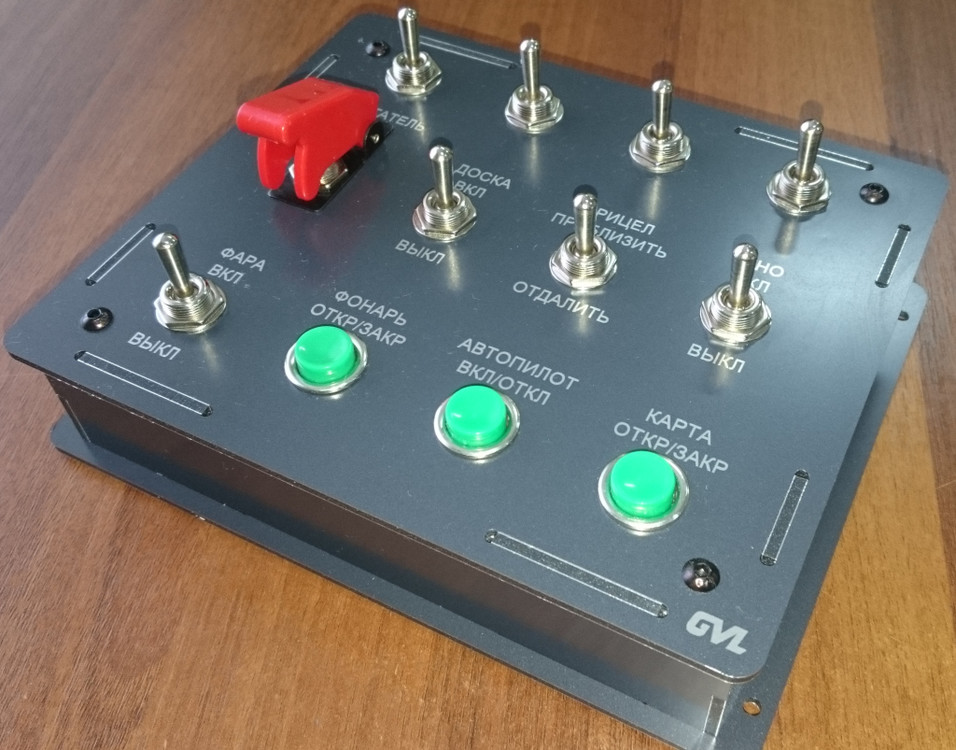

Micro panel


Intel i5-10600K 4.1GHz, ASUS Z490, 2*8Gb DDR4, RTX2060, ASUS Xonar DX/XD, GIGABYTE 32" 2560x1440, Kenwood KPM-510, BRD, GVL224, TrackIr 4 Pro, gametrix KW-905, Win10x64

  • 4 weeks later...
SDPG_GVL224

SDPG_GVL224

Posted
  • Author
Posted

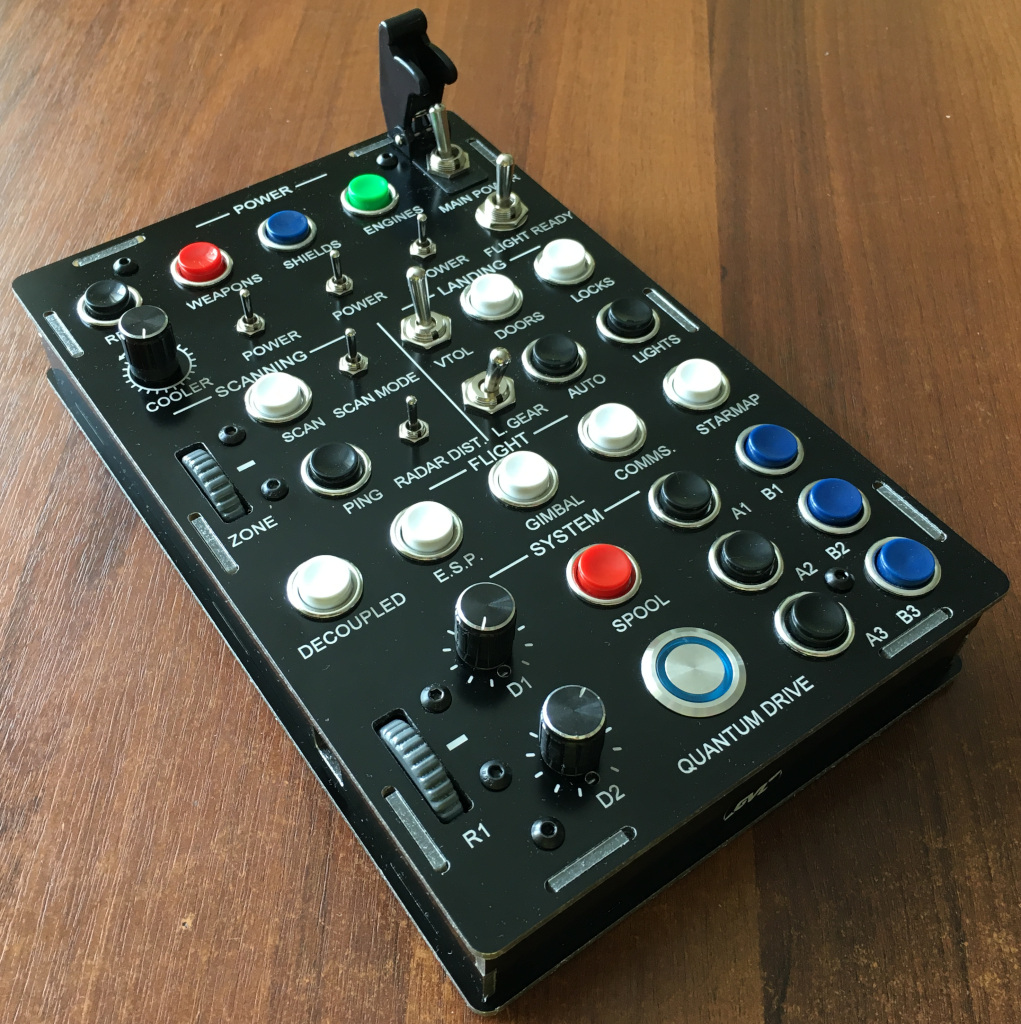

Panel for "cosmos"


Intel i5-10600K 4.1GHz, ASUS Z490, 2*8Gb DDR4, RTX2060, ASUS Xonar DX/XD, GIGABYTE 32" 2560x1440, Kenwood KPM-510, BRD, GVL224, TrackIr 4 Pro, gametrix KW-905, Win10x64

  • 2 weeks later...
SDPG_GVL224

SDPG_GVL224

Posted
  • Author
Posted

Control panel with mechanics


Intel i5-10600K 4.1GHz, ASUS Z490, 2*8Gb DDR4, RTX2060, ASUS Xonar DX/XD, GIGABYTE 32" 2560x1440, Kenwood KPM-510, BRD, GVL224, TrackIr 4 Pro, gametrix KW-905, Win10x64

  • 1 month later...
SDPG_GVL224

SDPG_GVL224

Posted
  • Author
Posted

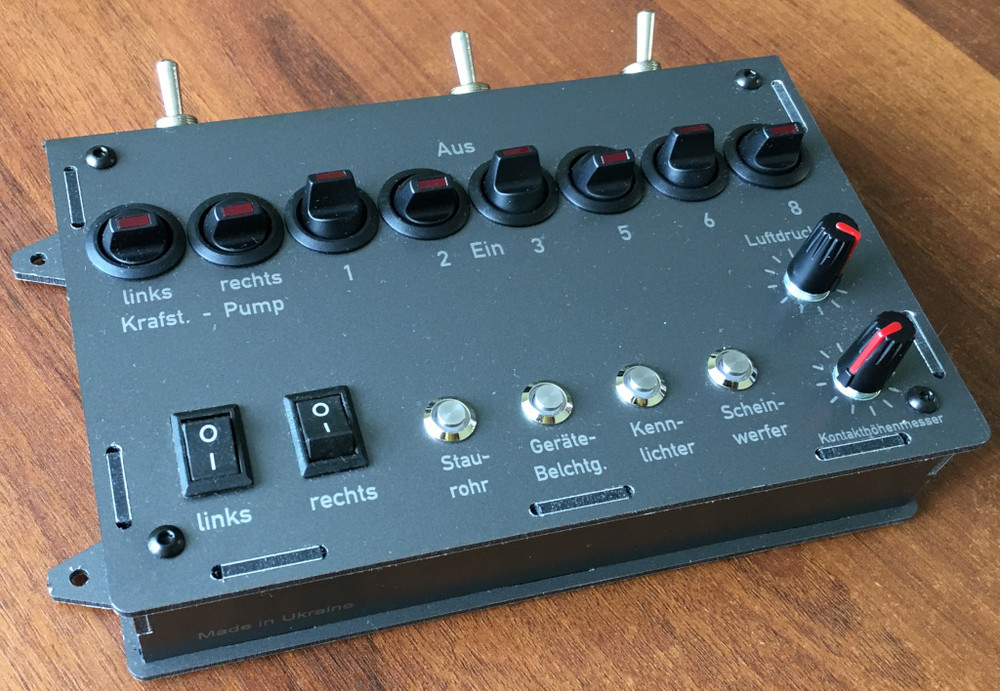

Control Panel "SWINE"
