Krag6 Posted January 24, 2019 Posted January 24, 2019 Using MBot campaign i set up a TOT on waypoint 4 (didnt set gspd), designated it as a target waypoint (waypoint 4 became boxed in). But no matter for accurate i fly, the caret on the hud does not move (i timed myself manually to be within 20-25 sec of waypoint switch) Can any1 else test TOT function in different missions to see if it works for them?
Ramsay Posted January 24, 2019 Posted January 24, 2019 (edited) Using MBot campaign i set up a TOT on waypoint 4 (didnt set gspd), designated it as a target waypoint (waypoint 4 became boxed in). But no matter for accurate i fly, the caret on the hud does not move (i timed myself manually to be within 20-25 sec of waypoint switch) Can any1 else test TOT function in different missions to see if it works for them? TOT worked as described when tested in Open Beta 2.5.4.26552 but looks bugged as the HUD claret works backwards to the NATOP's description. • HSI Data page • SEQUFC Flight Plan page • UFC Option TOT = set to equal time on target waypoint in Zulu Time (Local - 4 Hr for Caucasus map) • UFC Option TGT = waypoint to select for TOT, waypoint in flight plan list is boxed i.e. 0-1-2-3-4-[5]-6-7 The HUD claret works backwards to the NATOPS description and is to the right when slow and left when fast. The arrow head is displayed to the left of the tick mark when the aircraft is travelling too slow and displayed to the right of the tick mark when the traveling too fast. Full displacement of the arrow head left or right of the tick mark indicates a difference of 30 knots between actual and required ground speed. i.e. when the aircraft is 15 knots fast for TOT, the claret should be half way to the right. Edited January 24, 2019 by Ramsay Fix the Ground Speed 475 - 467 = 8 kts fast i9 9900K @4.8GHz, 64GB DDR4, RTX4070 12GB, 1+2TB NVMe, 6+4TB HD, 4+1TB SSD, Winwing Orion 2 F-15EX Throttle + F-16EX Stick, TPR Pedals, TIR5, Win 11 Pro x64, Odyssey G93SC 5120X1440

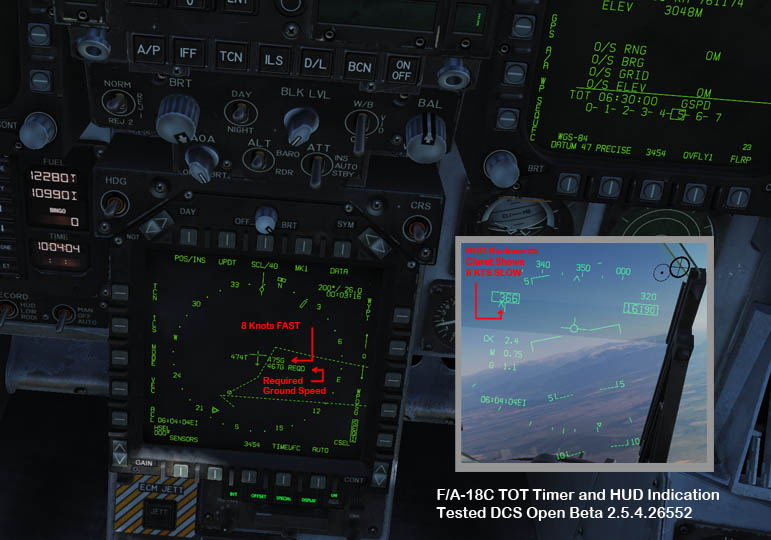

Drippy Posted January 25, 2019 Posted January 25, 2019 Make sure your on Zulu time. If you on the Cacaus map you are 4hrs off and the carrot will never be correct. If you look on the attached image from Ramsey it shows the IFFEE @ 10:04:04 (Local time) and on the HUD it shows 06:04:04 (Zulu time). You need to set you TOT via Zulu time for it to work. IE: 06:20:04 ZULU for a local time On Target of 10:20:04. On the IFFEE you can press the Zone button and the clock there will display Zulu. Hope that helps as that is what really confused me. Cptn Drippy
