nadir help

[Harlikwin]

Is there a way to have nadir tell you bearing and RANGE to way point. For example I want to setup a waypoint to a target, but I want to stop 4km from it so I don't get killed.



I know you can setup bearing and TIME, but this seems rather less useful.

[swatstar98]

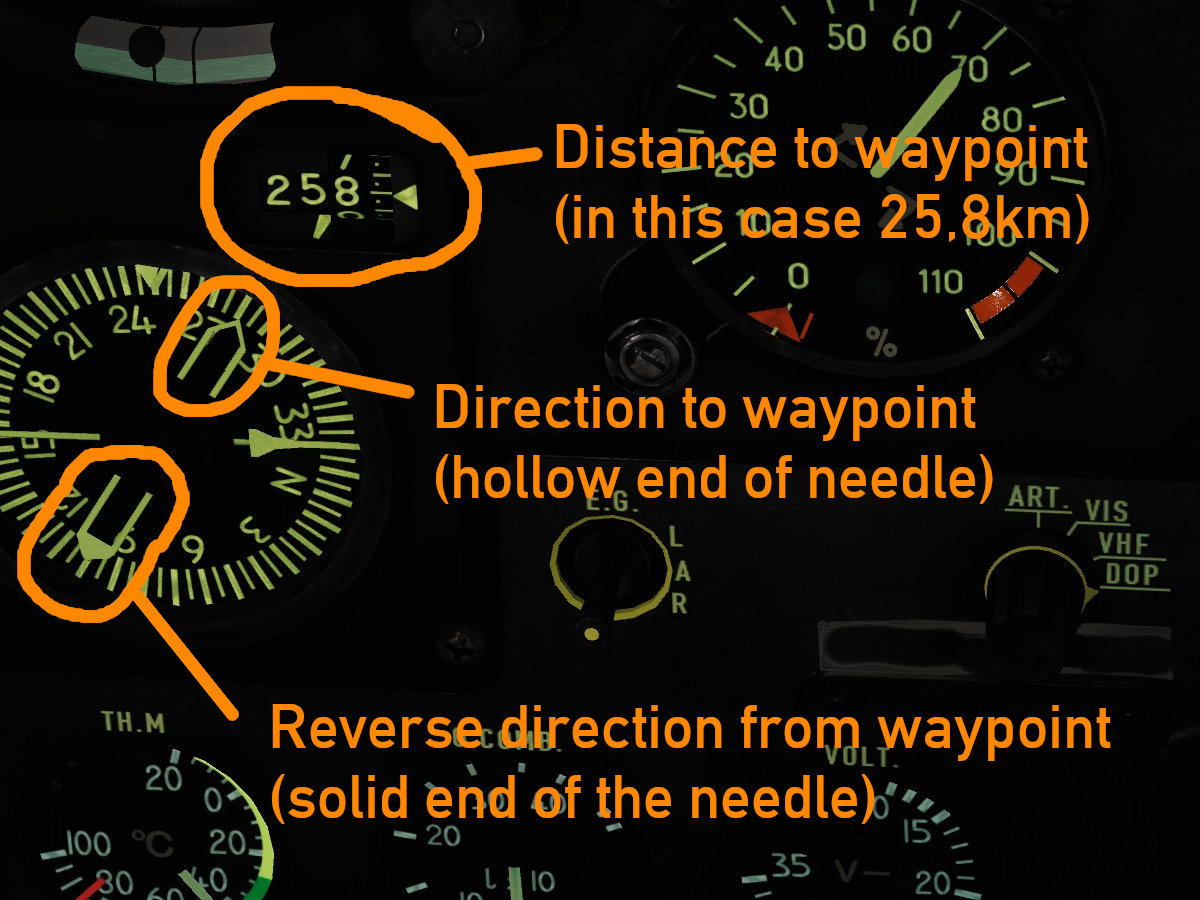

On the compass, the arrow indicates direction and on top right distance in KMs (in this image the aircraft is off so they are labeled.)

[Harlikwin]

Aha. Thanks.

[xvii-Dietrich]

Here's a labelled version, in case it helps.



(click to enlarge image)



Another thing I do is plan a waypoint with the F10 range tool which I know is 4km from the target area. That way I can plan ahead for good terrain/cover from where I can launch the attack.

[Harlikwin]

Yup I use the F10 map for that as well. Or target coordinates if I have them for the final attack, I then stop at some distance from the WP and scan for the target.



Also do you know if there is a way to make current aircraft position a waypoint? I.e. starting airfield. it would be useful flying online.

[swatstar98]

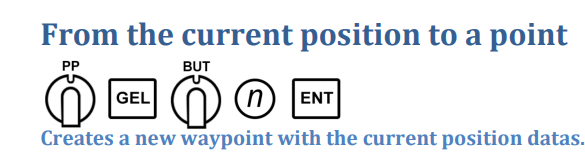

P.P. Mode is for your current position, so before leaving make sure to make a WP with those coordinates or having them write down.

[BULLITT83]

Harlikwin , as i understand you want to make your present position a waypoint.



If i remember well follow that on your nadir :



POS FIX

DES

1 ( if you want to set it as waypoint 1 , or another number )

ENTER



i hope my memory is good i still have my QRH home , i will check if it doesn't works , tell me if it works

[swatstar98]

[BULLITT83]

:thumbup:



you are right , i'm rusted , the POS FIX is to calibrate the NADIR after it "drift"
