Curtiss Electric Propeller : 3D Model/animation fixes

[Hueyman]

Hello ED,





Fantastic work on the freshly released Jug !!





But we still have this issue like in every current prop planes, when sitting on the ground ( AI for instance on the ramp or in multiplayer with outher player's aircraft ), they have their prop pitch visually set in a very flat pitch, like in bêta range or even reverse.





It must be an easy fix for animation issue, but as you may already know, the minimum pitch for propellers of that era are always very positive ( generally +20°/+25° ), and never flat.





I also noticed that in the P-47. Could you please correct that tiny detail before release ?

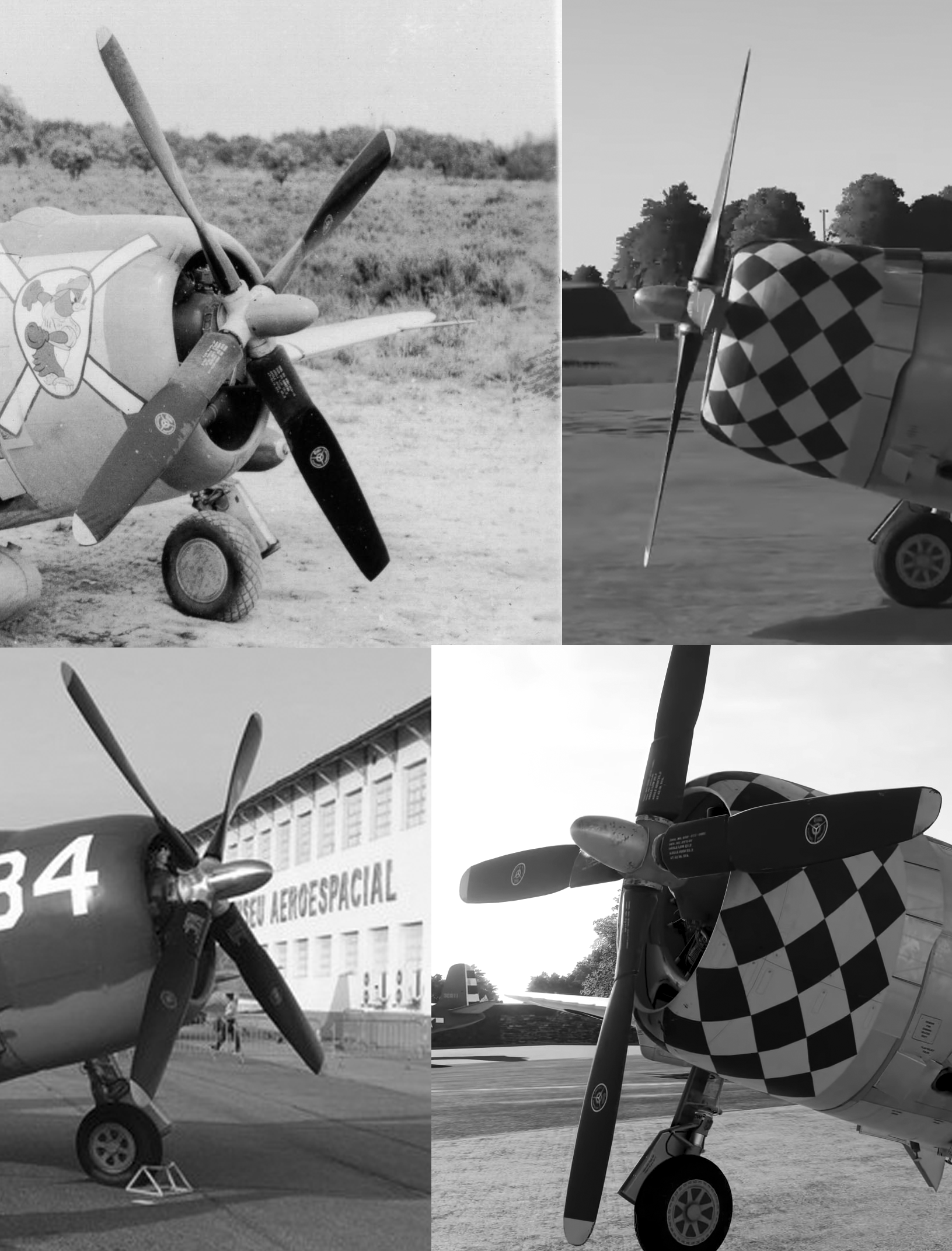

The blade tips are also a bit narrower and less rounded as well as the spinner cover for the pitch changing mechanism is much longer ( first part is almost cylindrical before getting curved )





I hope this quick fix can be done in the early fixes/improvements before stable release









Thank you

Edited June 4, 2020 by Hueyman

[Legioneod]

In the manual it says the prop is only 12' 2" which is incorrect. Is this a misprint or is the P-47 prop modeled at 12'?



The D-30 prop should be a Curtis Electric 836-2C2-18 at 13' 2" diameter.
