[WIP] HSI DMAP not affected by D/N switch. Low contrast/ Desaturated when BRT is min.


Recommended Posts

Posted (edited)

DMAP is not affected by MFCD Day night switch and will be at full brightness at default MFCD BRT value in Night Mode.



If you were to fully turn down MFCD brightness using the BRT rocker on the bottom left of display, MFCD will still be too bright and desaturated to be of any use.



Turning contrast up even one notch with the CONT rocker makes the map hard to read and blurs the MFCD symbology.





Pics for ref included for:

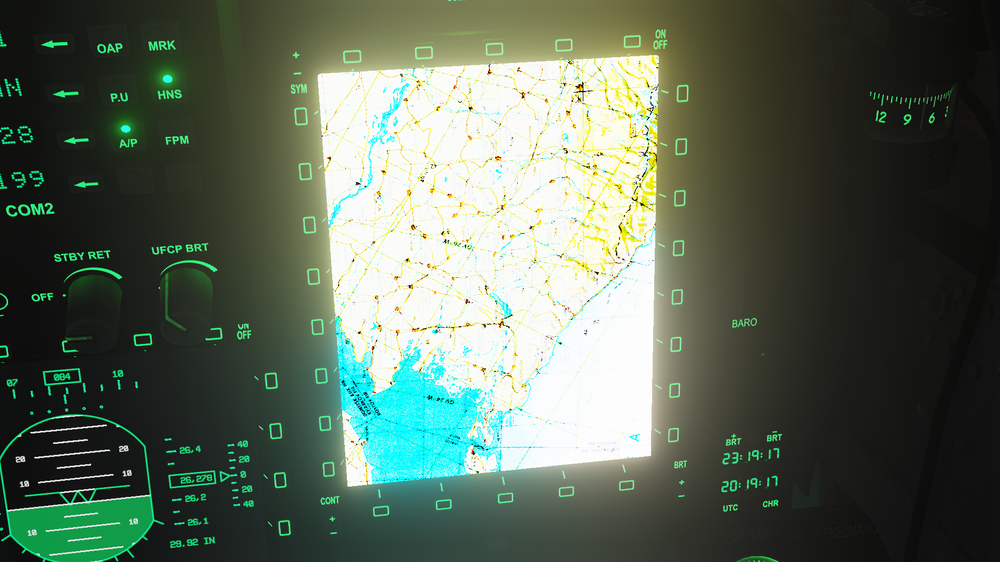

- Default MAP brightness in Night Mode. Default BRT/CONT/SYM

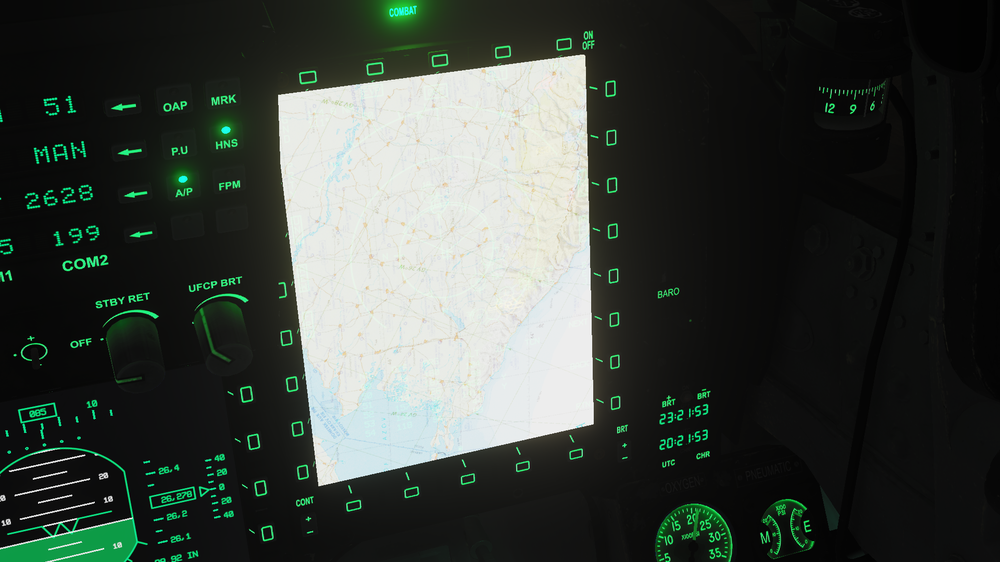

- Lowest BRT setting, Default SYM/CONT

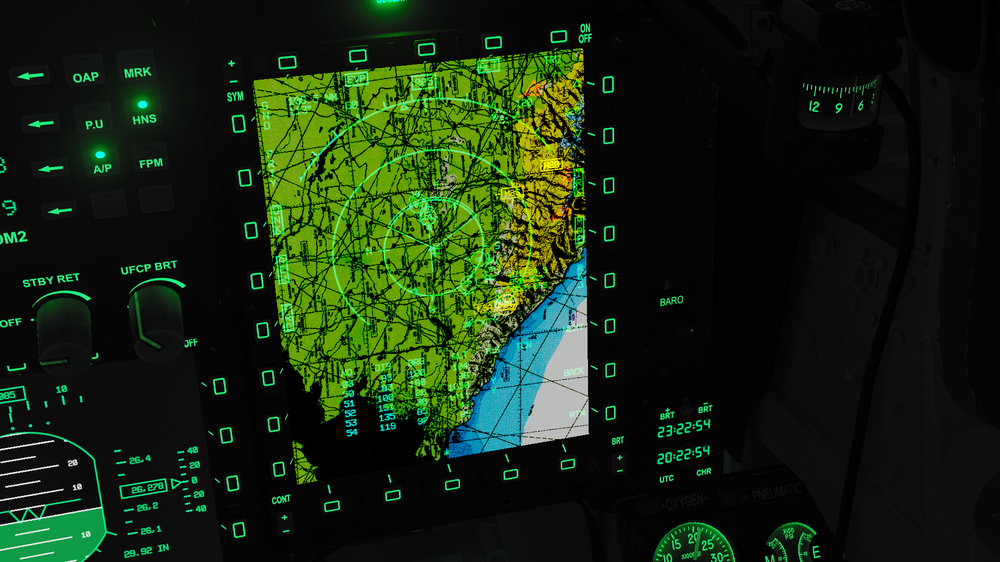

- "Best" settings I have found in this scenario. -10 BRT, +1 CONT, Max SYM. Note the map has lost fine detail and MFCD SYMbology 'blurs' and bleeds into the map texture.




Edited by uboats
