GF mk2 connector type


Recommended Posts

To help complete my build, I want a single right angle connector attached to my Gunfighter Mk2 base.

I have seen mention that its a GX12-4 (4 pin), but its not.  A GX12 has an inner diameter of around, surprise... 12mm.  The connector on the base of my GF has a diameter of about 8mm.  The same connector is used on the Black Box end.

Does anyone know what the connecter is?  Even better, does anyone know where a right angle connector is available from?

This reddit article is a mystery to me - did VKB change connectors at some point?

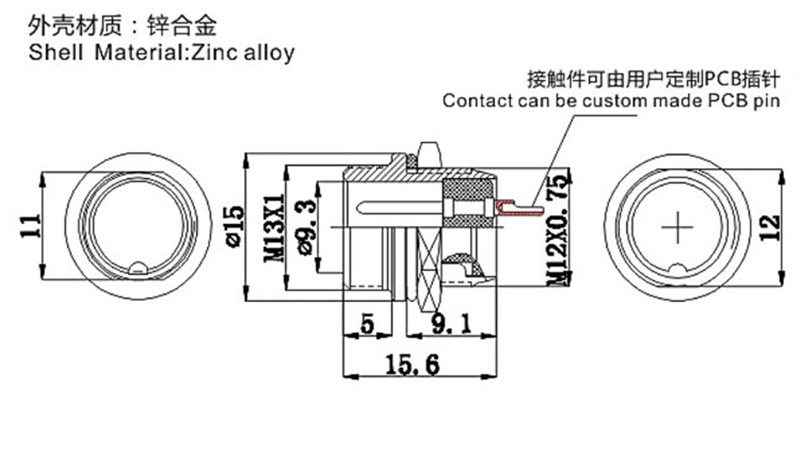

This is a picture of a GX12.  It looks basically correct, except the left hand, female plug has a diameter of the black plastic sheath of 12mm.  Too big.

Link to comment
Share on other sites

  • 1 month later...

The plug on a GX16 is 12.5mm.


The plug on a GX12 is 9mm, the 12 is the dimension of the hole in which the female connector is mounted.


Looks like you might have a GX16?



Edited by aniron
