Bo-105 Weapon terminal

[xvii-Dietrich]





Recently @The_Fragger posted a screenshot of the Bo-105 cockpit.

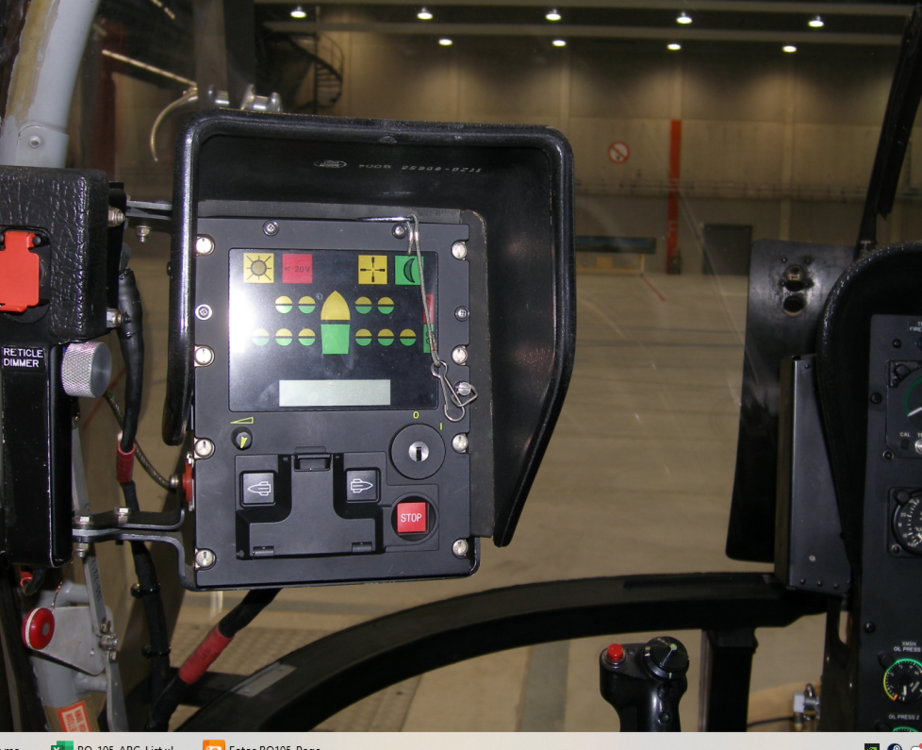

I queried the weapon box (the beige-yellow box in the top-left).

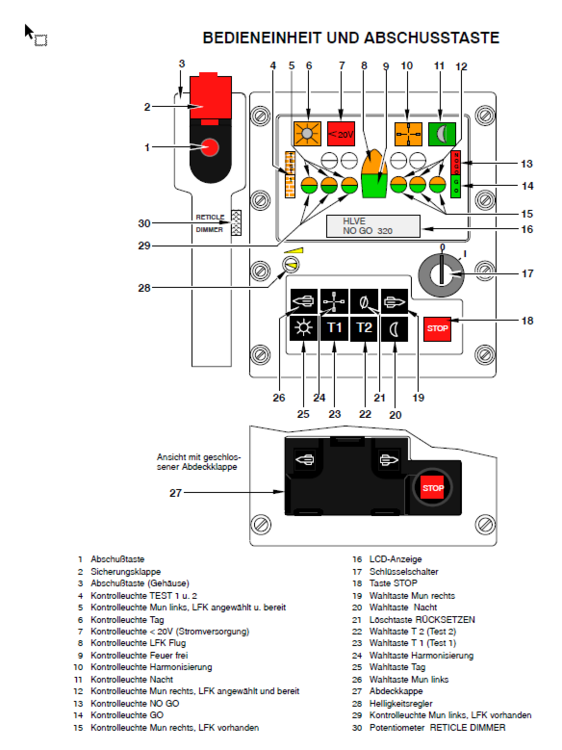

@The_Fragger was kind enough to post a photograph and a diagram on Discord.

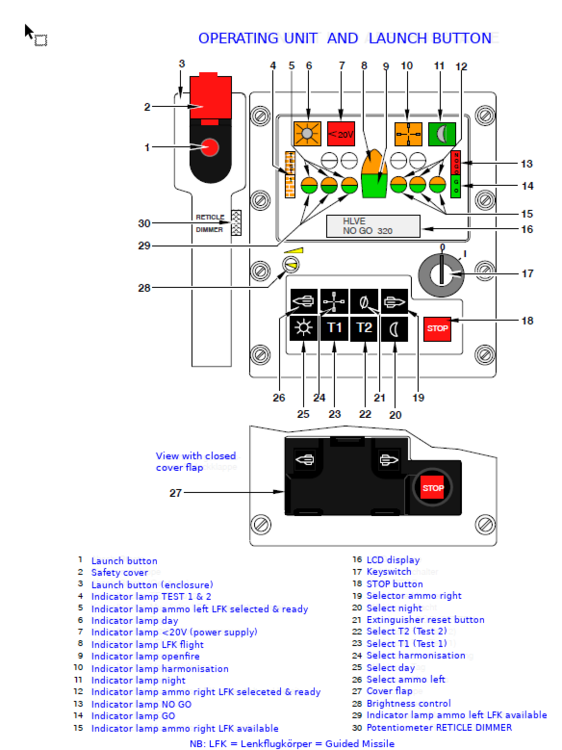

As I know there are people here who do not speak German, I've tried to translate this into (broken!) English.







(Let me know if there are corrections.)



Details ont he Bo-105C are pretty common on the web, but I (at least) had not seen anything on the PAH1 like this before. So, for that reason, I figured post it here for those on these forums who are curious.



























Edited June 3, 2021 by xvii-Dietrich
For some reason NONE of the text that I wrote appeared when I posted the original.

[Harker]

Just found this, thanks for taking the time to translate!

[xvii-Dietrich]

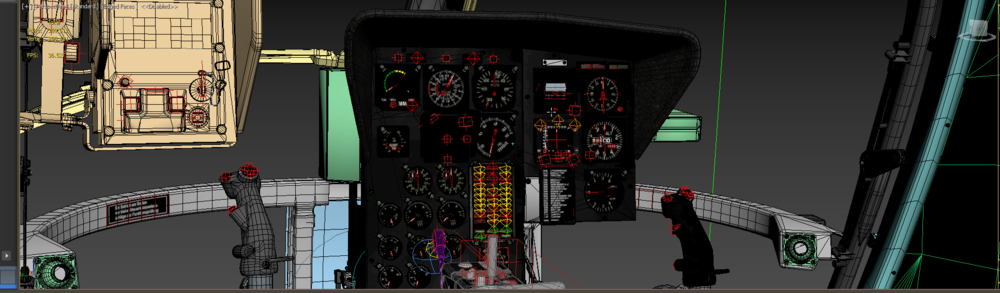

Since posting the original thread, @The_Fraggerhas moved on to doing the texturing for it... so it is not just a wireframe now.

He's posted some screenshots of the work in the main progress thread:
