Kneeboards for F-16C for guided weapon employment, and other weapons

[609_Relentov]

Not really a tutorial, closer to a guide, but hopefully helpful to anyone new to the F-16C or rusty with employing some of the weapons.

I put together some simple procedural kneeboards for the F-16C, placed in the User Files section.

https://www.digitalcombatsimulator.com/en/files/3318840/

As stated these are not official procedures, just what I've put together as a quick reminder on how to employ various guided weapons on the F-16C (after not flying it for a while).  Kneeboards included:

F-16C - AGM-65D IR TPOD-1.png
F-16C - AGM-65D IR TPOD-2.png
F-16C - AGM-65D IR.png
F-16C - AGM-88 HAS.png
F-16C - AGM-88 POS HTS.png
F-16C - AGM-88 RWR ALIC CODES.png
F-16C - AIR-TO-AIR ACM AIM-9 HMCS.png
F-16C - AIR-TO-AIR BVR AIM-120-1.png
F-16C - AIR-TO-AIR BVR AIM-120-2.png
F-16C - Creating Steerpoints.png
F-16C - GBU-12 TPOD.png
F-16C - GBU-38 JDAM VIS TPOD.png
F-16C - SEMI-RIPPLE GBU-38 JDAM PRE TPOD.png
F-16C - USING HMCS FOR AG WITH TPOD.png

Enjoy!
AKA_Relent (609_Relentov)

Edited July 21, 2023 by 609_Relentov

[609_Relentov]

Made the following updates to the F-16C kneeboards for guided/other weapon employment:

- Updated the F-16C - AGM-88 HAS kneeboard, adding additional instructions for changing the RWR radar code in the HARM weapon table(s)

- Added the F-16C - AGM-88 RWR ALIC CODES kneeboard, which shows the radar codes for the various ground/sea-based radars, along with their RWR symbol

- Added the F-16C - AGM-88 POS HTS kneeboard, which shows how to employ the AGM-88 in POS mode with the HTS pod.



[609_Relentov]

Made the following updates to the F-16C kneeboards for guided/other weapon employment:

- Updated AGM-65/GBU-12/GBU-38 kneeboards with TPOD due to minor edits and correcting an error (TMS Right for area track, not TMS Down).

- Added the F-16C - SEMI-RIPPLE GBU-38 JDAM PRE TPOD kneeboard, which shows how to semi-ripple multiple JDAMs in one pass.

- Added the F-16C - USING HMCS FOR AG WITH TPOD kneeboard, which shows how to use the HMCS to search for and target ground objects, to allow for further targeting with the TPOD.

[hasole]

These are awesome, saves having to have Chucks guide handy when I forget.

[clanitho]

Essential, very good job

[PLUTON]

Great to think about it and do it
thanks again

[609_Relentov]

Made a minor update to the following kneeboards, adding a step to turn on the right hardpoint for the TPOD.

F-16C - GBU-12 TPOD.png
F-16C - GBU-38 JDAM VIS TPOD.png
F-16C - SEMI-RIPPLE GBU-38 JDAM PRE TPOD.png

Besides adding the step above, also updated the following kneeboards to add a step for the AGM-65D/TPOD boresight (part 1) and slightly expanded the weapon employment (part 2).

F-16C - AGM-65D IR TPOD-1.png
F-16C - AGM-65D IR TPOD-2.png

[609_Relentov]

I made the following changes:

After expanding the RWS section to include DTT, and making a minor update to the TWS section, the following kneeboard:

F-16C - AIR-TO-AIR BVR AIM-120.png

has been replaced with the following two kneeboards:

F-16C - AIR-TO-AIR BVR AIM-120-1.png
F-16C - AIR-TO-AIR BVR AIM-120-2.png

Please delete the first kneeboard listed above, if previously installed, and replace with the two new ones above.

Minor update to the following kneeboard, fixing some missing steps

F-16C - Creating Steerpoints.png


Edited July 21, 2023 by 609_Relentov

[609_Relentov]

Back from August, 2023:

Added the following kneeboard:

F-16C - GBU-38 JDAM PRE-PLANNED.png

Given the new F10 map feature (i.e. left-Alt / left-mouse-click) which brings up a coordinates dialog box for that map position just clicked (and remains when you shift back to cockpit view), it's now even easier to use pre-planned mode for JDAM and JSOW weapons.  This kneeboard is for JDAMs, but the procedure is basically identical for using JSOWS in pre-planned mode.

=================================================================

May 3rd, 2024:

Added the following kneeboard:

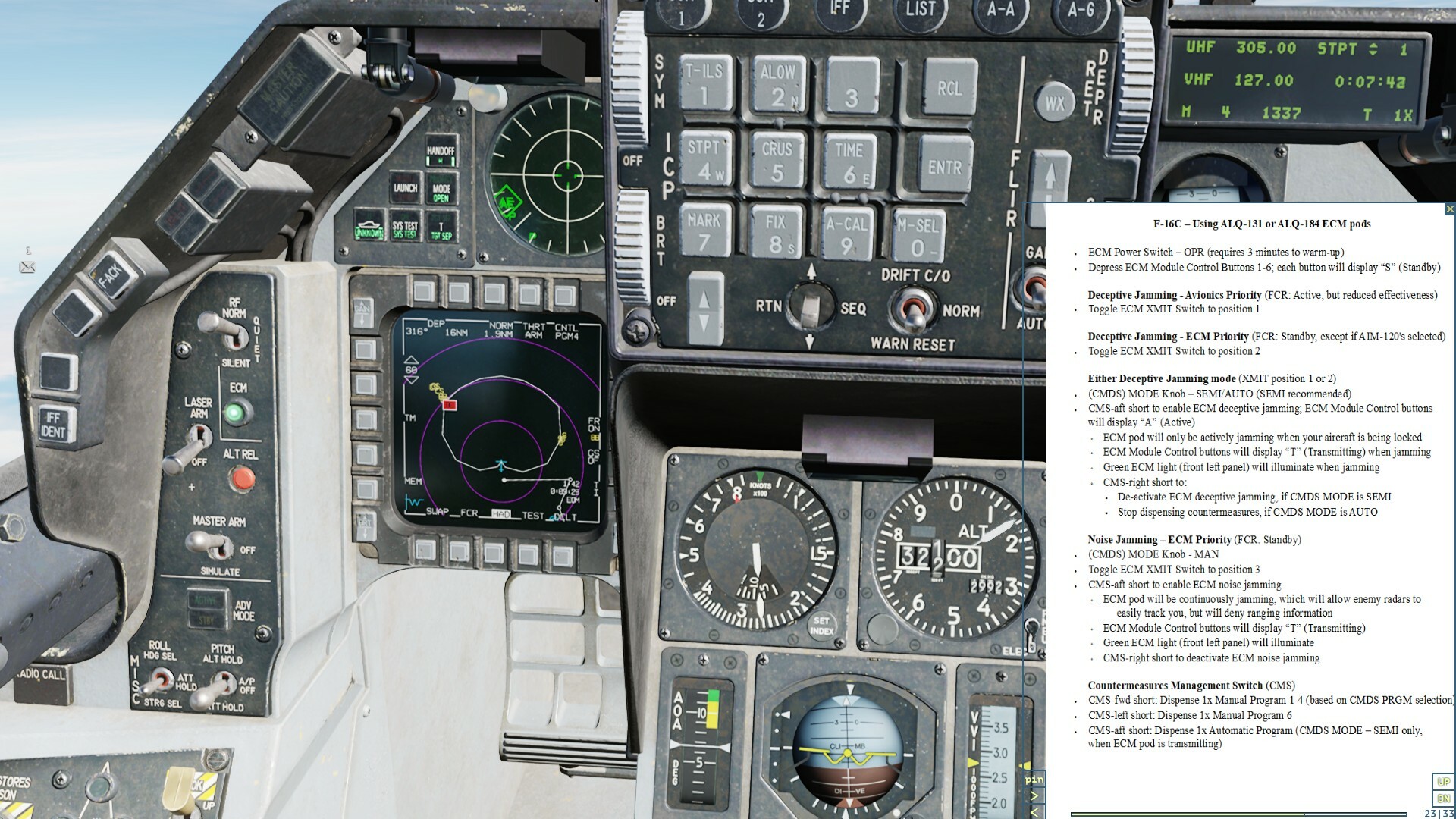

F-16C - USING ALQ-131 OR ALQ-184 ECM pods.png
