X-Box Controller - Modifier Button - Stupid Question

[Toni Carrera]

Hi All,

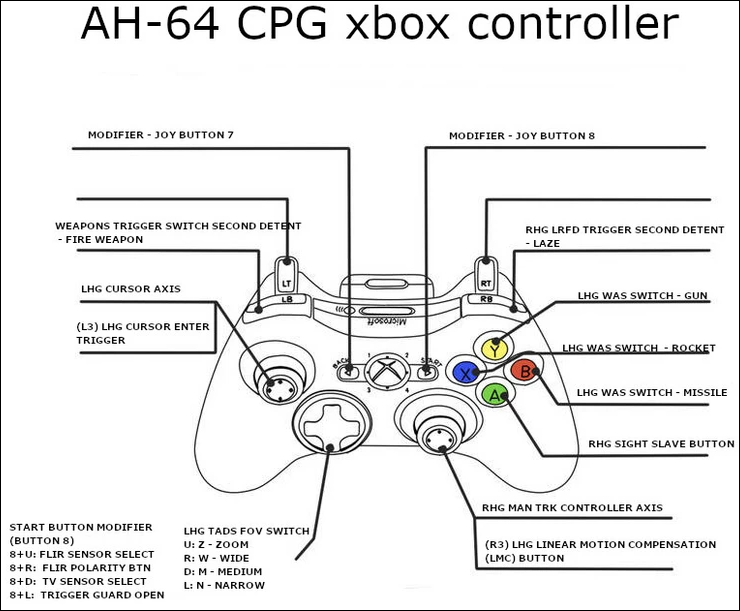

I am sorry for asking a probably stupid question, but when it comes to programming the controller, for use in the CPG position only for the TEDAC. I downloaded an image from User Files (attached), and want to replicate the image configuration. As you will see there are two images based on colour, Yellow and Green

On the green it has an option 'Modifier' with a green rectangle around it. I know when programming the keyboard, modifiers are such things as LALT, LSHIFT etc etc, but I do not understand how to program a modifier on the controller, the modifier box only has the traditional keyboard options, and that is no good having to hold a key down on the keyboard while also trying to manipulate the controller

I have the same issue with the TM Warthog setup, all the diagrams for controllers relating to the Warthog, show a modified state, which again, I do not know how to implement

Could someone please help me with this?

Toni

Edited June 2, 2022 by Toni Carrera
Added 2nd Image

[KillaALF]

You can add your own modifiers - from the DCS User manual, pg 25:

Modifiers
Modifiers usually use a key or button combination with Shift, Ctrl, or Alt (by default) or
any custom keys assigned to act as a modifier. For example, you can assign any joystick
button as a modifier and use it to expand the available joystick’s commands that can be
assigned to your input device (i.e. Ctrl + T).


By default, several Modifiers are included in the Modifiers window: LALT, LCTRL,
LSHIFT, MOUSE_BTN_3, RALT, RCTRL, RSHIFT, and RWIN. However, by pressing the
ADD button below the Modifiers list window, you can also create your own.


From the ADD MODIFIER panel, first select the device you wish to set the modifier from.
This could range from a keyboard, to a mouse, to a joystick or a throttle. Once the
device is defined, select the specific key or button on the device from the Select Modifier
Button field. Once complete, press the OK button to save your new Modifier and it will
be displayed in the Modifier list window.


To remove a modifier, select it from the window and then press the REMOVE button.
With at least one modifier in the list, you can now assign a modifier to any Action from
the Add Assignment Panel.



[Toni Carrera]

@KillaALF Thank you very much for your assistance, much appreciated

Toni
