idenwen Posted June 23, 2023 Share Posted June 23, 2023 (edited) I export the MFDs and other things to a secondary screen and as most of you know there is a brightness issue with that in some modules. So i played around a bit and build me a solution with reshade. Please change path settings to ones matching your installation First setup all your exports as desired (well documented here) Make a screenshot of your DCS setup while running your desired module null Use your favorite image editing tool (GIMP, Photoshop, Whatever) and make a "Mask" out of it where screen areas that are not to be touched made white and screen areas that are too dark are black. (You could also use greyscales to sligtly lighten up areas in relation to full white areas) Install reshade into the C:\Enullagle Dynamics\DCS World Beta\bin-mt folder Save the mask as UIMask.png into C:\Eagle Dynamics\DCS World Beta\bin-mt\reshade-shaders\Textures folder Start DCS, load a mission with your desired module and open the reshade interface (Default: Pos1, look at DCS start to your upper screen corner) Enable the Filters "UIMask_Top", "Tonemap", "UIMask_Bottom" and arrange them like seen below Change the Gamma setting in the Tonemap Filter to reach desired brightness on the MFDs Enjoy Edited June 23, 2023 by idenwen 3 Link to comment Share on other sites More sharing options...
TBarina Posted October 24, 2023 Share Posted October 24, 2023 Thanks. Great solution. Ryzen 7 5800X3D, MSI RTX 4090, 64GB DRAM, 2 x 1TB SSD, Triple Monitor 1920x1080p, Win11-Home Link to comment Share on other sites More sharing options...
Darkdiz Posted December 23, 2023 Share Posted December 23, 2023 How does one get this to work for different modules, or multi-place aircraft (F-15E front has 3 MFDs, back has 4) 1 Talent hits a target no one else can hit, genius hits a target no one else can detect AMD Ryzen 9 3900x CPU@4.5Ghz, ASUS ROG Crosshair VIII Dark Hero Motherboard, 64GB Corsair Venegence DDR 3200 RAM, MSI Rtx 3060 12GB Primary GPU, ASUS GTX 1650 4GB Secondary GPU, 40" 1920x1080 Samsung Monitor, 32" 1360x768 Sony Monitor, 32" Dynex 1360x768 Monitor, 1TB Seagate Firecuda M2 PCIe 4 OS SSD, 2TB Western Digital Blue M2 PCIe 3 storage SSD, 8TB Samsung 870QVO storage SSD, Western Digital Blue 1TB storage SATA, 2x Thrustmaster T16000 (LH and RH), Warthog Joy/Throttle/TPRS, 6 x Cougar MFDs (4 with Generic VGA 800x600 displays), Track IR 5 with IR Trackstar V3, Logitech G910 Tactile Keyboard, Logitech G604 Lightspeed Mouse, Logitech F310 Gamepad, Windows 10 Pro 64-bit Soul: None (sold long ago to the MGOMU, also known as Princess) Link to comment Share on other sites More sharing options...
idenwen Posted March 8 Author Share Posted March 8 On 12/23/2023 at 8:52 PM, Darkdiz said: How does one get this to work for different modules, or multi-place aircraft (F-15E front has 3 MFDs, back has 4) I'd say only through different UIMask files sadly. But curious if someone finds another way. 1 Link to comment Share on other sites More sharing options...
Darkdiz Posted March 8 Share Posted March 8 It actually works, based on how I have my MPD/MPCD monitors placed in windows 1 Talent hits a target no one else can hit, genius hits a target no one else can detect AMD Ryzen 9 3900x CPU@4.5Ghz, ASUS ROG Crosshair VIII Dark Hero Motherboard, 64GB Corsair Venegence DDR 3200 RAM, MSI Rtx 3060 12GB Primary GPU, ASUS GTX 1650 4GB Secondary GPU, 40" 1920x1080 Samsung Monitor, 32" 1360x768 Sony Monitor, 32" Dynex 1360x768 Monitor, 1TB Seagate Firecuda M2 PCIe 4 OS SSD, 2TB Western Digital Blue M2 PCIe 3 storage SSD, 8TB Samsung 870QVO storage SSD, Western Digital Blue 1TB storage SATA, 2x Thrustmaster T16000 (LH and RH), Warthog Joy/Throttle/TPRS, 6 x Cougar MFDs (4 with Generic VGA 800x600 displays), Track IR 5 with IR Trackstar V3, Logitech G910 Tactile Keyboard, Logitech G604 Lightspeed Mouse, Logitech F310 Gamepad, Windows 10 Pro 64-bit Soul: None (sold long ago to the MGOMU, also known as Princess) Link to comment Share on other sites More sharing options...

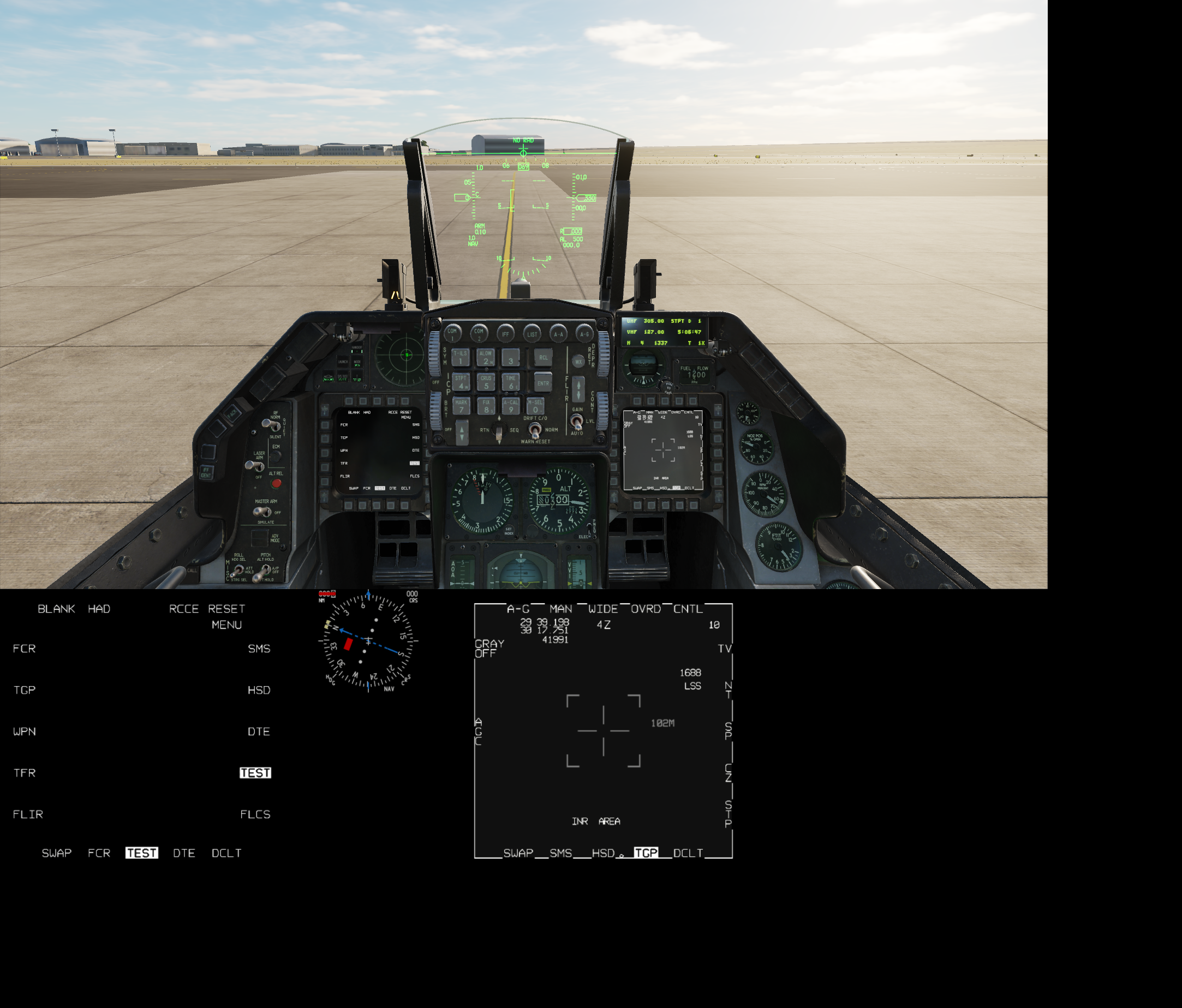

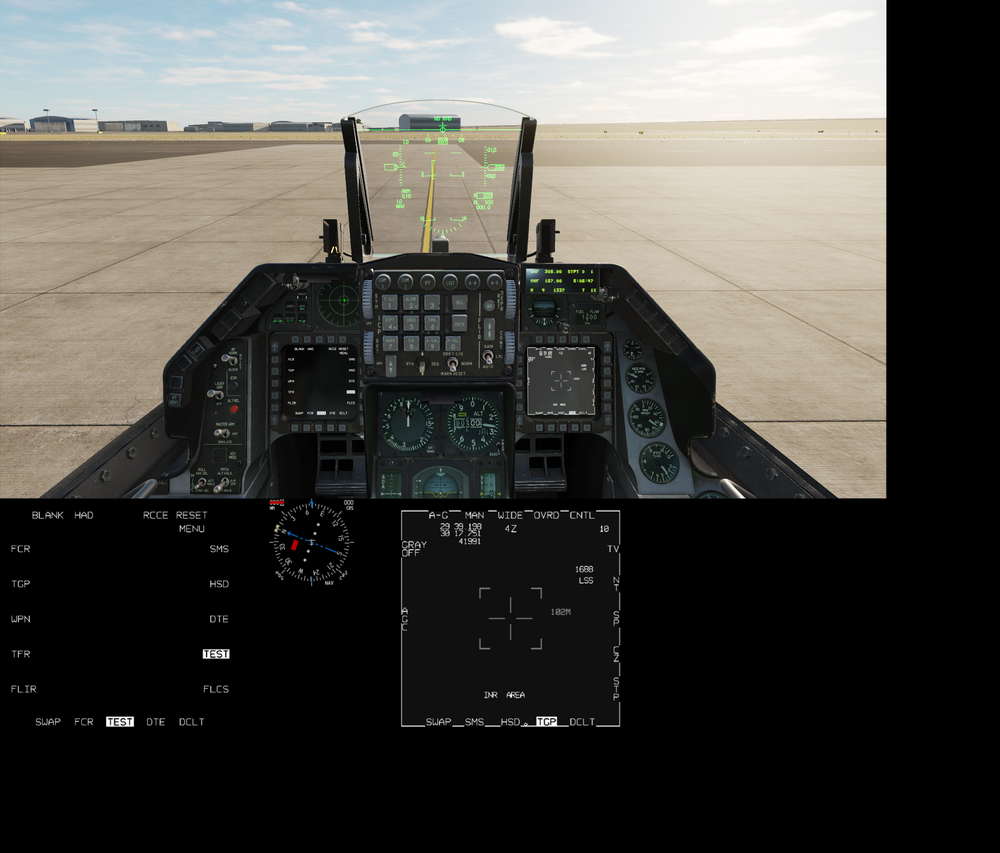

MadKreator Posted March 9 Share Posted March 9 (edited) 14 hours ago, idenwen said: I'd say only through different UIMask files sadly. But curious if someone finds another way. I did this using helios, took one big screenshot while dcs was running ( so it showed the viewports) , colored the whole dcs screen white and the whole lower part, where the helios monitor is, black. Helios ( I know this isn’t the discussion) always places the aircraft virtual cockpit on top of everything else running, so it only affects the viewports rendered behind the cockpit. Works like a charm on all aircraft. I would say just play with the masks. Wherever it’s black, reshade will apply the chosen filters wherever it’s white, it wont. Having all the monitors in a line in windows probably takes some pain away. sorry @idenwen( the world thanks you for figuring this out btw!) , meant to reply to @Darkdiz Edited March 9 by MadKreator 1 Intel i7 13700k, ASUS rog strix z790A, 64gigs G.Skill Trident DDR5 @6400Mhz, Nvidia RTX 4080FE, 2x 2TB Samsung M.2 NVME, 2x 1TB Samsung SSD, Corsair RM1000x, Corsair h100i 240mm cooler, Lian Li LanCool 3, VKB Gunfighter Ultimate, VKB STECS , MFG Crosswinds, Track IR5, 48” LG UltraGear OLED & HP 24” touchscreen for Helios, Streamdeck XL, DCS-UFC App, Corsair Virtuoso RGB Headphones Link to comment Share on other sites More sharing options...

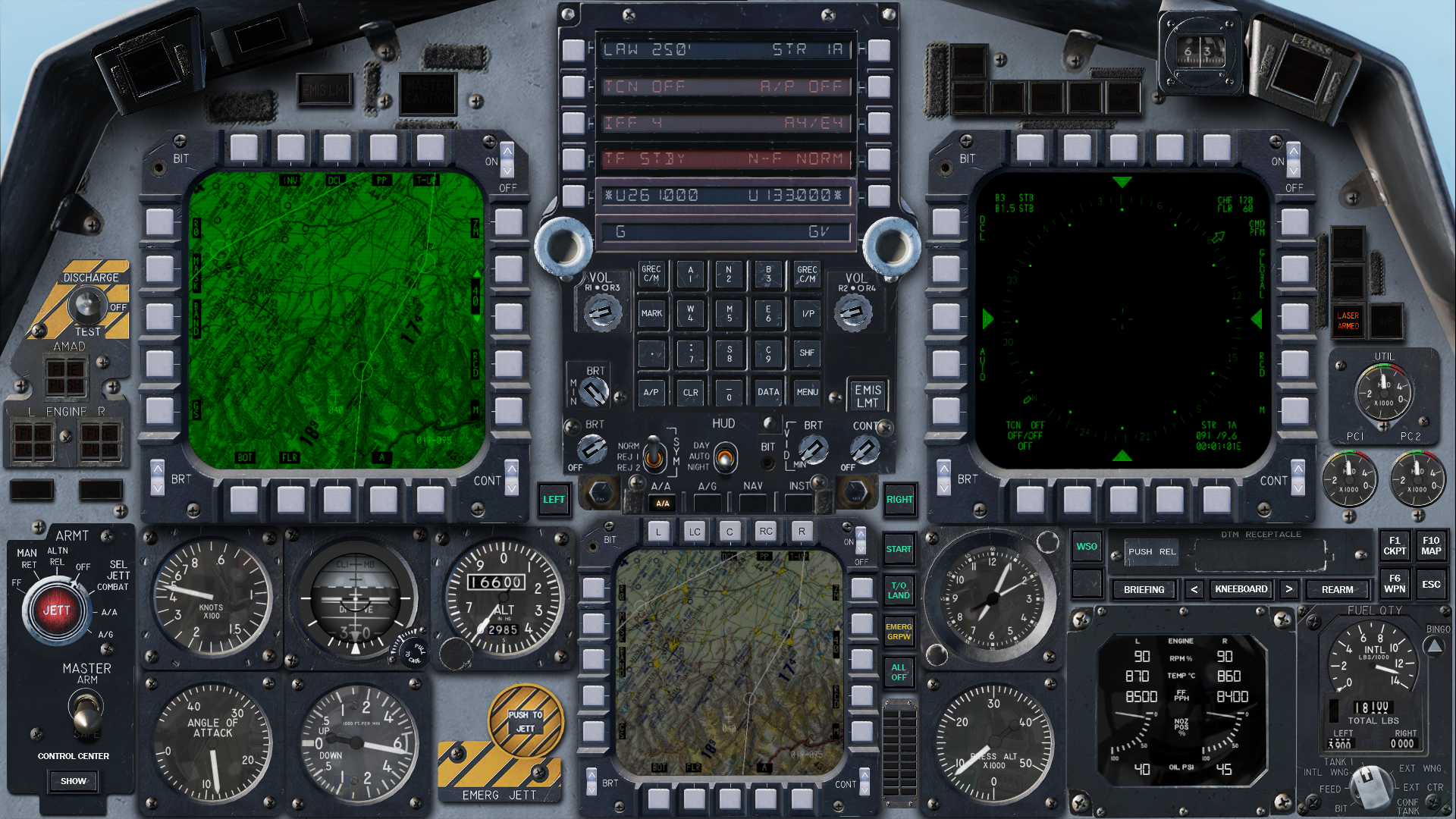

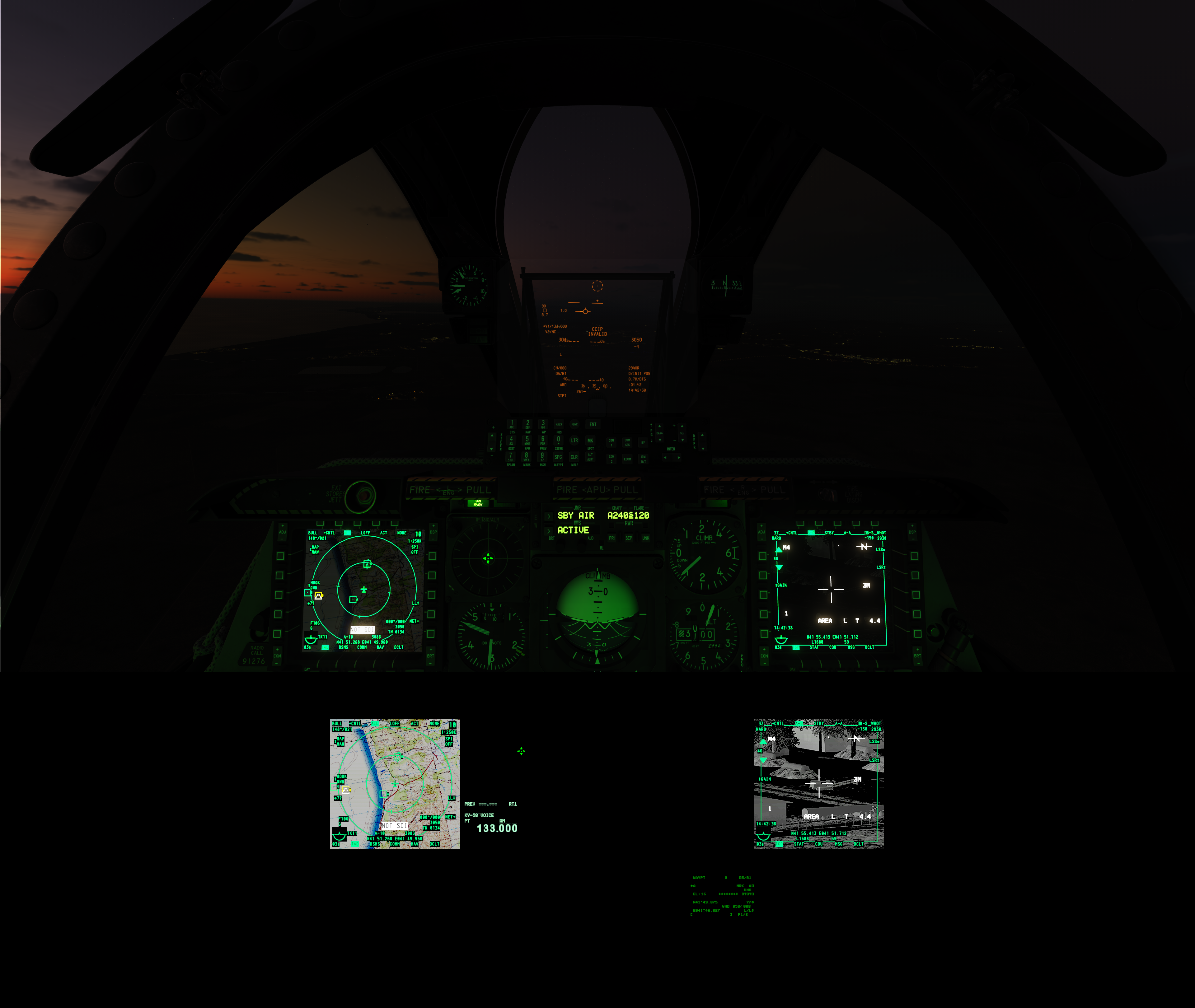

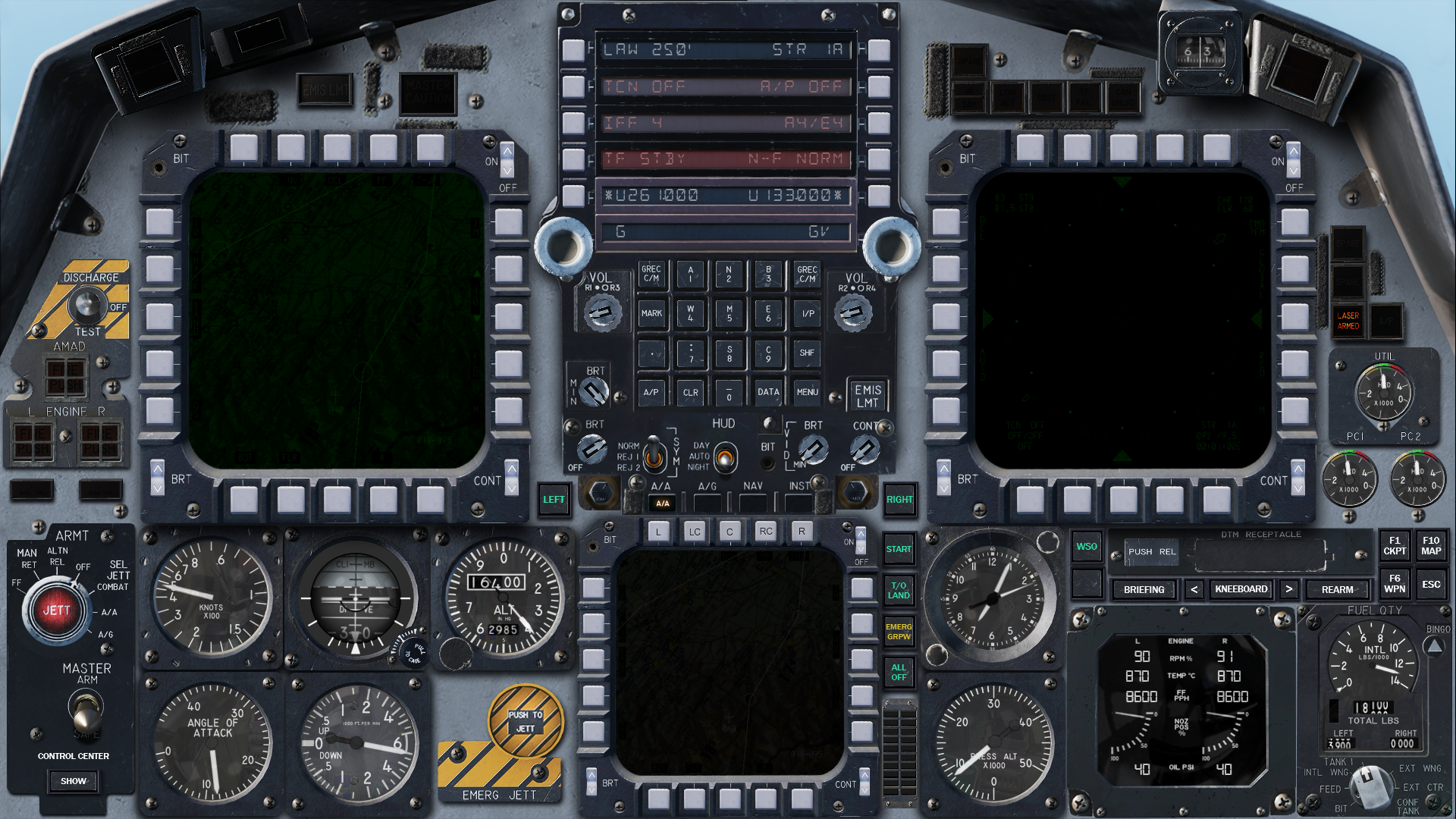

MadKreator Posted March 9 Share Posted March 9 (edited) 1st pic , is without the reshade mask, my f-15e profile, with lighting set in night mode.. screens basically invisible..(in person you can barely make them out) the 2nd is the same settings but with the reshade mask running Then A-10c at night, in night mode also. World of difference! ( I added a Levels filter too along with tone map to get a little more tweaking) I did it the way he did in this video Edited March 9 by MadKreator 1 Intel i7 13700k, ASUS rog strix z790A, 64gigs G.Skill Trident DDR5 @6400Mhz, Nvidia RTX 4080FE, 2x 2TB Samsung M.2 NVME, 2x 1TB Samsung SSD, Corsair RM1000x, Corsair h100i 240mm cooler, Lian Li LanCool 3, VKB Gunfighter Ultimate, VKB STECS , MFG Crosswinds, Track IR5, 48” LG UltraGear OLED & HP 24” touchscreen for Helios, Streamdeck XL, DCS-UFC App, Corsair Virtuoso RGB Headphones Link to comment Share on other sites More sharing options...

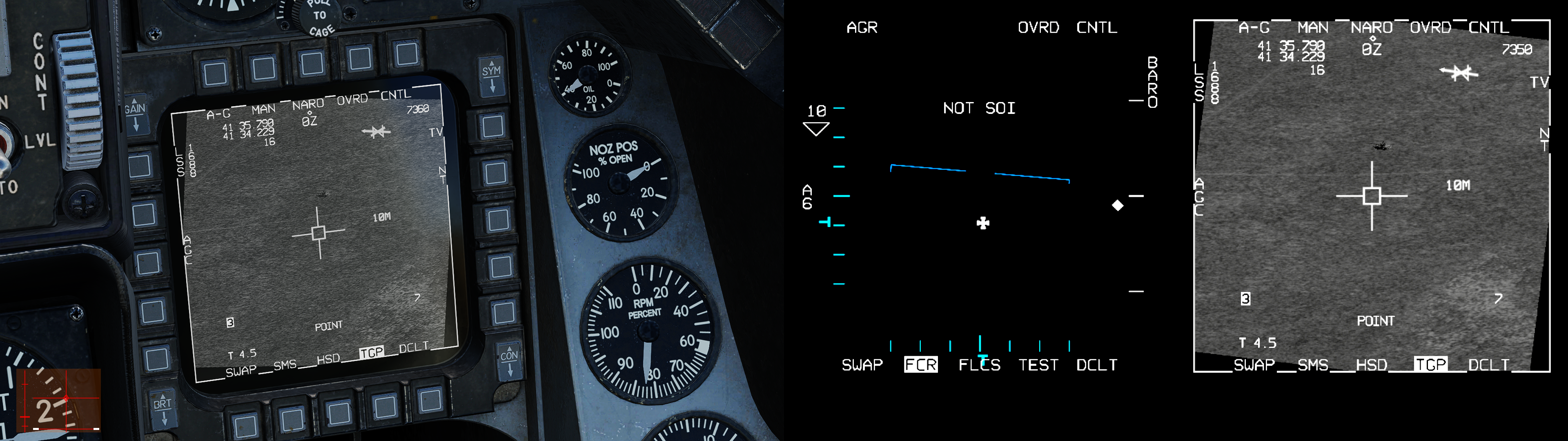

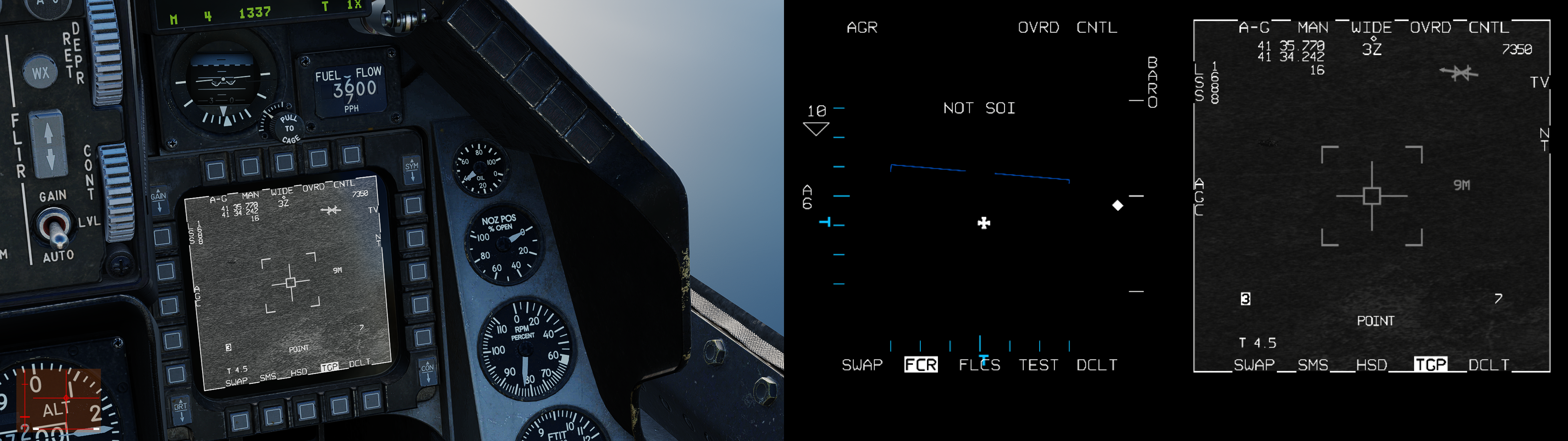

Alphapex1 Posted June 27 Share Posted June 27 thanks,This has been very helpful to me Look at the picture comparison,has obvious effect 1 Link to comment Share on other sites More sharing options...
