3 monitor HELIOS setup

[hreich]

I am having problems using this f14  profile setup



Originally profile was setup for 2 screen export (both 1920*1080) - i would like to change it to 3 screen (all are same res 1920*1080).

1 screen is on the left (only for viewing docs,pdf charts etc) - , second in the middle for 3D cockpit, and third screen is on the right (for export of screens)..

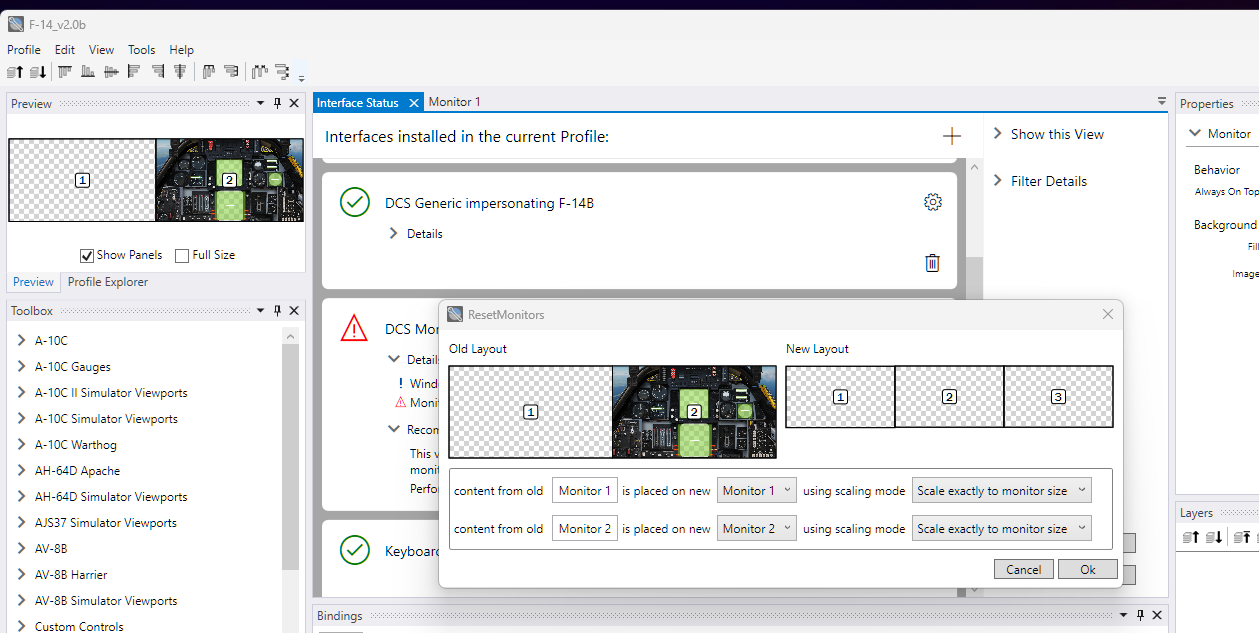

When i load proffile in HELIOS editor - i get message to do the RESET monitor), which i do...But how to properly select options?

I need to keep :   first screen is only for PDF files and word docs,  second screen should be main 3d cockpit view, and the exported screens on third screen,?  I lost couple of hours today, but whatever i do i always get same result -my main 3d cockpit screen and exported screens end up both on my third screen

My DCS resolution is set to 5760*1080 , but i also tried with 3840*1080 same result...Please help me fix this..



Edited November 19, 2023 by hreich

[MAXsenna]

@hreich
My previous post was all garbled, so I deleted it.

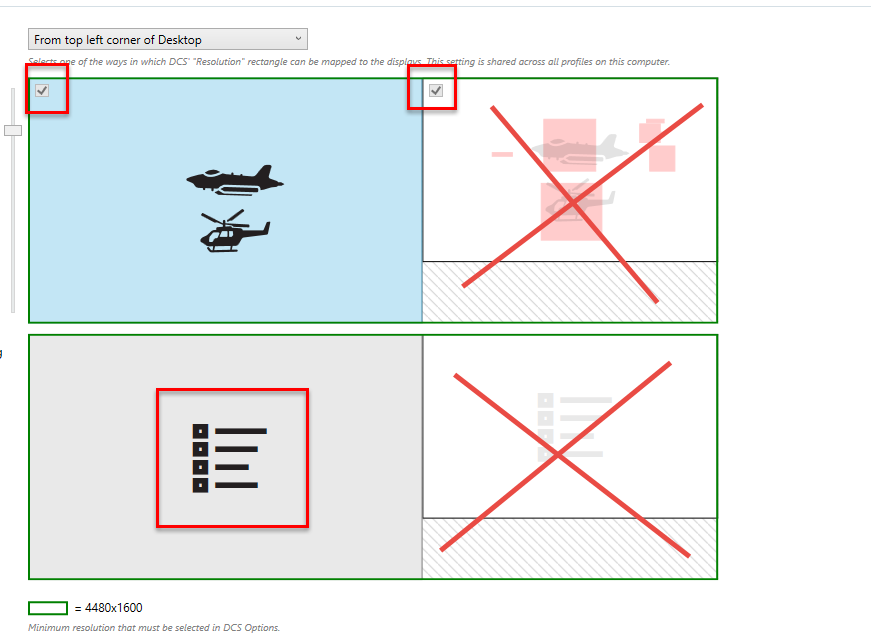

After you have opened the profile, select the DCS Monitor Setup tab. And select everything like below. Except that you have an additional screen to the left, that you should deselect in both selections. Then you apply the Interface Status change.



[hreich]

What are those red x you drew?

Edited November 19, 2023 by hreich

[hreich]

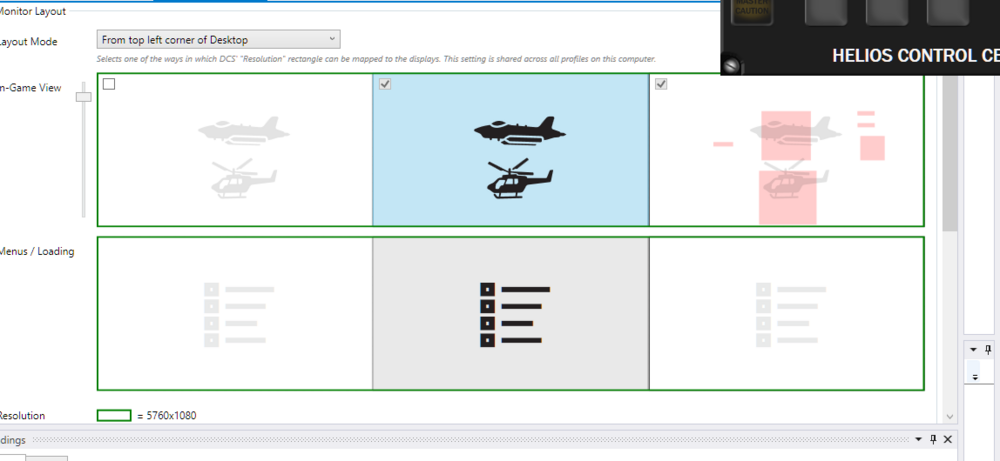

I have this, still 3d cockpit is on my third screen

Edited November 19, 2023 by hreich

[MAXsenna]

I have this, still 3d cockpit is on my third screen

Sure! Your left screen is still enabled in the config. Click it away, so you don't have a green border around it.

And of course the total screen area should just be the two screens times 1080.

Edit: 3840x1080
And, one small detail I forgot to mention. I forgot, it's been a while. When you "transform" the imported profile. READ what it says. It actually asks you on what screens you will have the DCS cockpit, and which screen for the Helios cockpit. Make sure you select correctly there. And the steps I mentioned above might not be needed.
