Can't quite get Fly Elise working

[Gary M]

Heya,

After 3 days of headaches and much cursing, I've almost got my 3 projector/270 degree setup working.

For such an expensive piece of software, I am shocked at how little information is available for setting up Fly Elise. I think part of the problem is that their documentation isn't keeping up with their software versions.

Anyway, I'm using Immersive Display Pro v4.6.5 and Immersive Calibration Pro v5.2.2

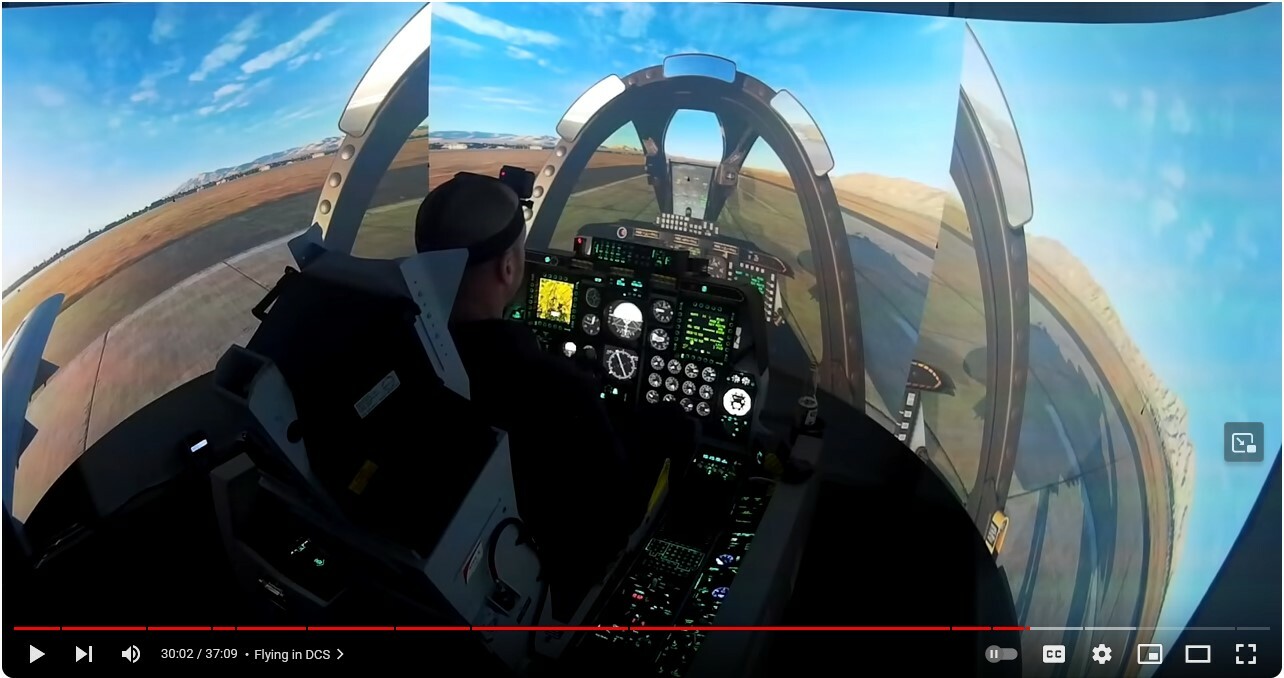

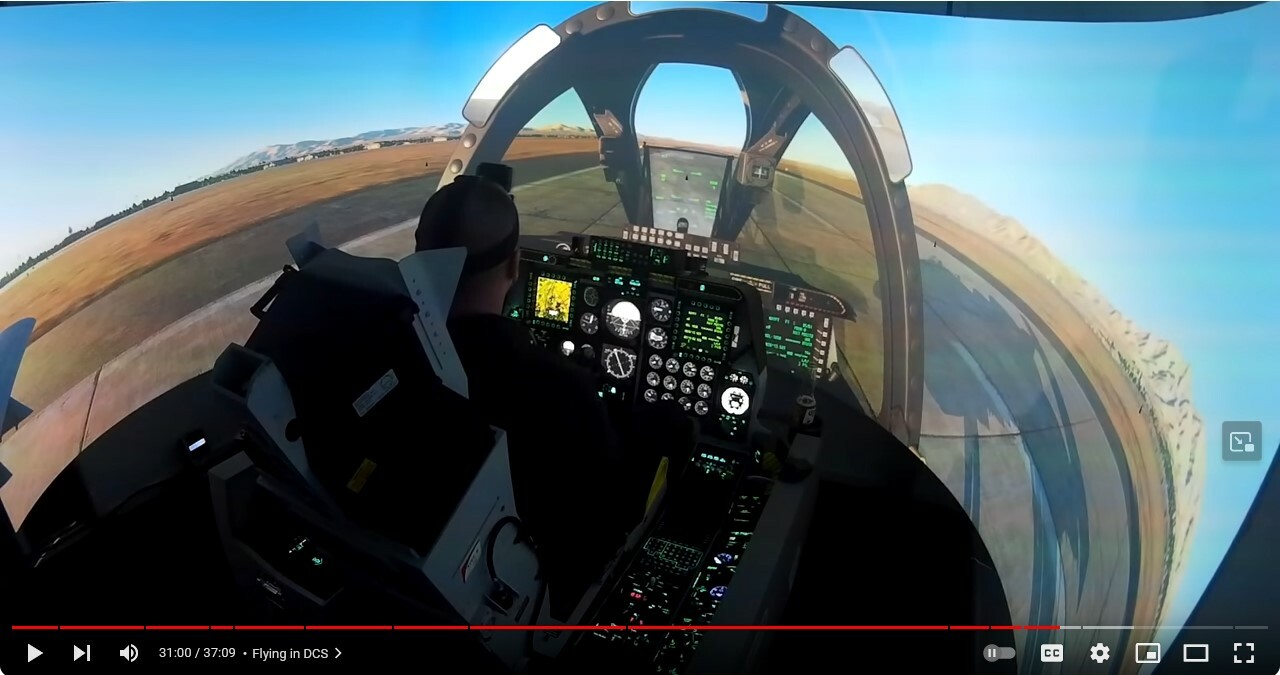

I've gotten to the point where I'm outputting 3 DCS viewports that aren't matching up yet (see WarthogProject01 screen capture from The Warthog Project's video). He gets to this point and then pushes a button that's apparently mapped to "Warp 3D" or something and then the canopy rails like up and everything looks right (see WarthogProject02).

I can't for the life of me find a "Warp 3D" function/button to map to and so can't move beyond the situation in the 1st screen cap.

Anybody know how to get DCS to line up the 3 viewports so that there's one continuous 270 degree image where everything matches up?

Thanks,

Cheers!

Gary

Edited February 23, 2024 by Gary M

[mistral83]

Hi Garry,

I have the same project as you.
after calibrating my 3 video projectors in calibration pro and obtaining the 3D tunel display.
Then it is impossible for me to have a correct display in immersive display pro.
Despite the documentation, I still get 3 overlapping distorted screens.
Could you tell me what you did to make immersive display work correctly?
Thank you for your help.

[MAXsenna]

@mistral83

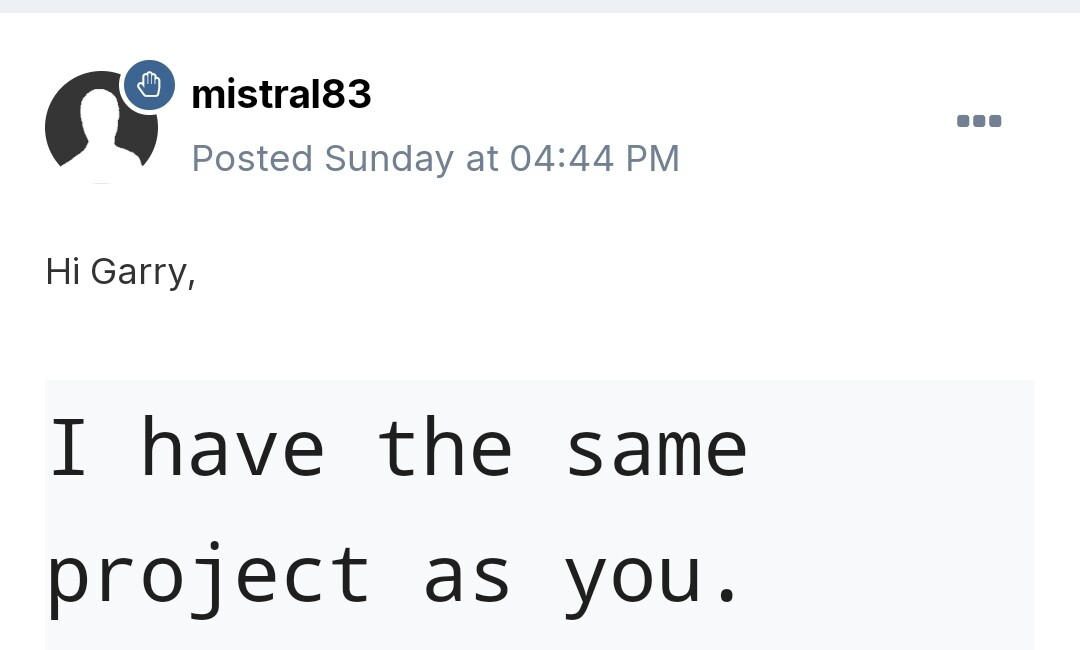

Hi! You might wanna reconsider the font and size.

Cheers!
