Planes you never knew existed thread

[marcos]

Feel free to add more.

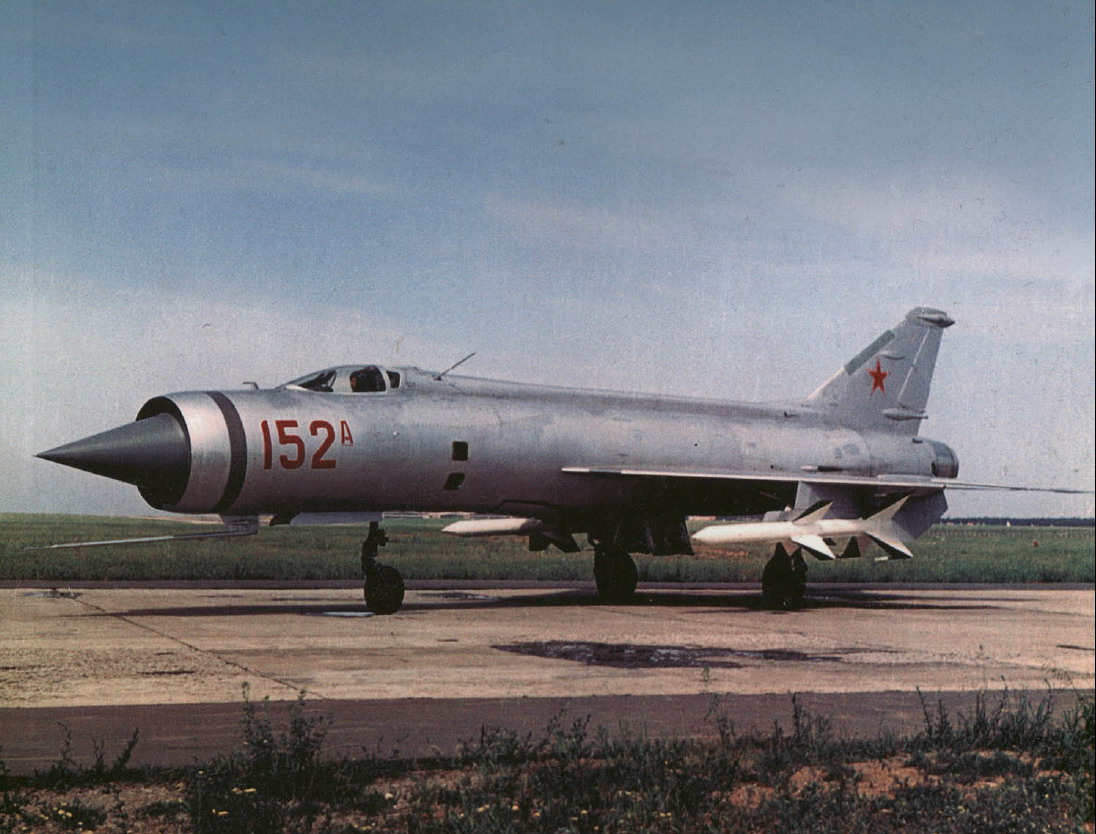

http://en.wikipedia.org/wiki/Ye-152



General characteristics

Length: 19.656 m (64 ft 6 in)

Wingspan: 8.793 m (28 ft 10 in)

Wing area: 40.02 m2 (430.8 sq ft)

Empty weight: 10,900 kg (24,030 lb) 10900

Max takeoff weight: 14,350 kg (31,636 lb)

Powerplant: 1 × Tumansky R-15-300 turbojet, 66.7 kN (15,000 lbf) thrust dry, 99.6 kN (22,400 lbf) with afterburner

Performance

Maximum speed: 3,030 km/h (1,883 mph; 1,636 kn) @ 15400m (50,520ft) mach 2.8+

Range: 1,470 km (913 mi; 794 nmi)

Service ceiling: 22,680 m (74,409 ft)

Rate of climb: 62.5 m/s (12,300 ft/min) 5.33min to 20000m (65620ft)

Time to altitude: 4.5min to 20000m (65620ft)

Armament

Guns: (Ye-151) 2x TKB-495 or TKB-539 cannon in an aimable mount

Missiles: (proposed) 2xK-7 or 2xK-6 or 2xK-9 Air to Air Missiles

Avionics

Urugan-5 Weapons control system



[tobaschi]

MBB Lampyridae



http://en.wikipedia.org/wiki/MBB_Lampyridae

[marcos]

Mig-21I Analog
