Feature Overview
StrikeFire lets mission editors and GCI/JTAC controllers use F10 map markers to task friendly launchers to strike nearby enemy ground/static targets. The system assigns one round per target, enforces true range envelopes per missile family, and throttles engagements to prevent AI lockups. It also provides quick spawn presets for H-/K- at the marker position, plus a one-shot CLEAN command to remove all units created by this script.
Image Tutorial :
Step 1: On the F10 map, place a marker anywhere and enter [H-BRG].
(Please ensure the distance between the launcher and the target is within 8–160 nautical miles.)
nullStep 2: Place a [FIRE] marker near the enemy target you intend to strike.

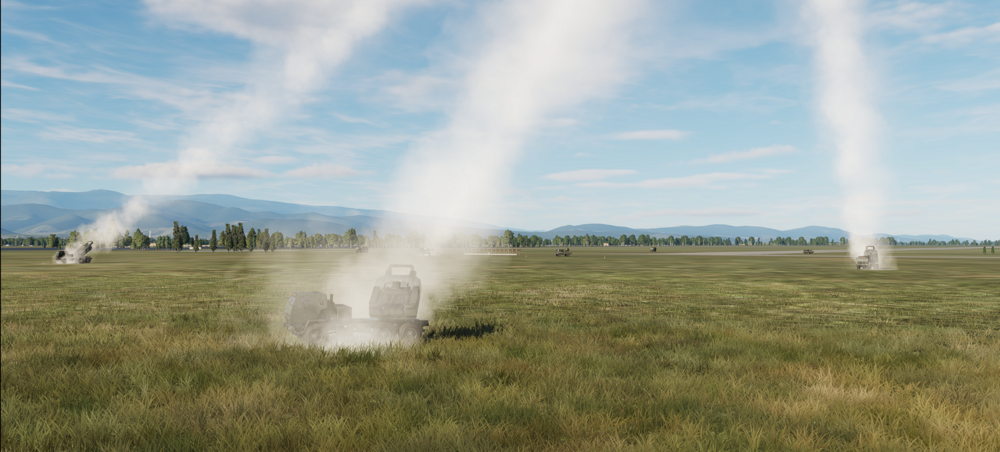

Step 3: Enjoy!
Key Features
Type [FIRE] (or plain FIRE) in a marker and the script will scan within SEARCH_RADIUS (default 3000 m) and auto-assign shooters.
One round per target with de-duplication so clustered units aren’t counted multiple times.
Hard range checks: GMLRS 8–160 nm; ATACMS 8–160 nm; 9K720 40–215 nm.
Spawner: H-/K- presets; each launcher is its own group (can fire simultaneously); supply trucks are merged into a single group.
Type CLEAN in a marker to delete all units created by this script.
Installation
In Triggers → MISSION START → DO SCRIPT FILE, load StrikeFire.lua (or use DO SCRIPT and paste the source).
No dependencies. Works on Dedicated Server.
Marker Commands (F10 Map)
[FIRE] (brackets optional; FIRE also accepted)
Coalition inherits the marker creator (Blue/Red). The script treats the marker owner as friendly and fires on enemy.
Scans for enemy Ground + Static within SEARCH_RADIUS meters of the marker.
Allocates 1 round per target using the nearest launcher that is in range and has remaining budget.
Temporarily sets ROE to Open Fire, then restores it shortly after.
The marker is auto-removed when processing is done.
Spawner keys (place in marker content)
H-BLK, H-SEAD, H-DS, H-QRF, H-BRG → HIMARS presets.
K-HE, K-CL, K-MIX, K-DS, K-BRG → 9K720 (Iskander) presets.
Legacy aliases also supported: HIMARS-BLOCK, HIMARS-SEAD, HIMARS-STRIKE, HIMARS-QRF, HIMARS-BARRAGE, ISK-*, 9K-*.
Spawns at the marker point; each launcher is its own group; supply trucks merged. The marker is cleaned after spawning.
CLEAN
Removes all units created by this script.
Quick Reference (Tuning)
Adjustable parameters near the top of the file:
------------------------------------------------------------
-- Configurable Parameters
------------------------------------------------------------
local SEARCH_RADIUS = 3000 -- meters (search radius around marker)
local FIRE_RADIUS = 120 -- FireAtPoint dispersion (m)
local MAX_BATTERY = 24 -- max launchers that can be tasked at once
local DEBUG = false -- debug output & temporary markers
------------------------------------------------------------
-- Weapon Ranges (nautical miles)
------------------------------------------------------------
local RANGES_NM = {
HIMARS_GMLRS = { min = 8, max = 160 },
HIMARS_ATACMS = { min = 8, max = 160 },
ISK = { min = 40, max = 215 },
}
------------------------------------------------------------
-- Ammo Budget (per-vehicle effective cap)
------------------------------------------------------------
local TARGET_BUDGET_PER_FAMILY = {
HIMARS_GMLRS = 6, -- per-vehicle target budget
HIMARS_ATACMS = 1,
ISK = 2,
}
Usage Tips
Ensure each launcher sits within its family’s range; otherwise the target may be skipped.
The script de-duplicates nearby units; if you want looser clustering, increase DEDUP_EPS.
Keep one launcher per group so multiple vehicles can fire simultaneously.
The script briefly sets ROE to Open Fire and then restores it; adjust the delay with RESTORE_ROE_SEC.
Troubleshooting
No shots fired? Check:
The marker’s coalition (Blue markers direct Blue launchers to attack Red, and vice versa).
The target is within the marker’s SEARCH_RADIUS, and at least one launcher is in range.
Ammunition isn’t exhausted (per vehicle: GMLRS 6, ATACMS 1, ISK 2).
License & Credits
Free for use in missions and servers. Please credit “StrikeFire — Remote Ground Strike.”
Strike Fire V1.lua
