I do not paint, engraver laminate is already in the selected color.

I am using the <LiquidCrystal.h> library https://www.arduino.cc/en/Reference/LiquidCrystalConstructor . I am using this library for both 2x16 and 2x20 displays. You are probably using the LM1602 Module. I have this panel, without this module, and I link it so. https://smartrobots.pl/additional_images/1602LCD2.jpg

Test my CMSP panel :

You have the entire Arduino file for this panel, prepared under the Arduino Mega 2560. dcs_II_laight_tacan-ils.rar

Boxes are made of "plastic hips" 2 mm http://www.partwell.com/hips-high-impact-polystyrene-plastic . Elements are cut very easily. I glue the sides of the box with the gun on the hot glue.

Component test and backlight panel CMSP.

ILS, TACAN and radio use 7 segment LED displays (common anode). https://static1.tme.eu/products_pics/8/b/2/8b26bcfa25c73cc12350e1417dda4088/417507.jpg https://static4.tme.eu/products_pics/e/6/d/e6d703f331164e9dc7c11c801d4c1c6e/prime_presentation/prime_presentation_pres_0001.jpg https://static1.tme.eu/products_pics/0/7/3/0736fcaeb5163efdd70857d6639bdd14/423650.jpg For EW and CMSC I use lcd 2x16 and 2x20 alphanumeric displays, HD44780 compliant. https://nettigo.pl/system/images/1130/original.jpg?1493327734 https://d.allegroimg.com/s400/017008/895ca3dc4f2ea6169a8266b1cedd Of course, the color and size you choose for your project.

ILS to landing approach, TACAN to the cursor on the radio lantern (airport, tank). Shows the needle on the HSI. Connecting to Arduino, I can hardly explain. In principle, it all depends on how you write a batch file to the Arduino. Connect the cables to the appropriate connectors as programmed in the batch file. Excuse me, but I will not teach you all about the Arduino and DCS-Bios in a few sentences, especially that my English is rather stingy. You can learn everything from the DCS-Bios site. I can always upload my batch file to Arduino.

First NMSP test :) .

I bought Polish Allegro, I do not know if it is shipped abroad ( http://allegro.pl/zielona-1m-tasma-120-led-smd-3528-listwa-i5573436761.html )... Maybe ebay, Amazon? Often the price is exorbitant. https://www.amazon.com/SUPERNIGHT-Density-Green-Waterproof-Light/dp/B00BSODFOK http://www.aliexpress.com/item/smd-3528-120-Led-Strip-120leds-m-5m-Non-waterproof-Led-Flexible-Tape-ribbon-DC12V-White/32704391074.html

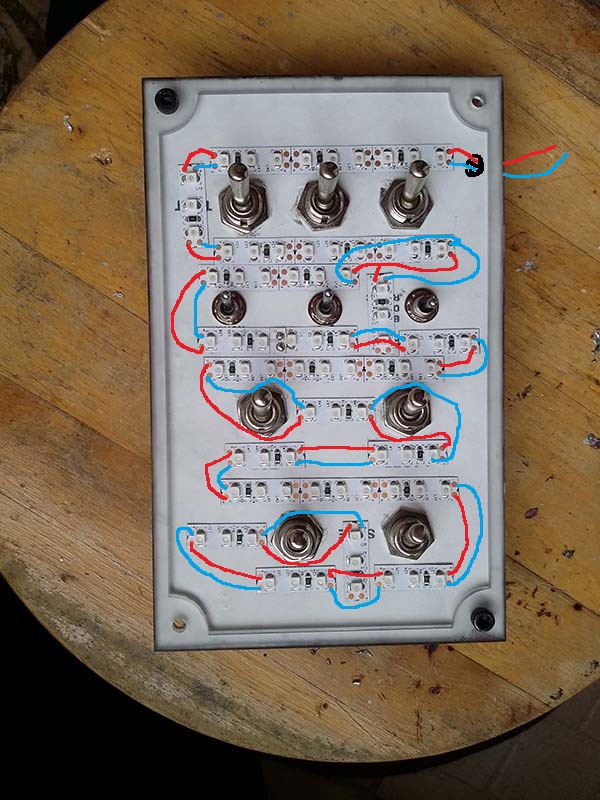

Tape pieces are connected by cable and connected to the power supply. ( green led strip 120 x led/m, + to + and - to - ) Here you have a link to the Polish site. http://il2forum.pl/index.php/topic,17561.0.html

The backlight of the panel is powered by an external power supply. Arduino controls only the control light. PS. Sorry for my English, I do not know him well, I'm helping google translator.

# lucky-hendrix The laser burns the inscriptions in the laminate and then cuts openings and parts. On aluminum I only draw the shape of a laser and then cut the holes manually. # Ganeshka One of the panels for example. Aluminum, spacing frame, milk plexi (diffused backlight), engraved engraving laminate. I use a standard "tact switch", the height I choose for the panel, and the way the backlight.

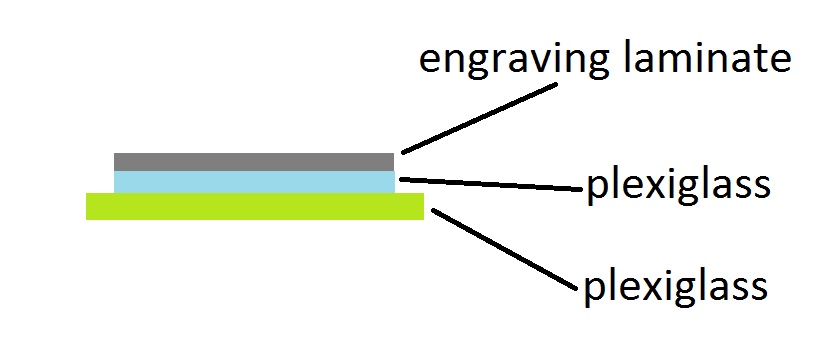

Buttons are made of three bonded layers, 1x colorless plexiglass, 1x colorless plexiglas, 1x laminated engraving. The sides are painted on the gray color of the engraving laminate. It is not ideal but acceptable.

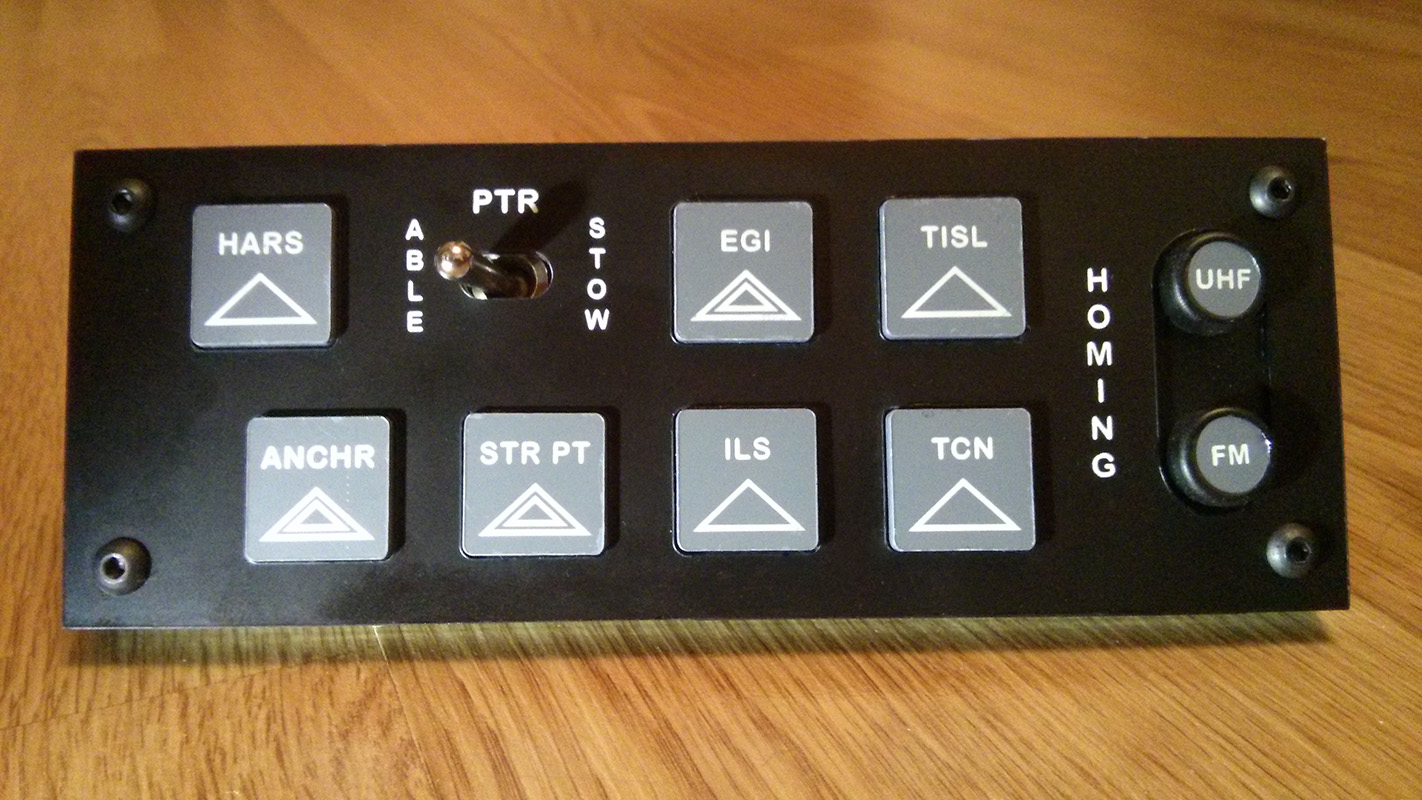

The NMSP module is almost ready, waiting for the Arduino Uno :). Of course, the green highlights the subtitles on the panel.

New toys and new cockpit parts :) . I have a new job for autumn.

It seems that ED is not interested in fixing this error, just like many others. Too bad, because it's so hard to play.

In this case it looks like: unknowingly blocking access, not intentional action. But such ED errors are unfortunately the norm. One thing will change, the other will unconsciously destroy.

OK fine. How to explain the lack of access to the "Training", "Quick Start" folders for other modules? They left only access to the "Single" folder.] Have we deliberately been deprived of the choice of these missions? I'm afraid they do not quite know what they are doing.

I will describe it more accurately: By selecting "MISSION" - "A-10C" (or another module) ", I can not access the" Training "," Single "," Quick Start "folders. By selecting "MY MISSION" - "My Missions", I can not access folders on other disks (partitions) than "C". Sorry for my english, i hope i will be well understood now.

There is a problem with the choice of mission. Menu "MISSION - MY MISSIONS (or another module)" - I can not select missions stored in another drive than "C". I can not move between folders to find missions in MISION EDITOR. This issue applies to all versions of DCS WORLD 1.5.7, 1.5.7 Beta, 2.1.1 ...! There is no such problem in the MULTIPLAYER menu.

Is there a new update, have someone been repaired with this error?

Thank you, HMMWV TOW everything works. However, with an ordinary soldier also works, why not work with the APC M1025 HMMWV?

As in the title. For example, the APC M1025 HMMWV no laser illuminating the target, a JTAC soldier does not have this problem: https://forums.eagle.ru/showthread.php?t=192353

Here you are JTAC test.miz . When the JTAC is reduced to a soldier, it will illuminate the target. When a group consists of multiple vehicles, the soldier often highlights himself, not a target. Sorry for my English, if it is not understandable, I will ask your friend for a more accurate translation. JTAC test.miz
