Hello @ChillDamage Very Nice job !! I m currently building also an f14 pit. You Said in Your previous post that you went to the muséum to look at a f14 cockpit. May i ask you Which muséum you went ?

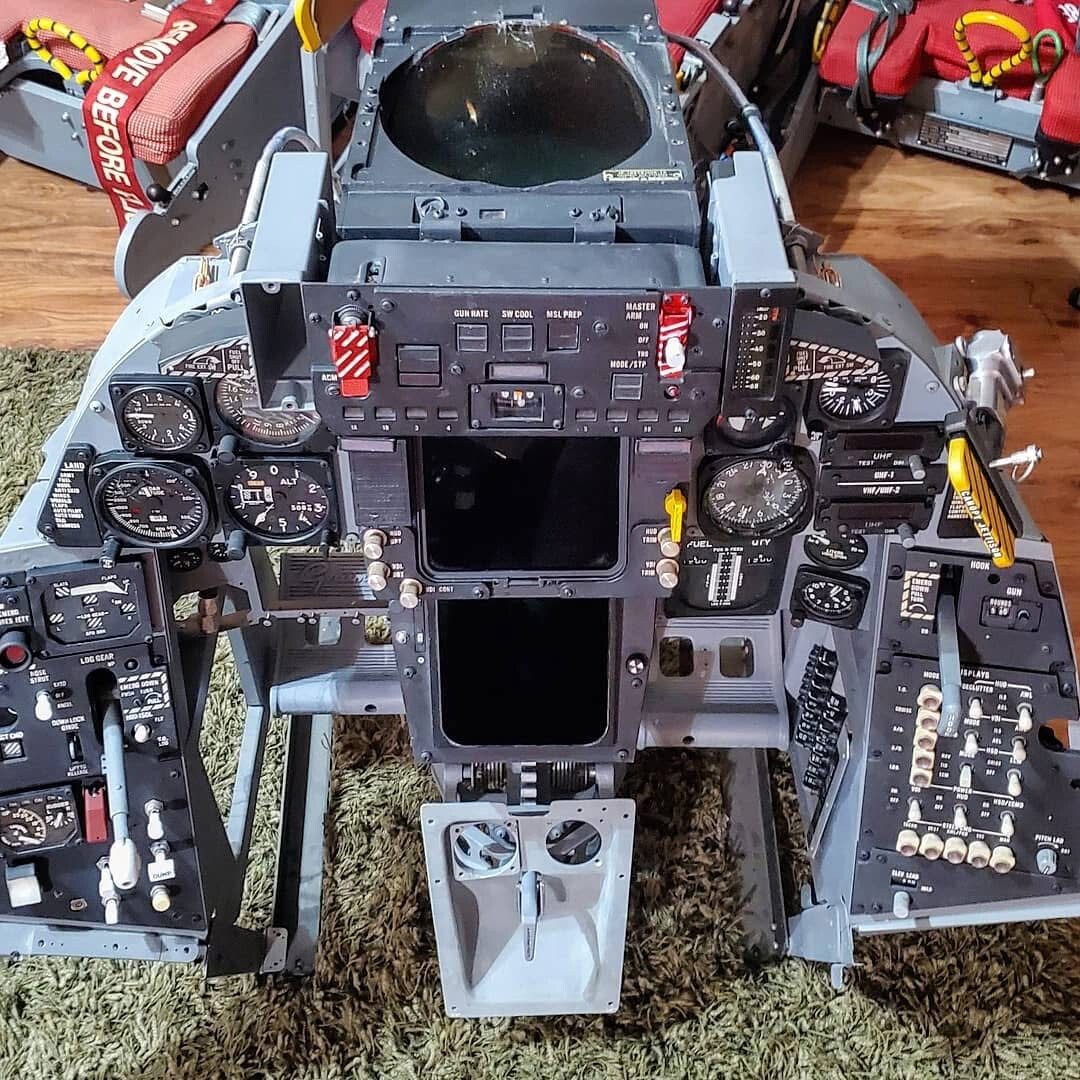

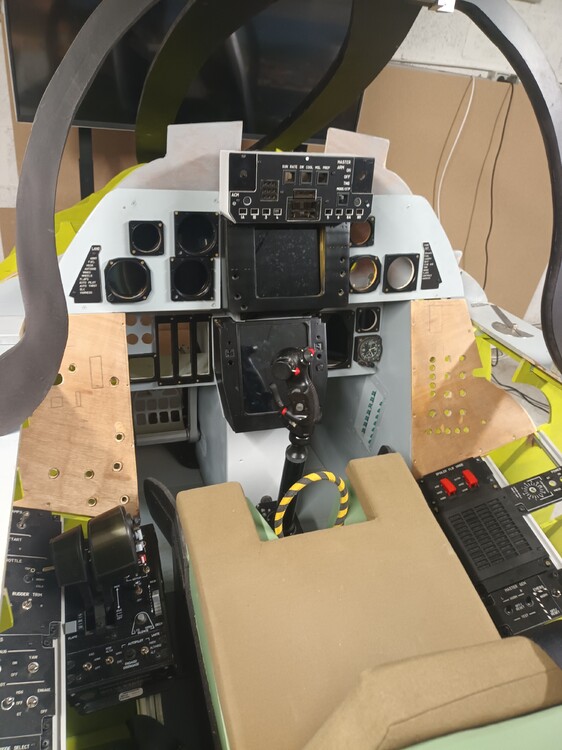

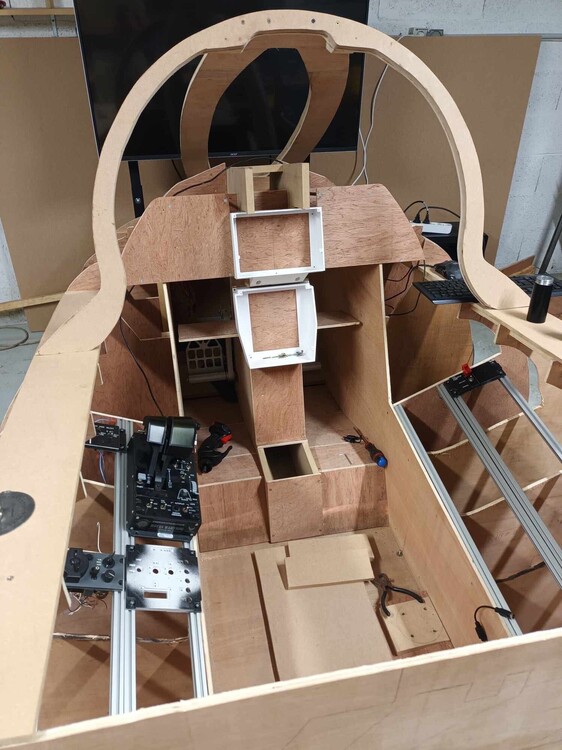

hi guys , With the precious help of HAGEN and holydays starting , the pit is on good tracks ! here are some pics !

@parkerfly51505 can you tell us more ? ii it complex to code ? you connect it to an arduino ? or did you display the sliding indicator, AOA, and wing sweep with helios ? is it connect via HDMI or usb c? Thanks a lot

@AusMumbles look great !! i'm also looking for a small screen to simulate the slip indicator, the smallest i found are on Aliexpress but still too big . please can you share the fusion file of the ACM housing ? so i can tune it a little bit for my pit ?

@Woody81 i ve my ACM panel dimension if it can helps you ? in mm ... 108.3mm by 258 mm i found an ACM panel STL on the net , its dimensions are 200 mm x 83mm if you want i can share those files for the korry switch i buy them on 737DIYsim : https://www.737diysim.com/ you can ask them to write whatever you want for the label on their switch ...

Thx a lot Woody

thanks a lot @Nightdare that's help a lot !!

@Nightdare Thanks a lot . Very interesting . So this are just push Button ? Not a lever ?

Hi Guy . I Ve another tricks question : where is the canopy opening control ? On the right upper rail I can see marking of the closing/opening function of the canopy. But I don t any « handlle « someone got a picture please ?

Thanks a lot hagen !!!!!

Not they are not.

How !! nice job !!! thanks a lot for sharing !

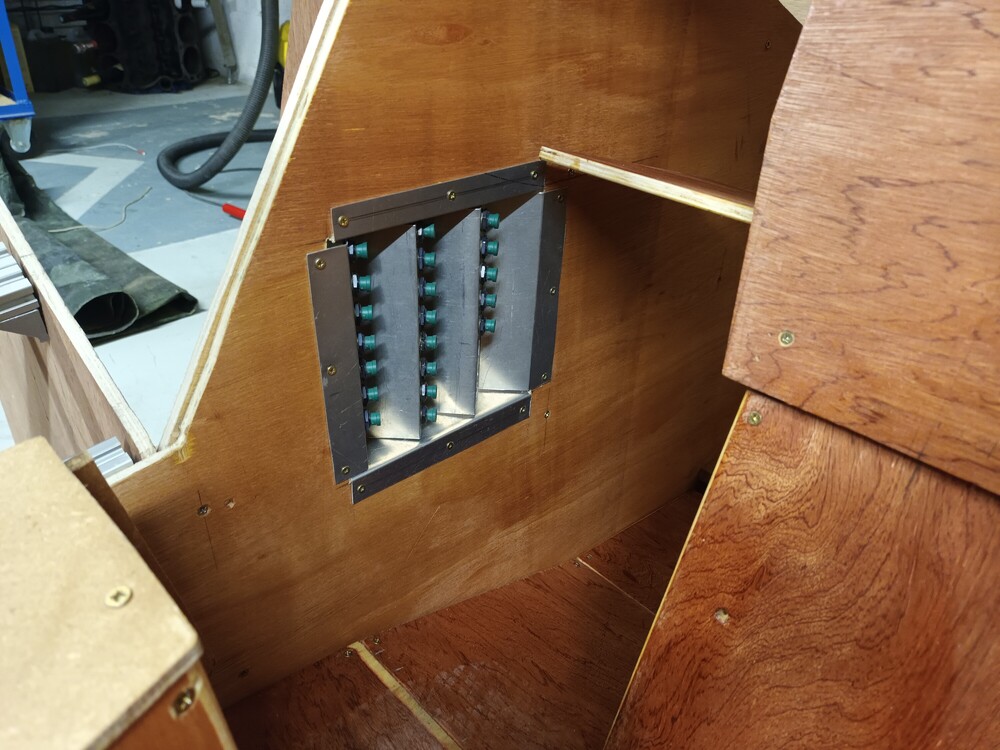

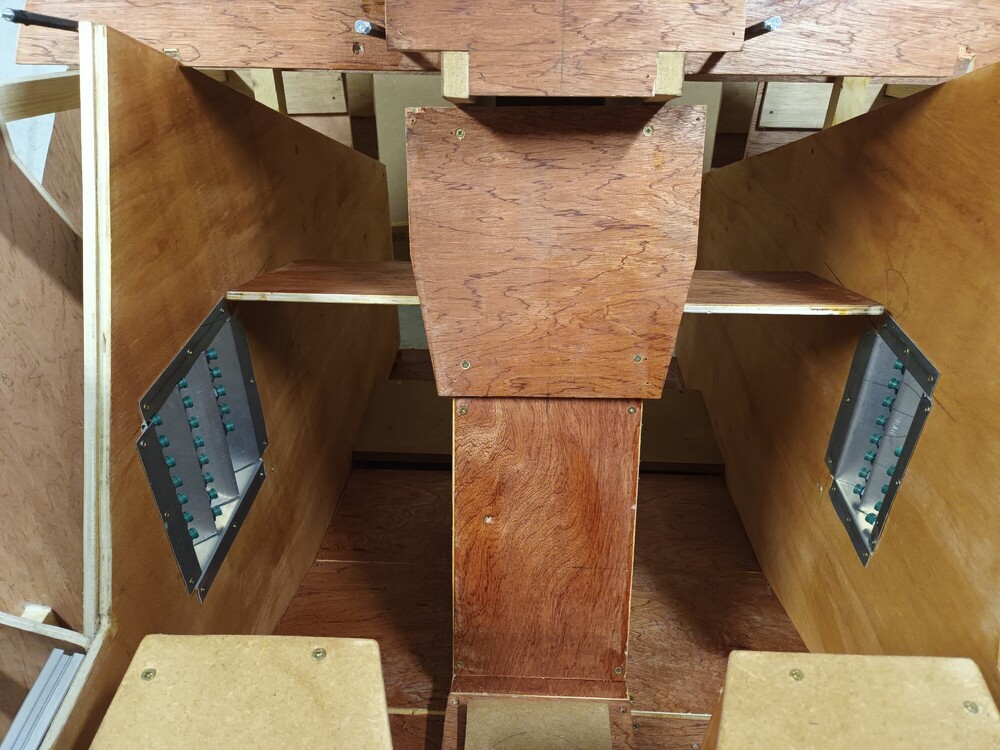

Put them in place . Can t push more foward thé left one due to a crossmember just in the Middle. Si not exactly at the good position. But not so bad .

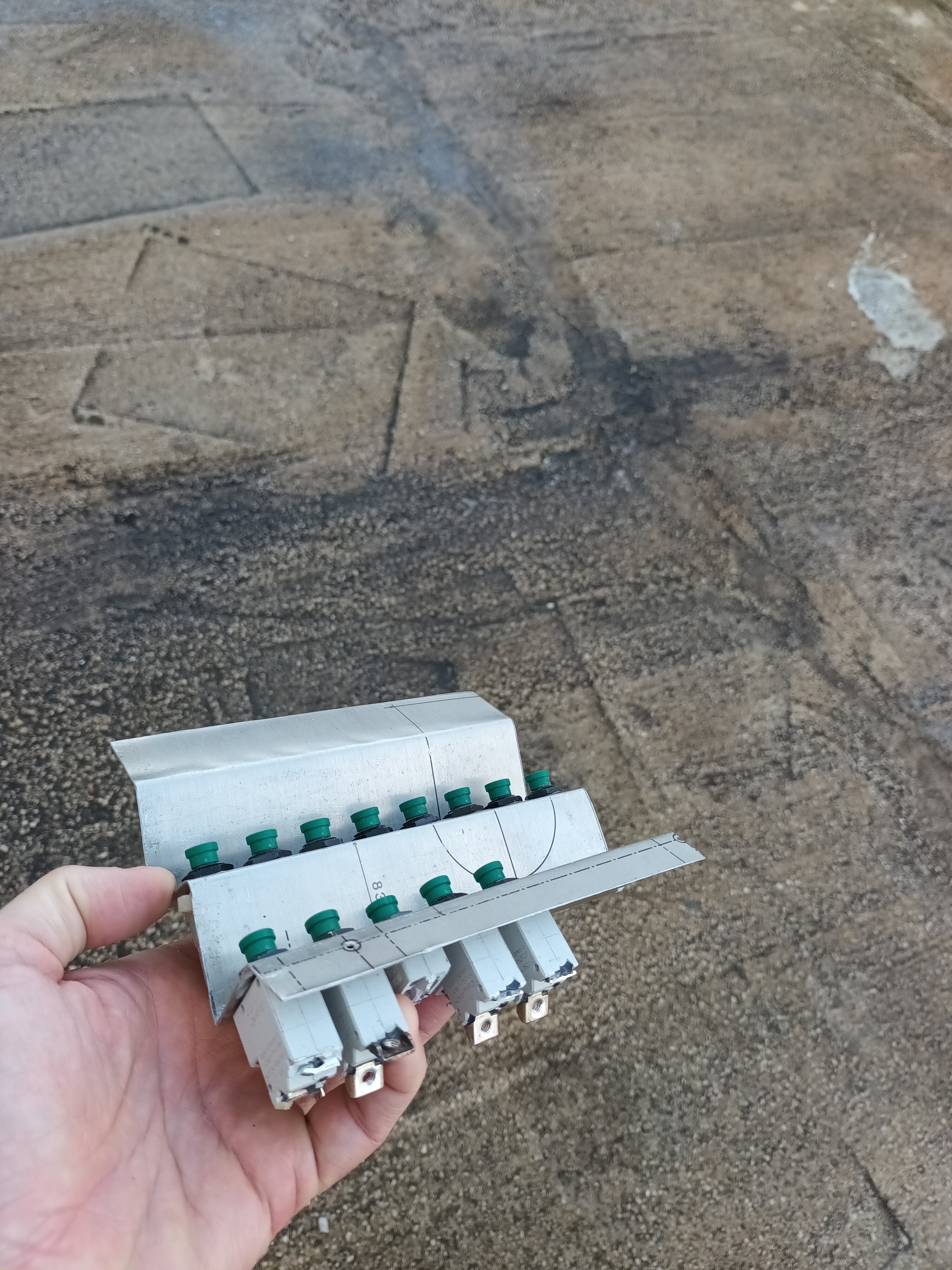

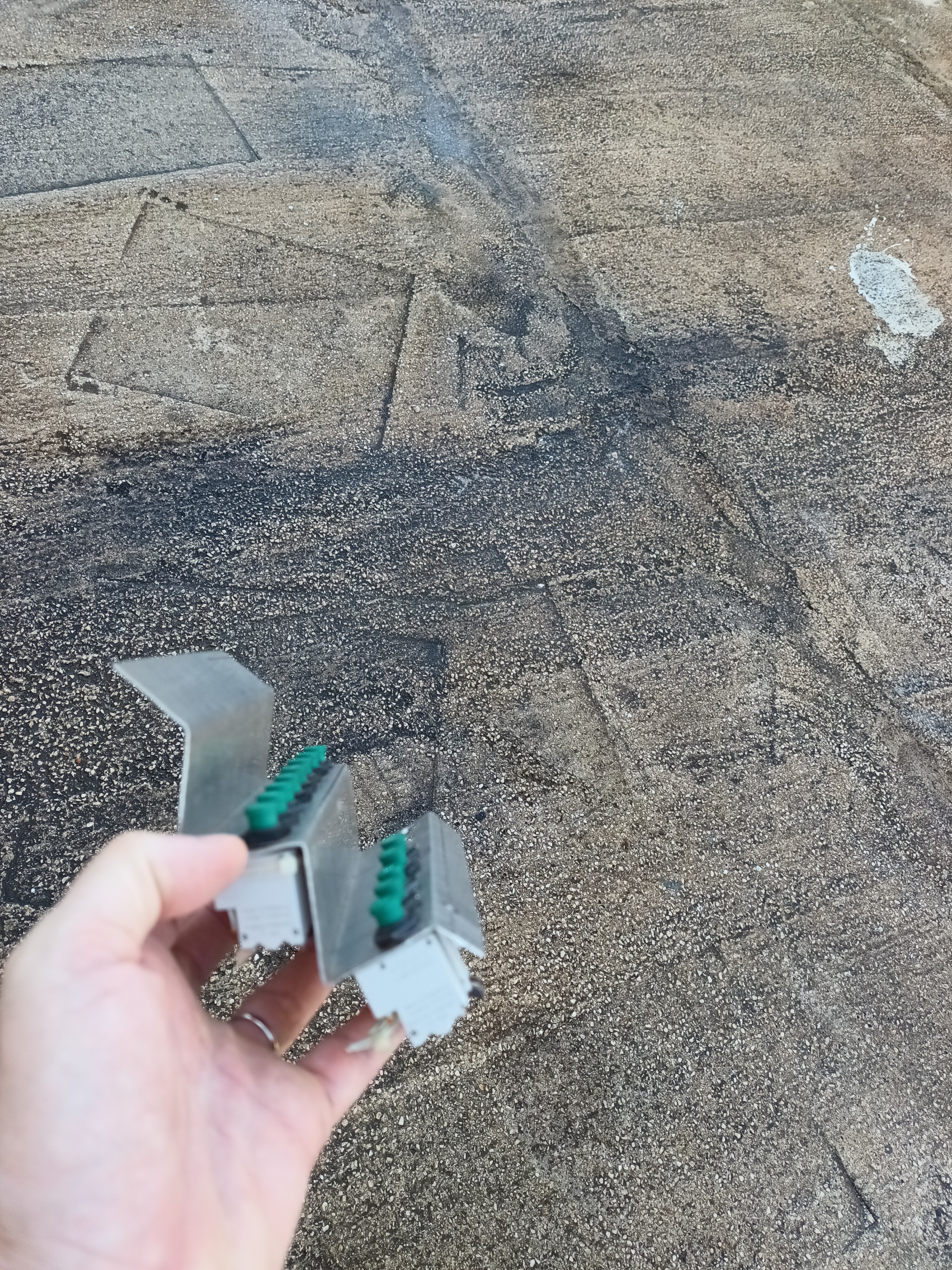

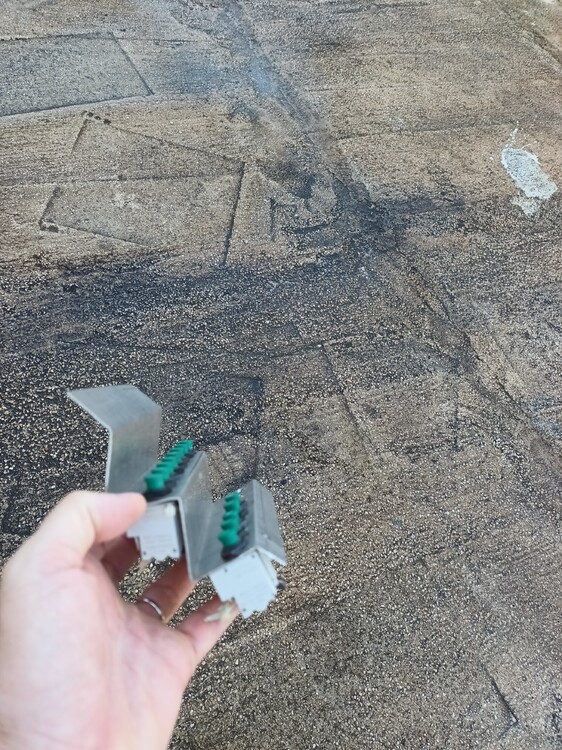

@Hagen i use real breakers, i work in aernautics

Only you can understand how i feel !

Very nice job that ejection switch Hagen !!!

Thanks Hagen !!

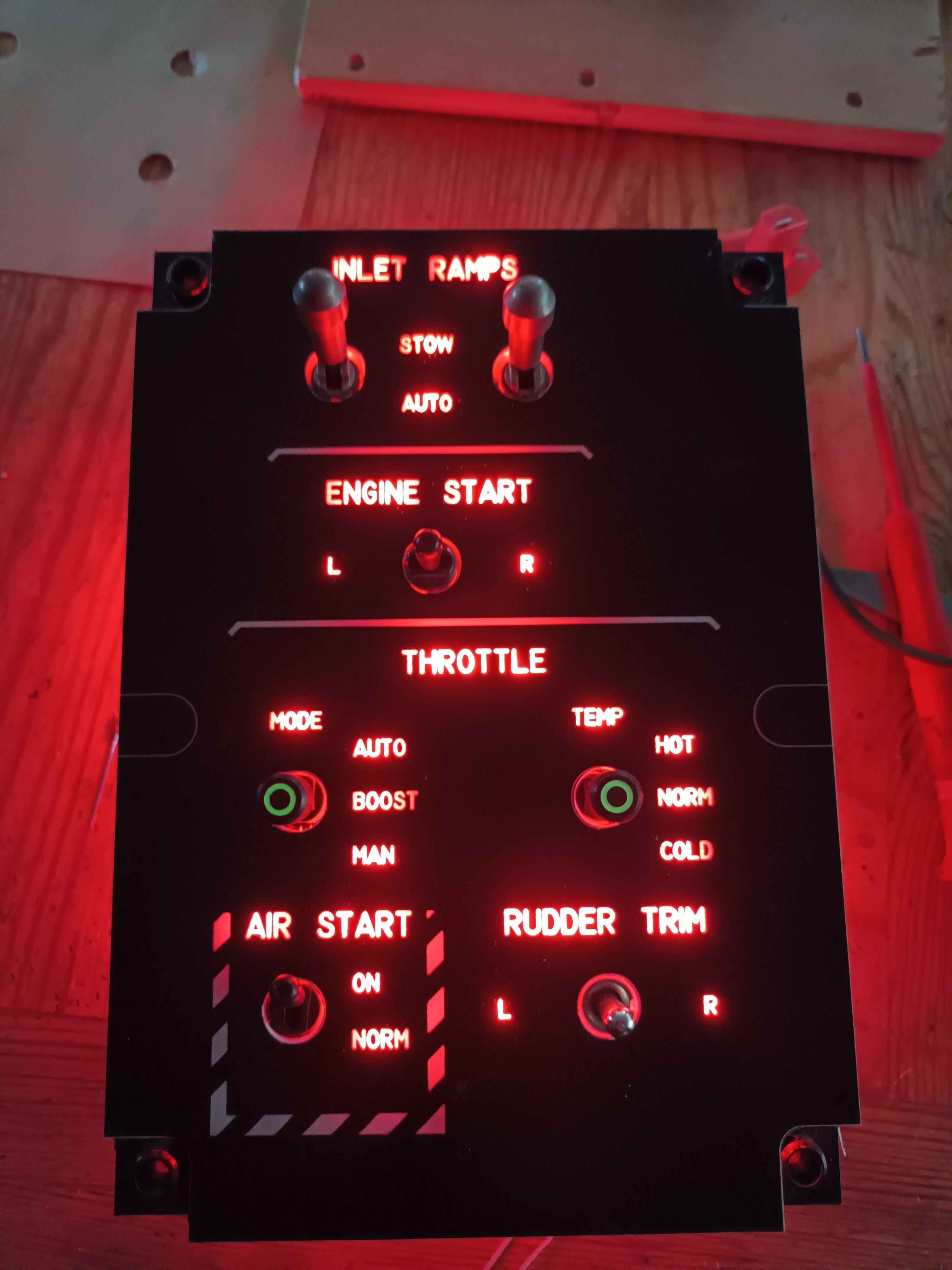

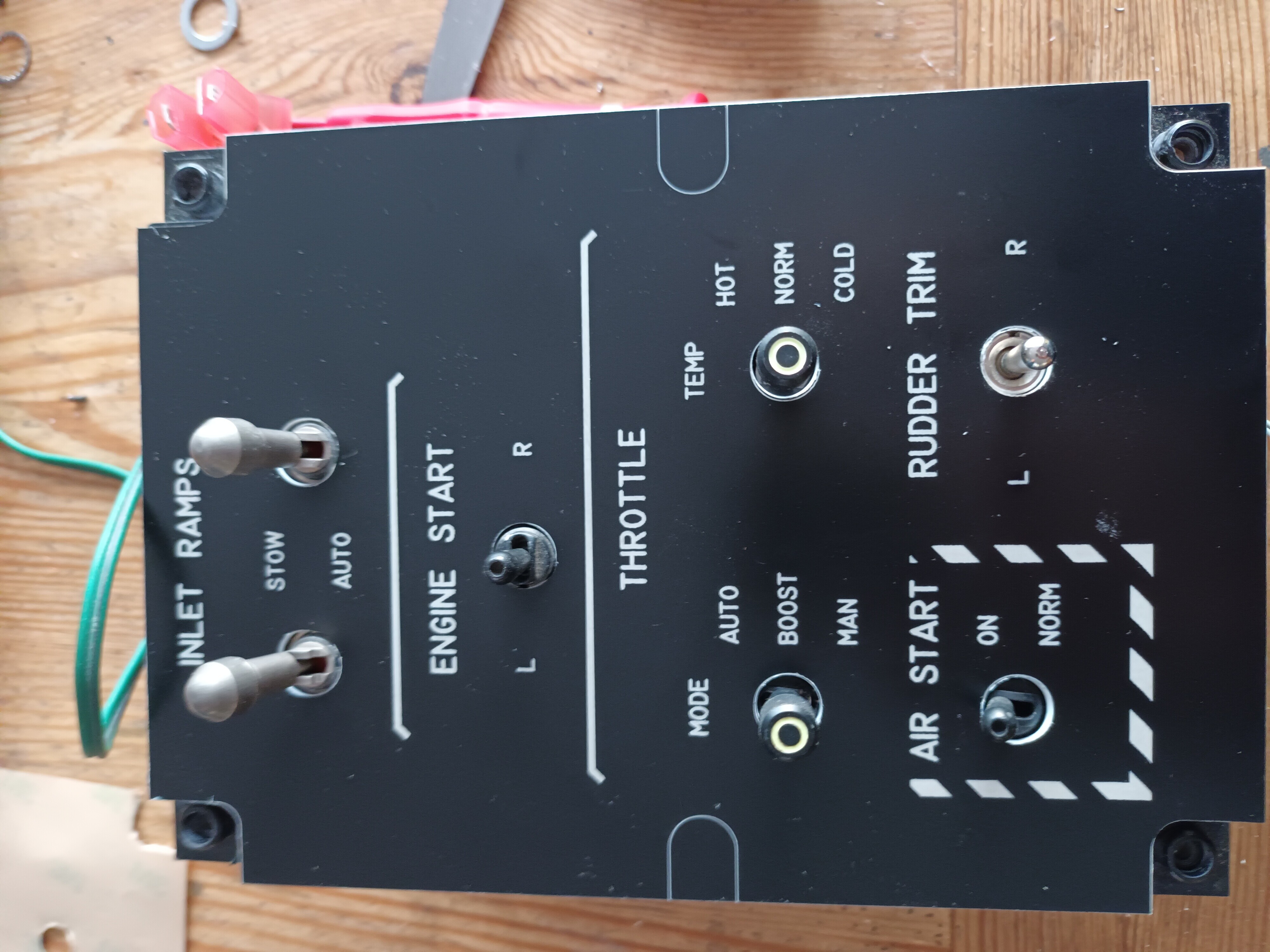

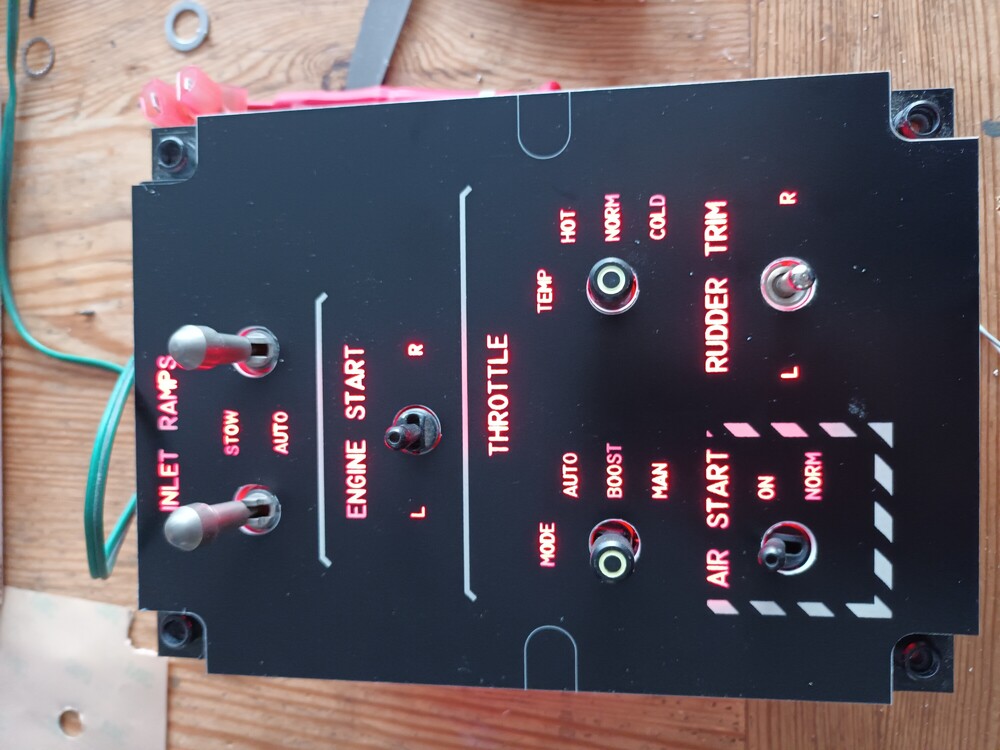

Hi mates . Here are my home works for the week end !! 20250209_170912.mp4

Just found that picture on the net . Though it can helps some of us

Thanks a lot !!

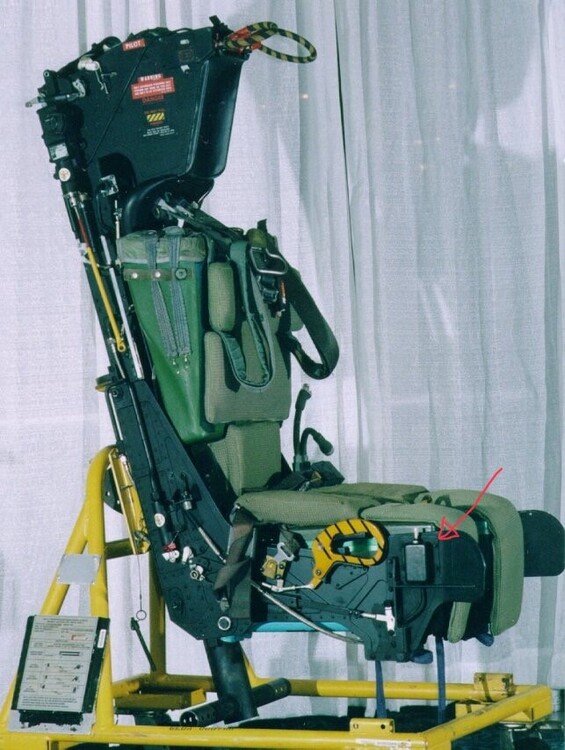

Hi mates . Since we are discussing ejection seats. What is the purpose of this switch on the right hand side of the seat ? I put a red arrow on the attached picture

@rustbelt you are right we immediately identify this point. I will change the screen support , maybe with a wheeled one . Or …. Go to mixed reality as ausmumble says.

@AusMumbles I plan to have an early f14 paint scheme … classic vf 84 … I would have done the vf1 paint but it is too low on the frame so it would not be visible on our pit .. @Hagen yeah !! Got it also !! Very good one !!

@AusMumbles yes your plans are great ! You unlock my project which was one idle until I got your plans. thanks a lot again . I really think the community of F14 cockpit build owe you a lot ! i look at the solution you have for the frame of the windshield . It could be a great improvement ! sadly my thrusmaster die just after the picture . It was 10 years old I think… time to change . I m looking at the mongoose base as I got the vfx handle . see you !!

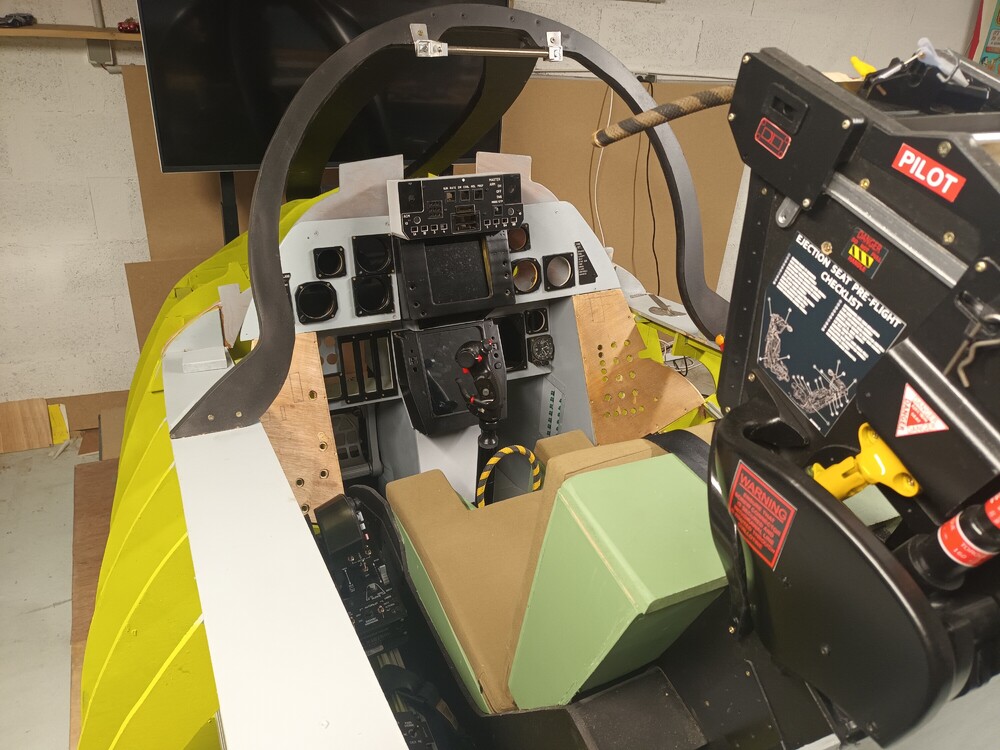

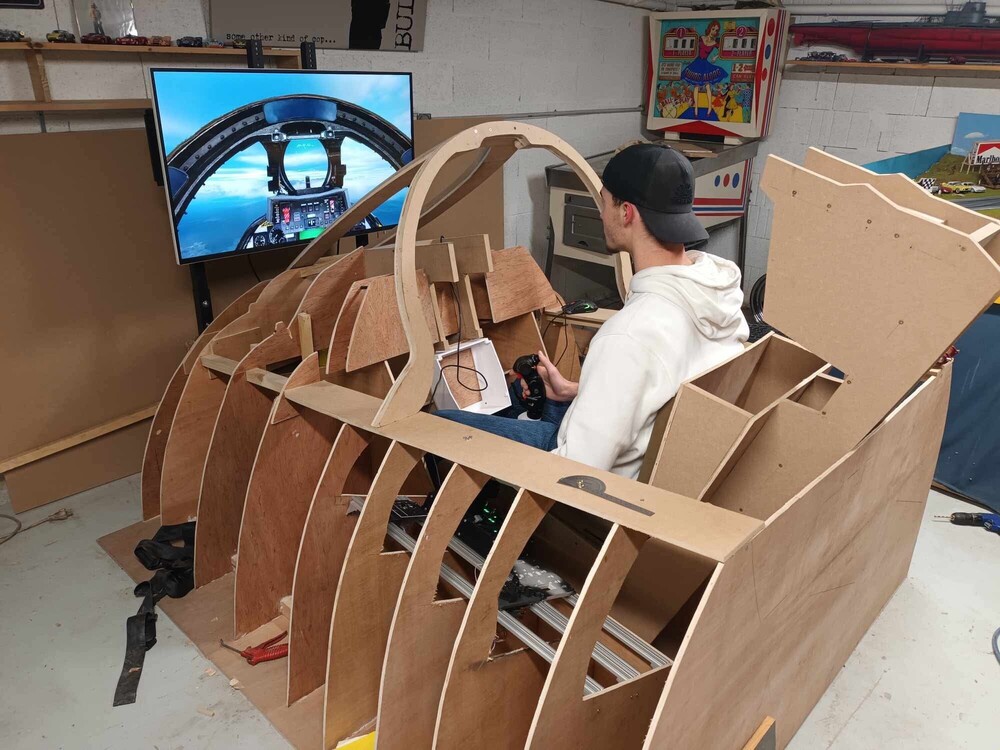

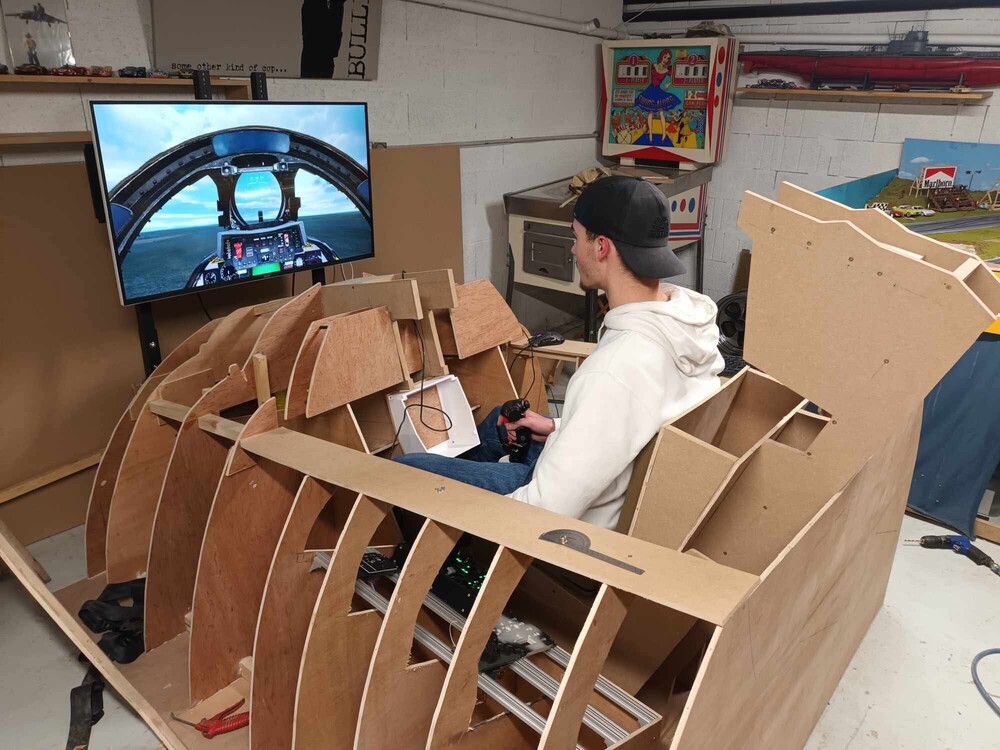

Finally managed to fit at the good distance my tpr rudder control. … and perform the first flight . My son here on controls. For flights I will remove the windshield . So I make it removable
