Broken wire's on Warthog throttle front hat switch

[RangerUK]

Hi Guys

My first post so be gentle :)

After repairing the large ribbon cable in the throttle i find due to my hamfistedness i now find i've broken 2 wire's from the hat switch on the front of the throttle(red and brown).

The problem i have is i have no idea where the wire's need to be reattached if anyone can tell me which goes where i would be most grateful.



Ranger

[Sarge55]

Take a look at this thread, there is a photo. (Post 16)



http://forums.eagle.ru/showthread.php?t=116008&page=2



Hopefully it shows the area you need, it's the only photo I recall seeing.



Good luck.

[RangerUK]

Hi Sarge55

Thanks for the reply

I have looked at that post before i posted. For some reason the side china hat switch (the one in the picture) is wired differently from the one on the front the one i've broken

But thanks anyway.





Ranger

[hegykc]

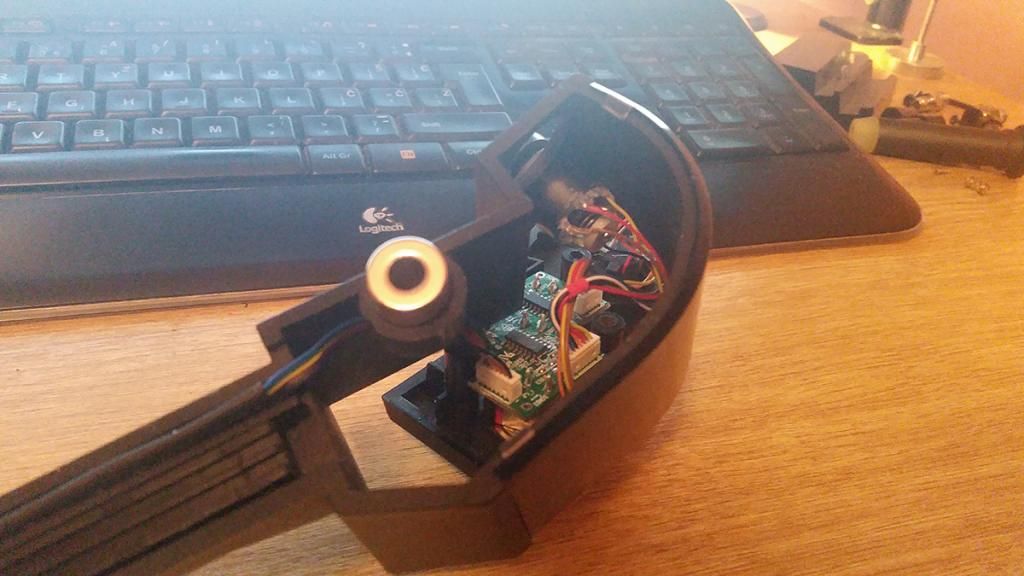

This is looking from the left side of the right throttle:



red wire goes to the left side of the hat, brown goes to the bottom. Or, red is 9 o'clock, brown is 7.

Edited February 2, 2015 by hegykc

[RangerUK]

Hi Hegykc

Thanks to you i now have a fully working throttle and switch's.

I cannot thank you enough:thumbup:



Ranger

[hegykc]

You got it. Enjoy :pilotfly:

[Sarge55]

Glad you got it fixed.

[RangerUK]

Thanks to you both.



Ranger
