T.A.R.G.E.T. MapKeyUMD help !

qbcat · February 16, 2016

so this is the part of my script which makes me crazy, the goal is to assign to the BOAT SWITCH the control of the 3 layers UP MIDDLE and DOWN:

SetShiftButton(&Joystick,S3,&Throttle,BSF,BSB,UDTOGGLE);

and assign the LTB button to input a "J" in up layer, a "G" in mid layer and "B" in down layer

MapKeyUMD(&Throttle, LTB,PULSE+'j',PULSE+'g',PULSE+'b');

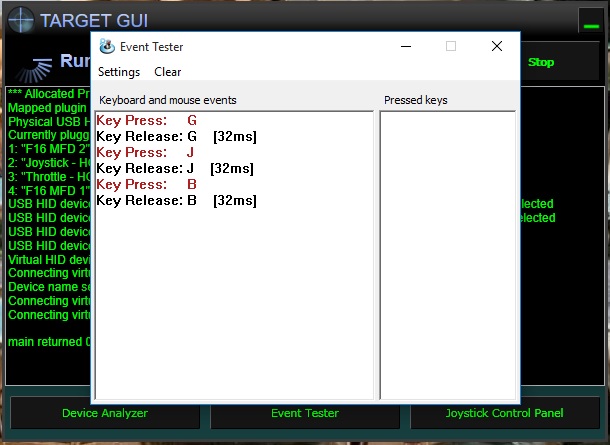

okay, it doesn't works! start in middle position, ok output is G, switch to forward position ok the output is J, return to middle position and.... the outpu is always J !!! switch to back position and output is B okay, switch back to middle position and output is always B !!!:(:(

It seems that the middle position is not declared, what I can do?

****EDIT: SetShiftButton(0, 0, &Throttle, BSF, BSB,0); this way it works !!!

Edited February 16, 2016 by qbcat
resolved

Swaty · February 16, 2016

Hello, what are you flying?

Here is my profile for Bf-109.

You might find some useful lines!

include "target.tmh"

int primer;

int main()

{

if(Init(&EventHandle)) return 1; // declare the event handler, return on error

SetKBRate(25,33);

/////////////////////////////---COMMON LINES FOR ALL MODULES---////////////////////////////////////////////////////

///////////////////////////---SHIFT Buttons---////////////////

///////////////////////////---Configure I/O and U/M/D states---////////////////

SetShiftButton(&Joystick, S3, &Throttle, BSB, BSF);

///////////////////////////---Axis mapping Warthog Joystick---////////////////

MapAxis(&Joystick, JOYX, DX_X_AXIS, AXIS_NORMAL, MAP_ABSOLUTE);

MapAxis(&Joystick, JOYY, DX_Y_AXIS, AXIS_NORMAL, MAP_ABSOLUTE);

MapAxis(&Throttle, THR_LEFT, DX_XROT_AXIS, AXIS_NORMAL, MAP_ABSOLUTE);

MapAxis(&Throttle, THR_RIGHT, DX_Z_AXIS, AXIS_NORMAL, MAP_ABSOLUTE);

// Disable DX_ZROT_AXIS for Rudder because conflict with Rudder (same id)

//MapAxis(&Throttle, SCX, DX_XROT_AXIS, AXIS_NORMAL, MAP_ABSOLUTE);

MapAxis(&Throttle, SCY, DX_YROT_AXIS, AXIS_NORMAL, MAP_RELATIVE);

MapAxis(&Throttle, THR_FC, DX_SLIDER_AXIS, AXIS_NORMAL, MAP_ABSOLUTE);

///////////////////////////---Axis Mapping Cougar---////////////////

MapAxis(&HCougar, THROTTLE, DX_Z_AXIS, AXIS_NORMAL, MAP_ABSOLUTE);

MapAxis(&HCougar, MAN_RNG, DX_SLIDER_AXIS, AXIS_NORMAL, MAP_ABSOLUTE);

MapAxis(&HCougar, ANT_ELEV, DX_THROTTLE_AXIS, AXIS_NORMAL, MAP_ABSOLUTE);

MapAxis(&HCougar, RDR_X, DX_XROT_AXIS, AXIS_NORMAL, MAP_ABSOLUTE);

MapAxis(&HCougar, RDR_Y, DX_YROT_AXIS, AXIS_NORMAL, MAP_ABSOLUTE);

MapAxis(&HCougar, RUDDER, DX_ZROT_AXIS, AXIS_NORMAL, MAP_ABSOLUTE);

///////////////////////////---Axis Trimming [HAT 1]---////////////////

///////////////////////////---X(S3 OUT) AND Z (Rudder) S3(IN)---////////////////

MapKeyIO(&Joystick, H1L,

REXEC(0, 100,"TrimDXAxis(DX_ZROT_AXIS, -5);"),//Z

REXEC(0, 100,"TrimDXAxis(DX_X_AXIS, -5);"));//X

MapKeyIO(&Joystick, H1R,

REXEC(1, 100,"TrimDXAxis(DX_ZROT_AXIS, 5);"),//Z

REXEC(0, 100,"TrimDXAxis(DX_X_AXIS, 5);"));//X

///////////////////////////---Y---////////////////

MapKey(&Joystick, H1U, REXEC(1, 100, "TrimDXAxis(DX_Y_AXIS, -5);"));

MapKey(&Joystick, H1D, REXEC(1, 100, "TrimDXAxis(DX_Y_AXIS, 5);"));

///////////////////////////---Cancel all Trims and Lock X-Y-Z---////////////////

MapKeyIO(&Joystick, S4,

EXEC("TrimDXAxis(DX_X_AXIS, CURRENT);TrimDXAxis(DX_Y_AXIS, CURRENT); TrimDXAxis(DX_ZROT_AXIS, CURRENT);"),// Locks X- Y- Z to current position (just like Ka-50)

EXEC("TrimDXAxis(DX_X_AXIS, SET(0));TrimDXAxis(DX_Y_AXIS, SET(0));TrimDXAxis(DX_ZROT_AXIS, SET(0));")); // Cancel All trims ( X- Y - Z )

///////////////////////////---END OF COMMON LINES---/////////////////

////////////////---ON THE GROUND or CLOSE TO!---////////////////

////////////////---Taxiing - Take off - Landing---//////////////

////////////////---Brakes---/////////////////////

////////////////---Wheel Brakes when D (Both)---////////////////

MapKeyUMD(&Throttle, SPDB,

PULSE+'0',

'w');

////////////////---Left and Right Wheel brakes S3 is pressed (IN)---////////////////

KeyAxis(&HCougar, RUDDER, 'i',AXMAP2(3,L_CTL+'w',PULSE+'0',L_ALT+'w'));

////////////////---Flaps (D) and cockpit illumination (U and M)

MapKeyIOUMD(&Throttle,FLAPU,

L_SHIFT+'n',

R_SHIFT+'n',

L_SHIFT+'n',

R_SHIFT+'n',

L_CTL+'f',

L_CTL+'f');

MapKeyIOUMD(&Throttle,FLAPD,

L_CTL+'n',

R_CTL+'n',

L_CTL+'n',

R_CTL+'n',

L_SHIFT+'f',

L_SHIFT+'f');

////////////////---Tail Wheel lock/unlock---////////////////

MapKeyIOUMD(&Joystick,H4P,

PULSE+'0',

CHAIN( DOWN+R_SHIFT, D(), DOWN+'t', D(), UP+'t', D(), UP+R_SHIFT),

PULSE+'0');

////////////////---Canopy Open Close---////////////////

MapKeyUMD(&Throttle,PSF,

PULSE+'0',

CHAIN( DOWN+L_CTL, D(), DOWN+'c', D(), UP+'c', D(), UP+L_CTL));

MapKeyUMD(&Throttle,PSB,

PULSE+'0',

CHAIN( DOWN+L_SHIFT, D(), DOWN+'c', D(), UP+'c', D(), UP+L_SHIFT));

////////////////---Gears UP/Down---////////////////

MapKeyUMD(&Throttle,LDGH,

PULSE+'0',

PULSE+'g');

////////////////---Engine Control---///////////////////

////////////////---Start Up Procedure---////////////////

////////---Pump Primer ( One press pumbs 5 times)---//////////

primer = CHAIN(

DOWN++INS,D(800),

UP+INS,D(800),

DOWN++INS,D(800),

UP+INS,D(800),

DOWN++INS,D(800),

UP+INS,D(800),

DOWN++INS,D(800),

UP+INS,D(800),

DOWN++INS,D(800),

UP+INS,D(800));;

MapKeyUMD(&Throttle, APENG,

CHAIN( DOWN+L_SHIFT, D(), DOWN+'b', D(), UP+'b', D(), UP+L_SHIFT),

CHAIN( DOWN+L_CTL, D(), DOWN+'b', D(), UP+'b', D(), UP+L_CTL),

REXEC(0, 1000, "ActKey(KEYON+primer);"));

/////////////////---Booster Pumps---////////////////

MapKeyUMD(&Throttle,MSL,

PULSE+'0',

CHAIN( DOWN+L_CTL, D(), DOWN+'t', D(), UP+'t', D(), UP+L_CTL));

MapKeyUMD(&Throttle,MSR,

PULSE+'0',

CHAIN( DOWN+L_SHIFT, D(), DOWN+'t', D(), UP+'t', D(), UP+L_SHIFT));

//////////////// Run inertial Starter (Ground Crew)(China Hat)////////////////

////////////////---Governor Automation---////////////////

// Press for 1 Sec for Governor Automation and HOLD for Ground Crew

MapKeyIO(&Throttle, CHB,

CHAIN(PULSE+'\\', D(),PULSE+F8, D(),PULSE+F4),//////////////// Run inertial Starter

PULSE+'s'/////// Governor Automatation

);

////////////////---Magnetos---////////////////

MapKeyUMD(&Throttle,MSU,

PULSE+'0',

CHAIN( DOWN+L_SHIFT, D(), DOWN+USB[0x4D], D(), UP+USB[0x4D], D(), UP+L_SHIFT));

MapKeyUMD(&Throttle,MSD,

PULSE+'0',

CHAIN( DOWN+L_CTL, D(), DOWN+USB[0x4D], D(), UP+USB[0x4D], D(), UP+L_CTL));

////////////////---Start Engine (China Hat)---////////////////

// Press for 1 Sec to open cover and HOLD to start engine

MapKeyUMD(&Throttle, CHF,

PULSE+'0',

TEMPO (HOME, L_WIN+HOME));

////////////////---MW Boost System---///////////////

MapKeyIO(&Throttle, LTB,

PULSE+'e',

PULSE+'0');

////////////////---Booster Pumps---///////////////

MapKeyIOUMD(&Throttle,MSL,
