assafm25 Posted January 8, 2017 Posted January 8, 2017 Hi All , any one can please help me with the right measurements of the Uh-1 Collective ? Or any 3d printer model? [sIGPIC][/sIGPIC] IAF Bell205 IAF Anafa ----------------------- DCS World Modules: A-10C, FC3, MiG-21BiS, F-86, P-51, KA-50, UH-1H Huey, Mi-8, M2000K, Gazal, Bf109, Mig-15, Hawk and NTTR ----------------------- My System - ASUS Maximus HERO iiiv, CoolMaster 120 Sadion Plus, I7 -6700K @4.0, G.Skill ddr4 16GB ram, Gigabyte GTX 1070 G1 , PSU Seasonic X-650W, OCZ 150 500Gb ssd drive X2, Seagate 7200 1T X2. -------------
MA_Goblin Posted January 8, 2017 Posted January 8, 2017 Hi mate, check here http://damienstpierre.com/blog/?page_id=337 [sIGPIC][/sIGPIC] _____________Semper paratus, In hoc signo vinces________________ PC: Intel i7-8700K (4.9 GHz), Aorus Ultra Gaming Z370 MB, Gigabyte RTX 3080, 32 GB DDR3 (3,2 GHz), Samsung EVO 860 M.2 500 GB SSD + Samsung 960 M.2 250 GB SSD Gaming: Virpil T-50 CM2, TM WH Throttle, Crosswind pedals, HP Reverb
Activity Posted January 10, 2017 Posted January 10, 2017 Here's an image of the collective head/control box with dimensions. 1
assafm25 Posted January 12, 2017 Author Posted January 12, 2017 thanks u all :) [sIGPIC][/sIGPIC] IAF Bell205 IAF Anafa ----------------------- DCS World Modules: A-10C, FC3, MiG-21BiS, F-86, P-51, KA-50, UH-1H Huey, Mi-8, M2000K, Gazal, Bf109, Mig-15, Hawk and NTTR ----------------------- My System - ASUS Maximus HERO iiiv, CoolMaster 120 Sadion Plus, I7 -6700K @4.0, G.Skill ddr4 16GB ram, Gigabyte GTX 1070 G1 , PSU Seasonic X-650W, OCZ 150 500Gb ssd drive X2, Seagate 7200 1T X2. -------------

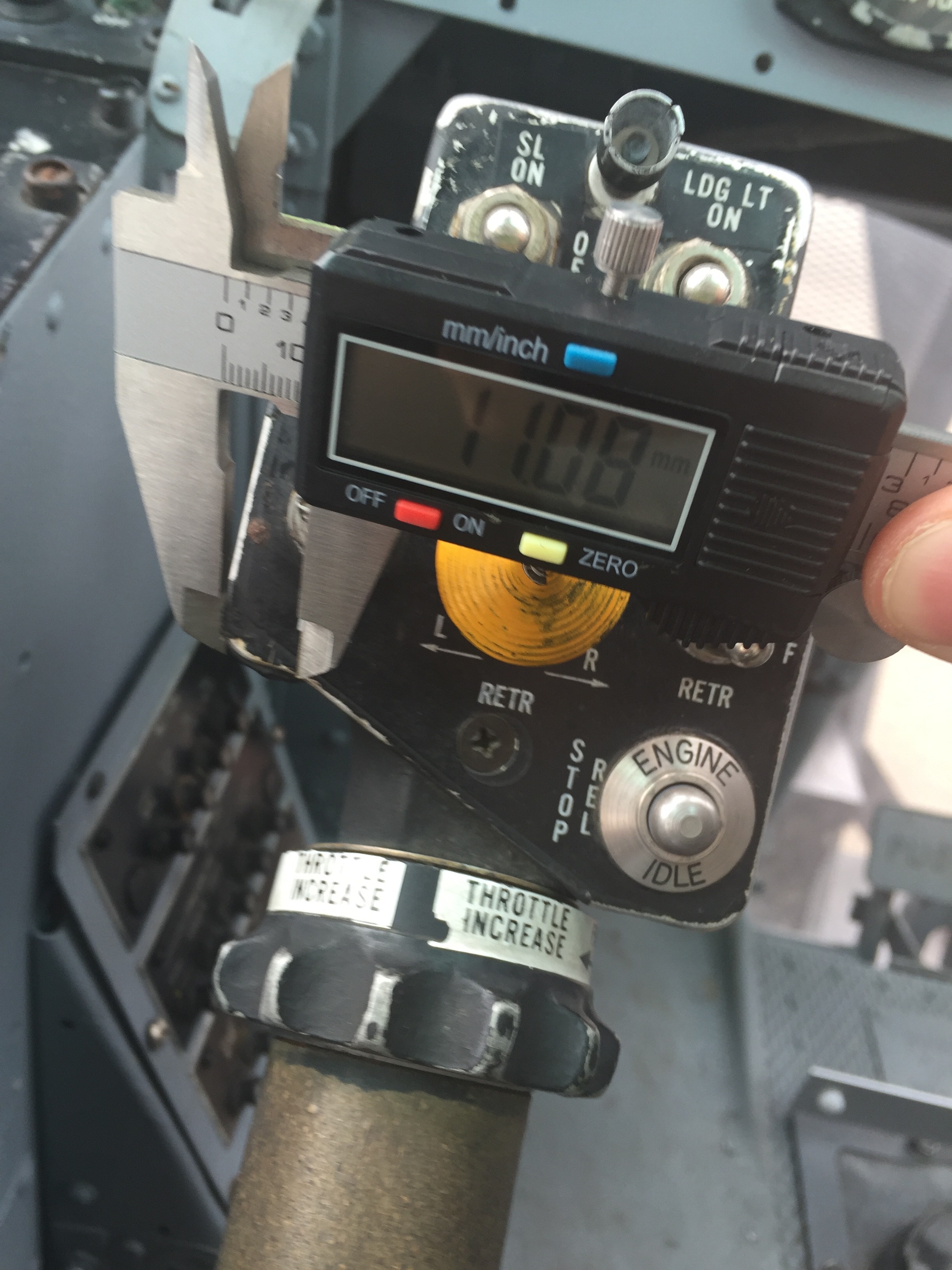

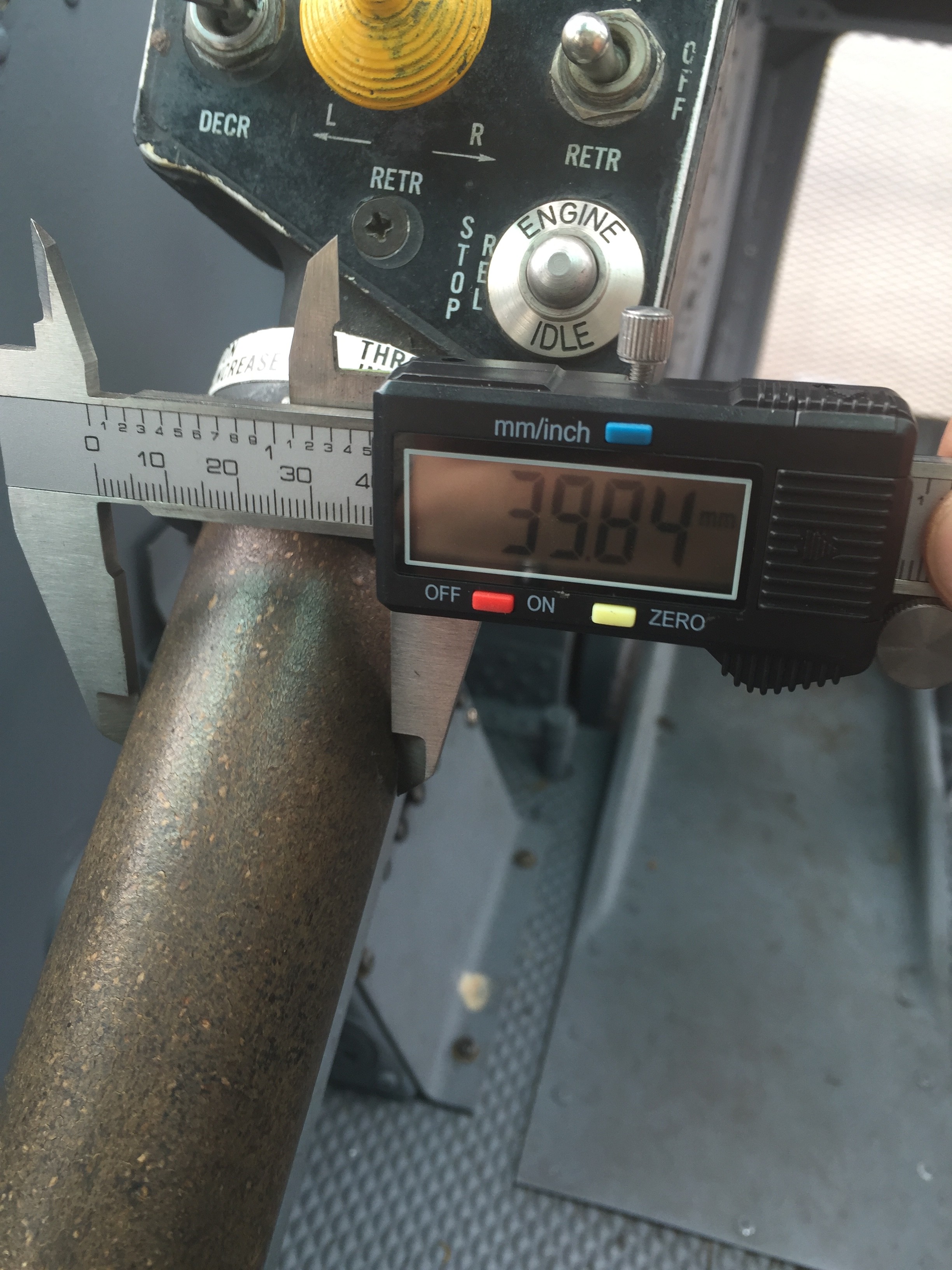

Kornskydiver Posted January 12, 2017 Posted January 12, 2017 Here are some pictures I took a few months ago [sIGPIC][/sIGPIC]

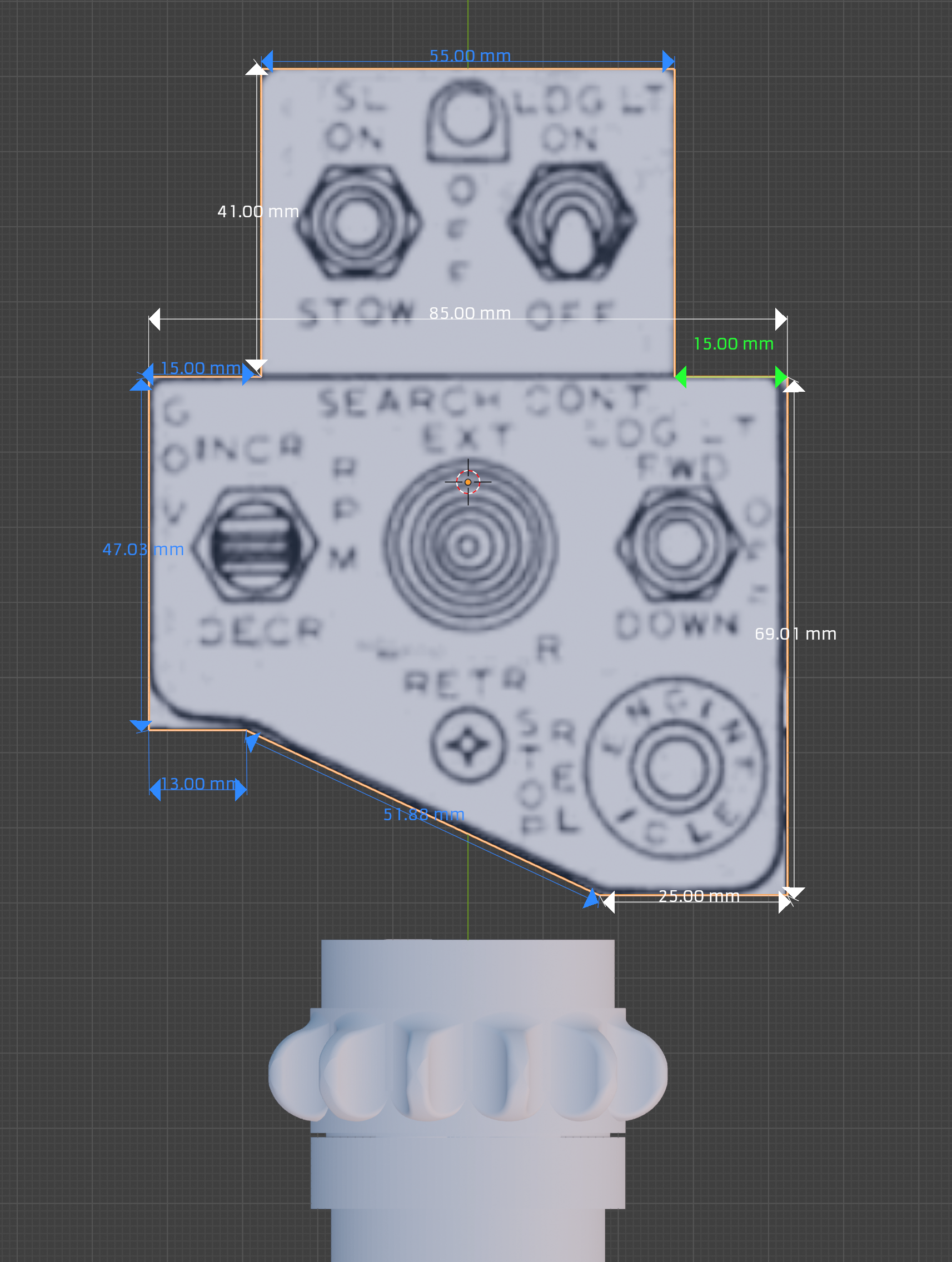

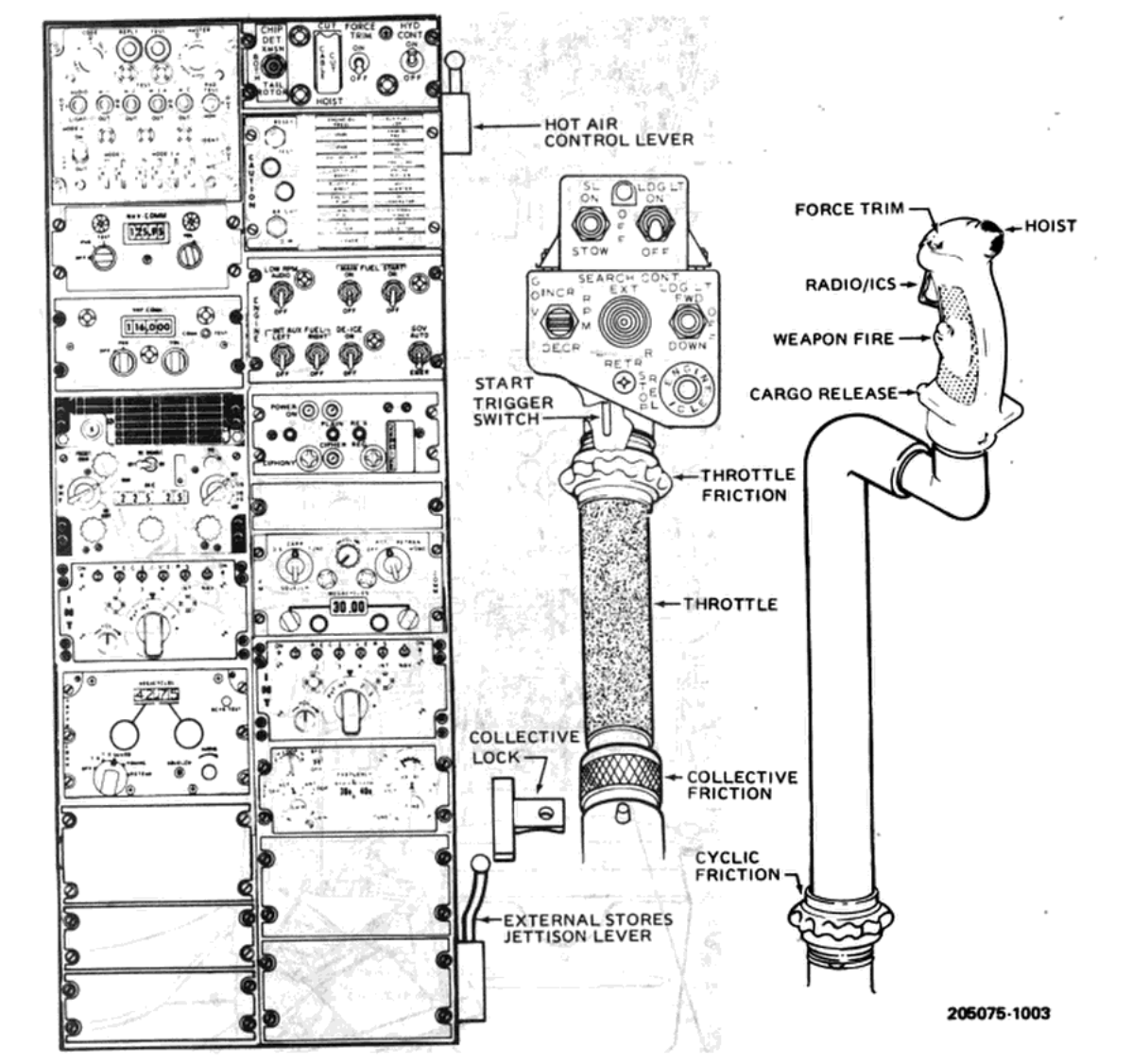

dcval Posted February 27 Posted February 27 (edited) It seems there are many version in size and features, so you will never get the same. From ebay UH1 part reseller, you will see it exists many versions. But one could investigate and design from the Manual, according to the 39.84mm (40mm) diameter of the throttle above (which doesnt change in time and version of the UHey), after printing the page below on A4, I got a ratio of ~ 2.0-2.1. So, I edited a mesh into Blender according to the measure I took from the printing, and the measure from Korn ... and made this (see picture below). The manual page we are looking for: Extracting the part we need: And finally the blender mesh from the above: The panel texture fit perfectly without any adjustment. Hope it will help future readers. Edited February 27 by dcval
