VAICOM PRO plugin for VoiceAttack

Dreadwing · December 29, 2020

On 12/26/2020 at 9:24 AM, sthompson said:

Turn on debug mode, restart VAICOM, then post your log file here so we can see if there are any issues on startup.

VAICOM PRO logfile
Plugin version 2.5.23.1 (release)
License: PRO
Executing automatic lua code installation.
DCS World installation found: version 2.5
   Using Registry entry for 2.5
   Install path = C:\Users\--\Saved Games\DCS.openbeta
   Saved Games folder = C:\Users\--\Saved Games\DCS
   Unchanged: Export.lua
   Reset: VAICOMPRO.export.lua
   Reset: RadioCommandDialogsPanel.lua
   Reset: speech.lua
   Reset: common.lua
   Reset: TabSheetBar.lua
   Reset: gameMessages.lua
   6/7 DCS-side files were updated.
DCS World installation found: version 2.5 OpenBeta
   Using Registry entry for 2.5 OpenBeta
   Install path = C:\Users\--\Saved Games\DCS.openbeta
   Saved Games folder = C:\Users\--\Saved Games\DCS.openbeta
   Unchanged: Export.lua
   Reset: VAICOMPRO.export.lua
   Reset: RadioCommandDialogsPanel.lua
   Reset: speech.lua
   Reset: common.lua
   Reset: TabSheetBar.lua
   Reset: gameMessages.lua
   6/7 DCS-side files were updated.
DCS World version STEAM not found.
Checking VA profile.
Importing RIO extension pack...
Done.
Loading keywords database...
Success.
Loading F10 menu items...
Success.
Updating aliases..
Done.
Adding 11 imported ATC aliases.
Setting ATC Oliver Hazzard Perry class as recipient Oliver Hazzard Perry class 15801
Setting ATC Ticonderoga class as recipient Ticonderoga class 15803
Setting ATC USS Arleigh Burke IIa as recipient USS Arleigh Burke IIa 15804
Setting ATC CV 1143.5 Admiral Kuznetsov(2017) as recipient CV 1143.5 Admiral Kuznetsov(2017) 15805
Setting ATC FFG 11540 Neustrashimy as recipient FFG 11540 Neustrashimy 15807
Setting ATC CGN 1144.2 Pyotr Velikiy as recipient CGN 1144.2 Pyotr Velikiy 15808
Setting ATC CG 1164 Moskva as recipient CG 1164 Moskva 15809
Setting ATC FARP as recipient FARP 15810
Adding 6 imported menu commands.
Setting menu F10 item Action AIR DEFENSES DIFFICULT with actionIndex 0 as command 20001 Action AIR DEFENSES DIFFICULT
Setting menu F10 item Action AIR DEFENSES EASIER with actionIndex 1 as command 20002 Action AIR DEFENSES EASIER
Setting menu F10 item Action List Radio Beacons with actionIndex 2 as command 20003 Action List Radio Beacons
Setting menu F10 item Action JTAC Status with actionIndex 3 as command 20004 Action JTAC Status
Setting menu F10 item Action REQUEST TAXI with actionIndex 0 as command 20005 Action REQUEST TAXI
Setting menu F10 item Action ATTACK RUNS COMPLETE with actionIndex 0 as command 20006 Action ATTACK RUNS COMPLETE
Building master keywords table...
Success.
Building kneeboard tables...
Success.
Building master labels table...
Success.
No new DCS modules to import.
Adding themepack collections
Chatter theme set to Default
Adding chatter resources.. Default
Resources added.
Chatter initialized.
Chatter start.
Startup finished.
Ready for commands.

not seeing anything weird, are you?

sthompson · December 29, 2020

2 hours ago, Dreadwing said:


VAICOM PRO logfile
Plugin version 2.5.23.1 (release)
License: PRO
Executing automatic lua code installation.
DCS World installation found: version 2.5
   Using Registry entry for 2.5
   Install path = C:\Users\--\Saved Games\DCS.openbeta
   Saved Games folder = C:\Users\--\Saved Games\DCS
   Unchanged: Export.lua
   Reset: VAICOMPRO.export.lua
   Reset: RadioCommandDialogsPanel.lua
   Reset: speech.lua
   Reset: common.lua
   Reset: TabSheetBar.lua
   Reset: gameMessages.lua
   6/7 DCS-side files were updated.
DCS World installation found: version 2.5 OpenBeta
   Using Registry entry for 2.5 OpenBeta
   Install path = C:\Users\--\Saved Games\DCS.openbeta
   Saved Games folder = C:\Users\--\Saved Games\DCS.openbeta
   Unchanged: Export.lua
   Reset: VAICOMPRO.export.lua
   Reset: RadioCommandDialogsPanel.lua
   Reset: speech.lua
   Reset: common.lua
   Reset: TabSheetBar.lua
   Reset: gameMessages.lua
   6/7 DCS-side files were updated.
DCS World version STEAM not found.
Checking VA profile.
Importing RIO extension pack...
Done.
Loading keywords database...
Success.
Loading F10 menu items...
Success.
Updating aliases..
Done.
Adding 11 imported ATC aliases.
Setting ATC Oliver Hazzard Perry class as recipient Oliver Hazzard Perry class 15801
Setting ATC Ticonderoga class as recipient Ticonderoga class 15803
Setting ATC USS Arleigh Burke IIa as recipient USS Arleigh Burke IIa 15804
Setting ATC CV 1143.5 Admiral Kuznetsov(2017) as recipient CV 1143.5 Admiral Kuznetsov(2017) 15805
Setting ATC FFG 11540 Neustrashimy as recipient FFG 11540 Neustrashimy 15807
Setting ATC CGN 1144.2 Pyotr Velikiy as recipient CGN 1144.2 Pyotr Velikiy 15808
Setting ATC CG 1164 Moskva as recipient CG 1164 Moskva 15809
Setting ATC FARP as recipient FARP 15810
Adding 6 imported menu commands.
Setting menu F10 item Action AIR DEFENSES DIFFICULT with actionIndex 0 as command 20001 Action AIR DEFENSES DIFFICULT
Setting menu F10 item Action AIR DEFENSES EASIER with actionIndex 1 as command 20002 Action AIR DEFENSES EASIER
Setting menu F10 item Action List Radio Beacons with actionIndex 2 as command 20003 Action List Radio Beacons
Setting menu F10 item Action JTAC Status with actionIndex 3 as command 20004 Action JTAC Status
Setting menu F10 item Action REQUEST TAXI with actionIndex 0 as command 20005 Action REQUEST TAXI
Setting menu F10 item Action ATTACK RUNS COMPLETE with actionIndex 0 as command 20006 Action ATTACK RUNS COMPLETE
Building master keywords table...
Success.
Building kneeboard tables...
Success.
Building master labels table...
Success.
No new DCS modules to import.
Adding themepack collections
Chatter theme set to Default
Adding chatter resources.. Default
Resources added.
Chatter initialized.
Chatter start.
Startup finished.
Ready for commands.

not seeing anything weird, are you?

Yes, I do see something weird. You have the DCS install paths (both stable and openbeta) pointing to Saved Games. Is that where your installed copy of DCS lives? Usually it lives in Program Files or in a separate directory tree.

Dreadwing · December 29, 2020

48 minutes ago, sthompson said:

Yes, I do see something weird. You have the DCS install paths (both stable and openbeta) pointing to Saved Games. Is that where your installed copy of DCS lives? Usually it lives in Program Files or in a separate directory tree.

Actually, you're right. The DCS install is on my ssd under H:/Eagle Dynamics but my saved games folder is correct.

Dreadwing · December 29, 2020

Sorry for the trouble, looks like when I manually pointed vaicom to my H drive it's working again. Thanks for helping me look though!

480th-BRAVO · December 30, 2020

Have a weird thing whereby when I "Request NVG" in VA it's re-arming rather than installing the NVGs. In VA with the debug on I'm getting the following:

9:45:18.779 Ground Crew: rearming complete
9:45:03.792 Ground Crew: copy
9:45:02.622 Listening suspended
9:45:02.561 Done.
9:45:02.559 Constructing message...
9:45:02.555 Joystick : 'Transmit TX1 release'
9:45:01.871 TX1 | AN/ARC-164: [ Ground Crew ] , [ Request NVG ]
9:45:01.869 Recipient for Crew set by call contents.
9:45:01.868 Have result, identified as command: Request NVG
9:45:01.867 Captured sentence: request nvg
9:45:01.865 Recognized : 'request nvg'
9:44:58.496 Searching called unit FARP in category Crew
9:44:58.494 Matched imported atc.
9:44:58.493 Have result, identified as command: Request NVG
9:44:58.492 Captured sentence: request nvg
9:44:58.489 Recognized : 'request nvg'
9:44:55.286 (awaiting additional input)
9:44:55.285 Matched imported atc.
9:44:55.284 Captured sentence: chief home
9:44:55.279 Recognized : 'chief home' (contains 'chief')
9:44:53.259 (awaiting additional input)
9:44:53.258 Matched imported atc.
9:44:53.257 Have result, identified as importedatcs: Rome
9:44:53.257 Have result, identified as recipient: Rome
9:44:53.255 Captured sentence: rome
9:44:53.112 Recognized : 'rome'
9:44:52.913 TX1 | AN/ARC-164 AM 250.900 MHz tuned for ATC unit Adana [AI]
9:44:52.913 TX1 | AN/ARC-164 AM 250.900 MHz tuned for ATC unit Adana [AI]
9:44:52.913 TX1 | AN/ARC-164 AM 250.900 MHz tuned for ATC unit Adana [AI]
9:44:52.913 TX1 | AN/ARC-164 AM 250.900 MHz tuned for ATC unit Adana [AI]
9:44:52.912 TX1 | AN/ARC-164 AM 250.900 MHz tuned for ATC unit Adana [AI]
9:44:52.912 TX1 | AN/ARC-164 AM 250.900 MHz tuned for ATC unit Adana [AI]
9:44:52.672 Listening resumed
9:44:52.636 Joystick : 'Transmit TX1 press'

Is there anyway I can change this to be correct? If I manually go through the on-screen menus it works as it should.

Thanks in advance!

RogueRunner · December 31, 2020

I run the steam version of Voiceattack. I'm running steam as admin and such when I start Voiceattack I get the windows popup asking if it may change my files. I thus assume VA is running as admin. I still get the message in VA that it's not running with elevated privileges and II cannot enter the config mode for VIACOM.

Still using the free version to sort out compatibility before I buy.

hornblower793 · December 31, 2020

I run the steam version of Voiceattack. I'm running steam as admin and such when I start Voiceattack I get the windows popup asking if it may change my files. I thus assume VA is running as admin. I still get the message in VA that it's not running with elevated privileges and II cannot enter the config mode for VIACOM.

Still using the free version to sort out compatibility before I buy.

I am not 100% sure as I run standalone, but might be worth setting the option inside VA config to run as Administrator and see what happens

Sent from my SM-T835 using Tapatalk

Gorlow · December 31, 2020

Finally got VIACOM to run. Had to delete the Export.lua file, manually removed all VIACOM Pro folders from Saved games and Vioce Attack. Reinstalled and now it's good.

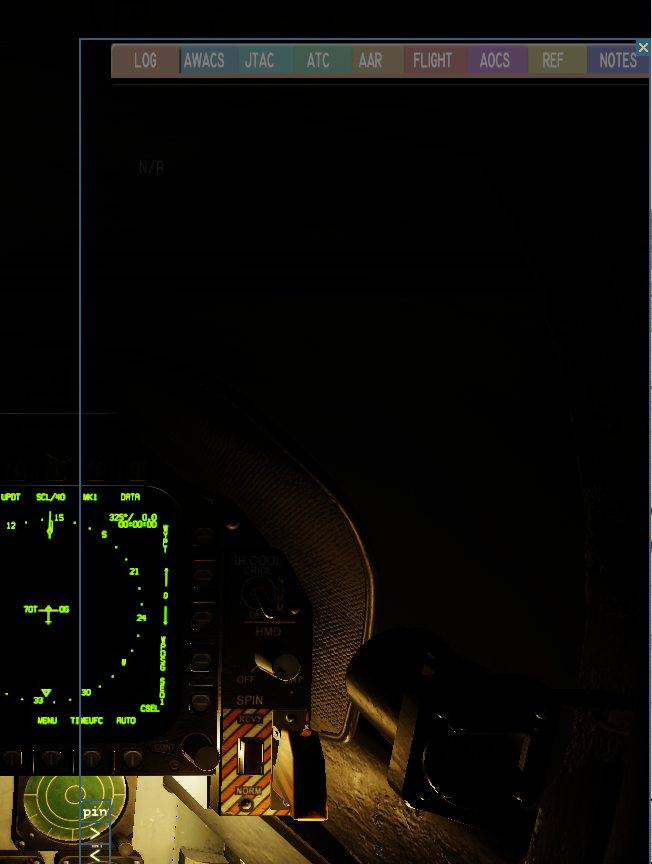

I do have a new issue however. My kneeboard shows up but it's blank and grayed out. I can't click or use any tabs even when using the voice commands. It shows the command was sent but nothing happens. (attached photo) I have all 5 licenses configured, validated and listed as good. Keyword editor finish step was performed.

Weegie · January 1, 2021

I usually get that sorta picture when Vaicom hasn't been recognized if I'm running a different profile, with Vaicom off.

Is the Vaicom pop up menu coming up Ok and is the module recognized in the Green window onn the PTT page Ok? On the About Tab of the pop up, does hitttiing the list button show the Interactive kneeboard on the list

Sorry not much help

Gorlow · January 1, 2021

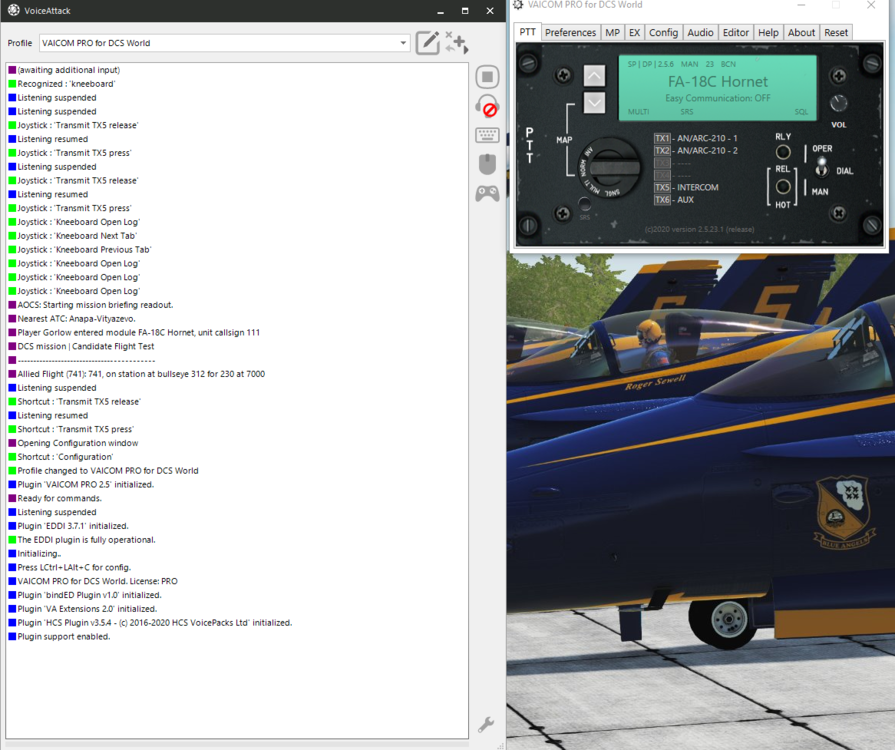

Not sure what you mean in the first question. This is what I see on the pop up menu. And the list shows all 5 licenses, Pro, Chatter, AI RIO, ATC and Kneeboard.

Weegie · January 2, 2021

Well that answers that, it all looks good. I assume the opacity slider is turned up (I know that's sorta silly but it's the sorta dumb assed thing I'd do)

Are you running VSPX (I am so need separate commands made into the Vaicom profile)

Have you tried opening the Kneeboard with the keypresses, I think it's R_Shift K, then using your square brackets to page to the Interactive kneeboard to see if it still looks the same?

From the commands in the Vaicom window it looks like Vaicom is waiting for something else to be said, as if the command is not complete, which is odd.

I doubt I can help much more as I run VSPX and it's known that there are some problems with the internally generated command set when using it, but I'll take a look and if I see anything I'll post back up

sthompson · January 2, 2021

@Gorlow, you have quite a few VoiceAttack plugins all running at once according to the log. Have you tried removing all of them except for VAICOM? Perhaps there is a conflict. You might also turn on VAICOM's debug mode and restart to look for additional cues. Also, VAICOM PRO saves a log file (not the same as the VoiceAttack log) in folder C:\Program Files (x86)\VoiceAttack\Apps\VAICOMPRO\Logs. There might be additional clues there. Finally, do you have this problem with the stock VAICOM PRO profile? It appears that your profile includes kneeboard commands activated by the joystick, so I assume it is not stock.

Gorlow · January 3, 2021

I have no idea what VSPX is or if its running. How can I find if I am?

I have disabled all the other plug-in with the same results.

The joystick activated commands I put in to troubleshoot more they have since been deleted so I am using the stock profile.

And Debug isn't showing anything odd.

Weegie · January 3, 2021

I doubt then that you're running VSPX, I'm not trying to be clever or sarcastic but have you had a look at the manual?

The Vaicom manual is excellent, I wish other software providers went to as much trouble

VSPX is an alternative method of speech input where you don't have to wait for the bleep after contacting a virtual aircraft or airfield before saying the command. You can tell if it's activated by looking at the Editor Tab on the VA pop up. To the left of the microphone symbol is a VSPX "light" if you have it enabled it will be green.

You also need to have the Extended Command Set option ticked in the Preferences tab of the pop up for the Interactive Kneeboard to function corectly.

When you say the Debug isn't showing anything odd, I'm assuming that you've got the "Run in debug mode" enabled under the Config tab on the pop up and it's not showing any problems either.

That's about all I have, did you open the kneeboard through the keyboard and key to the Interactive Kneeboard page to see if it looks the same when you try that?

If you're still having problems and you can't find a fix, as it sounds a strange problem and above what little troubleshooting skills I posses. I'd go to the Vaicom webpage and then drop Hollywood or one of his team the question. They have been very helpful to me in the past.

Gorlow · January 3, 2021

Ok I'll do that. Thanks for your time.

Valkyrien · January 3, 2021

Is there a way to set push to talk binds per aircraft and have VIACOM auto switch like SRS does?

Ideally it'd just look at your comms bindings in game and grab those but barring that i'm looking for the best way to do it.

sirrah · January 5, 2021

On 1/3/2021 at 9:54 PM, Valkyrien said:

Is there a way to set push to talk binds per aircraft and have VIACOM auto switch like SRS does?

Ideally it'd just look at your comms bindings in game and grab those but barring that i'm looking for the best way to do it.

I'd also like to know if this is possible.

Right now I use my Warthog throttle for all my modules except for the Viper. For the Viper I use my Cougar throttle. Would be great to be able to use the comms switch on my Cougar throttle, specifically for the Viper.

Also, small side question:

Does anyone else have an issue that ground crew doesn't respond to "remove wheelchocks" command? I tried all kind of voice commands, I even saw the "Crew, remove the wheelchocks" message in the top left of my screen, but ground crew doesn't respond. When giving the order through the normal radio menu, they do respond and remove the chocks. Any ideas?

Al-Azraq · January 5, 2021

Are you guys having troubles with the A-10C II? When I start this aircraft with VAICOM active the INTERCOM F10 menu will pop-up every 5 seconds even though I'm not pushing anything.

Any clue?

Thanks,

hornblower793 · January 5, 2021

Are you guys having troubles with the A-10C II? When I start this aircraft with VAICOM active the INTERCOM F10 menu will pop-up every 5 seconds even though I'm not pushing anything.

Any clue?

Thanks,

Try deleting the export.lua in your saved games scripts folder and then restarting VA and then DCS

Sent from my SM-T835 using Tapatalk

Al-Azraq · January 5, 2021

Just now, hornblower793 said:

Try deleting the export.lua in your saved games scripts folder and then restarting VA and then DCS

Sent from my SM-T835 using Tapatalk

Thanks, I'll try.

But I guess I should then install again SRS and DCS UFC for Android as they use the export.lua as well right?

hornblower793 · January 5, 2021

Thanks, I'll try.

But I guess I should then install again SRS and DCS UFC for Android as they use the export.lua as well right?

Copy your old export.lua and then just copy the SRS and DCS lines back in

Sent from my SM-T835 using Tapatalk

Al-Azraq · January 5, 2021

12 minutes ago, hornblower793 said:

Copy your old export.lua and then just copy the SRS and DCS lines back in

Sent from my SM-T835 using Tapatalk

Thanks again!

I have noticed that I have two saved games folders DCS and DCS.openbeta. Which one should I use? I use Open Beta.

hornblower793 · January 5, 2021

Thanks again!

I have noticed that I have two saved games folders DCS and DCS.openbeta. Which one should I use? I use Open Beta.

It should be the OB one, but start Vaicom with its debug option on and it will confirm which folder is being used in the log

Sent from my SM-T835 using Tapatalk

Is there a way to set push to talk binds per aircraft and have VIACOM auto switch like SRS does?

Ideally it'd just look at your comms bindings in game and grab those but barring that i'm looking for the best way to do it.

@Hollywood_315 has given a solution in one of the other threads in this forum - i am not at my PC now but will see if I can find it later.

Sent from my SM-T835 using Tapatalk

Al-Azraq · January 5, 2021

@hornblower793It worked! It seems that VAICOM was using the DCS folder, not the DCS.openbeta. Actually I think that all my third parties app were using that folder so I deleted DCS.openbeta, went to DCS folder, deleted the Export.lua, made SRS create it with its correspondent line, added the line for DCS UFC and then I went to VAICOM settings tab. I selected the manual saved games path. put the slider on openbeta, and it is working great.

Thanks!

sthompson · January 5, 2021

On 1/3/2021 at 3:54 PM, Valkyrien said:

Is there a way to set push to talk binds per aircraft and have VIACOM auto switch like SRS does?

Ideally it'd just look at your comms bindings in game and grab those but barring that i'm looking for the best way to do it.

See Hollywood's suggestion in this thread: https://forums.eagle.ru/topic/254389-per-aircraft-ptt-buttons/?tab=comments#comment-4505760. Also Weegie has posted some good ideas about this recently, but I'm having trouble finding them. You might do a search in the VAICOM forum. (This thread is no longer the main place for such discussions.)

Sign In

VAICOM PRO plugin for VoiceAttack

Recommended Posts

Dreadwing

Top Posters In This Topic

Popular Days

Top Posters In This Topic

Popular Days

Popular Posts

PeneCruz

Tshark

Hollywood_315

sthompson

Dreadwing

Dreadwing

480th-BRAVO

RogueRunner

hornblower793

Gorlow

Weegie

Gorlow

Weegie

sthompson

Gorlow

Weegie

Gorlow

Valkyrien

sirrah

Al-Azraq

hornblower793

Al-Azraq

hornblower793

Al-Azraq

hornblower793

Al-Azraq

sthompson

Recently Browsing 0 members
