Ensaldo Posted February 27, 2018 Posted February 27, 2018 Hello folks. I'm Developer of Republic of Korean navy mod for dcs. There's one problem, My ship's collision model is not working. I can't land on my ship and There is no more solution for me. I following Manual and some forum threads. (https://forums.eagle.ru/showthread.php?t=82737,https://forums.eagle.ru/showpost.php?p=705405&postcount=7,) but It's not working. I just followed that procedure. What's wrong on my collision model? :helpsmilie: That is my method 1. Created a simple low-poly damage mesh in 3Ds Max 2016. 2. Inserted a text the object properties user defined section to TYPE = ”collision_shell" 3. Exported as EDM 4. change .lods data and saved Here is my lods data model = { lods = { {"LPH6111.edm",1000000.000000}; }; collision_shell = "LPH6111-collision.edm"; } 5.The Main visible edm is working. but collision model is not to work. :( What is the problem? It just EDM Plugin Error? or My method is wrong? I attach the test file just in case Thank you all.(EDM,max)Test_Model_Files.zip 1 [sIGPIC][/sIGPIC] AsRock H97 Performance | i7 4470k @ 4.5 GHz | 16 GB DDR3 | GeForce GTX 1060 6GB | two Syncmaster 2494 monitor | Saitek Pro Flight X55 Rhino
joey45 Posted February 27, 2018 Posted February 27, 2018 Export the visable model and collision model together. on ma mobile The only way to make sense out of change is to plunge into it, move with it, and join the dance. "Me, the 13th Duke of Wybourne, here on the ED forums at 3 'o' clock in the morning, with my reputation. Are they mad.." https://ko-fi.com/joey45
Ensaldo Posted February 27, 2018 Author Posted February 27, 2018 Thank you! I'll give it a try [sIGPIC][/sIGPIC] AsRock H97 Performance | i7 4470k @ 4.5 GHz | 16 GB DDR3 | GeForce GTX 1060 6GB | two Syncmaster 2494 monitor | Saitek Pro Flight X55 Rhino
Panos1221 Posted February 27, 2018 Posted February 27, 2018 Irrelevant question. Will it have a chimsuri class patrol boat? xD

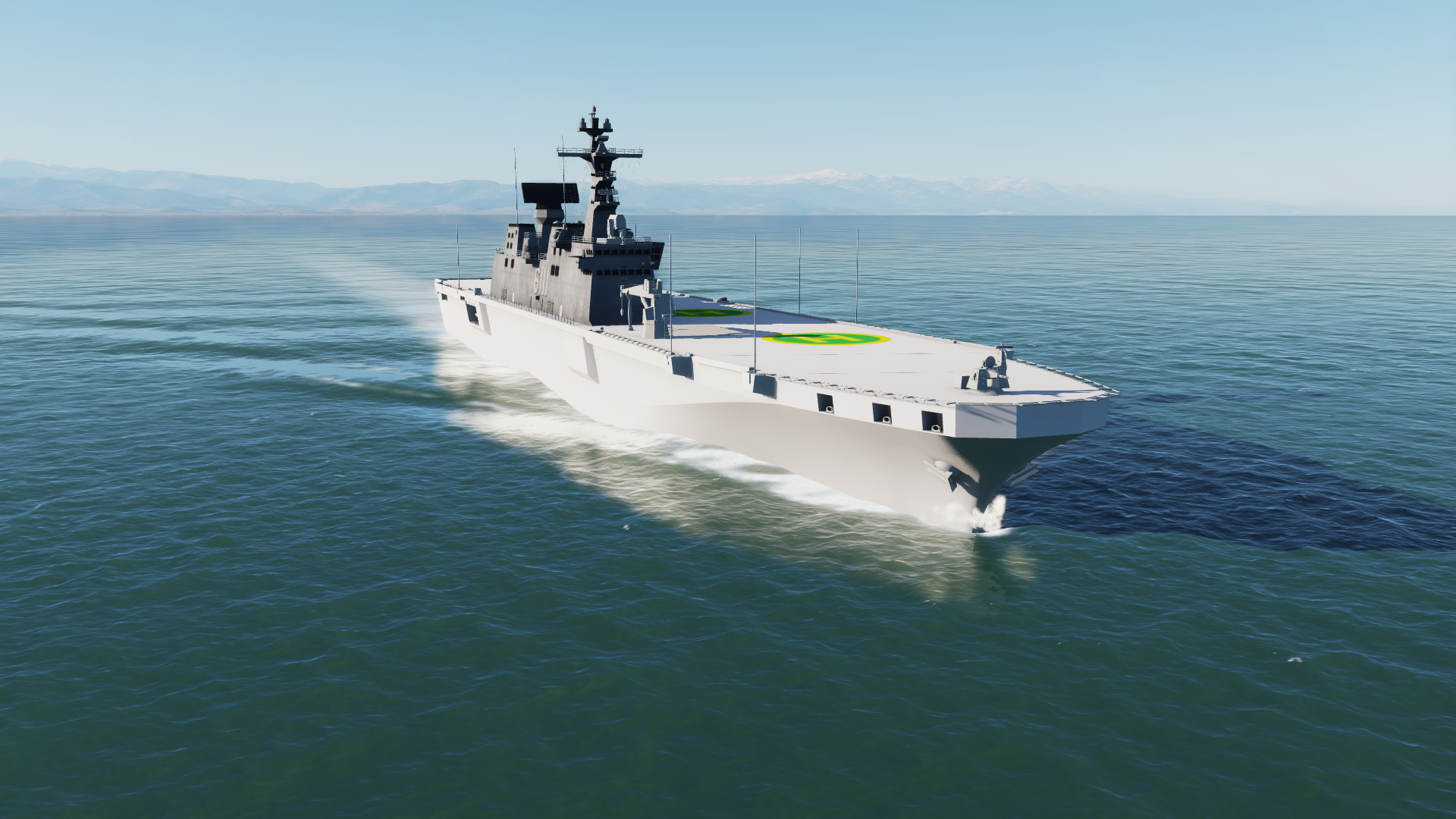

Ensaldo Posted February 27, 2018 Author Posted February 27, 2018 (edited) Hello panos :) I'm surprised you know that! The son of chamsuri will be included. See you then. XD https://imgur.com/a/WW4aA Edited February 27, 2018 by Ensaldo [sIGPIC][/sIGPIC] AsRock H97 Performance | i7 4470k @ 4.5 GHz | 16 GB DDR3 | GeForce GTX 1060 6GB | two Syncmaster 2494 monitor | Saitek Pro Flight X55 Rhino

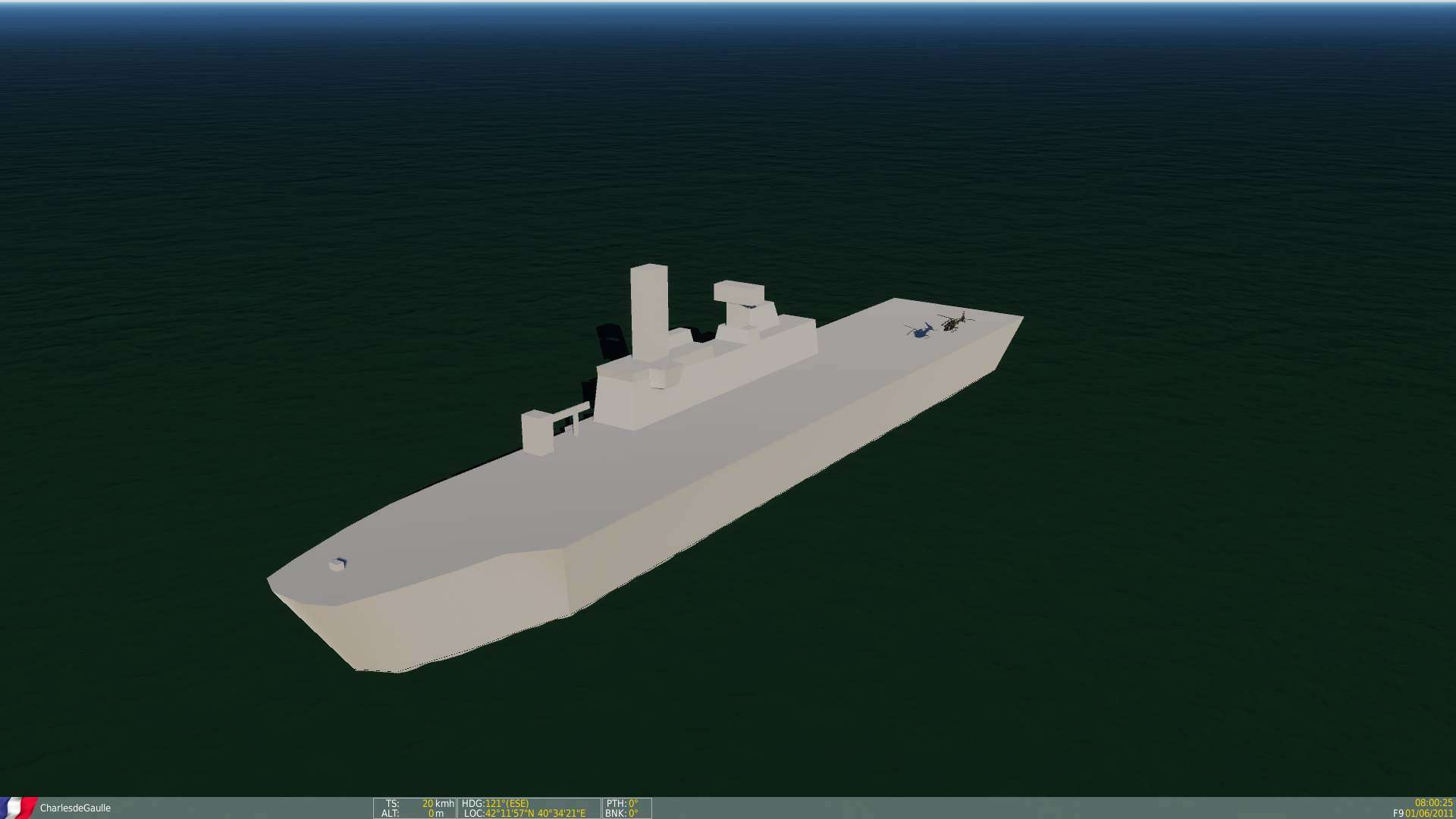

Ensaldo Posted February 28, 2018 Author Posted February 28, 2018 Thank you for your advice but,It still doesn't work for me I don't know why this happens.. https://imgur.com/UIBKyj2 - collision model + visible model. exported together. https://imgur.com/a/vgpLB - Result. Still can't land on the ship need someone export my test model.. Thanks. [sIGPIC][/sIGPIC] AsRock H97 Performance | i7 4470k @ 4.5 GHz | 16 GB DDR3 | GeForce GTX 1060 6GB | two Syncmaster 2494 monitor | Saitek Pro Flight X55 Rhino
joey45 Posted February 28, 2018 Posted February 28, 2018 Get rid of the .lods file and try again. Otherwise wait for someone too export it.. on ma mobile P.S. it looks really good. The only way to make sense out of change is to plunge into it, move with it, and join the dance. "Me, the 13th Duke of Wybourne, here on the ED forums at 3 'o' clock in the morning, with my reputation. Are they mad.." https://ko-fi.com/joey45
Panos1221 Posted February 28, 2018 Posted February 28, 2018 Hello panos :) I'm surprised you know that! The son of chamsuri will be included. See you then. XD https://imgur.com/a/WW4aA I know it from the Northern Limit Line movie. I dont know why but I love it more than the Gumdoksuri class!

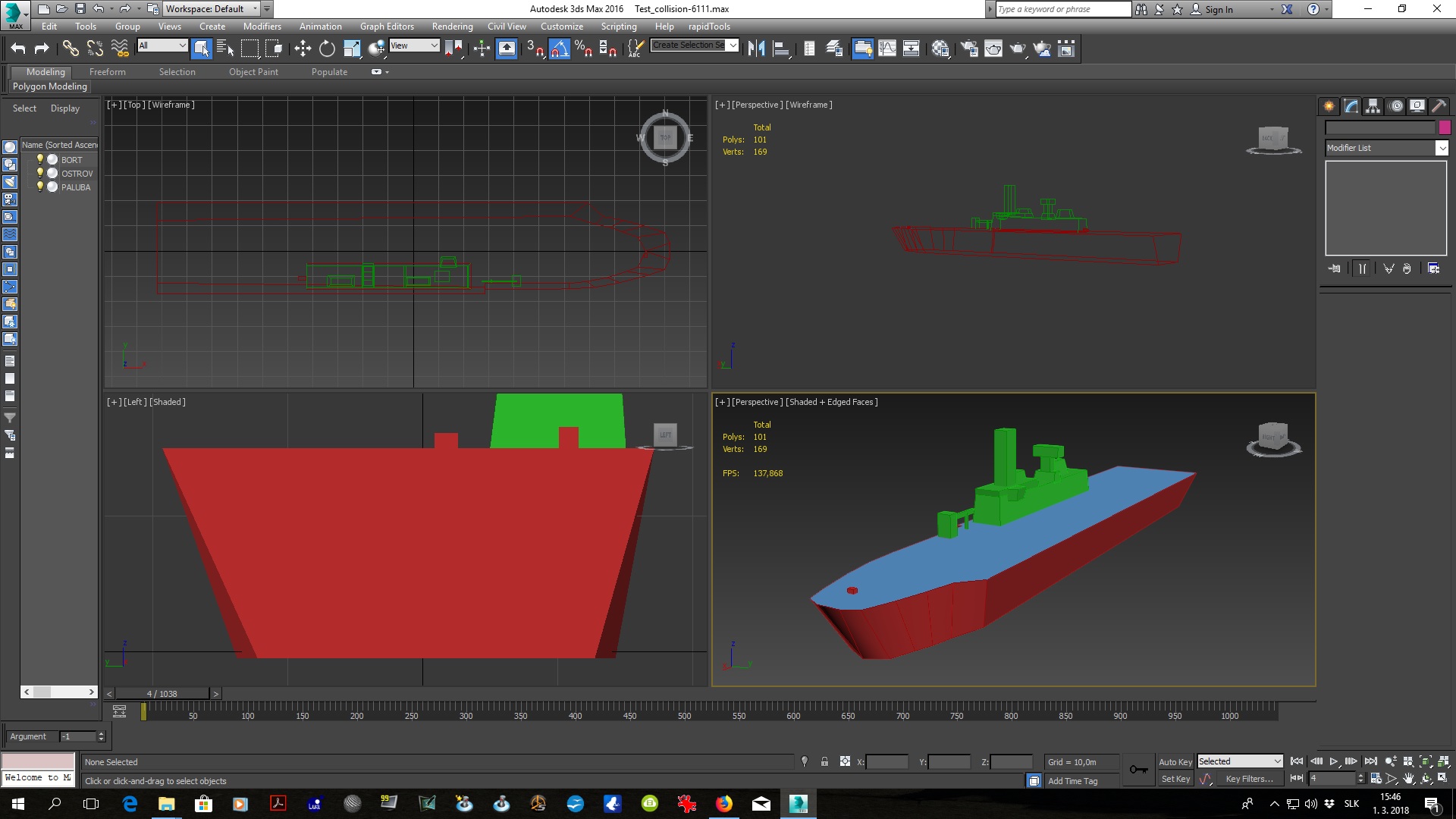

SVKSniper Posted March 1, 2018 Posted March 1, 2018 You have wrong collision model. Detach polygon on model(see on my screen).You need define collision part of ship. PALUBA(blue), OSTROV(green), BORT(red) ---here is your problem with "User Definition= collision_shell" its OK on your model export and you can start and land on deck! Support my work
joey45 Posted March 1, 2018 Posted March 1, 2018 Thought naming wasn't needed anymore.? on ma mobile The only way to make sense out of change is to plunge into it, move with it, and join the dance. "Me, the 13th Duke of Wybourne, here on the ED forums at 3 'o' clock in the morning, with my reputation. Are they mad.." https://ko-fi.com/joey45

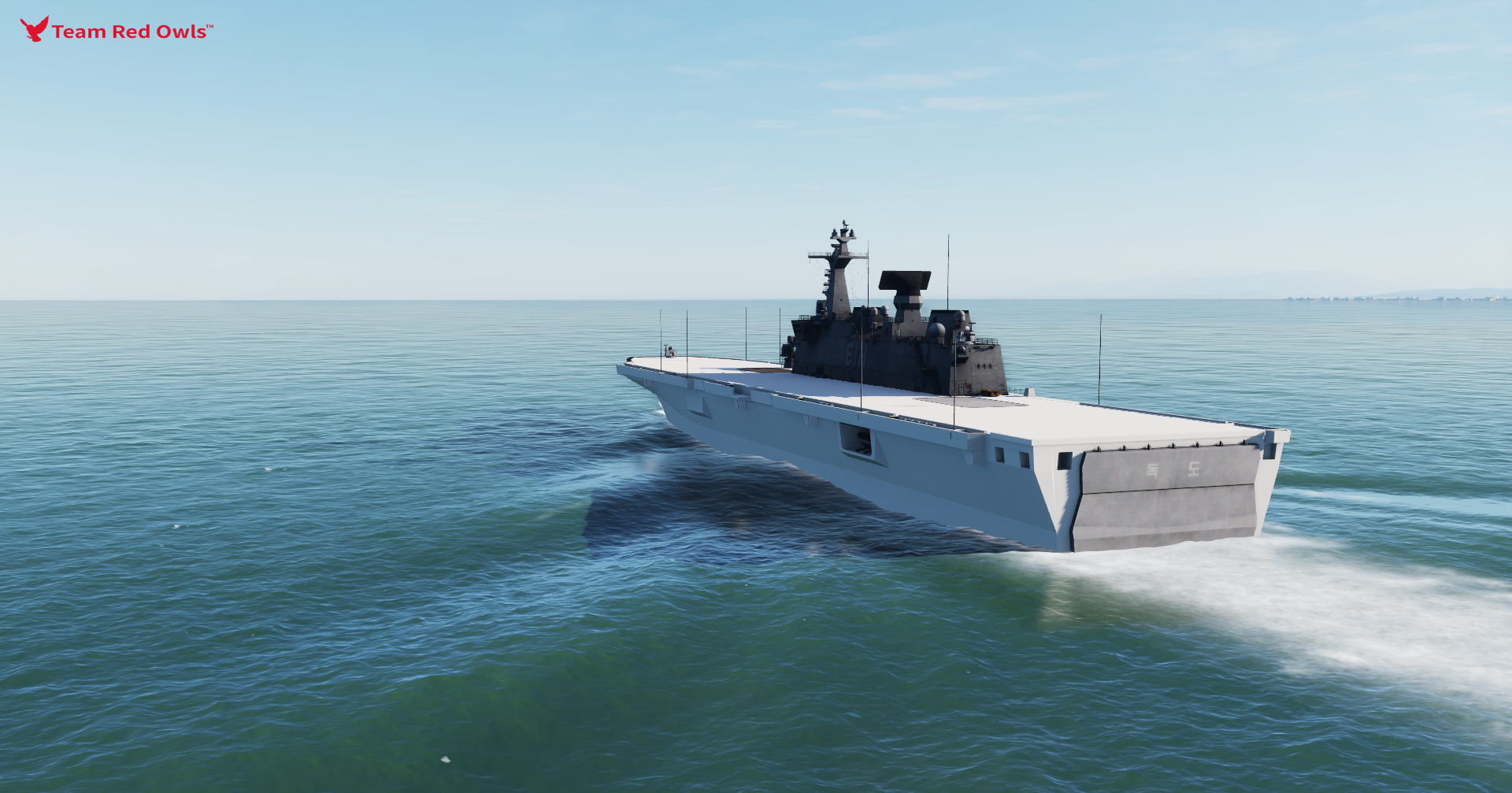

Ensaldo Posted March 1, 2018 Author Posted March 1, 2018 (edited) Thank you all. It was very helpful. Our team is planning to announce ROKN mod in next week. It will be very useful in the second Korean War scenario! Have fun! https://imgur.com/a/MGlIK https://imgur.com/a/mFMve Team Red oWLs Lead Artist Ensaldo Edited March 1, 2018 by Ensaldo [sIGPIC][/sIGPIC] AsRock H97 Performance | i7 4470k @ 4.5 GHz | 16 GB DDR3 | GeForce GTX 1060 6GB | two Syncmaster 2494 monitor | Saitek Pro Flight X55 Rhino
SVKSniper Posted March 1, 2018 Posted March 1, 2018 Thought naming wasn't needed anymore.? on ma mobile It is needed if you want to make a bit more detailed damage model Thank you all. It was very helpful. Our team is planning to announce ROKN mod in next week. It will be very useful in the second Korean War scenario! Have fun! https://imgur.com/a/MGlIK https://imgur.com/a/mFMve Team Red oWLs Lead Artist Ensaldo Good luck! Support my work
poq0424 Posted March 11, 2018 Posted March 11, 2018 엔살도님~ 언릉좀~~ㅋㅋ The Korean Translation Team:thumbup: i5 8600K 32GB GTX960
