Range Scale settings in IRST

[Ernst]

Hi , I found out that the HUD range scale of the EO sensor of the SU33 in FC3 is in 10 KM and not changable by using Rctrl + -/+ Like in the radar sensor!According the manuals you should be able to change the distance in the HUD.With Regards

[Schmidtfire]

I might be wrong but I think it has to do with the laser-rangefinder on Su27 / 33. The IRST don't have the range that the radar has. And it is probably way better and reliable in DCS then IRL. Im pretty sure it is made only for very short ranges for covert attacks or in heavy ECM environment.

[Fri13]

I might be wrong but I think it has to do with the laser-rangefinder on Su27 / 33. The IRST don't have the range that the radar has. And it is probably way better and reliable in DCS then IRL. Im pretty sure it is made only for very short ranges for covert attacks or in heavy ECM environment.



The range finder is there yes up to 10km in optimal situations for a gun or when doing air-to-ground attacks. But it is as well required to be adjusted for the IR-missile launches. And it just doesn't allow to launch IR missile passively when target is over 10km.



You should be able to set approximated range for the target to get the missile off. But you as well get the ranging by the flight triangulating it over datalink.



We are seriously lacking the Su-27 capabilities in radar and IRST capabilities they should have for stealth and long range engagements.

[Velik]

IRL OEPS-27 has 2 modes: large tracking and small tracking sight (on pic) with no range scale.

Range: 5-10km - front hemisphere; up to 50 km - rear hemisphere.

OEPS can be used in addition to the radar or as a main channel

[WildBillKelsoe]

there is no laser rangefinder with fighters except those multiroles equipped with a Klen-PS rangefinder. The IRST is meant for sneak attack with R-73 or R-27T/ET IR seekers. The range is not much because you have a radar that sees much further out. Basically it was to scan with radar first, then get picture and turn it off, when established with contact you switch IRST for short range tracking without alerting RWR of the enemy. I could be wrong, but its better to hear what Ironhand has to say.

[Alfa]

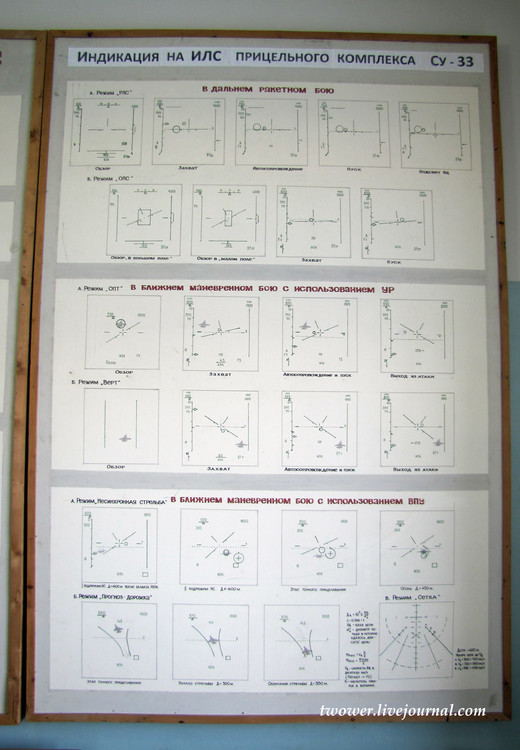

Attached is a placard for HUD indications in various WCS modes of the Su-33 - translation:





Индикация на ИЛС прицельного комплекса Су-33

(Indication on the HUD of the Su-33 sighting complex)





В дальнем ракетном бою

(long range missile combat)



A. Режим "РЛС" (A. Radar mode);

"обзор"(search) -> "захват"(capture) -> "Автосопровождение"(auto tracking) -> "Пуск"(launch)



Б. Режим ОЛС(B. EOS mode);

"обзор в большом поле"(large area search) -> "обзор в малом поле"(small area search) -> "захват"(capture) -> "Пуск"(launch)





В ближнем маневренном бою с использованием УР

(close range manouvering combat using missiles)



A. Режим "ОПТ"(A. OPT mode);

"обзор"(search) -> "захват"(capture) -> "Автосопровождение и пуск"(auto tracking and launch) -> "Выход из атаки"(exit attack)



Б. Режим "Верт"(B. Vertical mode);

"обзор"(search) -> "захват"(capture) -> "Автосопровождение и пуск"(auto tracking and launch) -> "Выход из атаки"(exit attack)





В ближнем маневренном бою с использованием ВПУ

(close range manouvering combat using guns)



(Didn't translate that.)

[Alfa]

there is no laser rangefinder with fighters except those multiroles equipped with a Klen-PS rangefinder. .



The Su-33(Su-27, MiG-29 etc) do have a laser rangefinder in combination with the EOS, but its short ranged(IIRC some 8 km) and for longer range the radar is employed(short bursts).

[Frostie]

Hi , I found out that the HUD range scale of the EO sensor of the SU33 in FC3 is in 10 KM and not changable by using Rctrl + -/+ Like in the radar sensor!According the manuals you should be able to change the distance in the HUD.With Regards

There is no range setting in EOS mode and the manual doesn't state that it does for EOS either.



The radar HUD display reads in azimuth and range (top down) where as the EOS HUD display reads in azimuth and elevation (face on, not range). So what you're seeing in the HUD with EOS is not a top down view like the radar but a face on view of any heat signatures picked up, it doesn't need a range setting.
