VR Simpit Project (F-18 related)

[imaxx]

Hello Aviation Enthisiasts



I am working on a VR- simpit for a while now and decided to make it public in this comunity.



Bevore you ask:

The F-18 UFC is not my invention, you can find all datas under the following link-

https://forums.eagle.ru/showthread.php?t=218874





The idea of a VR Simpit:

In some flight conditions you might not reach switches or buttins by mouse click.

Especially in multiplayer missions where you want to stay in formation while entering target or waypoint coordinates...

I wanted to have it more realistic and more comfortable with less necessary mouse inputs.

And I wanted realize a DIY project and here I am.

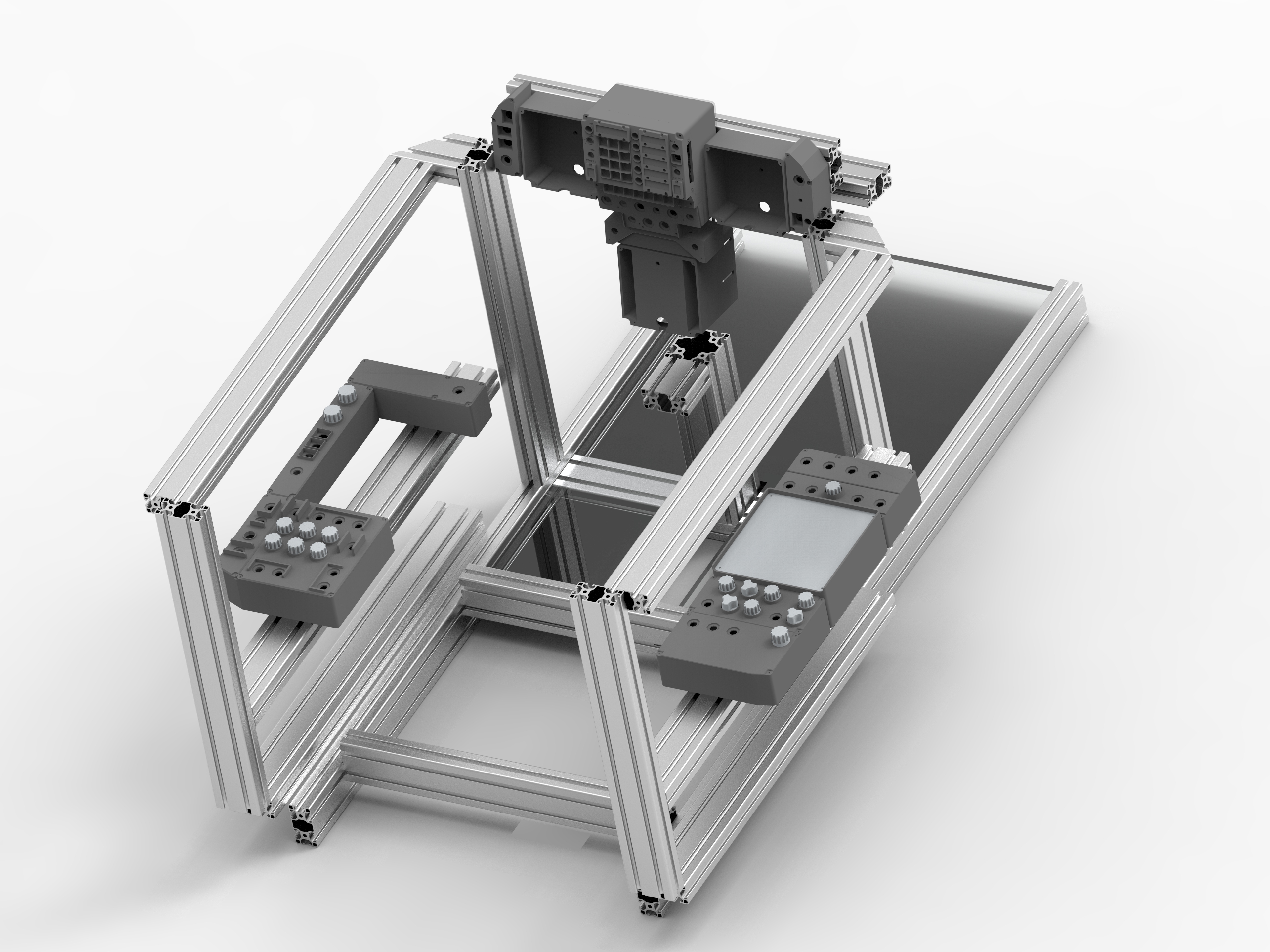

The frame is made of aluminum t-chanel profiles.

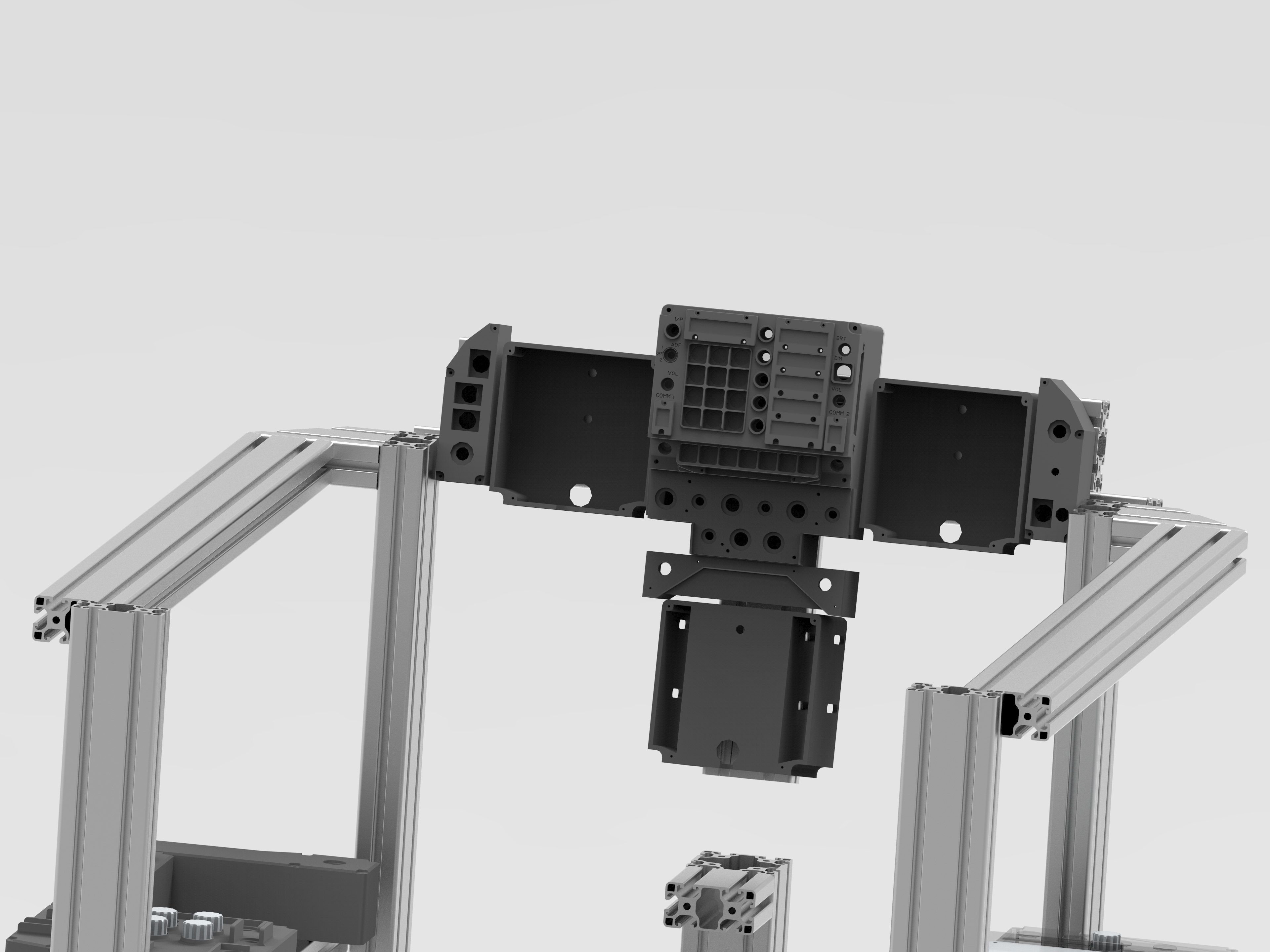

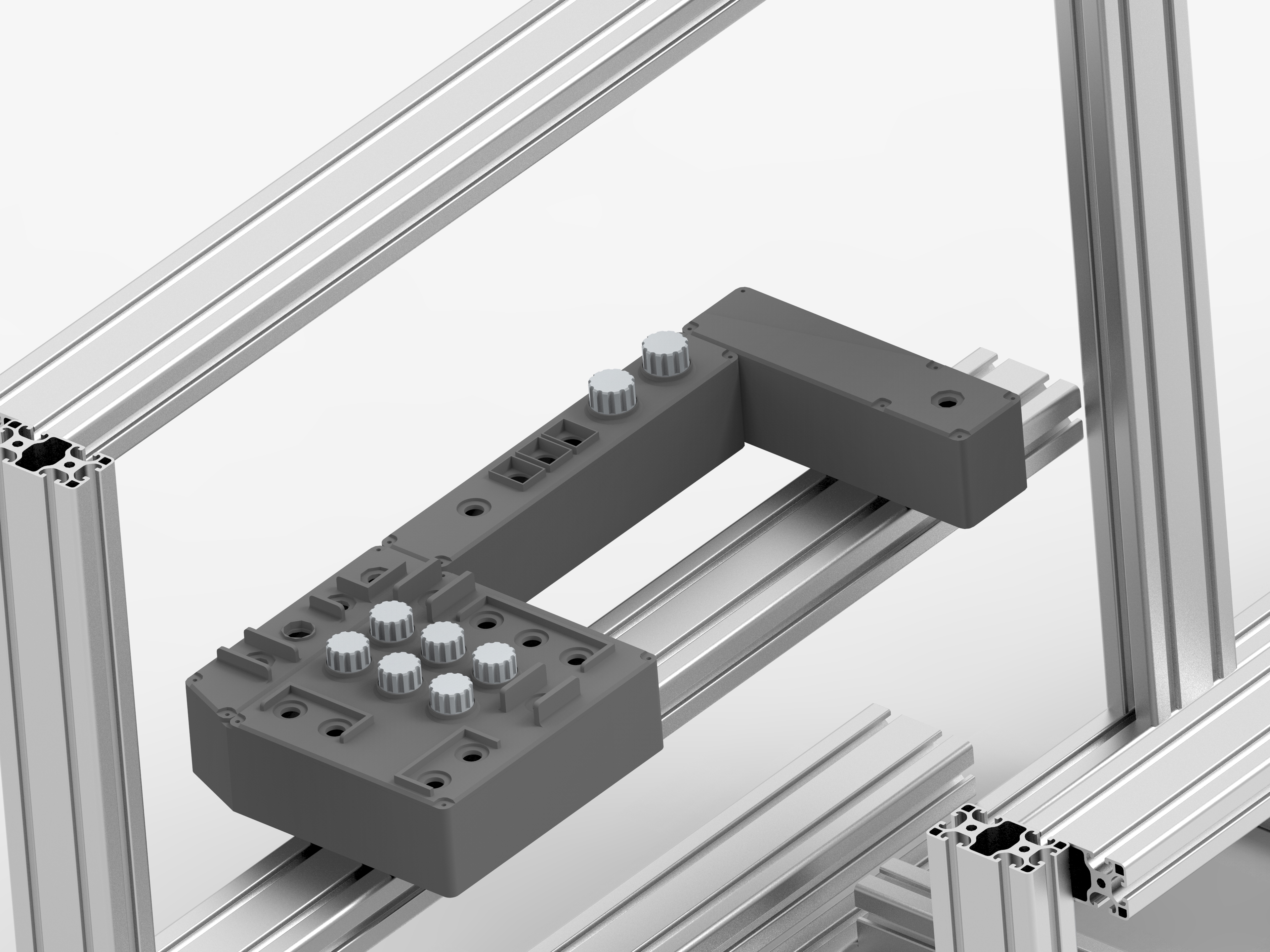

On the 3D pictures you will miss the 90° connectors and the adjustable "angle connectors".

Also the seat is not displayed.

[imaxx]

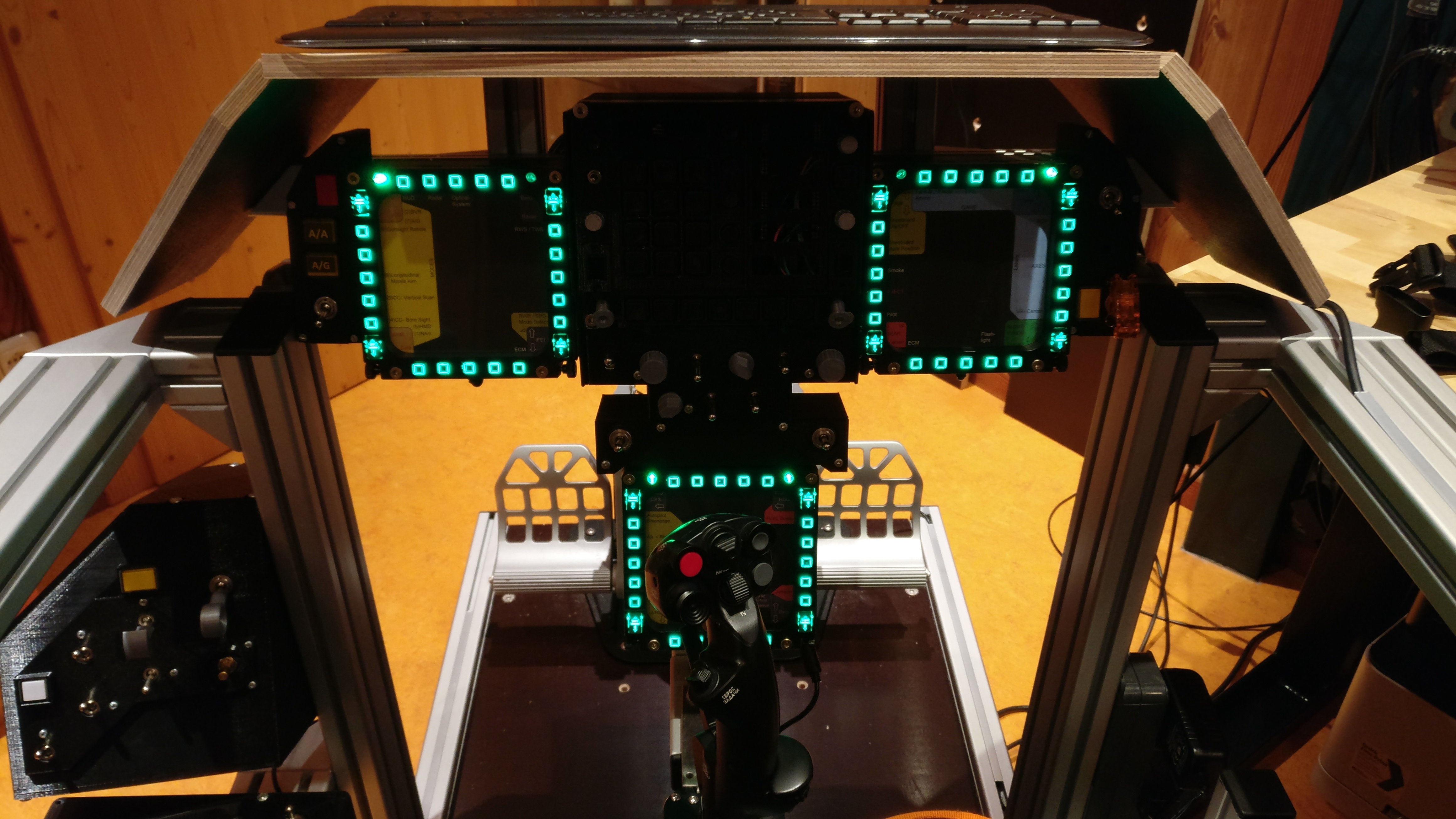

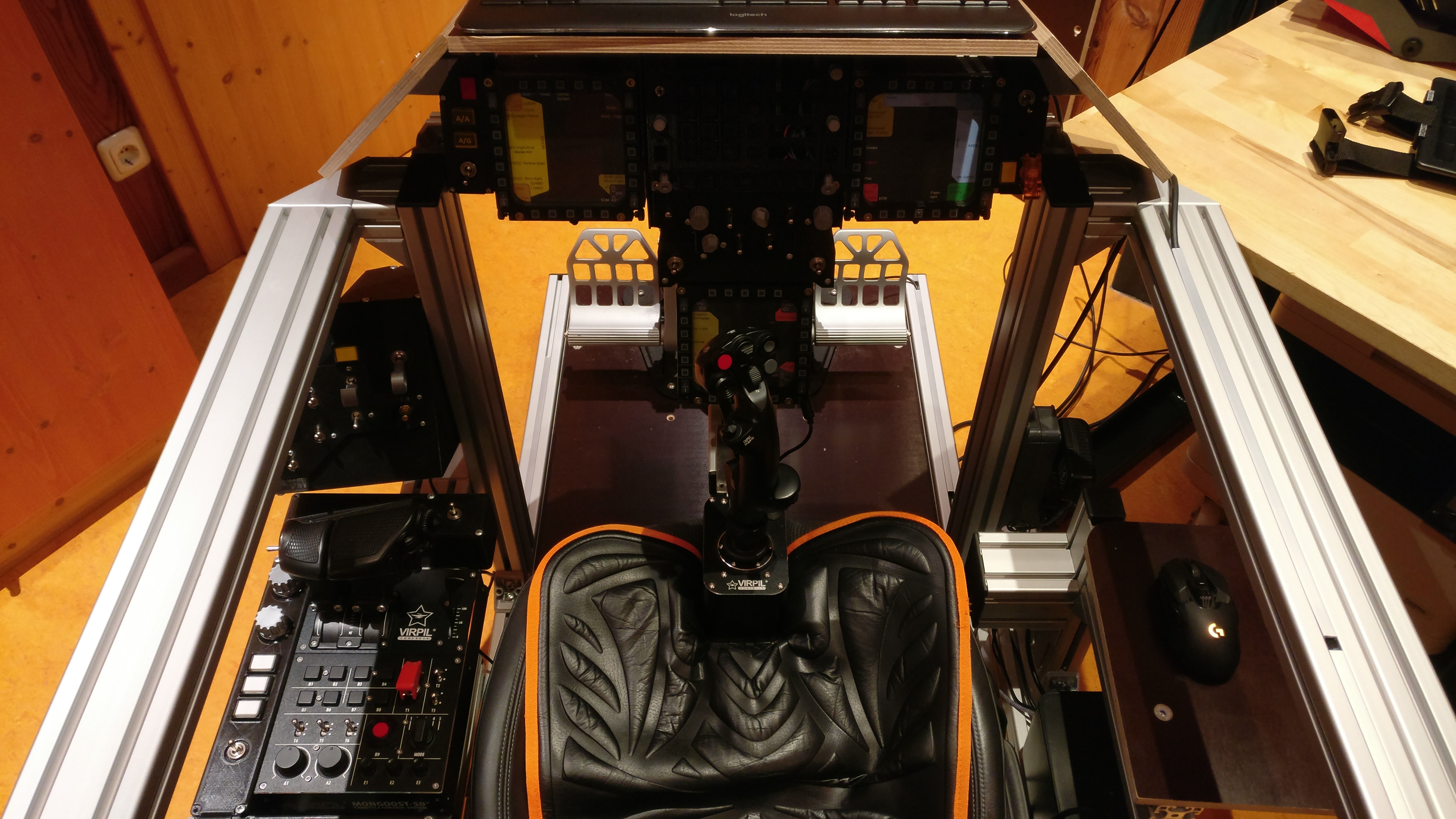

And this is how it looks in reality

[Lobinjaevel]

Really like the look of it, I'm doing a similar build, aluminium extensions are great for simpits!

[imaxx]

@Lobinjaevel, Thank you.

I like them too because it is easy to adjust.

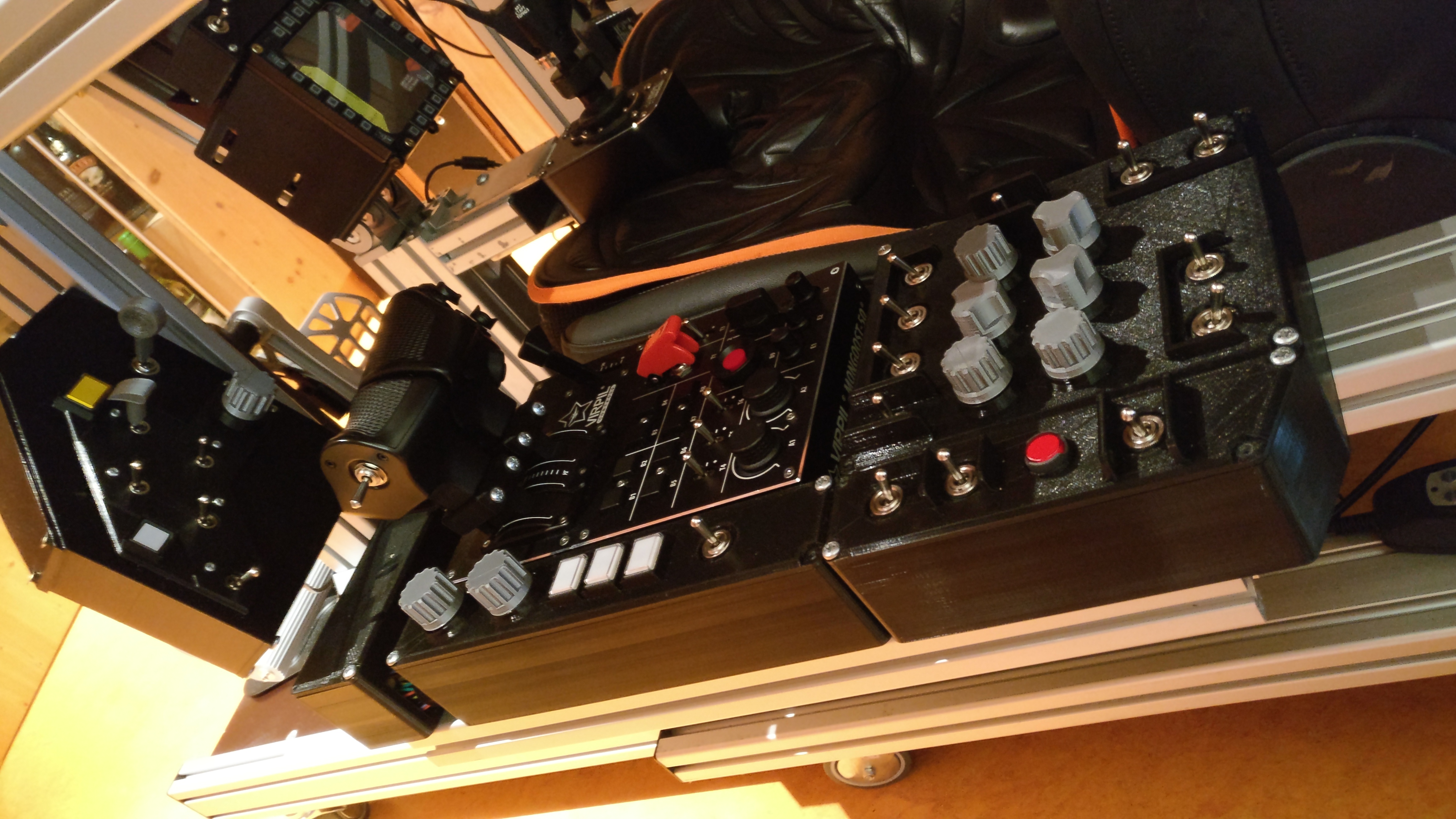

Closer view of the DIY Button Box.

[hip3rion]

That looks great !!

How much did you spend for the frame itself and connector bits ?

[imaxx]

Thanks @hip3rion



For the aluminum rails i need around 14 meters total, thats approximately 380€.

For the different connectors i spent another 270€.



The wooden Keyboard and bottom plate are arounfd 50€.



So all together is around 700 to 800€ (880 USD)



Not included in this cost esimation are:

The seat

Sticks and throttle

the UFC and all other input devices.

Edited February 28, 2020 by imaxx
