F-14 3D Model...

[SidDogg]

Hey Y'all.



With new updates and the F-14A coming soon, I thought I would bring up a tiny detail I noticed a while back...

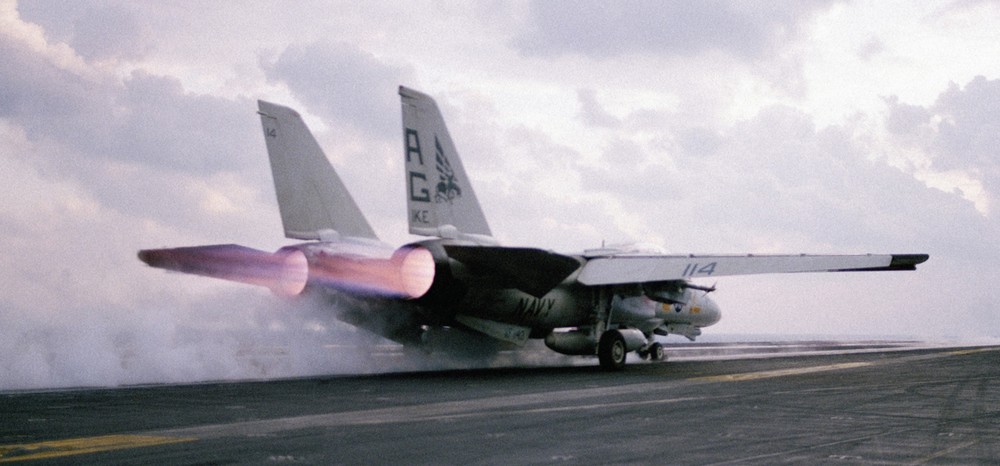

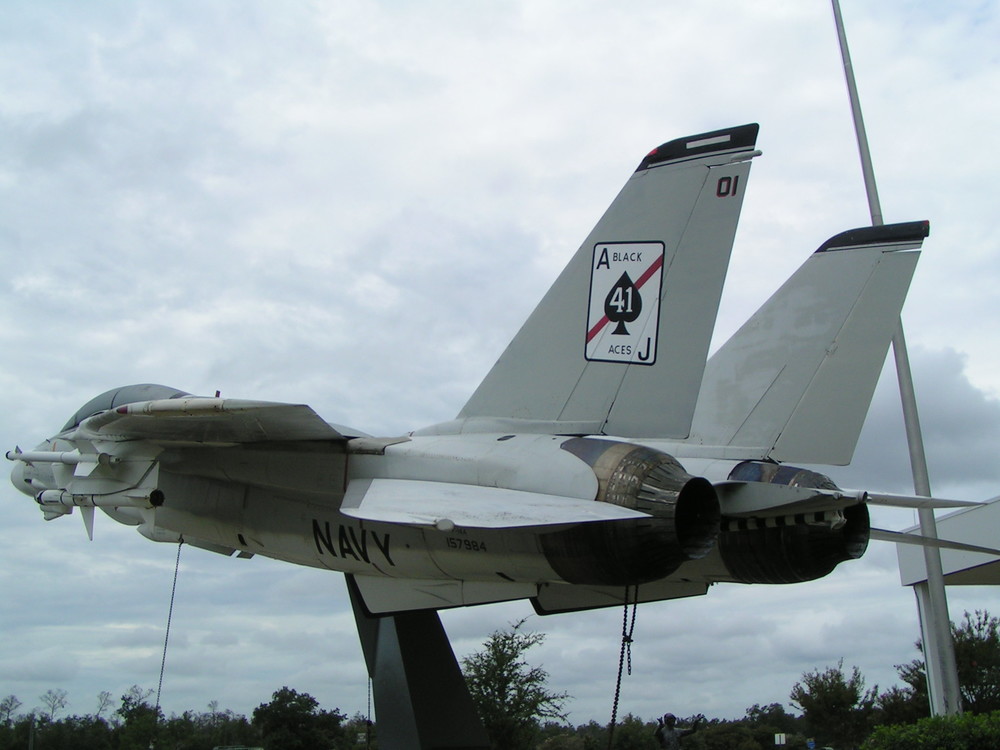

Shouldn't there be a slight ANHEDRAL to the jet's Horizontal Stabilators, or Elevons? Perhaps about 2 or 3 degrees?











...I can't be the only one seeing this. HeatBlur, any thoughts? :helpsmilie:





















SidDogg

[draconus]

It may depend on the angle of deflection plus they are controlled separately.



https://upload.wikimedia.org/wikipedia/commons/b/ba/F14_Schematics.jpg

[Cobra847]

This has been raised in PMs to me and will be checked. That said, last I remember, it matched our scans, so the discrepancy has to be investigated more thoroughly.
