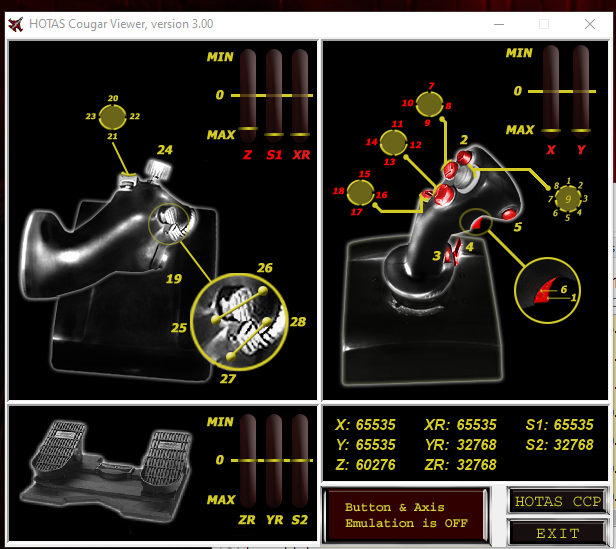

trigen Posted August 17, 2020 Posted August 17, 2020 (edited) Hello chaps Years back i was unlucky and caused a short on my grip but i had the WH so i didnt mind. But i'd like to use the CTS Cougar/WH profiles now and its Fing things up. Have any of you had this issue and managed to fix it? If i restart the stick it will be ok for a random short amount of time. 30 sec, 1 min or so if not touched The board is grounded. There are no wires or potentiometers to the connections. Tried to set max DZ on X Y, no change. Erased FW, reflashed. Throttle is working perfectly. Stick will reset if i remove unplug the throttle. Here's my issues in the CTD profile that ive also posted in the main post there. Perhaps its possible to avoid it but a proper fix would be good. Edited August 17, 2020 by trigen 1080 ti, i7700k 5ghz, 16gb 3600 cl14 ddr4 oc
Thadiun Okona Posted August 17, 2020 Posted August 17, 2020 I'd be looking for a short to ground in the miniDIN or pigtail that connects it either in the grip or in the base. It's pretty easy to pinch a wire in the metal shell if they're not perfectly tucked and I've seen them that way from the factory (I've opened up a lot of these and Warthogs).

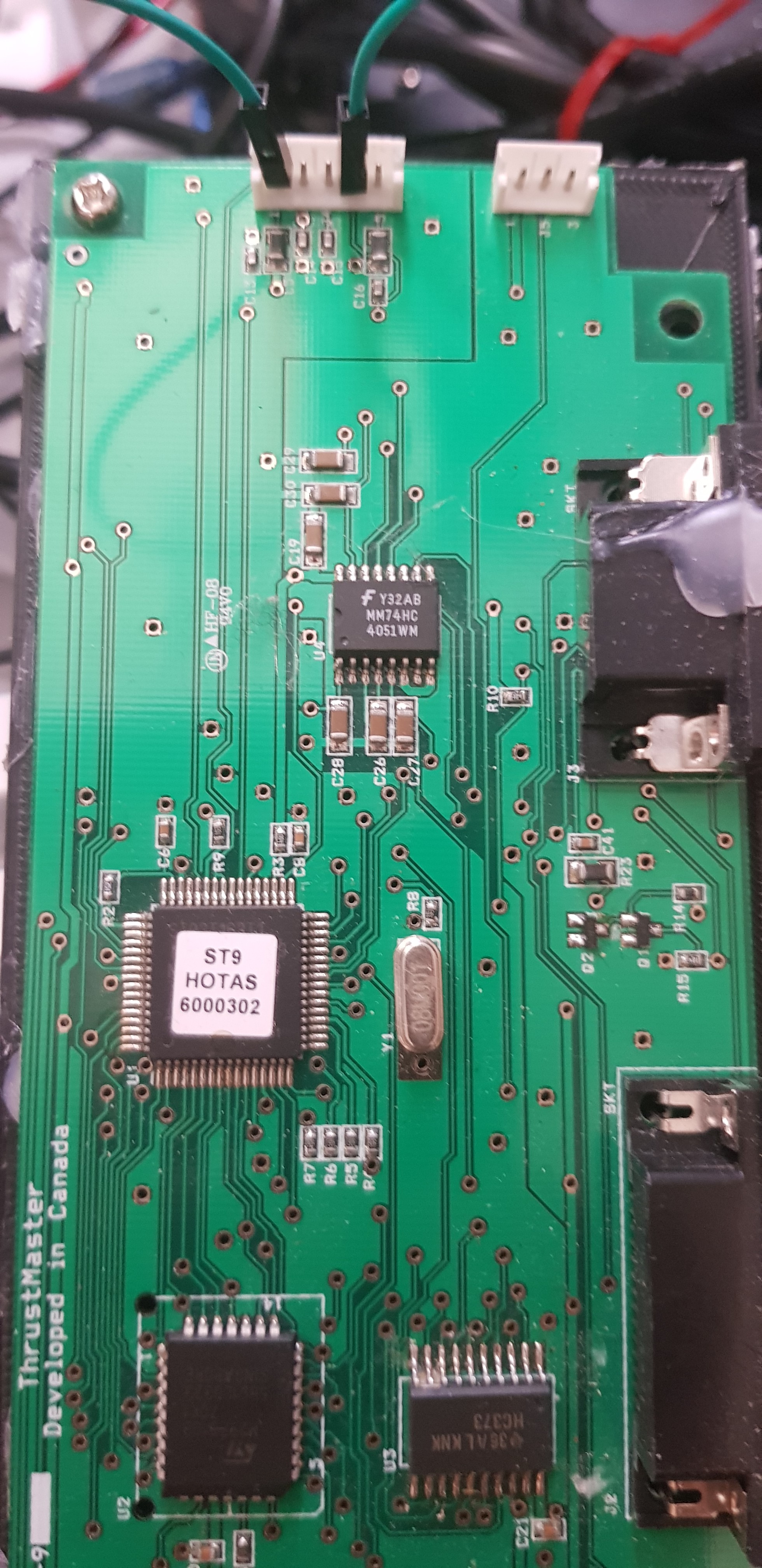

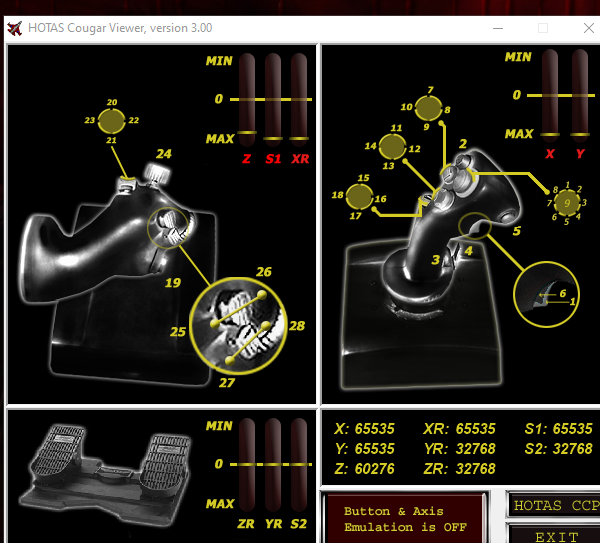

trigen Posted August 18, 2020 Author Posted August 18, 2020 I'd be looking for a short to ground in the miniDIN or pigtail that connects it either in the grip or in the base. It's pretty easy to pinch a wire in the metal shell if they're not perfectly tucked and I've seen them that way from the factory (I've opened up a lot of these and Warthogs). Thanks for the suggestion on the grip. the shift register got fried due to a short when a couple of wires got pinched and i couldnt find the wire fault after a lot of testing. Also the shift register soldering proved very difficult without a hot air station so that's on my list for purchases later on. Ive scavenged the buttons for another project though so its officially dead. In the meantime I took a chance and tried to connect the pins together to see if i could trick this polling that seems to happen after 1 minute and it has done the trick! I haven't seen any increase in heat anywhere using a IR thermometer. Guess i got lucky cause i was looking at a daunting task! 1080 ti, i7700k 5ghz, 16gb 3600 cl14 ddr4 oc
Habu_69 Posted August 18, 2020 Posted August 18, 2020 So the 2 green wires are a jumper between the 2 pins?
trigen Posted August 18, 2020 Author Posted August 18, 2020 So the 2 green wires are a jumper between the 2 pins? Yes 1080 ti, i7700k 5ghz, 16gb 3600 cl14 ddr4 oc
