Can we change the size of VTB viewport on the screen？

[Hyoukaxd]

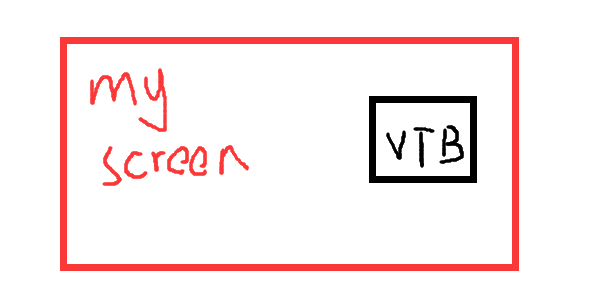

Is there any warmhearted bro can help me to make the VTB viewport smaller？

[Akiazusa]

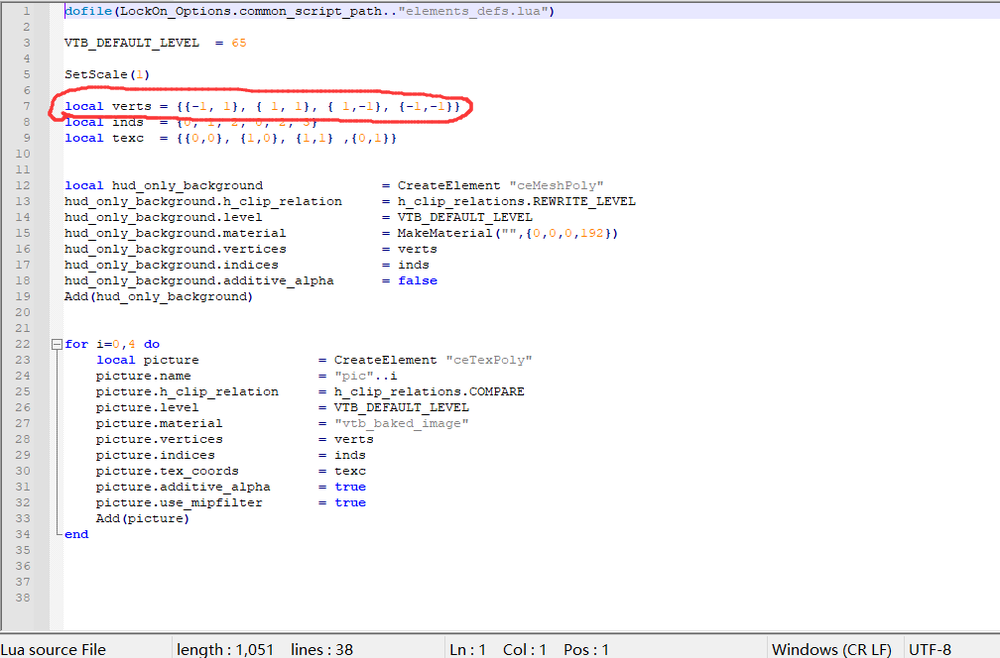

You can find a file called VTB_viewport.lua under ...\DCS World\Mods\aircraft\M-2000C\Cockpit\VTB,  open it with something like Notepad++ and find this line

local verts = {{-1, 1}, { 1, 1}, { 1,-1}, {-1,-1}}



I believe those {{-1, 1}, { 1, 1}, { 1,-1}, {-1,-1}} are the coordinates of 4 corner of VTB viewport

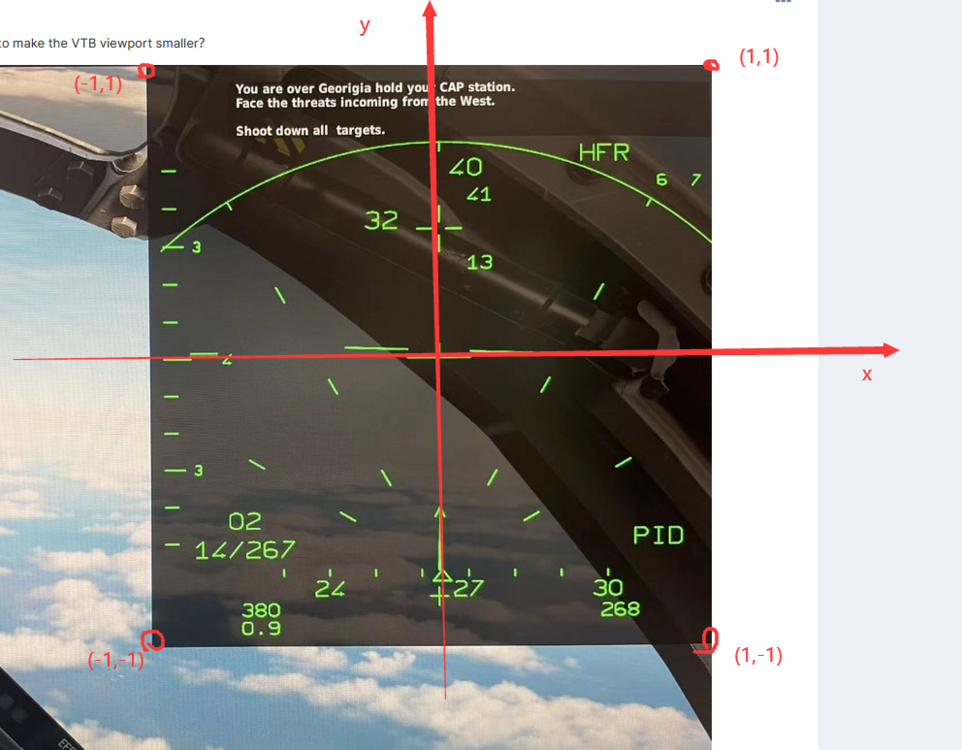

the default coordinates are like this:

You can edit these numbers to satisfy yourself.

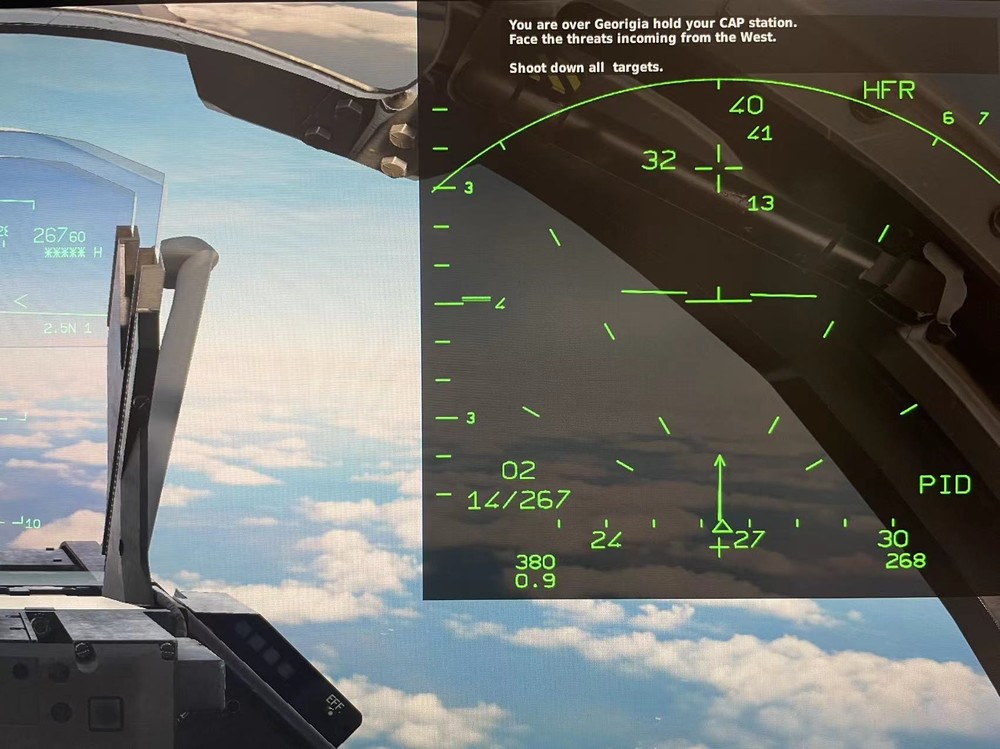

Note:If you want the viewport to always stick at top-right corner of you screen,the coordinate of top right corner should always be (1,1). Otherwise it will show up like this:

For example if you want it to be 0.5x smaller the number should be {{0, 1}, { 1, 1}, { 1,0}, {0,0}} instead of {{-0.5, 0.5}, { 0.5, 0.5}, { 0.5,-0.5}, {-0.5,-0.5}}

Hope it helps and don't forget to back up the file before editing it in case of something bad happens.

Edited May 21, 2022 by Akiazusa

[Hyoukaxd]

55 minutes ago, Akiazusa said:

你可以在 ...\DCS World\Mods\aircraft\M-2000C\Cockpit\VTB 下找到一个名为 VTB_viewport.lua 的文件，用 Notepad++ 之类的东西打开它并找到这一行

局部顶点 = {{-1, 1}, { 1, 1}, { 1,-1}, {-1,-1}}



我相信那些 {{-1, 1}, { 1, 1}, { 1,-1}, {-1,-1}} 是 VTB 视口的 4 个角的坐标

默认坐标如下：

您可以编辑这些数字以满足自己的需求。

注意：如果您希望视口始终停留在屏幕的右上角，则右上角的坐标应始终为 (1,1)。否则会显示如下：

例如，如果您希望它小 0.5 倍，则数字应该是 {{0, 1}, { 1, 1}, { 1,0}, {0,0}} 而不是 {{-0.5, 0.5}， { 0.5, 0.5}, { 0.5,-0.5}, {-0.5,-0.5}}

希望它有所帮助，并且不要忘记在编辑文件之前备份文件，以防发生不好的事情。



Thx a lot~~~

Hyouka is good，love it forever

Edited May 21, 2022 by Hyoukaxd

[Akiazusa]

12 minutes ago, Hyoukaxd said:

Thx a lot~~~

Hyouka is good，love it forever



Edited May 21, 2022 by Akiazusa

[Hyoukaxd]

友军~~~
