XR neck safer in MT build.

[imacken]

But, it won’t be long before the ST version is removed.

[muzica9]

15 hours ago, Istari6 said:

Thanks for the response.  Can you help me understand exactly what you're doing with "recenter"?

I just tried firing up SteamVR, doing the "Standing Position Setup" (where you center the HMD, then set it on the floor and calibrate).  Then I fired up XRNS.  Then DCS MT.

I still get exactly the same problem.  Past 90 degrees rotation, the view is flipped vertically and bordered with black rectangles that make it unusable.

Are you doing things in a different order?

i don't do room setup. just right click steam vr in tray>> click recenter. I use HP G2. With Pimax Crystal had to do same thing+ room setup.

others with Aero do the same https://gitlab.com/NobiWan/xrnecksafer/-/issues/7#note_1327625967

PS: do the recenter in the position you play, and don't move after to another position.

Edited August 7, 2023 by muzica9

[Istari6]

All - as a follow-up, I was able to get XRNeckSafer working!  The problem was the Varjo Foveated Rendering API layer.  Once I uninstalled that, and had only XRNeckSafer running (confirmed by clicking on Show Active API Layers in XRNeckSafer), it's working properly.

Thanks to all who replied on this thread trying to find a solution.  Hope this helps others.

[imacken]

I wish it did help me, but it doesn’t. Glad you’ve got it working though!

[GPatricks]

I just joined the "doesn't work" club. Tried it in MT and the std exe, tried setting it to run as Admin, tried starting DCS 1st them XRNecksafer, no autorotation at all. Go outside the game, with it running, inputs show as normal in XRNS. The only OpenXR API layer is " XR_APILAYER_NOVENDOR_XRNeckSafer". Went back into IL-2, works flawlessly..

Edit: I also tried installing the Quad_views FR, no good, then tried changing the order the APIs loaded using the API-Layers-GUI, that blew both of them up causing an uninstall of Quad-views and an Uninstall/Reinstall of XRNS. Also tried using Snap insted of Autorotation, NG...



Edited November 27, 2023 by GPatricks

[GPatricks]

On 8/14/2023 at 12:04 AM, Istari6 said:

All - as a follow-up, I was able to get XRNeckSafer working!  The problem was the Varjo Foveated Rendering API layer.  Once I uninstalled that, and had only XRNeckSafer running (confirmed by clicking on Show Active API Layers in XRNeckSafer), it's working properly.

Thanks to all who replied on this thread trying to find a solution.  Hope this helps others.

As far as XRNS's "Show Active API Layers", all I have showing is XR_APILAYER_NOVENDOR_XRNeckSafer... but I am sure I have the Varjo FR API installed..

[GPatricks]

Well, a light went off in my head (dim, but there) and I was thinking that since Steam VR is active (for the lighthouses), wonder what would happen if I ran VRNS instead of XRNS. Guess what, VRNS works in the MT.exe.. I don't like the way VRNS auto-rotates (chunky, not smooth like XRNS) but that may just be a setting adjustment, and of course no Pitch settings. The L/R Snap option works perfectly. So the new question is, why is XRNS not working in an OpenXR environment and VRNS is? I tried disabling OpenVR support in Varjo base to see if that was causing some sort of a conflict, no effect. The quest continues, but maybe this revelation will help someone figure this out.



Edit: I should add Steam and SteamVR are not normally running, just whatever Varjo Base runs for the Lighthouses. As soon as I start VRNS STeamVR starts up, so I assume thats why it is functioning in game.

Edited November 29, 2023 by GPatricks

[GPatricks]

With the patient help of DerKlausi on the Varjo Discord I finally have XRNS working perfectly on my Varjo Aero in DCS MT.exe with XRNS and Varjo Foveated Rendering (pretty sure it will work with other APIs also). The final key (after an XRNS 5a  remove/reinstall) was the order of the API layers, as the Varjo Foveated API finally showed up in XRNS's "OpenXR\Show API Layers" list after a fresh XRNS5a download and re-install. First try in the cockpit, with Varjo API showing on top line of the XRNS Show API list, I got black blocks and strange movement in the cockpit whenever Auto-rotation kicked in (but it was actually finally doing something!). As soon as I (using the "OpenXR-API-Layers-Win64-HKLM.exe" app) moved the XR_APILAYER_NOVENDOR_XRNeckSafer.json Layer to be above the XR_APILAYER_MBUCCHIA_varjo_foveated. json Layer, all was well in DCS..

So for me the key was to uninstall XRNS 5a, reinstall a freshly downloaded version of XRNeckSaferBeta5a from GitHub (https://gitlab.com/NobiWan/xrnecksafer), run XNRS and check the "OpenXR\Show active OpenXR API Layers" list in XNRS,. If XRNeckSafer is not on top of the list (which mine wasn't), use the API Layers GUI program ( https://github.com/fredemmott/OpenXR-API-Layers-GUI ) to change the order (I used the "OpenXR-API-Layers-Win64-HKLM" exe). Select the XRNeckSafer API, click Move up (to the top even if you have more than 2 API's showing), done! Never occurred to me not showing the Varjo Foveated API in XNRS could actually be an XRNS issue (to cause me to reinstall) as it worked fine in IL-2 (because Foveated rendering is disabled in IL-2)... and forget about the API Layer order, never would have gotten that without help.

Edited December 20, 2023 by GPatricks

[Qcumber]

On 11/29/2023 at 5:11 PM, GPatricks said:

With the patient help of DerKlausi on the Varjo Discord I finally have XRNS working perfectly. The final key (after an XRNS 5a  remove/reinstall) was the order of the API layers, as the Varjo Foveated API finally showed up in XRNS's "OpenXR\Show API Layers" list after a fresh XRNS5a download and re-install. First try in the cockpit, with Varjo API showing on top line of the XRNS Show API list, I got black blocks and strange movement in the cockpit whenever Auto-rotation kicked in (but it was actually finally doing something!). As soon as I (using the "OpenXR-API-Layers-Win64-HKLM.exe" app) moved the XR_APILAYER_NOVENDOR_XRNeckSafer.json Layer to be above the XR_APILAYER_MBUCCHIA_varjo_foveated. json Layer, all was well in DCS..

So for me the key was to uninstall XRNS 5a, reinstall a freshly downloaded version of XRNeckSaferBeta5a from GitHub (https://gitlab.com/NobiWan/xrnecksafer), run XNRS and check the "OpenXR\Show active OpenXR API Layers" list in XNRS,. If XRNeckSafer is not on top of the list (which mine wasn't), use the API Layers GUI program ( https://github.com/fredemmott/OpenXR-API-Layers-GUI ) to change the order (I used the "OpenXR-API-Layers-Win64-HKLM" exe). Select the XRNeckSafer API, click Move up (to the top), done! Never occurred to me not showing the Varjo Foveated API in XNRS could actually be an XRNS issue (to cause me to reinstall) as it worked fine in IL-2... and forget about the API Layer order, never would have gotten that without help.



I tried your suggestion and it appears to work. I used to get a lateral displacement most of the time when I used autorotation., When I place xrnecksafer at the top of the xr layers it seems to work. I need to do some more testing but fingers crossed. One thing I also noticed was that moving xrnecksafer to the top made the image look “punchier”. The only thing I can think of to explain this is that order of the layers somehow affects the contrast and sharpening of other layers, such as opener toolkit. Has anyone else had this experience? I might try playing around with changing the order of the xr layers see if they make any difference.

Update: this does not always work. It's better than it was but not consistent.

Edited December 1, 2023 by Qcumber

[GPatricks]

15 hours ago, Qcumber said:

I tried your suggestion and it appears to work. I used to get a lateral displacement most of the time when I used autorotation., When I place xrnecksafer at the top of the xr layers it seems to work. I need to do some more testing but fingers crossed. One thing I also noticed was that moving xrnecksafer to the top made the image look “punchier”. The only thing I can think of to explain this is that order of the layers somehow affects the contrast and sharpening of other layers, such as opener toolkit. Has anyone else had this experience? I might try playing around with changing the order of the xr layers see if they make any difference.

I think as long as XRNS API is at the top of the API list it will work correctly. From @MastahFR on the Varjo\dcs-world Discord - "You should always have the layer doing spatial / positioning correction [XRNS] run first, then display/render transformation (VFR, QVFR), then render correction (color, brightness, like OXRTK) and then render capture (OBS, ...)". Me. I just run XRNS and Varjo Foveated, so it's simple..

Edited December 2, 2023 by GPatricks

[KoN]

Has anyone got good profile working . Maybe post a pic of the seettings .

[GPatricks]

14 hours ago, KoN said:

Has anyone got good profile working . Maybe post a pic of the seettings .

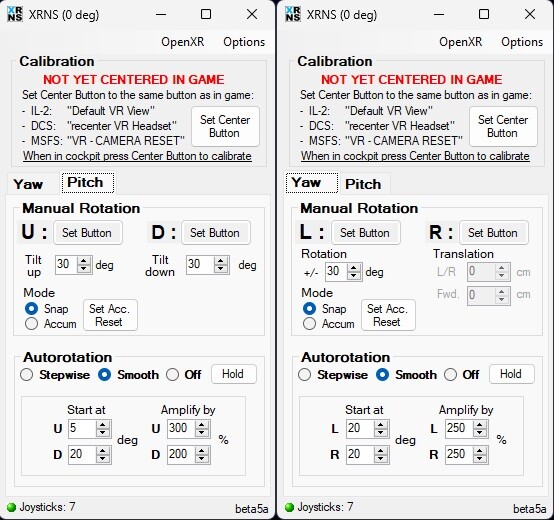

This is what I use, but I come from TIR5 so it may or may not be suitable for you.. just play with the settings.

[Tensorial_Architect]

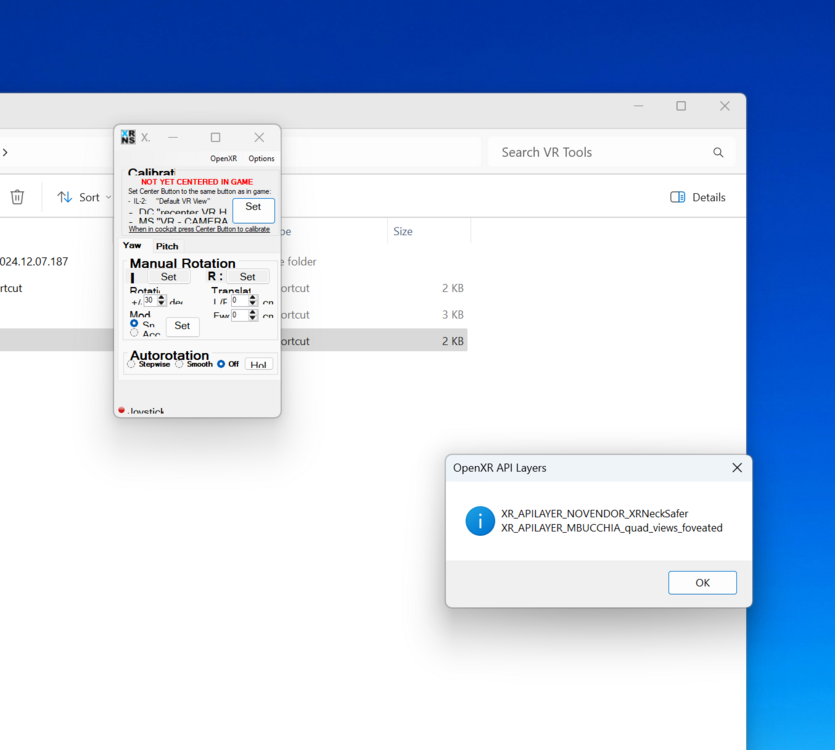

It has been a few years since I last used Neck Safer (... back then I used a version called VR Neck Safer). Circa 2025 and I am trying to install OpenXR Neck Safer (XRNS). I already have Quad Views up and running correctly and that is currently my only API layer. I then run the XRNS.exe but I get this:





What I have is a tiny XRNS window that I cannot expand. I have used the separate OpenXR API Layers tool to move XRNS to the top layer (which I believe is correct). Sadly, the main calibration window for XRNS remains tiny and cannot be adjusted (there is also no config file for me to adjust graphics parameters). I DID NOT download and use OpenComposite yet bc I am unsure if this is a hard requirement. Of course, when I open DCS, I see no visual confirmation that XRNS is installed and it certainly is not working.

Any tips would be greatly appreciated.

Edited January 16 by Tensorial_Architect

[Panzerlang]

2 hours ago, Tensorial_Architect said:

It has been a few years since I last used Neck Safer (... back then I used a version called VR Neck Safer). Circa 2025 and I am trying to install OpenXR Neck Safer (XRNS). I already have Quad Views up and running correctly and that is currently my only API layer. I then run the XRNS.exe but I get this:





What I have is a tiny XRNS window that I cannot expand. I have used the separate OpenXR API Layers tool to move XRNS to the top layer (which I believe is correct). Sadly, the main calibration window for XRNS remains tiny and cannot be adjusted (there is also no config file for me to adjust graphics parameters). I DID NOT download and use OpenComposite yet bc I am unsure if this is a hard requirement. Of course, when I open DCS, I see no visual confirmation that XRNS is installed and it certainly is not working.

Any tips would be greatly appreciated.

For the squished XRNS panel issue right click on its desktop icon, then: Properties -> Compatibility -> High DPI Settings -> Override scaling behavior performed by System.

Simple tool to check your six - Page 29 - Virtual Reality and VR Controllers - IL-2 Sturmovik Forum

[Tensorial_Architect]

Thank you Panzerlang, ... that did restore the gui! The problem now is that while the Pitch axis works fairly well, the Yaw axis has me rotating to the left outside my aircraft and to the right inside my tail looking at the back. It is badly messed up. One would think that after all this time, ... an app this central to VR flying, especially for ACM would be bug free.

[Panzerlang]

28 minutes ago, Tensorial_Architect said:

Thank you Panzerlang, ... that did restore the gui! The problem now is that while the Pitch axis works fairly well, the Yaw axis has me rotating to the left outside my aircraft and to the right inside my tail looking at the back. It is badly messed up. One would think that after all this time, ... an app this central to VR flying, especially for ACM would be bug free.

With me (Pimax OG Crystal), that happens until I centre the headset (that's separate from centering VR and/or NeckSafer). It's not a bug in NeckSafer.

Edited January 17 by Panzerlang

[Tensorial_Architect]

Do you have to keep your chaperone/guardian system on to set that? (Been a few months since I used my Crystal.) Using a Quest Pro atm and I turned off the silly boundary system because a) I'm not four, and b) It kept popping up continual warnings about my desk and flight controls sitting right in front of me. Interestingly, with VR Neck Safer, I never had any issues.

[Panzerlang]

1 hour ago, Tensorial_Architect said:

Do you have to keep your chaperone/guardian system on to set that? (Been a few months since I used my Crystal.) Using a Quest Pro atm and I turned off the silly boundary system because a) I'm not four, and b) It kept popping up continual warnings about my desk and flight controls sitting right in front of me. Interestingly, with VR Neck Safer, I never had any issues.

No, I don't. But I have no idea how the Quest Pro works in that regard.
I never used to have to re-centre the headset, now I have to do it every time I fire it up. It's pretty quick, just hold down the Pimax logoed button on the controller, wait for the green circle thing to do it's turn, keep the button pressed until the short vibe indicates the controller is shutting down and carry on.
