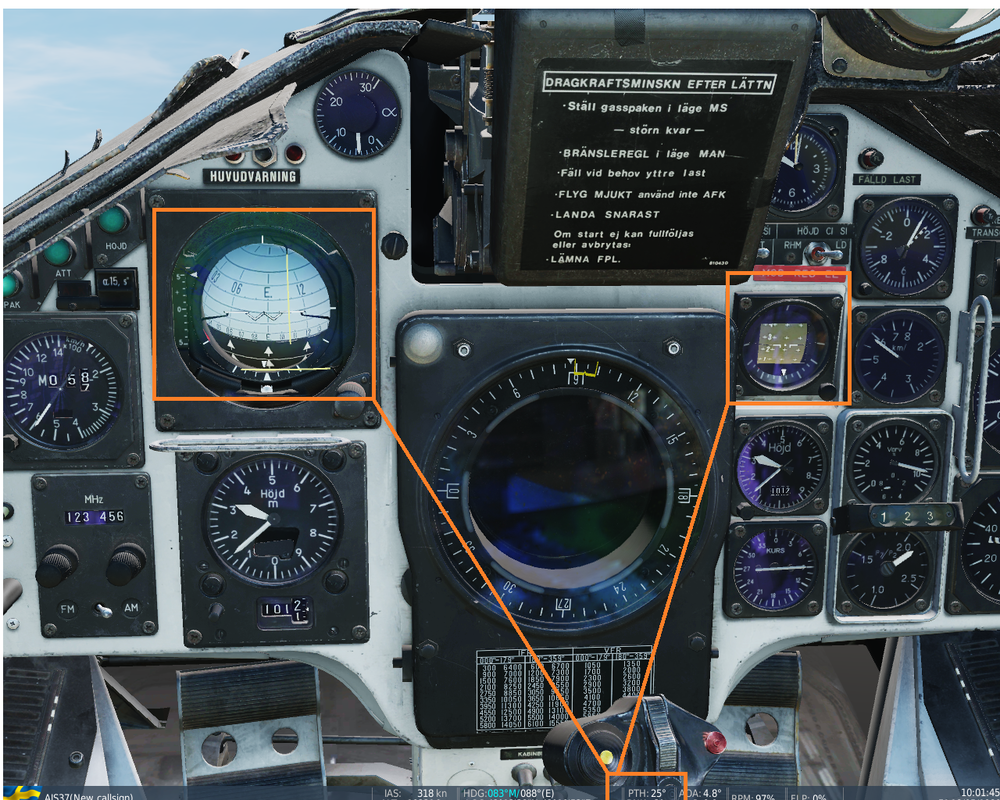

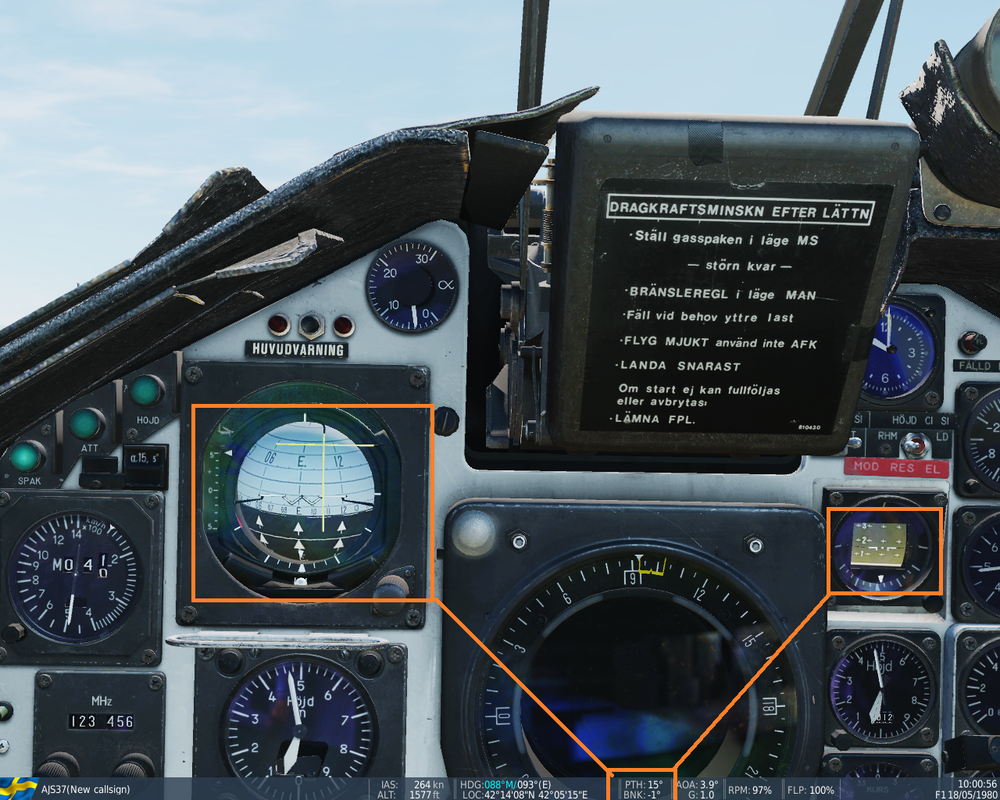

Snappy Posted May 6, 2023 Posted May 6, 2023 (edited) The main attitude indicator seems to indicate too much pitch, it overindicates by 5 degrees it seems. Either that, or the standby indicator is off by 5 degrees. But the standby indicator seems to agree with the the pitch value in the infobar. Not sure, there could be several reason, the 10 degree intervall pitch markings on the main ADI could be placed wrong, the ADI itself could move too fast in pitch , or the standby indicator and info bar pitch show the wrong value. But one of the 2 is wrong by 5degrees. The 3 values seem to agree when on the ground or when at 90 degree pitch up/down. These pics were taken immediately after take off , so the standby ADI should still be reasonably accurate. Above the main ADI is at 20 degrees nose up, the standby ADI and Infobar show 15degrees nose up. Below the main ADI is at 30 or 31 degrees nose up, the standby ADI and infobar show 25 degrees nose up. The parallax error depending on viewing angle is negliable so thats not it either. Regards Snappy. Edited May 6, 2023 by Snappy
TOViper Posted May 6, 2023 Posted May 6, 2023 (edited) Hi Snappy! IMHO this behavior exists since the module's existance, and is worth checking! I was just not able to find any thread about this ... Edited May 6, 2023 by TOViper Visit https://www.viggen.training ...Viggen... what more can you ask for? my computer: AMD Ryzen 5600G 4.4 GHz | NVIDIA RTX 3080 10GB | 32 GB 3.2 GHz DDR4 DUAL | SSD 980 256 GB SYS + SSD 2TB DCS | TM Warthog Stick + Throttle + TRP | Rift CV1
MYSE1234 Posted May 6, 2023 Posted May 6, 2023 Its due to the lines on the texture not taking into account the spherical shape of the surface they're on. It's fixed in my custom cockpit mod Viggen is love. Viggen is life. 7800X3D | RTX 4070 Ti S | 64GB 6000MHz RAM |
TOViper Posted May 6, 2023 Posted May 6, 2023 Can you forward your changes to HB? Visit https://www.viggen.training ...Viggen... what more can you ask for? my computer: AMD Ryzen 5600G 4.4 GHz | NVIDIA RTX 3080 10GB | 32 GB 3.2 GHz DDR4 DUAL | SSD 980 256 GB SYS + SSD 2TB DCS | TM Warthog Stick + Throttle + TRP | Rift CV1
Snappy Posted May 6, 2023 Author Posted May 6, 2023 (edited) 49 minutes ago, MYSE1234 said: Its due to the lines on the texture not taking into account the spherical shape of the surface they're on. It's fixed in my custom cockpit mod @Silhou can you please file bug a report for this if it isn’t already tracked. Because the main attitude indicator is really a critical instrument. It’s nice that Myse has made an unofficial fix , but I would really like to see this officially fixed or at least have Myse’s fix incorporated by heatblur if he agrees . Thanks! @MYSE1234Thank you very much for explaining what the reason for the discrepancy is&thank you for the effort you put into your texture mod! Edited May 6, 2023 by Snappy
MYSE1234 Posted May 6, 2023 Posted May 6, 2023 7 minutes ago, TOViper said: Can you forward your changes to HB? They're available if they want to use them. This goes for all my mods, I've made that clear to them 1 Viggen is love. Viggen is life. 7800X3D | RTX 4070 Ti S | 64GB 6000MHz RAM |
Silhou Posted May 8, 2023 Posted May 8, 2023 Hey @Snappy! Thank you for the heads up on this. I've tracked a bug report AJS37-356 for this issue. The dev team will look into it. @MYSE1234thank you too very much. It's greatly appreciated! 1
TOViper Posted October 23, 2024 Posted October 23, 2024 Just for the records, this issue has already been solved. 2 Visit https://www.viggen.training ...Viggen... what more can you ask for? my computer: AMD Ryzen 5600G 4.4 GHz | NVIDIA RTX 3080 10GB | 32 GB 3.2 GHz DDR4 DUAL | SSD 980 256 GB SYS + SSD 2TB DCS | TM Warthog Stick + Throttle + TRP | Rift CV1
