Wiring Led button on Bodnar

[Nightdare]

Good day all



I got a Leo Bodnar board and it can power leds

I want to power the led inside a latching switch (so I can see when it's on) and send the signal through to register the button press, so I don't need a separate pin on the board for led power (which would then also register as a second button press in a Bodnar setup)

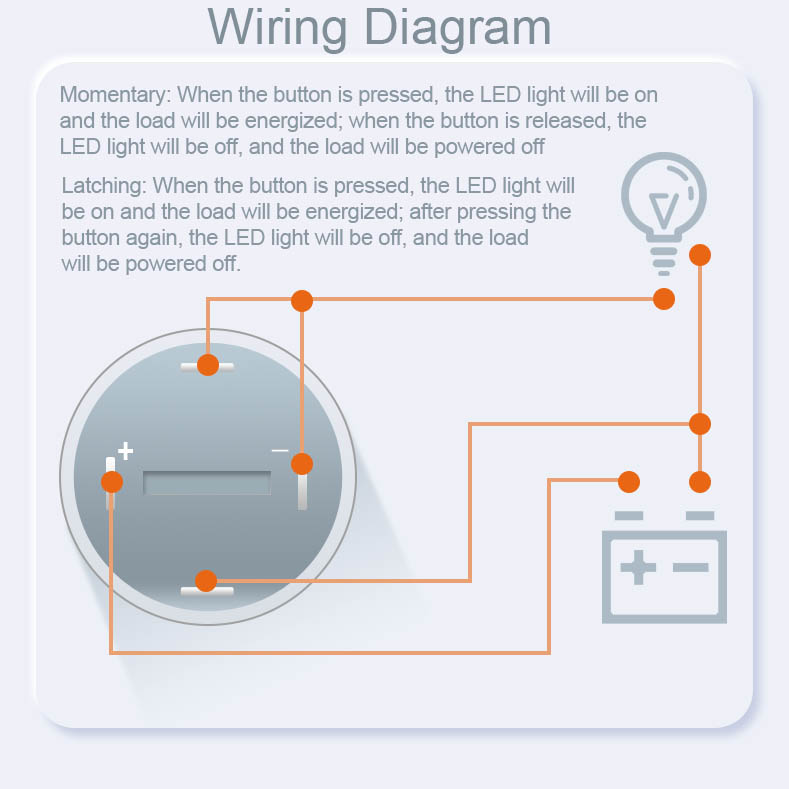

But when I look around for 4-pole switch wiring, I get this:



Which isn't the applicable to my button box since I'm not powering/switching an external load

If possible, how do I wire that?



Like this?

Edited January 24, 2024 by Nightdare

[No1sonuk]

Which Bodnar board?

[Nightdare]

BBI-64



[agrasyuk]

BBI64 is a simple button controller. I wouldn't tap it for power. I'd say use a separate power supply (old cellphone charger , etc. ).

[Nightdare]

5 hours ago, agrasyuk said:

BBI64 is a simple button controller. I wouldn't tap it for power. I'd say use a separate power supply (old cellphone charger , etc. ).

Then I'd need to add a powersource for 2 leds: On-status indicator and 1 latching pushbutton

Which seems a bit unnecessary when the board itself can power 5v/100ma

Edited January 27, 2024 by Nightdare
