Wind symbology?

[RossC]

Hi,

Does the Chinnook MFD display wind strength and direction??
if so, where?

[47_Driver]

3 hours ago, RossC said:

Hi,

Does the Chinnook MFD display wind strength and direction??
if so, where?

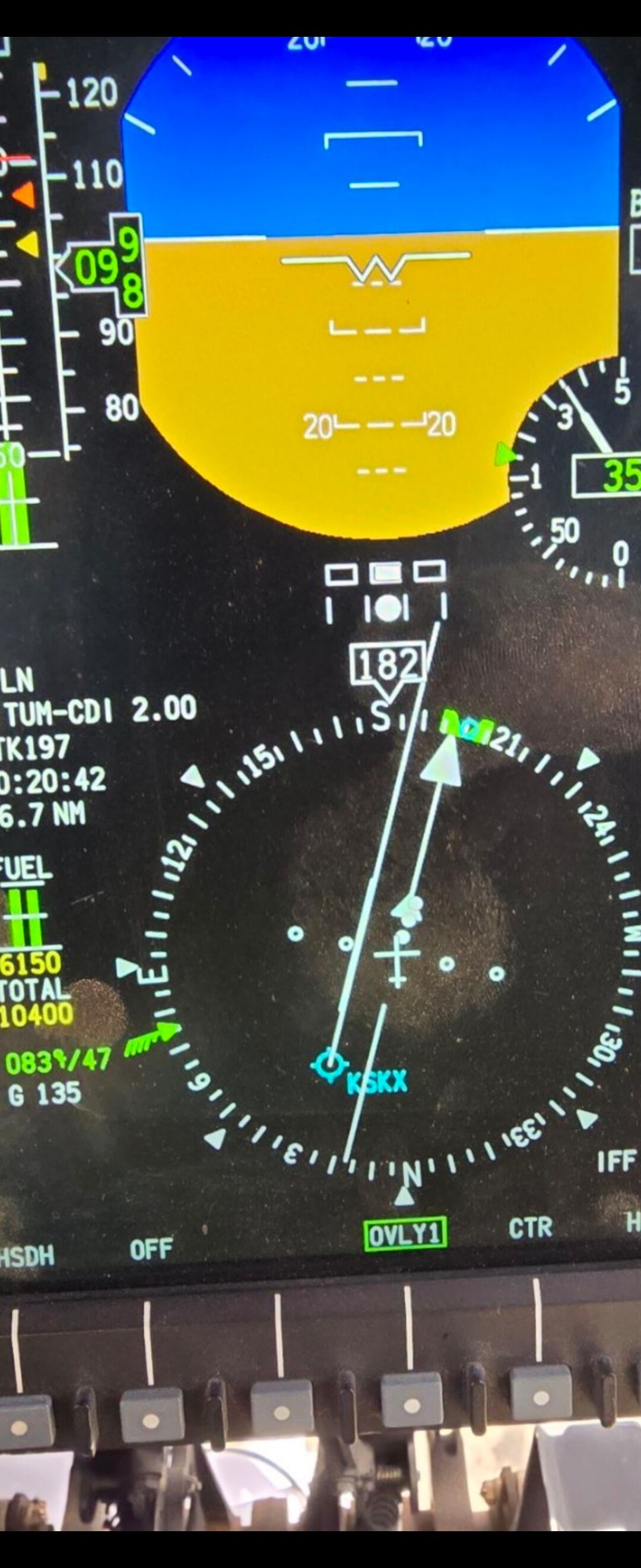

Yes. Will display on the HSD in either Full Page or Half Page format. Will be located on the left side of the HSD, ie. 270/15. Will also display a wind barb on the HSD indicated where wind is coming from and what speed. See attached example from a flight I had the other day. Winds were a little spicy.... Not modeled yet in DCS though.

Edited August 17, 2024 by Brickle
clarification

[Yurgon]

44 minutes ago, Brickle said:

Winds were a little spicy....

Winds from 083 at 47 knots? Don't they teach you in flight school not to fly into the middle of a thunderstorm?

G 135, I really hope that's the ground speed and not the maximum wind gusts in knots...

[47_Driver]

4 hours ago, Yurgon said:

Winds from 083 at 47 knots? Don't they teach you in flight school not to fly into the middle of a thunderstorm?

G 135, I really hope that's the ground speed and not the maximum wind gusts in knots...

Sometimes you just have to send it... scud running is always exciting. G 135 is ground speed, yes. Winds were at ~55kts before I decided to take a picture. We got up to 120kts indicated and around 170kts ground. Good times.

[badger7966]

I have enough wind symbology in my boxers to figure out any weather situation...better than real life !!!
