Hiob Posted October 21, 2024 Posted October 21, 2024 13 minutes ago, Bucic said: Part design, and it was a hiccup. It works for me now. Now I have this gizmo to deal with https://forum.freecad.org/viewtopic.php?t=91554 Do you no how to import lines from existing bodies into a sketch? "Muß ich denn jedes Mal, wenn ich sauge oder saugblase den Schlauchstecker in die Schlauchnut schieben?"
Bucic Posted October 22, 2024 Author Posted October 22, 2024 (edited) yes https://wiki.freecad.org/Sketcher_External What you see below is the most probable culprit. One click too many and I ended up with a copy of a sketch within the sketch. I Discoverer it by draggjng on a random line. TODO: Selecting things below! Edited October 22, 2024 by Bucic F-5E simpit cockpit dimensions and flight controls Kill the Bloom - shader glow mod Poor audio Doppler effect in DCS [bug] Trees - huge performance hit especially up close

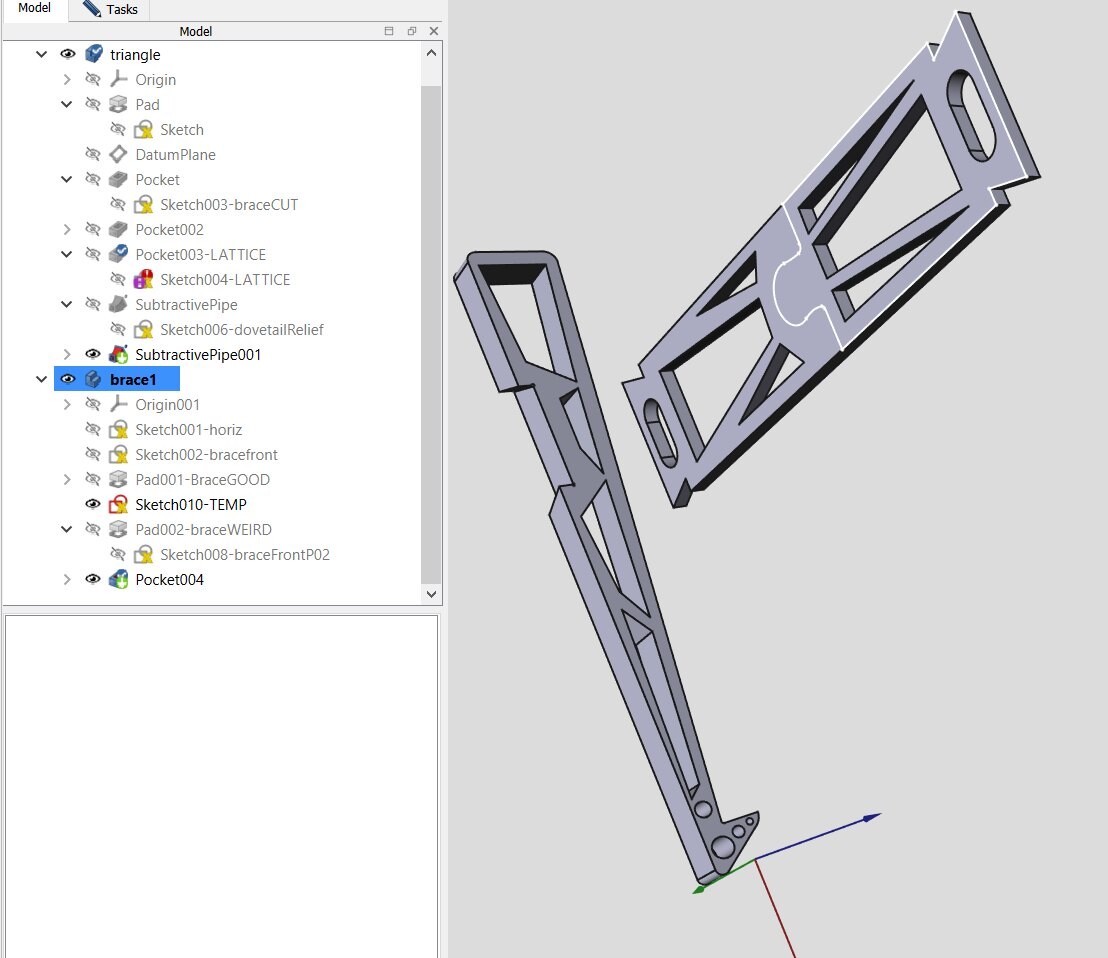

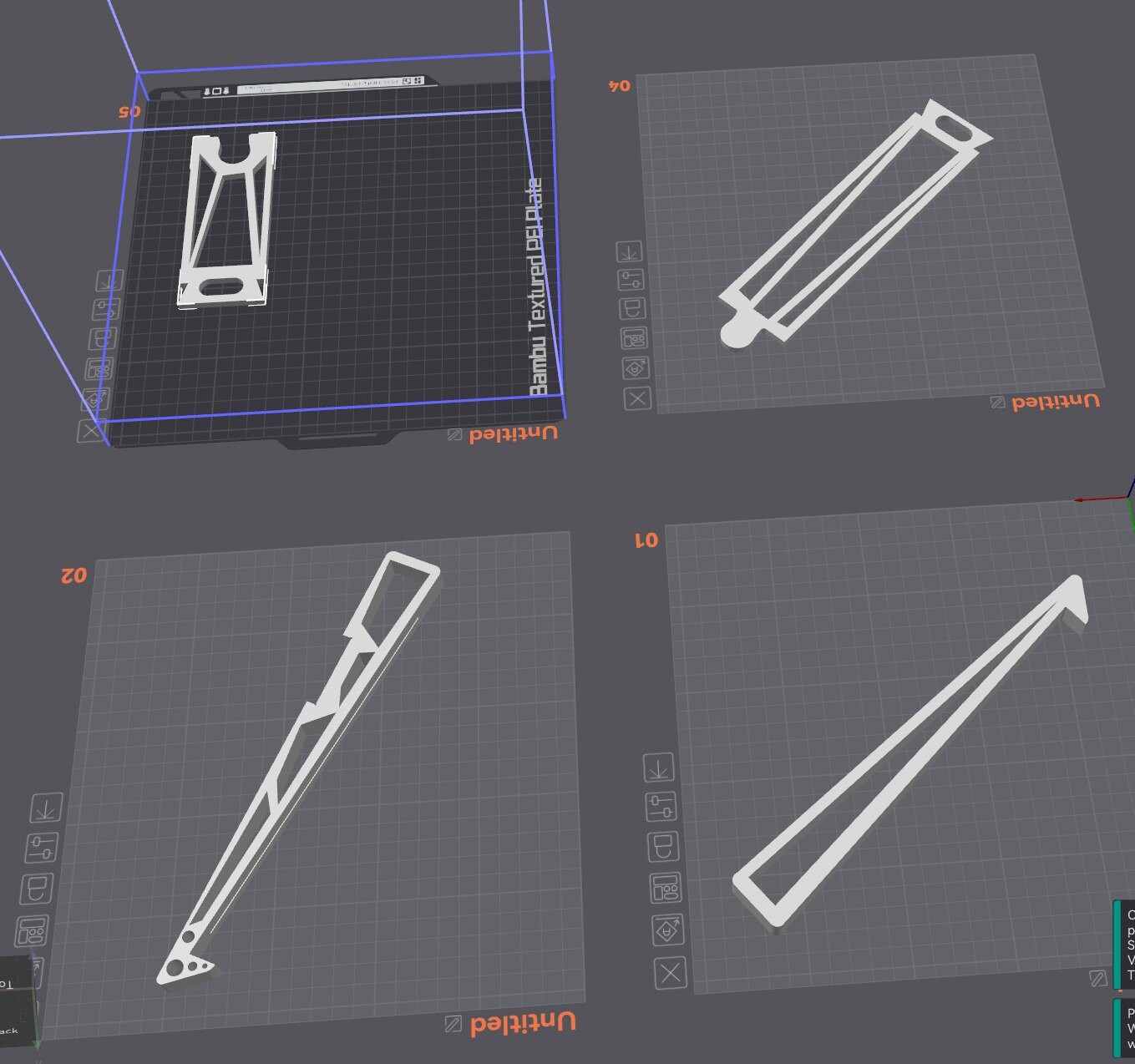

Bucic Posted October 22, 2024 Author Posted October 22, 2024 My household project no 2 done That dovetail was so satisfying to fit! The puzzle bulge was totally lose so it required glue. Still, a solid wide laptop stand for a 15"-er. As was having that (necessary) edge relief at the bottom of the dovetail socket (Freecad - Subtractive pipe, sketched 1-2 mm circle). 1 F-5E simpit cockpit dimensions and flight controls Kill the Bloom - shader glow mod Poor audio Doppler effect in DCS [bug] Trees - huge performance hit especially up close
Hiob Posted October 23, 2024 Posted October 23, 2024 These of the designs I made for the Crosswinds FFB mod: 1 "Muß ich denn jedes Mal, wenn ich sauge oder saugblase den Schlauchstecker in die Schlauchnut schieben?"
Bucic Posted October 23, 2024 Author Posted October 23, 2024 (edited) Nice work! Puts my workshop bootleg stuff to shame. Edited October 23, 2024 by Bucic F-5E simpit cockpit dimensions and flight controls Kill the Bloom - shader glow mod Poor audio Doppler effect in DCS [bug] Trees - huge performance hit especially up close
Hiob Posted October 23, 2024 Posted October 23, 2024 Just now, Bucic said: Nice work! Puts my workshop bootleg stuff to shame. Thanks, that's the quadrillions iteration though. Practice makes perfect....... There is still much more about FreeCAD that I can't do than I can do. E.g. I don't have the slightest idea how to assemble different object together. But I'm confident that everything that I need to do can be done 'somehow' in FreeCAD. And anything open source is a force for good in my opinion, so I give them some slack for an unpolished UI and some bugs.... "Muß ich denn jedes Mal, wenn ich sauge oder saugblase den Schlauchstecker in die Schlauchnut schieben?"
Bucic Posted November 15, 2024 Author Posted November 15, 2024 RC4 supposedly available, very little to go to 1.0 https://www.reddit.com/r/FreeCAD/s/sWdySCA3Dp F-5E simpit cockpit dimensions and flight controls Kill the Bloom - shader glow mod Poor audio Doppler effect in DCS [bug] Trees - huge performance hit especially up close
Bucic Posted November 20, 2024 Author Posted November 20, 2024 (edited) FreeCAD 1.0 release trailer - YouTube — https://wiki.freecad.org/Release_notes_1.0 Remarks: default material for new objects better looks QuickMeasure - gives basic info in the status bar on current selection #12217 Part Scale #10583 Part Mirror - arbitrary added #11535 Projection on surface is parametric #12116 Pad and pocket up to multiple faces #11392 and #14433 Thickness inwards #7488 Transform body - base shape #12589 SKETCHER: Sketcher - circle overlay for arcs! #9703 !!! !!! Contextual dimension constraint tool #9810 dimensioning while drawing shapes - switch with TAB OFFSET Tool Arc Slot Tool added #11174 automatic Horizontal / Vertical constraints #11538 ! polar transform added ( for patterns only?) #11264 ToggleDrivingConstraint ? !!! COPY/PASTE IN THE SAME AND BETWEEN DIFFERENT SKETCHES - WITH CONSTRAINTS #11537 ! SCALE TRANSFORM TOOL added ! Tangency to B-spline constraint added #11853 !!! !!! Rectangular array, move, copy... replaced with uniform ARRAY TRANSFORM tool #11267 Preserve corner option by default on applying fillet/chamfer Sketcher Driven Constrains so quasi Constraints #11500 Toggle Construction Geometry #11500 ??? unified Coincident constraint tool #11494 !!! Select all geometry connected with the edge - double click #11925 DRAFT WORKBENCH !!! BROKENVIEW added for long objects #1331 ! Contextual dimensioning as seen in Sketcher #13525 Edited December 6, 2024 by Bucic 1 F-5E simpit cockpit dimensions and flight controls Kill the Bloom - shader glow mod Poor audio Doppler effect in DCS [bug] Trees - huge performance hit especially up close
Bucic Posted November 22, 2024 Author Posted November 22, 2024 Open Source community seems to be getting combative or something https://www.gimp.org/news/2024/11/06/gimp-3-0-RC1-released/ If you didn't know for vector graphics Inkscape hit 1.0+ sometime in 2023 or even earlier https://inkscape.org/ And Blender makes cinema premiered movies now https://en.wikipedia.org/wiki/Next_Gen_(film) F-5E simpit cockpit dimensions and flight controls Kill the Bloom - shader glow mod Poor audio Doppler effect in DCS [bug] Trees - huge performance hit especially up close
Hiob Posted November 22, 2024 Posted November 22, 2024 Can't say I'm not happy! "Muß ich denn jedes Mal, wenn ich sauge oder saugblase den Schlauchstecker in die Schlauchnut schieben?"
Bucic Posted December 27, 2024 Author Posted December 27, 2024 An excellent article! Be on the lookout for 1.1 features landing already int he weekly builds Libre Arts - FreeCAD 1.0: new features and the larger picture - https://librearts.org/2024/11/freecad-1-0/ F-5E simpit cockpit dimensions and flight controls Kill the Bloom - shader glow mod Poor audio Doppler effect in DCS [bug] Trees - huge performance hit especially up close
