pitbldr, can you help with size?

Next: paint the buttons in gray and engraved.

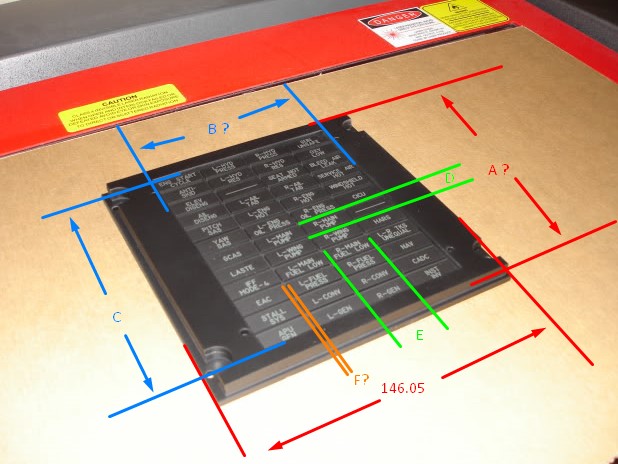

Guys, can anyone help with sizes for caution light?

Thank you! All files and schemes will be shared for all. I can also make and send any panel for individually if someone needs.

Lars, you're not going to do the panel caution light?

This is equivalent. You can also do this: --[Resistor]---[LED]---[Resistor]--- = --[Resistor]---[Resistor]---[LED]--- This equivalent to.

CMSP Panel. Not completed (left to paint and engraved lettering )

Ian, in last versions DCS arduino library does not support arduino DUE. Add you support for them in future?

Controller for panels: Two displays 8" for MFD: Cougar frame is small for A-10C. I will make other frame.

Yes. I use this display with arduino due:

http://ru.aliexpress.com/item/3-5-inch-TFT-Touch-LCD-Screen-Display-Module-For-Arduino-UNO-R3-HIGH-QUALITY-Free/1854595985.html - excellent work with arduino due

Use Arduino Due for quick refresh screen. I use this display too. Bitrate 57k, and modify DCS-BIOS: [ame] [/ame]

Yes, its for CDU. Buy on aliexpress: http://ru.aliexpress.com/item/3-5-inch-TFT-Touch-LCD-Screen-Display-Module-For-Arduino-UNO-R3-HIGH-QUALITY-Free/1854595985.html + Arduino DUE for control.

"measurements" - You mean dimension? In attachment schemes for Back- Middle- and Front-panels for ArtCam 2011. And only for backplate in format DXF. ElectricalPower.zip

Cougar MFD smaller than the original A-10C MFD. Who knows what the size of that of the original MFD?

Electrical Power Panel

Guys, thanks for help! I will try two variants for to make caution panel: with one MAX7219 for all LEDs, and second variant: 74HC595 + UL2803.

Yes:) How I can control LEDs with arduino for caution panel? I find microchip MAX7219, but I have example only with 8x8 matrix, and in panel used 4x12 LEDs.

pappavis, Do you speak Russian? I few months ago build CNC, can share knowledge, but I bad speak English.

Perfectly! And whether consoles drawings? If yes, then when? :)

linden, what LCD you use for CDU ?

Done I mean, that panel with backlight will be used reworked middle plate. On photo middle plate for panel without backlight.

4mm panel is converted into a LEDs and labels.

Sharp PCB on CNC for backlight: Tomorrow or the next day completed yet light. For plate use: 1) Aluminium plate 2 mm 2) PCB 1 mm 3) Polyvinyl chloride panels (how right in English?) 4mm (or without PCB 5mm) 4) Milky acrylic glass 2 mm I cut acrylic panel on CNC, and then painted in black. When the paint has dried on it label engraved depth of 0.1 mm. Sorry, for my English :)

And buy display for CDU and test them:
