After patching from 1.0 to 1.02 the programm asks for the activation key. Can it be that I lose one activation after patching? :(

New download-link now is: http://home.arcor.de/simpit/F16fighter/Downloads_Download-Site_for_Co/Black_Shark/Cockpit-Drawings_Triggerhappy_/cockpit-drawings_triggerhappy_.html Much fun!

See the link on my site: http://home.arcor.de/simpit/Downloads/Black_Shark/black_shark.html

Völlig richtig! Habe einen Hardwaretest MSINX8600GT vs. MSI N9800GTX+ gemacht, ohne daß sich eine nennenswerte Veränderung der fps ergeben hätte, s.a. http://www.buddy-spike.de/vb/showthread.php?t=4332. Es kommt also allein auf die CPU an. Und das gilt leider für sämtliche guten Flugsimulationen(F4 (OF), IL2).

New fine drawings by triggerhappy: http://home.arcor.de/simpit/Downloads/Black_Shark/Download-Page/download-page.html Use solid works viewer! Thank you triggerhappy :thumbup::thumbup::thumbup:!

Airbrushing with a spray can is a thing of 5 minutes. The most important gauges are the HUD, ABRIS and Shkval (there you find all datas - you know). Therefore take a second monitor: http://www.buddy-spike.de/vb/showthread.php?t=4261&page=4 I think, a touchscreen is neither necessary nor helpful.

I´ve no solution for this problems. As far as I know there is no interface implemented in BS. But temporarily its enough to use TrackIR4 and a second monitor for ABRIS and Shkval :thumbup:. I built the panels as fast as possible and not absolutly scale. But I think it´s better to have them quickly available in the cockpit than in a few years (they are just airbrushed) ;).

The Targeting Control Panel (s.b.). construction time: 2 1/2 hours. Costs: 60,- €.

Well, if you take "acrylglas" (see below) you have a very fine material to copy the drawings on the material. You´ve only to put it on the print and copy the drawing. The printings of the jpg´s are not very accurate. Therefore if you are interested in the dft-original-files, say it to me. The printings made directly from the dft´s are very good and have an exact scale 1:1.

Nice :thumbup:! But it looks like a fitness trainer :megalol:!

New drawings here: http://home.arcor.de/simpit/Downloads/Black_Shark/Download-Page/download-page.html Much fun!

...or a Installation-readme in ziped folder! This would be great :thumbup:!

:thumbup: !

No sorry, I´ve only 2 files of the pedals. But I think (and hope), further files will come soon :smilewink:.

Preview:

New files of our triggerhappy are available: http://home.arcor.de/simpit/Downloads/Black_Shark/Download-Page/download-page.html See the zip-archives!

Well, 3.15" is equivalent to 80 mm. I think the dimensions with 75 - 80 mm are realistic.

I forgot! Critique is welcome! I calculated the dimenesions on the basis of the ABRIS-dimensions (260x220 mm). Based on this dimensions the mechanical clock has a diameter of 75 mm. This instrument is exactly above the engine start-up panel, which has the same width:

Thank you soup. Here some more files concerning the left panel: http://home.arcor.de/simpit/Downloads/Black_Shark/Download-Page/download-page.html Much fun!

Further drawings will follow, but I´ve not yet side panels! But I will soon create the most important panels for targeting and autopilot on the base of triggerhappy´s dimensions and the ABRIS-documentation of Swetrekki.

The dimensions of the middle-console is circa 201 mm. the PUI 115 cm. Do you agree?

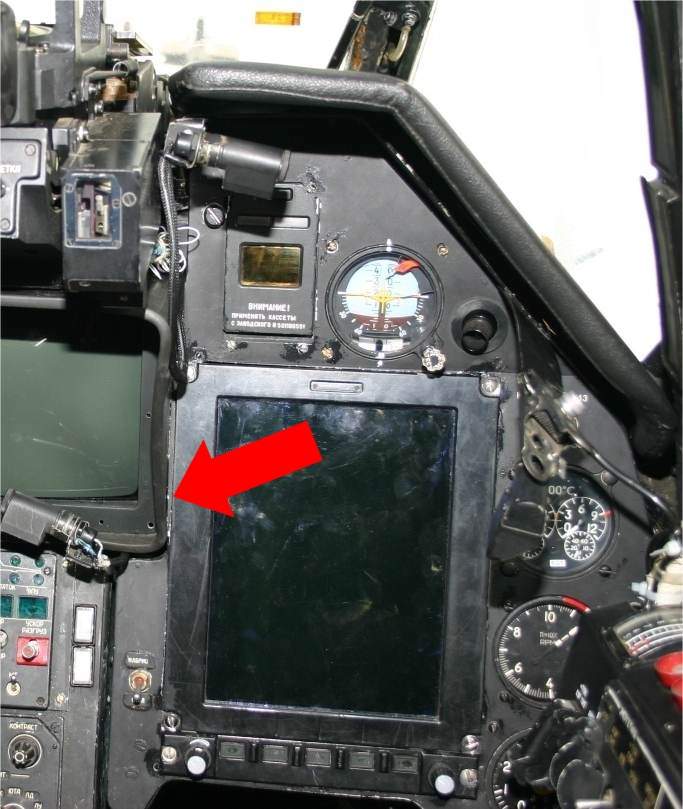

Well, now I agree. Triggerhappy´s Pit is scale. Only his ABRIS is a bit too small. the ABRIS reaches up to the Shkval-Monitor:

Give me the true value of only one analog gauge of the Ka-50 and we will specify the realistic dimensions :smilewink:.

Ok, a few files are uploaded: http://home.arcor.de/simpit/Downloads/Black_Shark/black_shark.html Further files will follow in the next days. Tell me, if there are download-problems.

Wonderful :thumbup:! I´ll try to publish the files next days and will inform you. The instrument you found is a good basis to calculate the dimension. I think the panels in the front-area (i.e. PUI 800 etc.) of the pit are the most important parts.
