skunk160

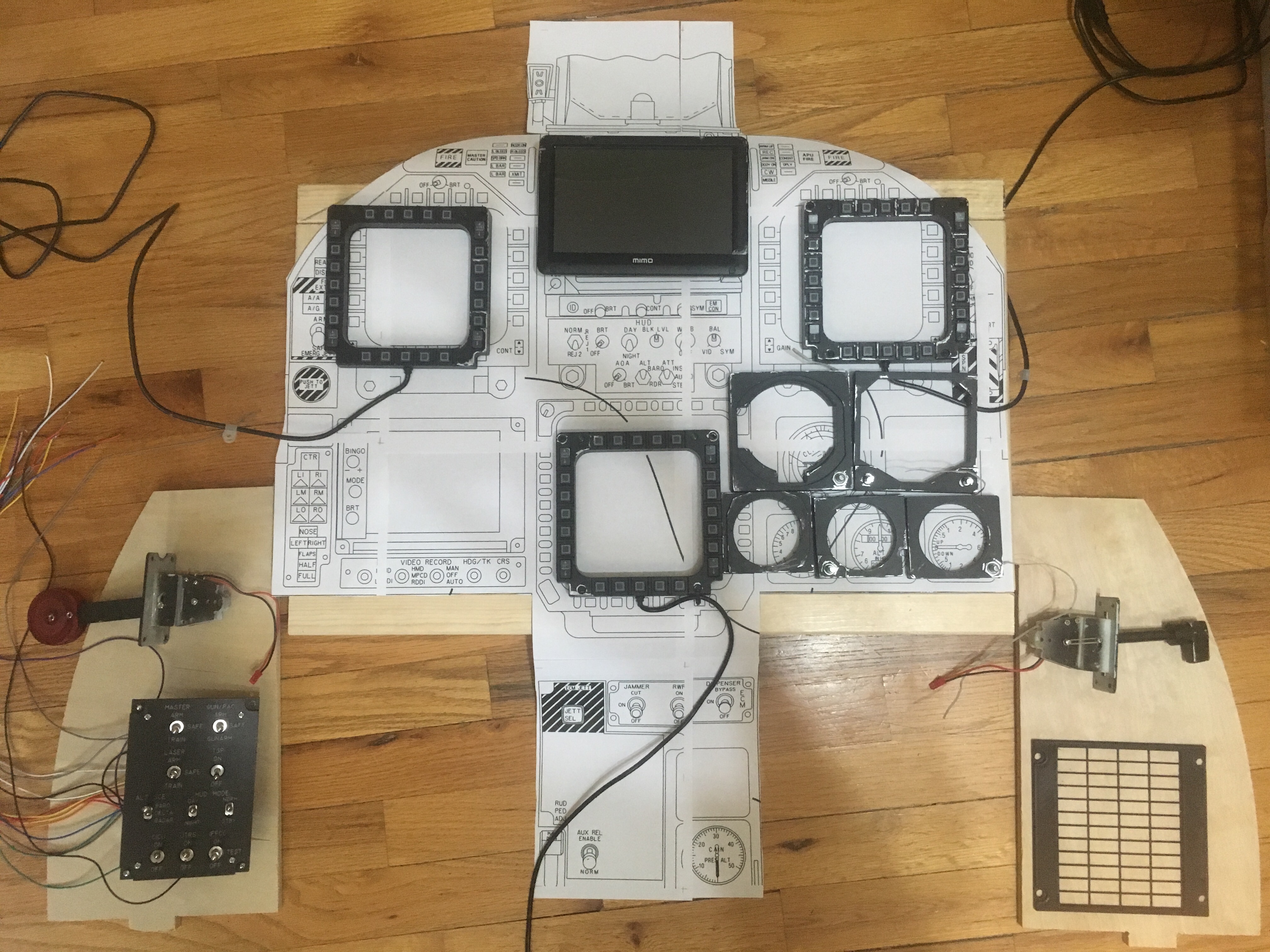

I've broken down my front dash to shippable size parts. 3x TM MFD with printed mountings (removeable) FA-18 style engine gauge bezels, fuel panel A-10C ADI HSI with pots/rot switches [ATTACH]148452[/ATTACH] ....check out the pics, if you're interested PM me with an offer

if Cast AR was further ahead, IE more like real time green screen. where ever there was green screen around the pit you could see sky then Id keep the pit as is, to be honest ive only sold my 3d printer and triple screens, so I could always go back to a hybrid AR/VR/physical pit later

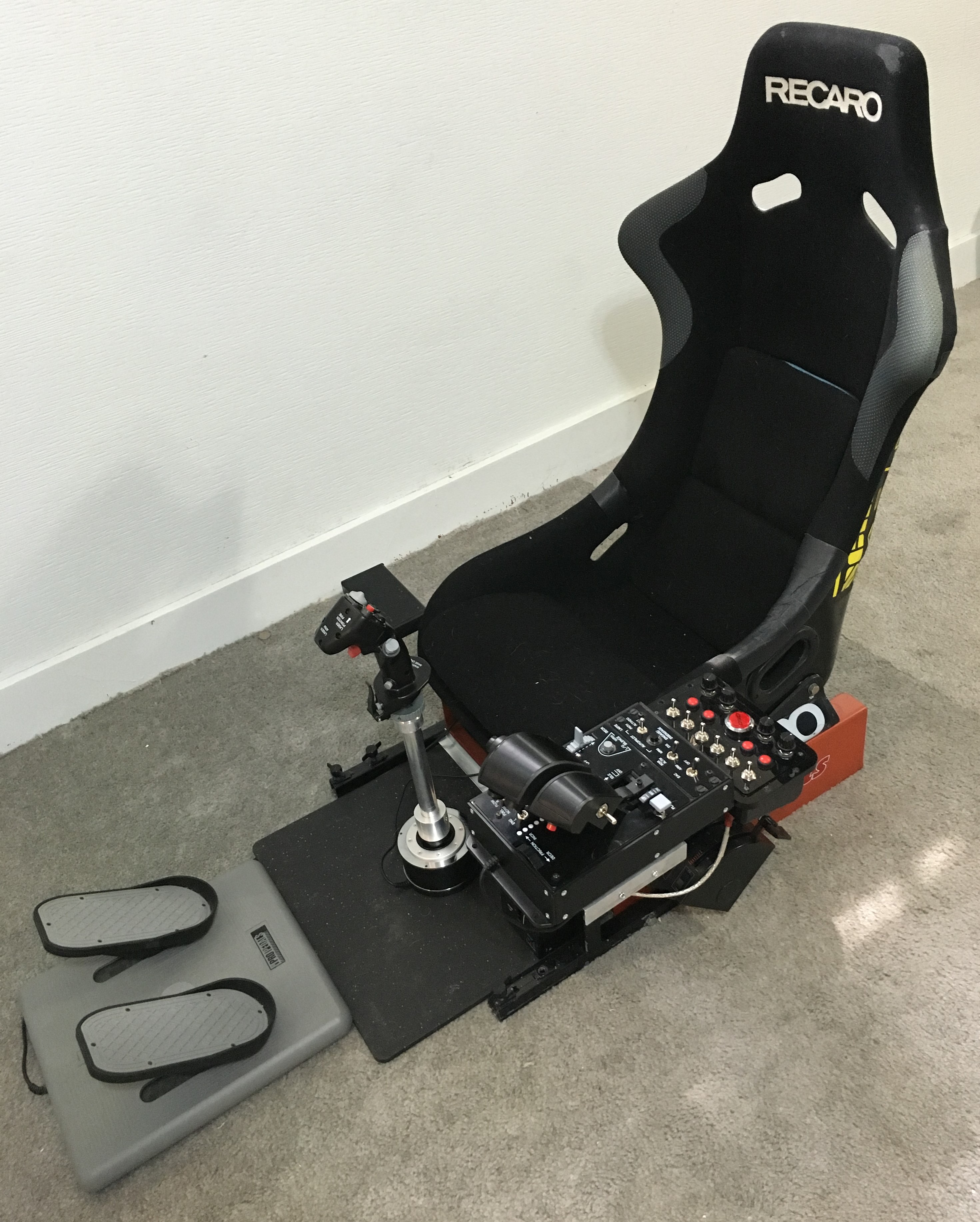

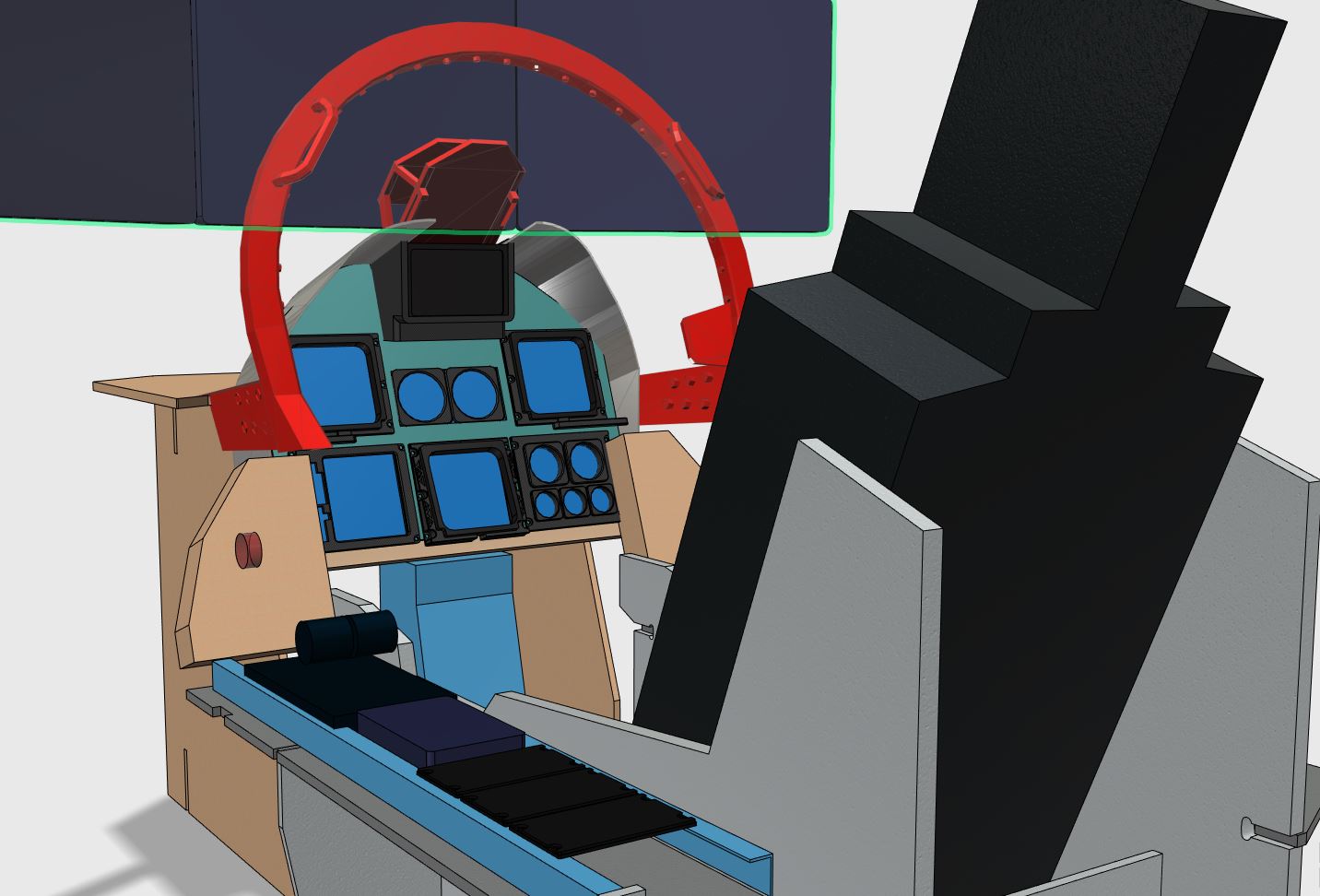

Change of direction for my pit. Just waiting for my OR to arrive. Just enough physical buttons and analog controls to find virtually blindfolded now what to do with the dash I built....

not viable to sell as is.

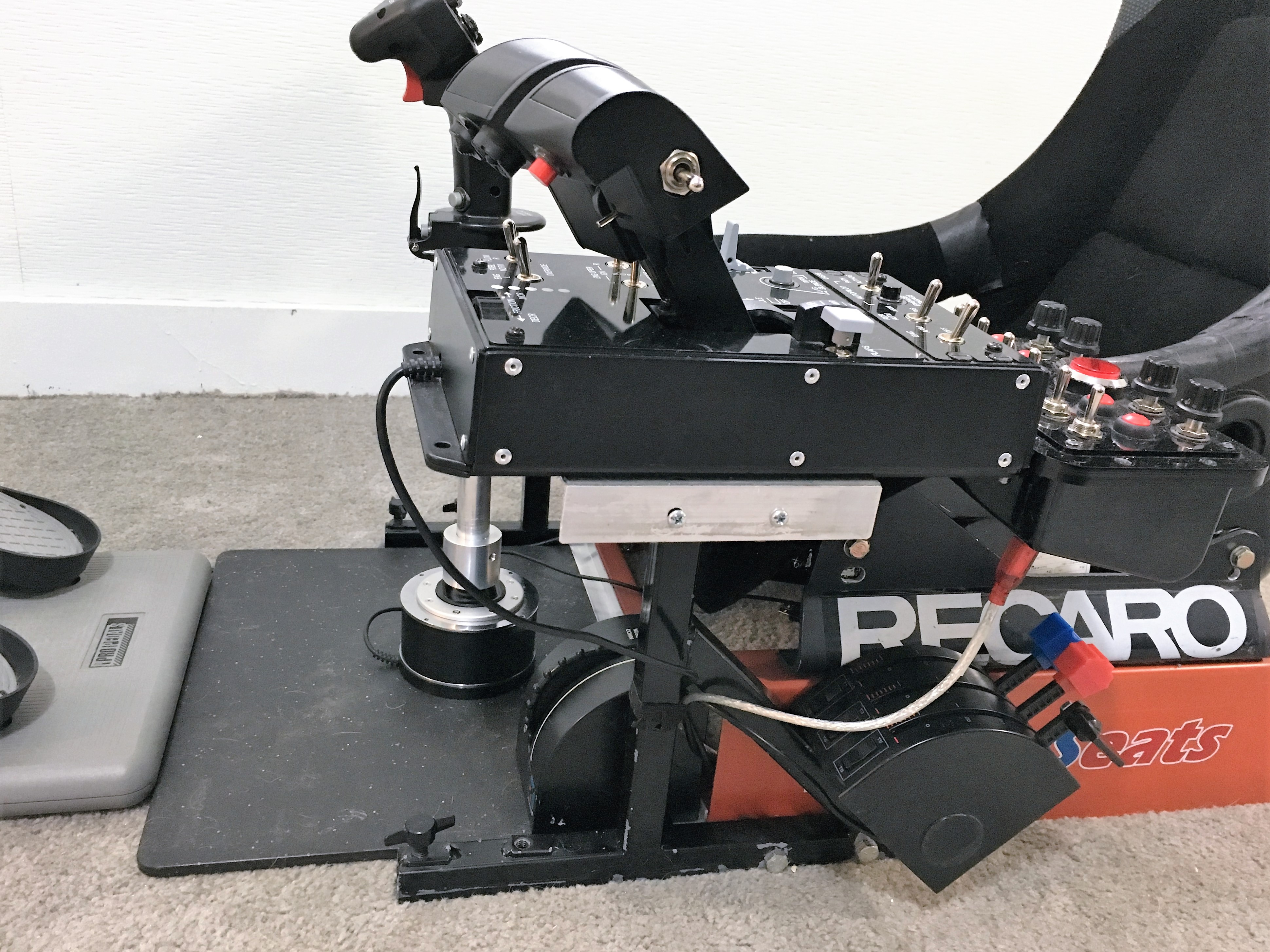

yea, ill get another TM stick. not diggin the new VKB looks, and wasnt overlykeen on the black mamba3 looks. A TM Warthog stick and a floor mounted BRD-n base will do me

Asked this over at simhq already.... So I FUBAR'd my Warthog Flight Stick Don't ask So Now do I get a TM Warthog Flight Stick or Fat Black Mamba Mk. III? I like that the Warthog has as many input controls as it does compared to the Black Mamba, but I do hate replacing stuff like for like and not feeling like its an upgrade or at least something different. If I didn't already have the complete TM Warthog setup I would'nt be getting the Mamba because of the lack of Throttle quadrant. But Now I have the throttle and no stick so which would you get?, baring in mind I'm more a F- pilot than a an A- pilot But the lack of stock Black Mamba is a concern

VRS FA-18 Superbug

Progress. :pilotfly:

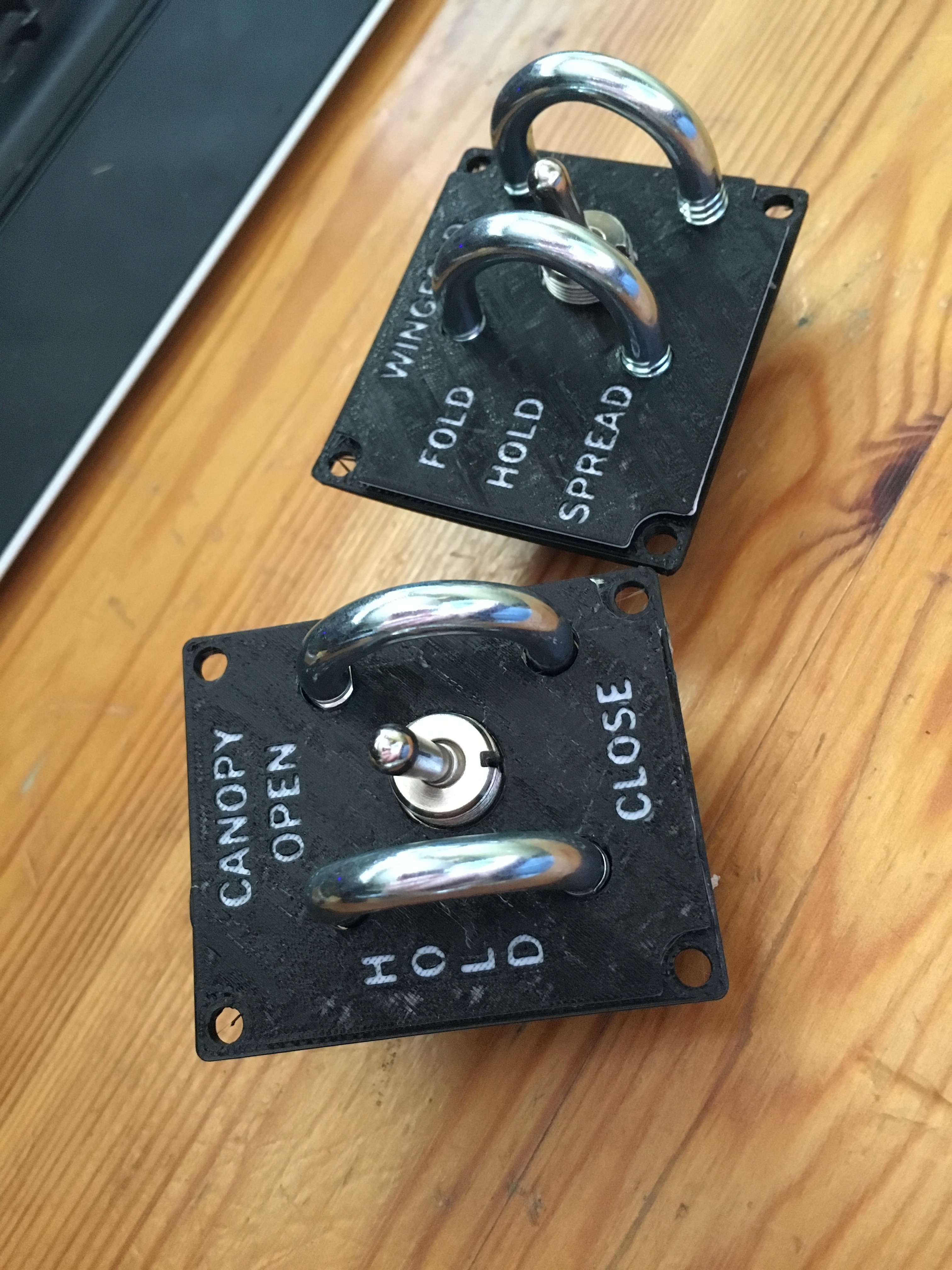

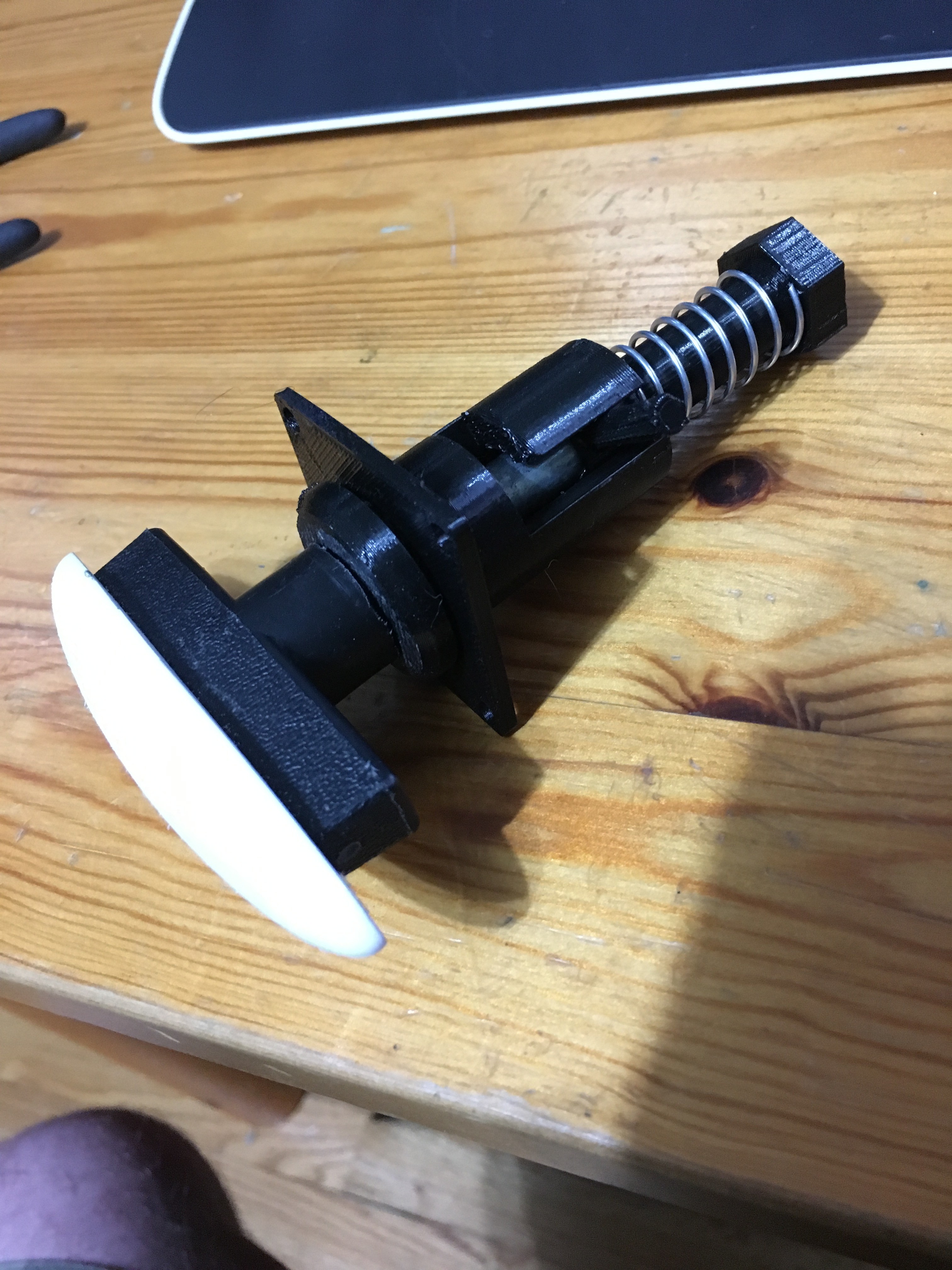

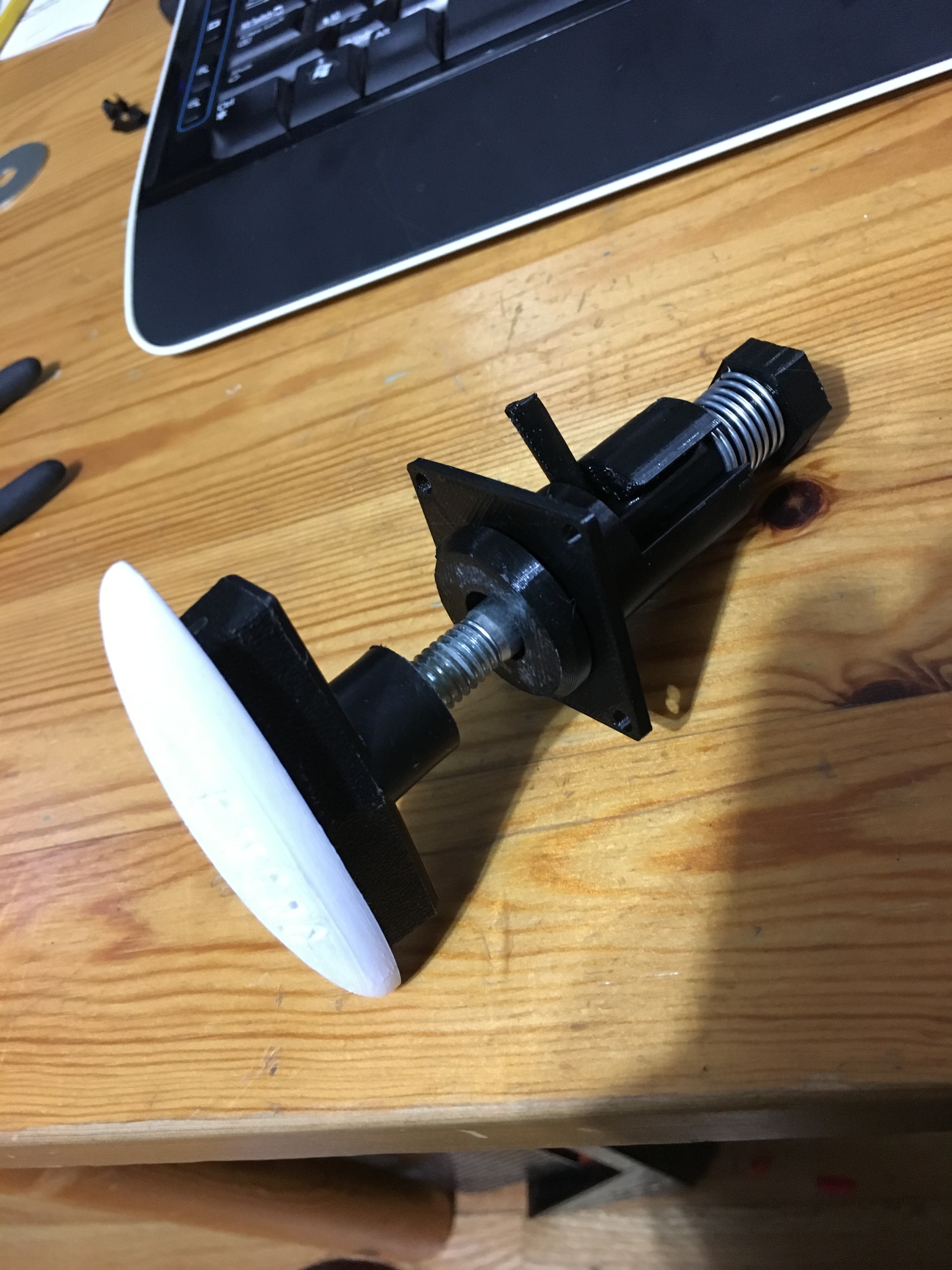

Emerg Parking mechanism Spring loaded in Locked out

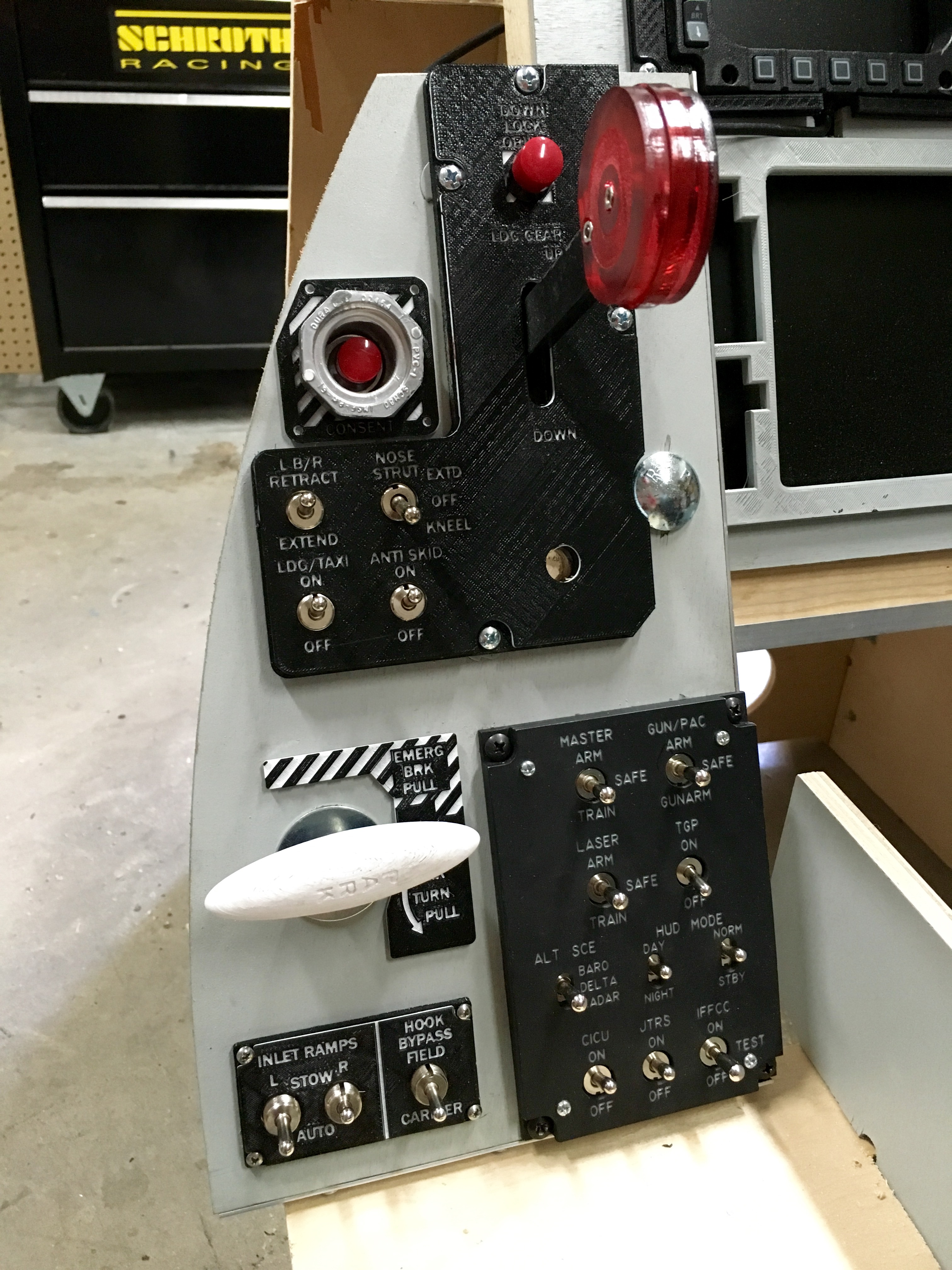

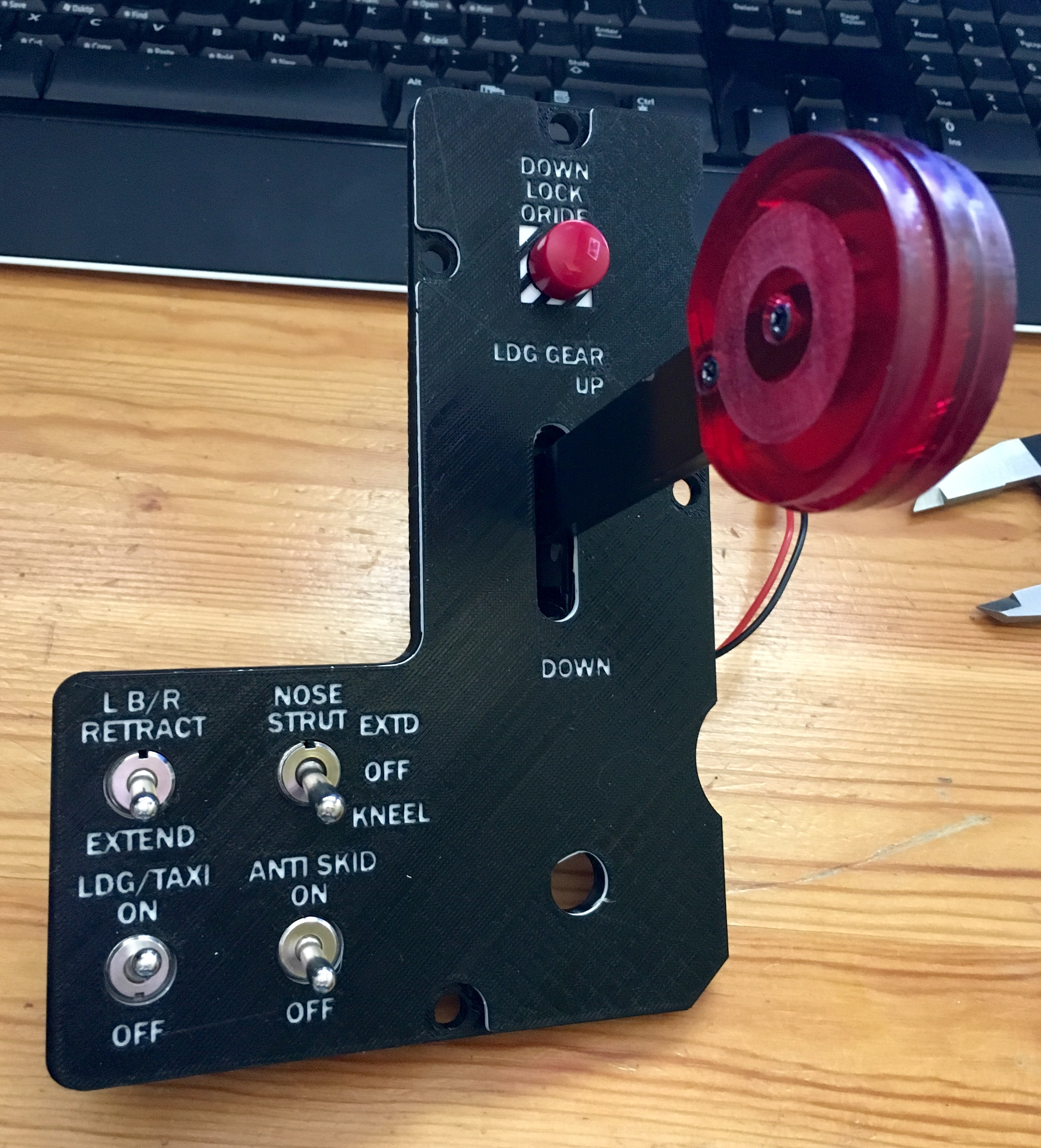

Left side. Still to do the Jettison select and Parking Brake mechanism....and paint the handle

Chuffed :)

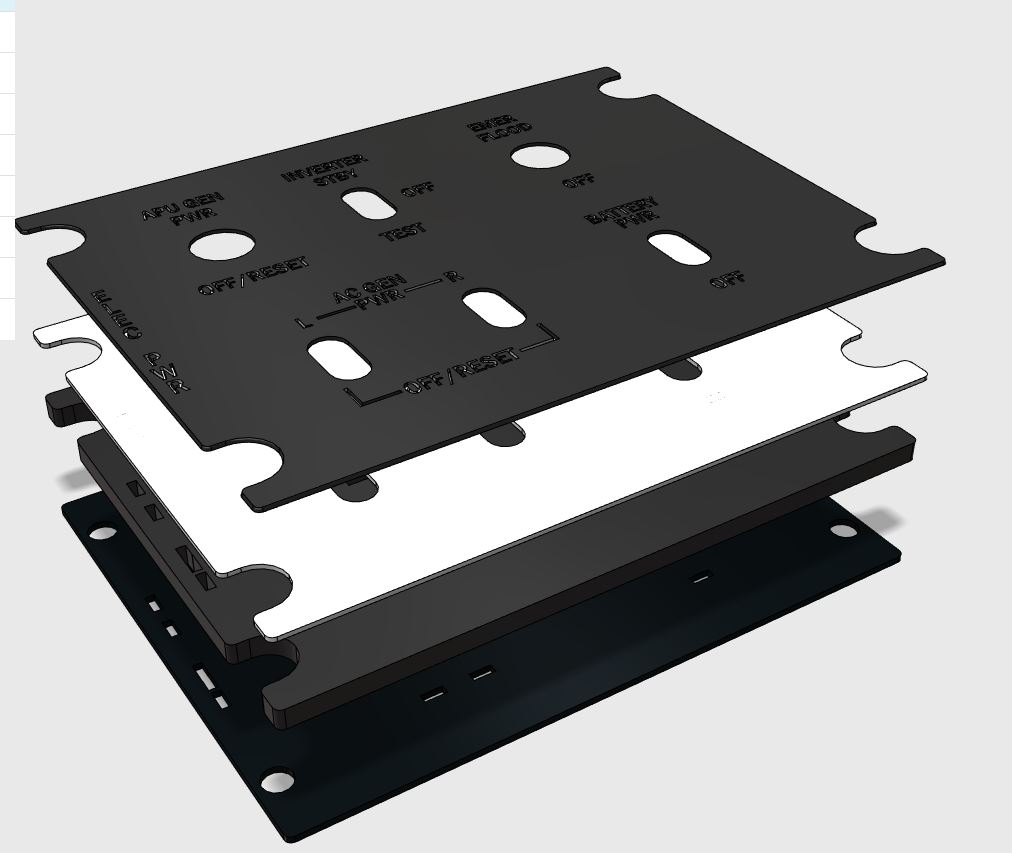

cant get ms53330 font to work in 123design, so i used Franklin Gothic Medium Cond size 5.5. its bigger than MIL spec so you have to allow for that but its borderline clean and clear the other trick is keep the black text layer as thin as possible, i tend to stay at .5 mm, so the letters are legible at any any angle

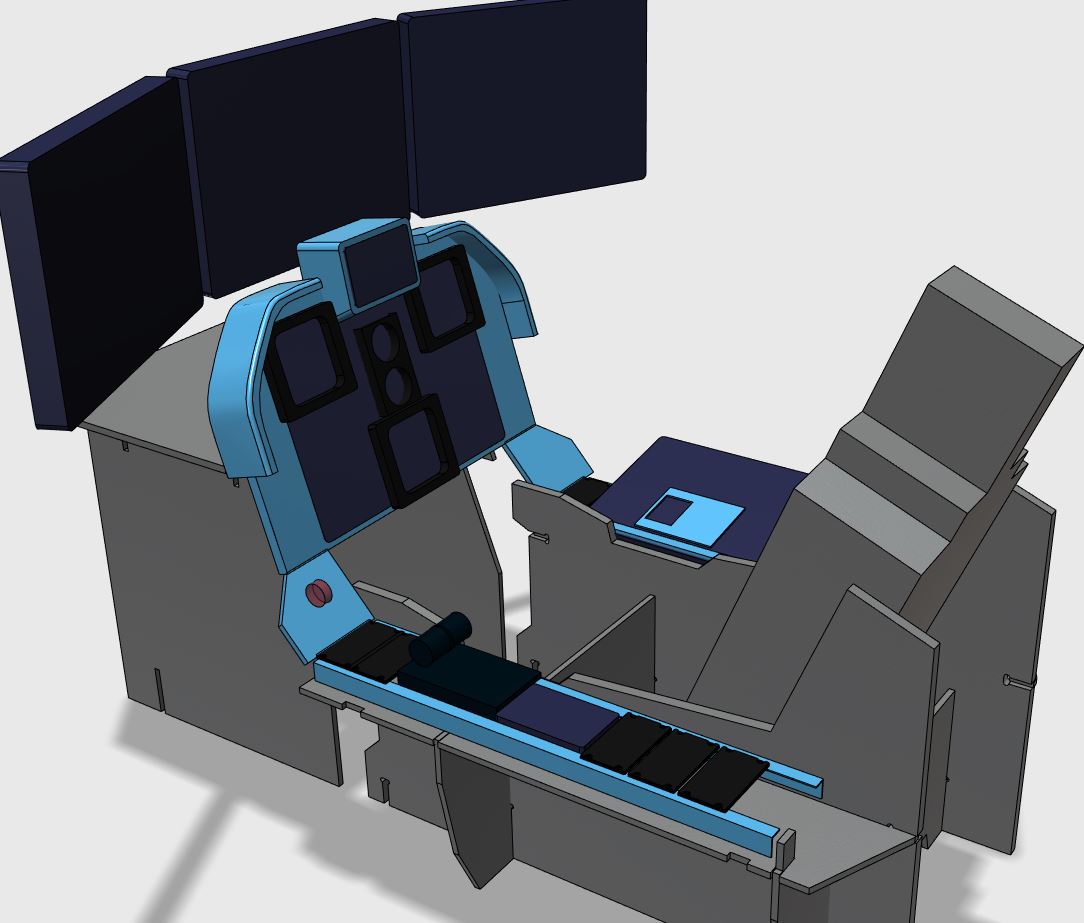

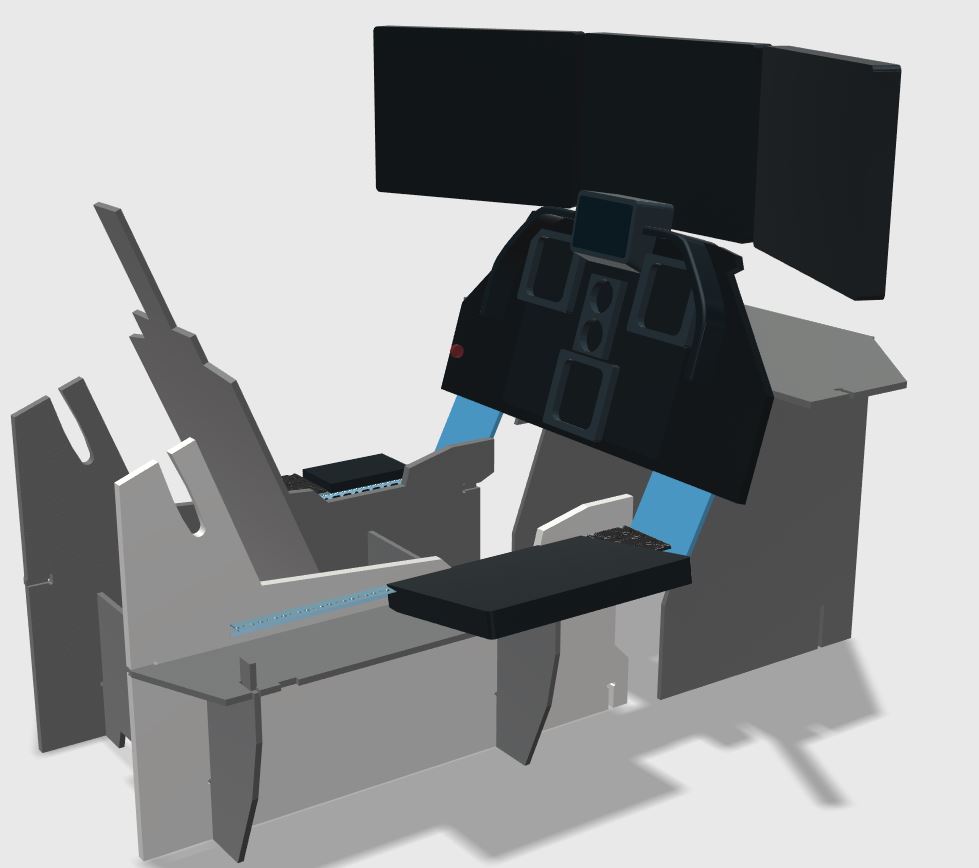

Pleased with this. FA-Ten18, mix of A-10 FA-18 with a F-14D nose strut switch

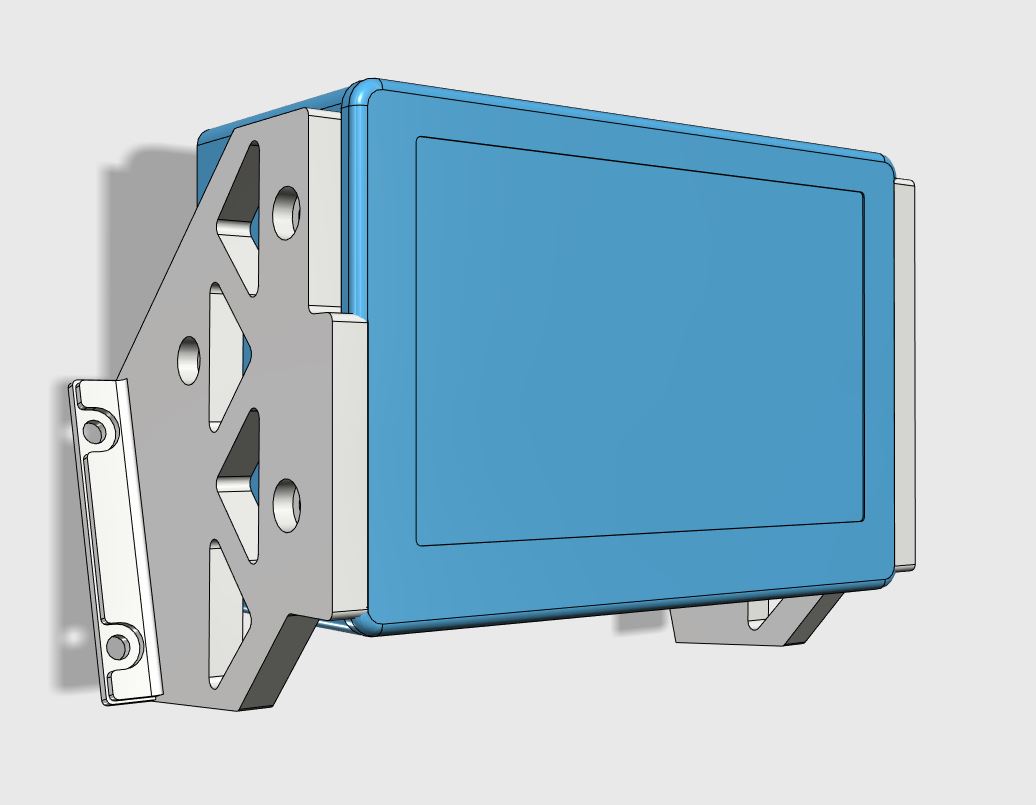

FA-Ten18 UFC

love it, nice job

Impressive....most impressive

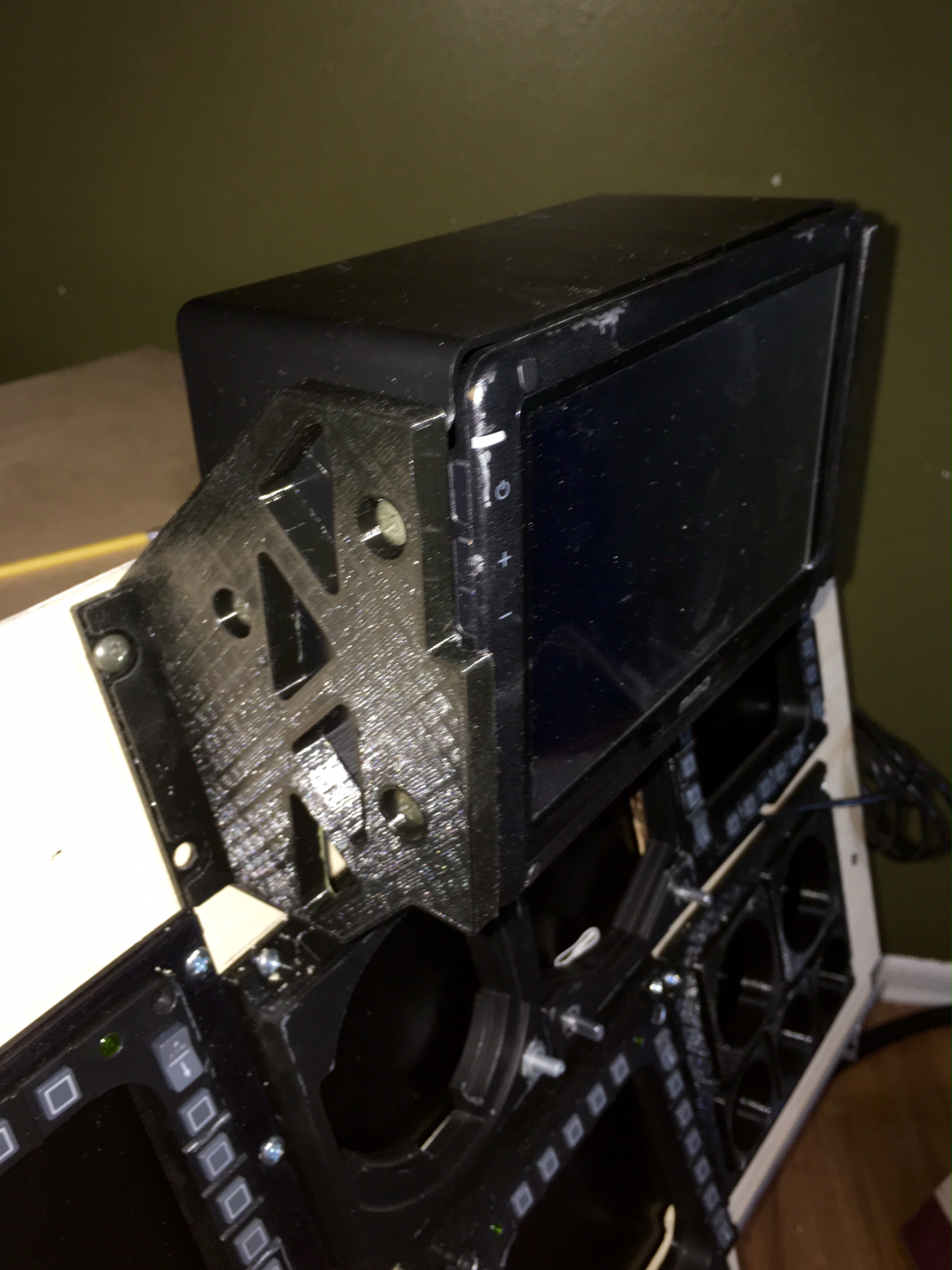

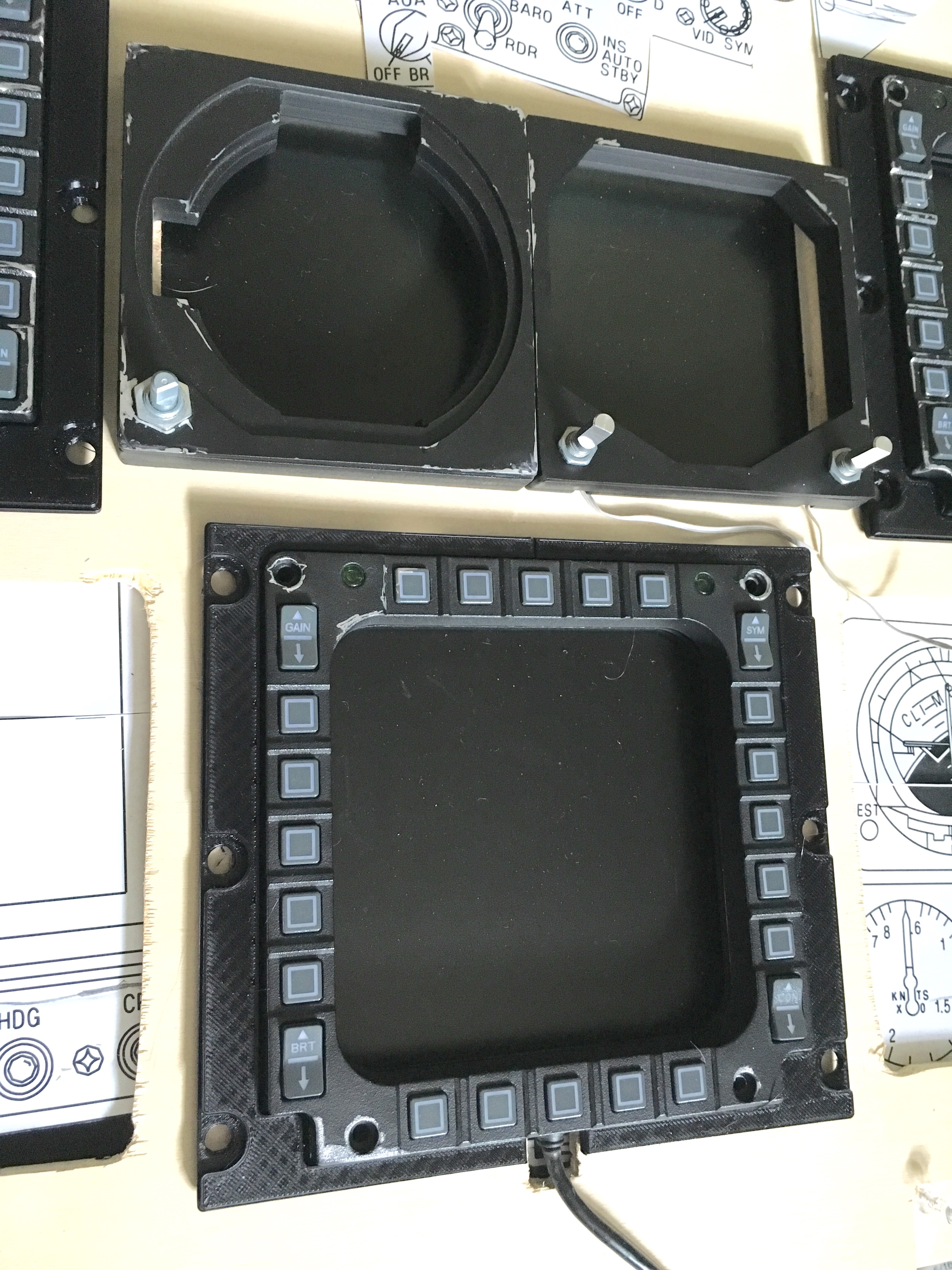

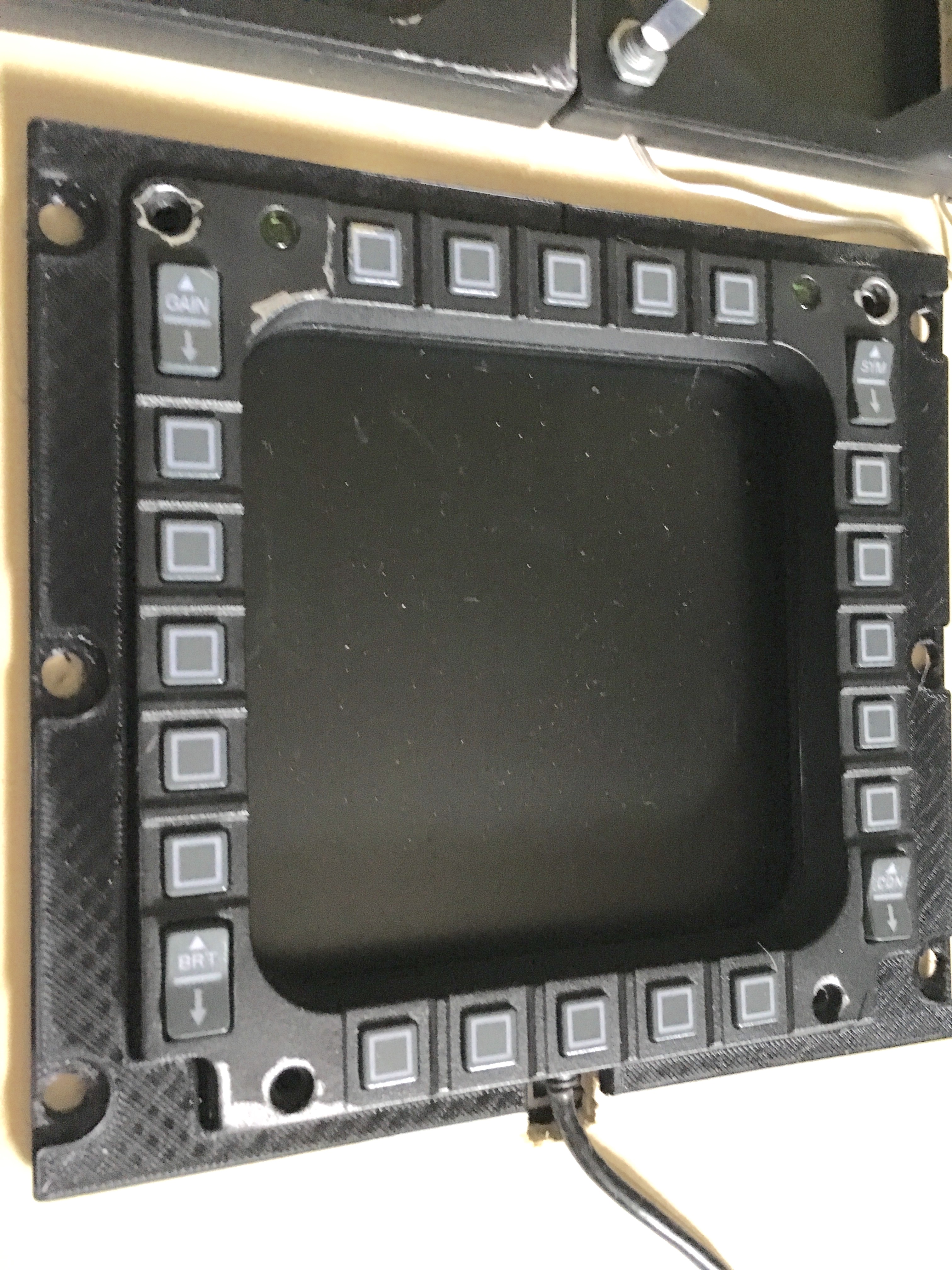

Hardly Gene :) I wanted the MFD's to be as close to the display as possible, to get rid of the parallax and offset of the OSB and the MFD buttons. So the mounts allow crappy hand cut holes to be covered with nice straight edge and accurate printed mounts that keep the MFD's just floating off the screen . If i had a CNC I'd do it differently they're more function than form, when they're all done i may redo with a bit more design still to do the MFD cable guides the mounts will be fixed to the ply with machine screws into tee-nuts from the screen side so the mounts can be swapped out, if I want to reconfigure for various aircraft

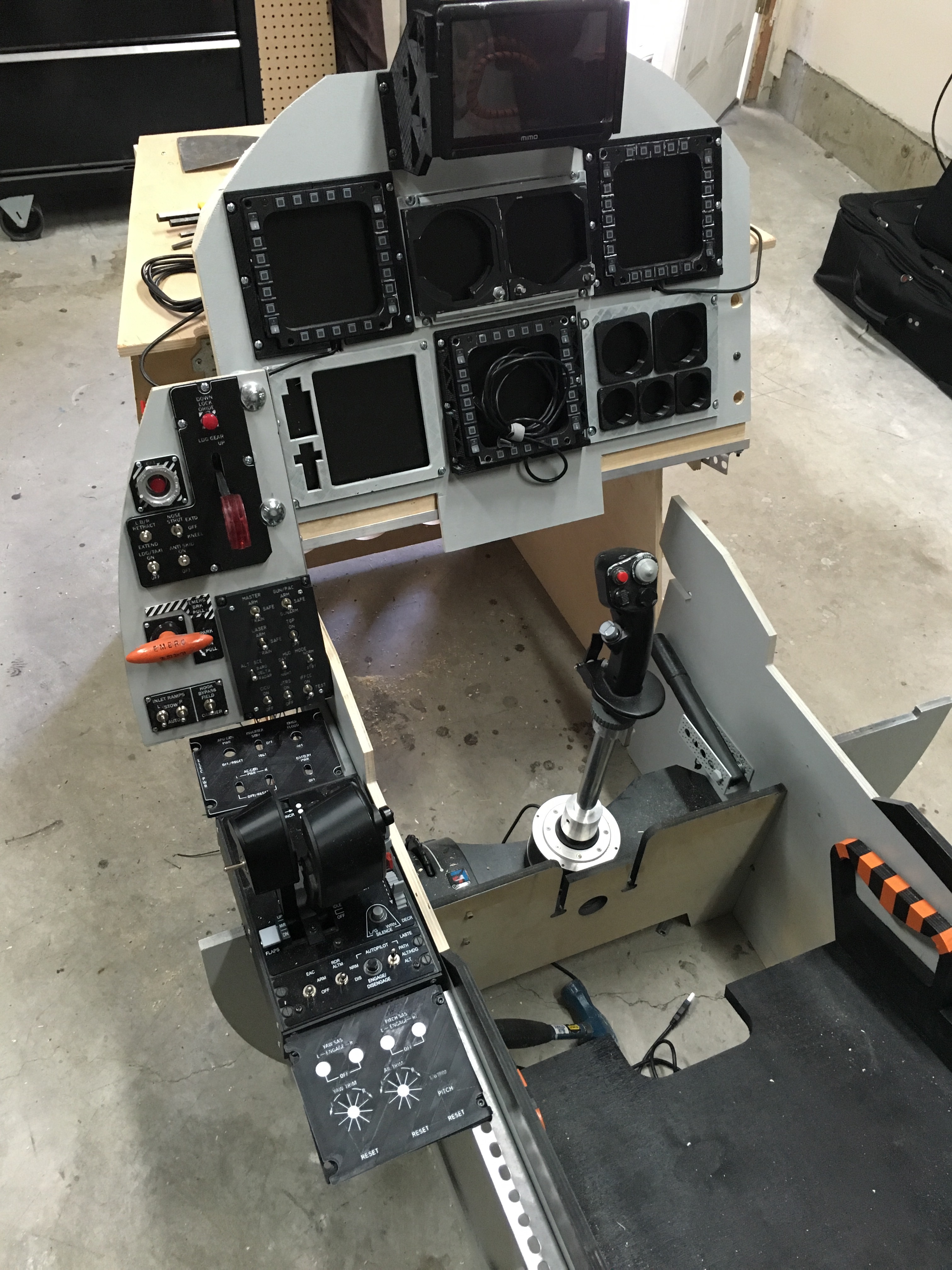

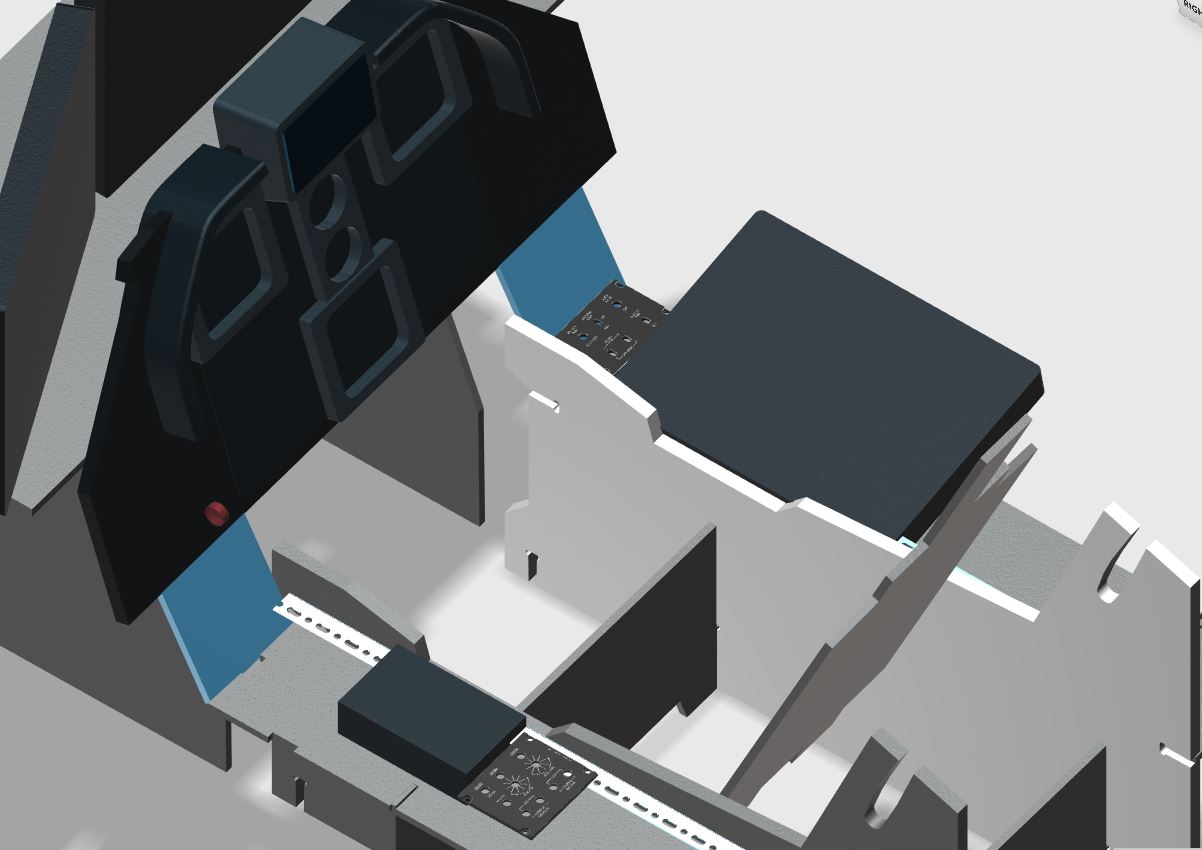

slow progress on the FA-Ten18

No mention of the software used http://www.isrtv.com/assetto-corsa/mixed-reality-assetto-corsa-gt3-qualify-oculus-rift/

let the virtual modding begin

been an animator for 20 years, first time I've built something in 3D I've put together in real life

here we go again...

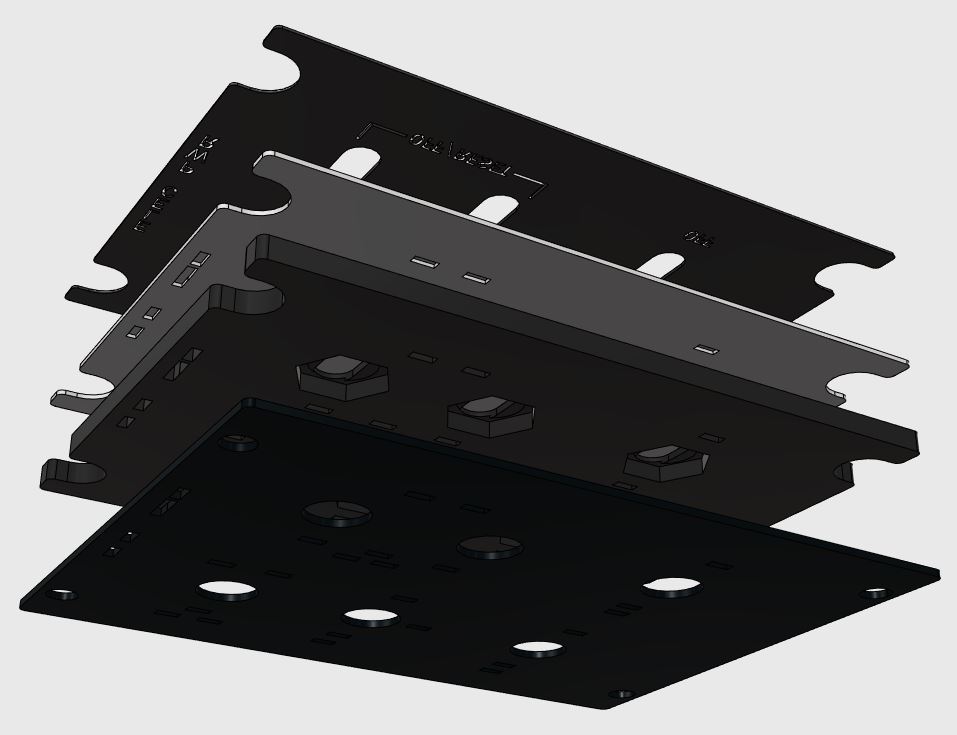

How is it different from cutting Acrylic sheets? Except it's easier to create negative spaces for LEDS, fastner hardware etc

any plans to release these?
